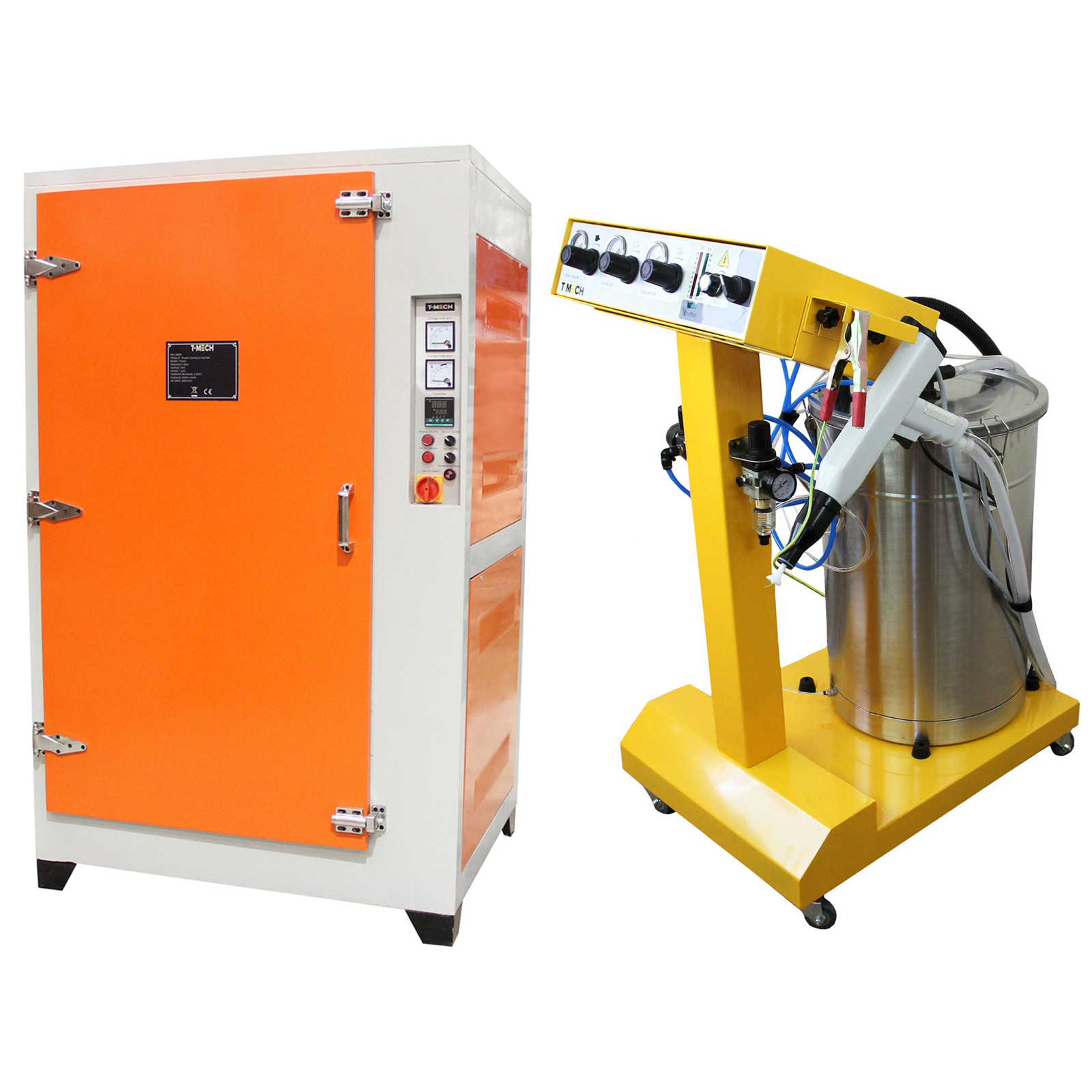

Powder Coating Bundle, Machine & Curing Oven

The ultimate powder coating bundle! Featuring the T-Mech 45L powder coating machine and curing oven!

This bundle is great for big projects - with the electrostatic powder coating machine having a large 45L powder capacity and the curing oven featuring 2 shelves with rails. Both are easy to use and come with a 12 month electrical warranty!

Powder coating is used to create a durable and high quality finish, which is great for tough machinery! Power coated products are more resistant to corrosion, fading and chipping so when done correctly it should last a very long time.

Powder coating is a dry finishing process using powder particles that are electrostatically charged and sprayed onto grounded metal work. After the coating is applied, you need to cure the parts using a powder coating curing oven.

Powder coating machines & ovens are used in a range of industries including auto parts, medical equipment, home appliances and much more!

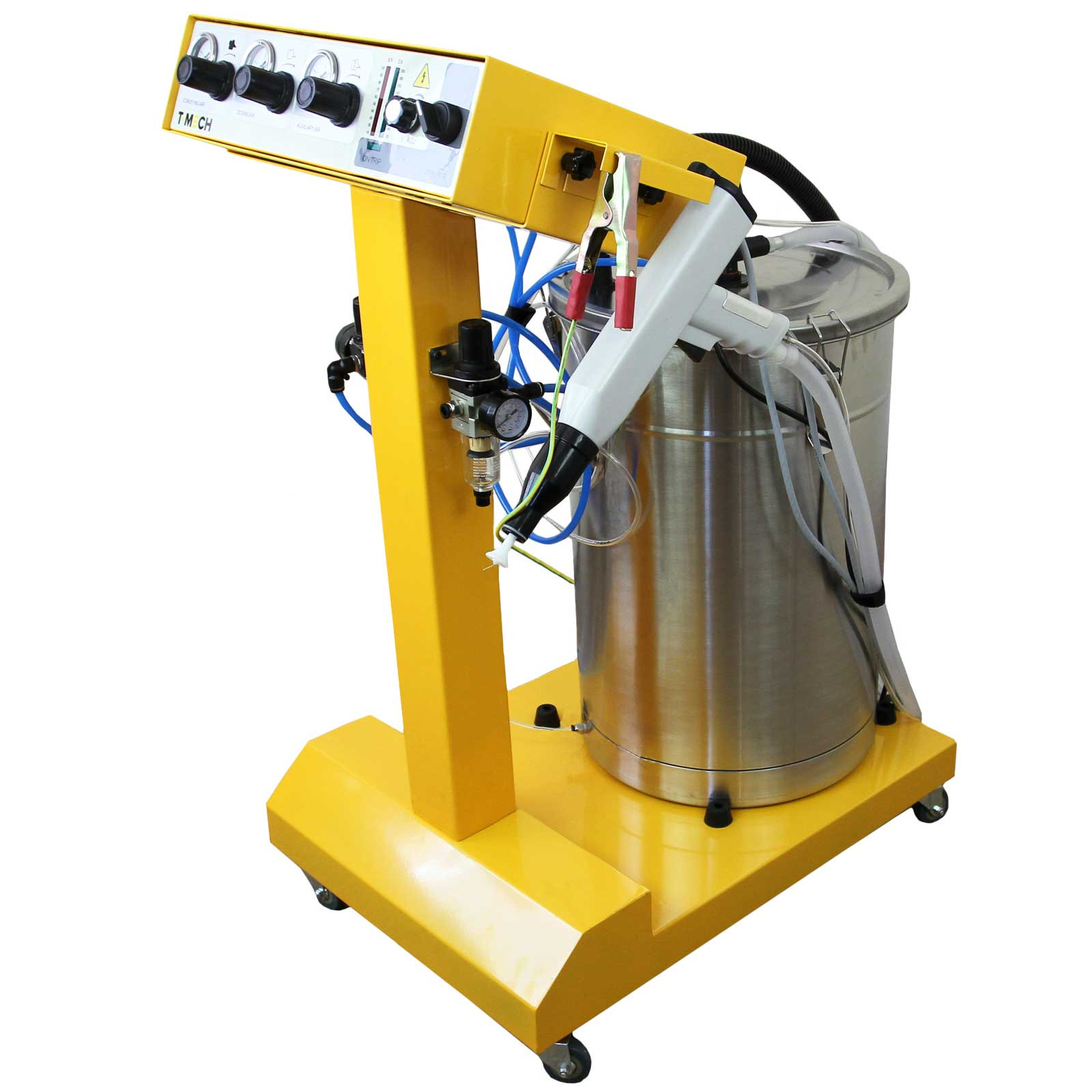

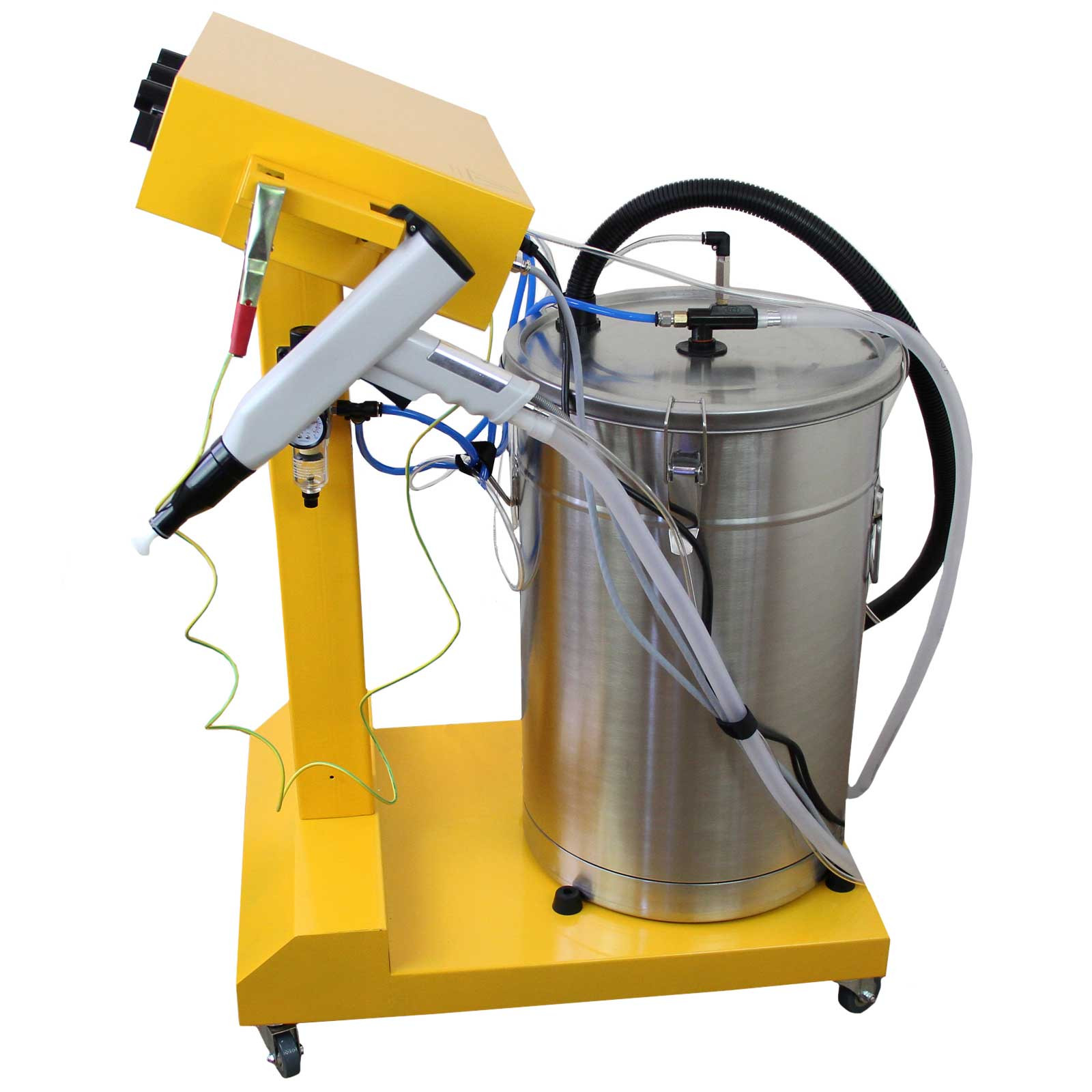

Powder Coating Machine

• Product features:
• Easy to navigate control panel
• Includes 1 spray gun
• Comes on wheels making it fully portable
• 12 month electrical warranty
• CE Approved
• Dimensions: 74cm (H) x 65cm (W) x 50cm (D)

Specifications:

• Input Power Voltage: 220V – 230V AC
• Frequency: 50Hz-60Hz
• Input Power: 40W
• Electromagnetic valve control power voltage: 24V DC
• Input Air Pressure: 0-0.6Mpa
• Output Air Pressure: 0-0.5Mpa
• Max. Air Consumption: 13.2m3/h
• Output Powder Volume: Max. 600g/min
• Output Powder Voltage: 0-100KV
• Output Current: 0-150uA
• Powder Hopper Volume: 45L

Electrical data

• Nominal input voltage: 200-240V
• Rated output voltage (to gun): 24V
• Rated output current (to gun): 1.2A
• Protection type: IP54
• Temperature range: 0 °C -+40 °C (+32 °F - +104 °F)
• Solenoid Valve Voltage: DC24V
• Gun output voltage: 0-100KV
• Gun output current: 0-150uA

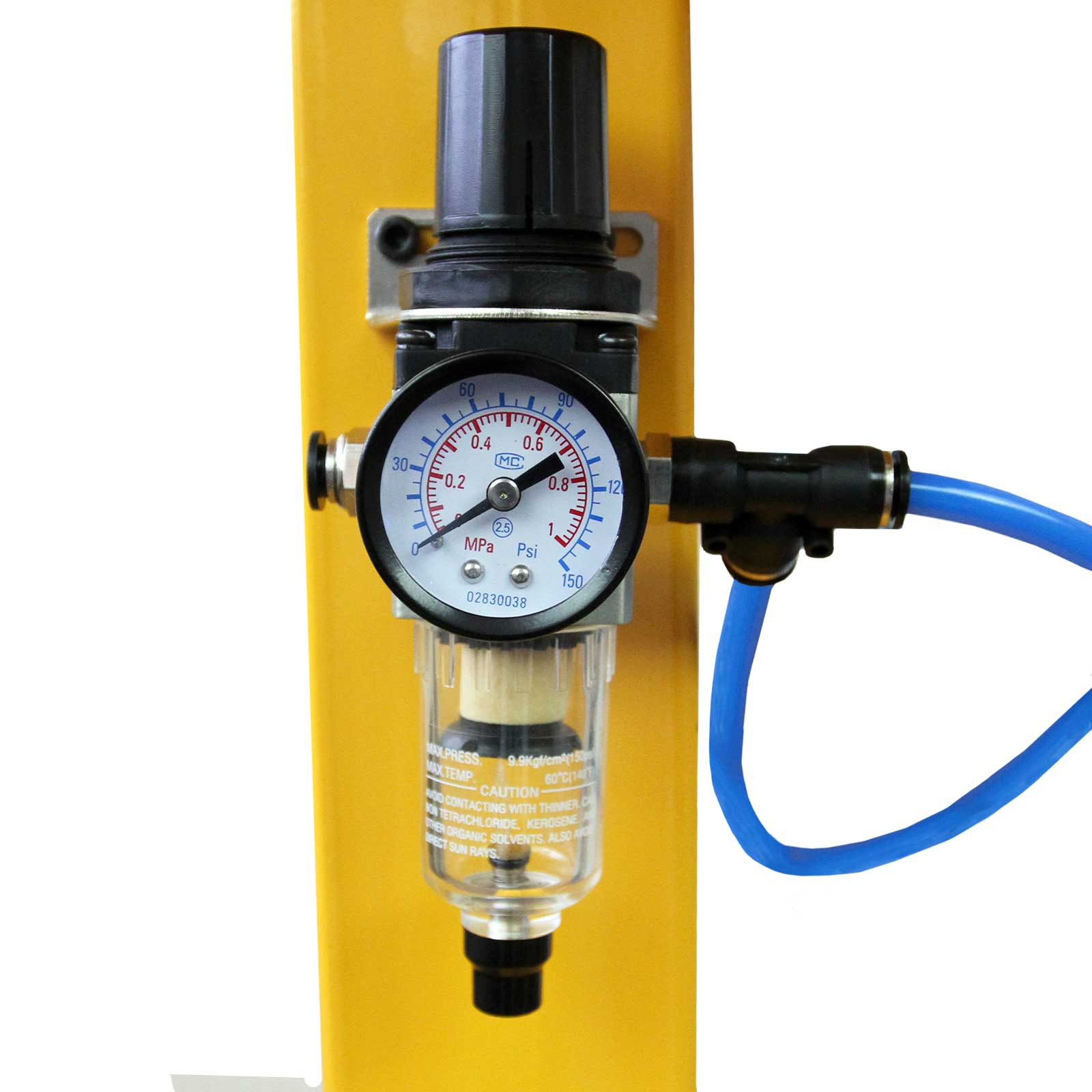

Pneumatical data

• Max.input pressure: 0.8Mpa
• Min.input pressure: 0.5Mpa
• Output pressure: 0.8Mpa
• Max.water vapour content of the compressed air: 1.3g/m3
• Max.oil vapour content of the compressed air: 0.1mg/m3
• Max.compressed air consumption: 13.2m/h（0.4MPa)

Gun Parameter

• Input: 24V
• Voltage Frequency: Around 25KHZ
• Input Current: 1.2A
• Output Voltage: 0~100KV DC
• Max.Output powder volume：Around 600G/MIN
• Gun cable: 6M
• Gun weight: 460G
• Container Capacity: 45L

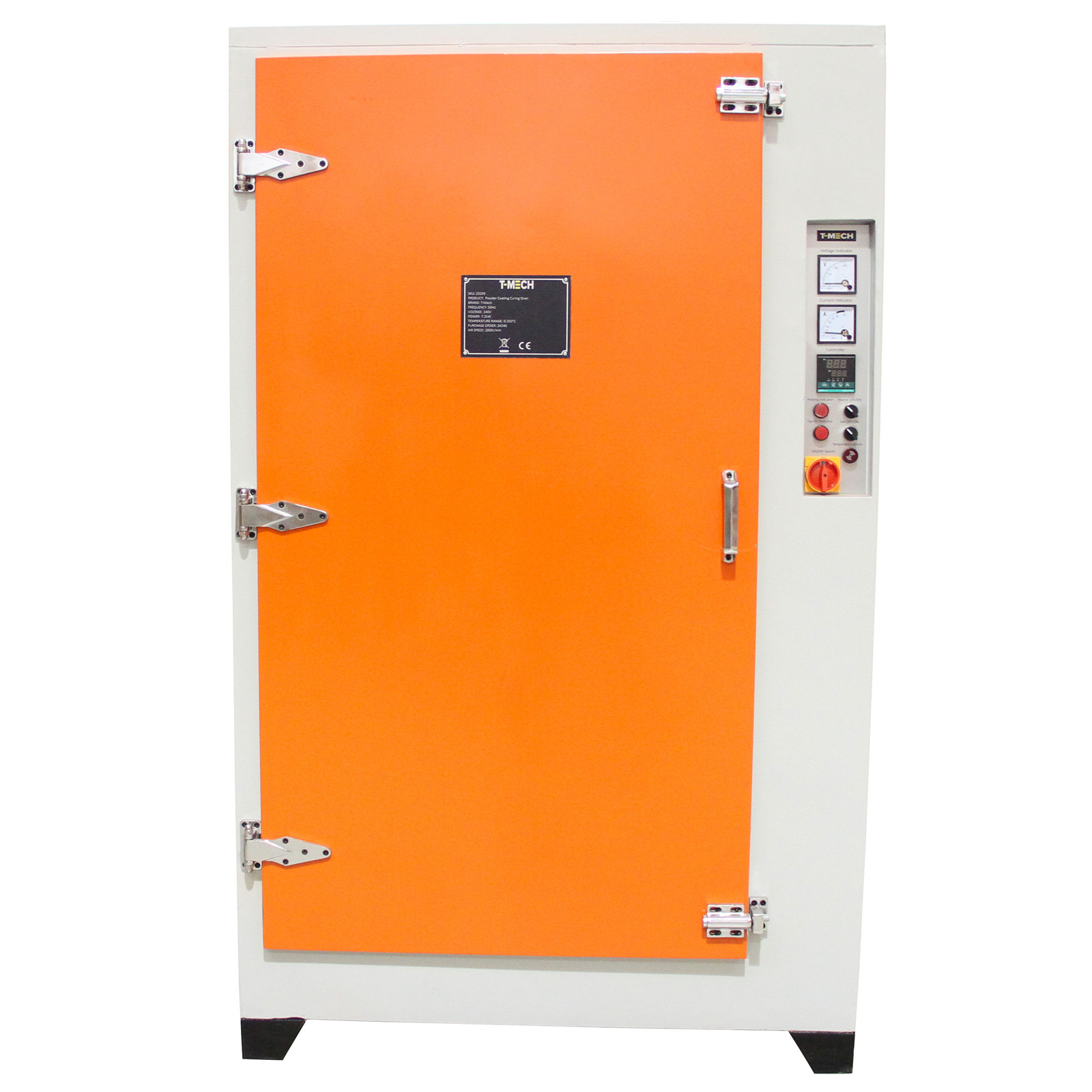

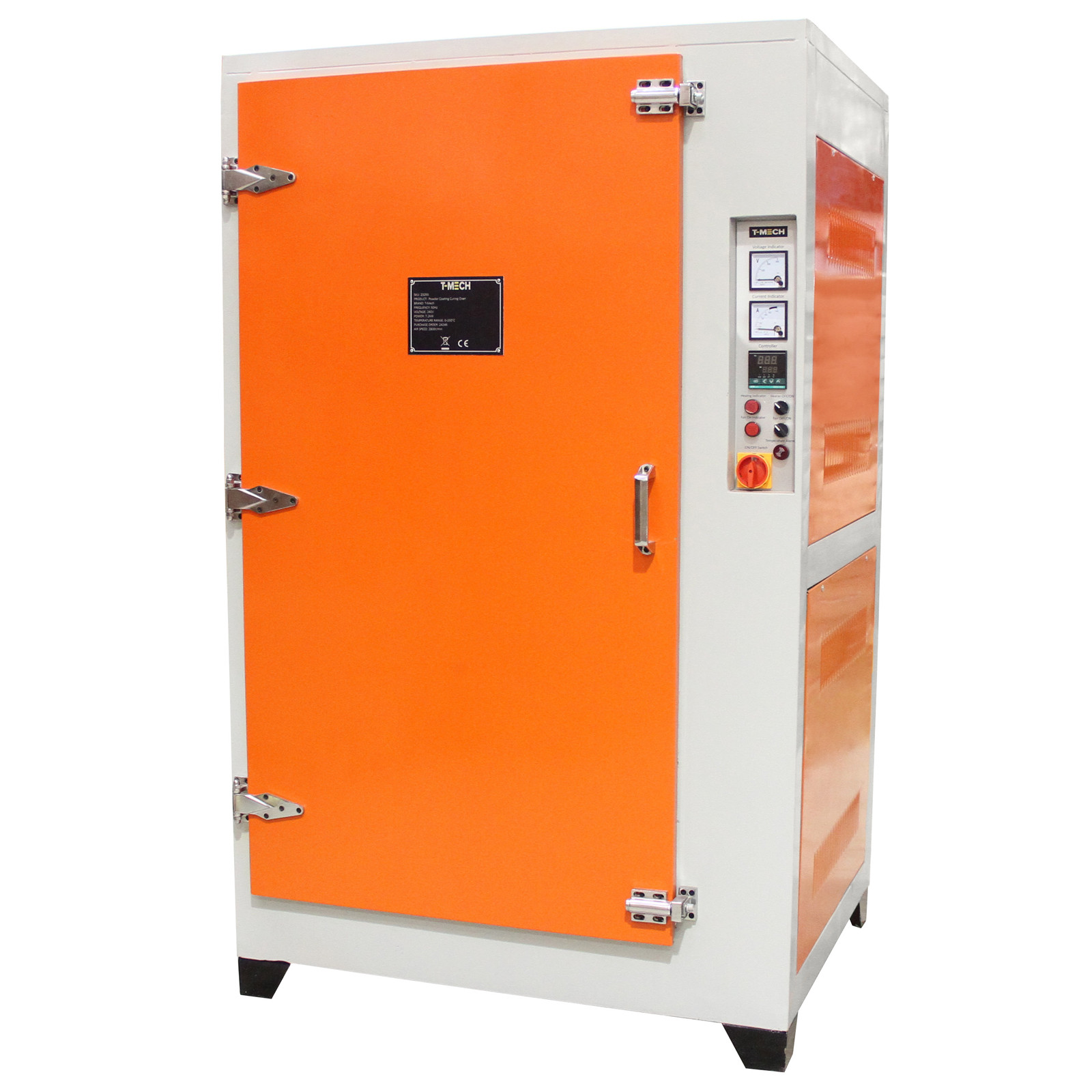

Powder Coating Curing Oven

• Powerful 7.2KW curing oven with double shelf
• New and improved Control Panel makes curing quick and easy
• Bolt Lock system for maximum safety
• This product can and should be wired to a 32AMP plug
• Four shelves and two rails per shelf
• FREE 12 month electrical parts warranty

Specifications:

Voltage: 230V / 50Hz Fan Power: 60W x 2 Temperature Range: 0-250 C Air Speed: 2800rpm Power: 7.2KW Temperature Stability: +/-5 Insulated Plate: 7-8cm Insulation: High temperature silicon cotton Dimensions: 199cm (H) x 121.5cm (W) x 101.8cm (D) Internal Dimensions: 160cm (H) 84.5cm (W) x 84.5cm (D) Material: Steel, Iron, Plastic

Please be aware that the paintwork on this oven may have some slight cosmetic damage.

Please note this is a pre-order item and shipping can take up to 28 days. If you would like any more information or would like to know exactly when this item will be ready to ship, please call our amazing monster service team on 01347 878888.
