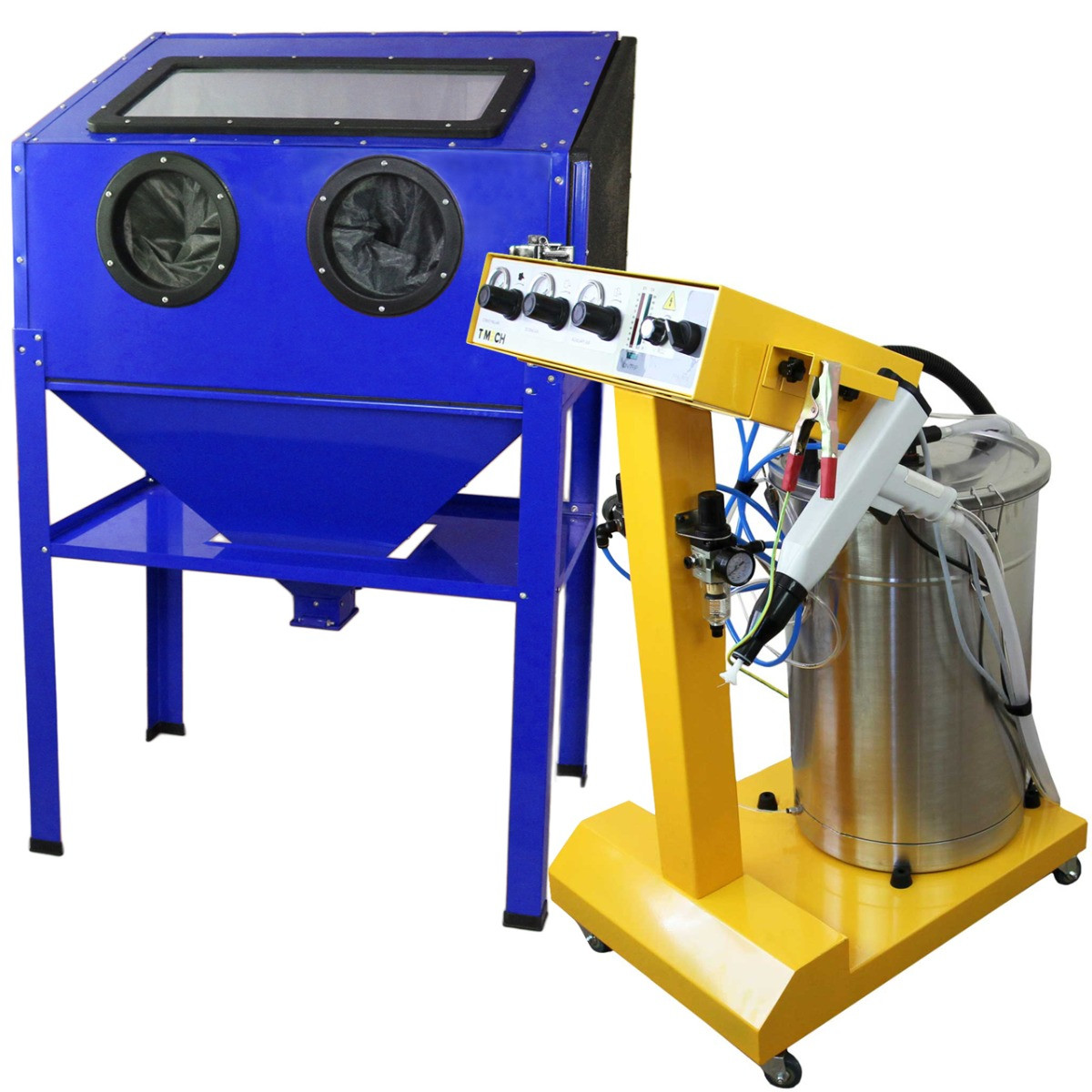

T-Mech Electrostatic Powder Coating Machine & 220L Sandblasting Cabinet

Give your items a new lease of life with powerful 220L Sandblaster and electrostatic powder coating machine duo!

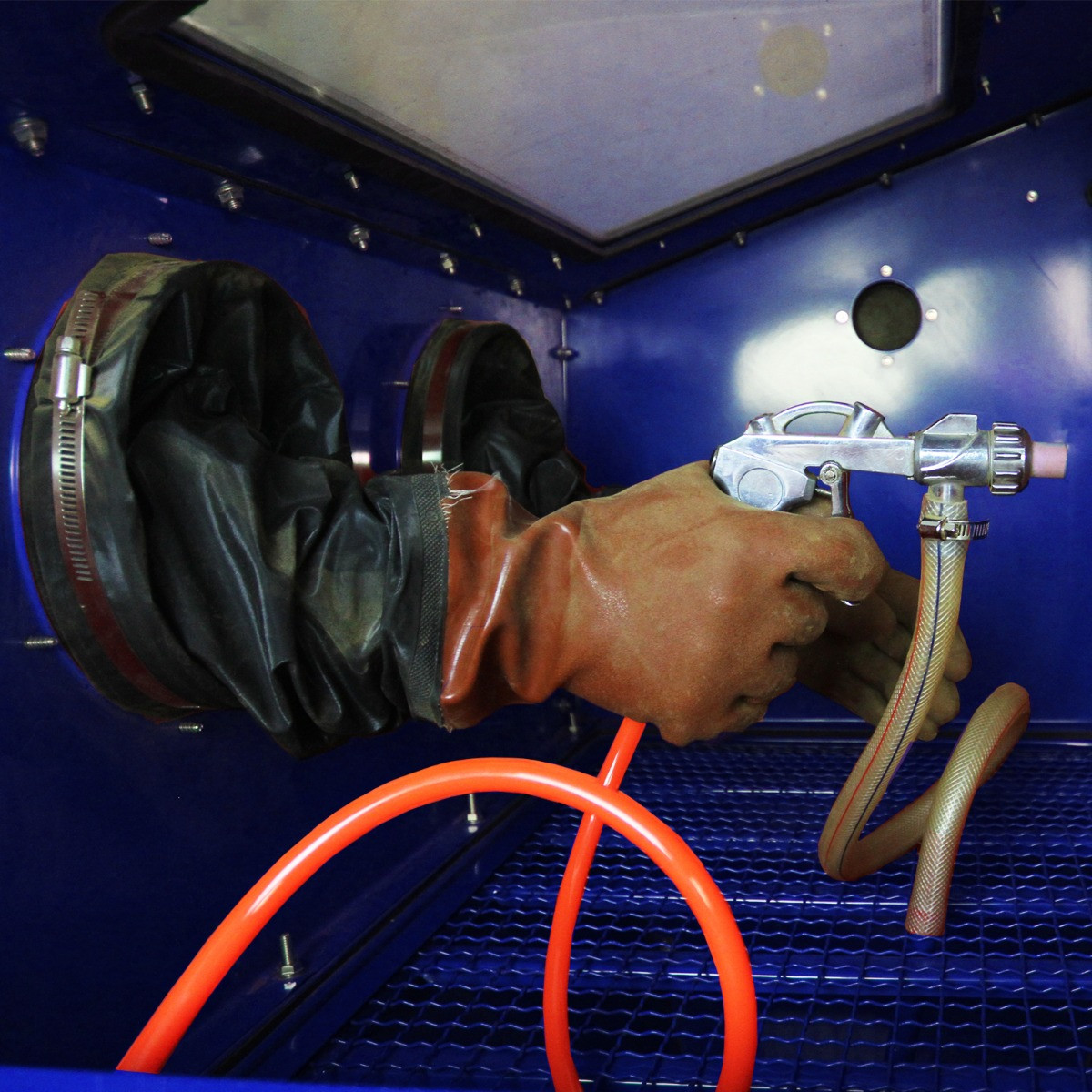

Whether a material needs to be cleaned, deburred, prepped for powder-coating, de-rusted or have its paint removed, this sandblaster is up for the job.

The sandblasting station is easy to operate, portable and offers a safe and secure environment; ready for you to use with your choice of abrasive media.

Simply choose from a wide range of abrasive media options depending on your desired outcome and watch as your items are effortlessly restored.

Taking place in an enclosed environment means you can keep dust off the floor and, most importantly, out of the air.

With a gun kit, LED lighting, heavy-duty protective gloves, 4 ceramic nozzles and 5 protective films included you’re well on your way to revitalising your products!

Paired with our powerful electrostatic powder coating machine you are sure to achieve incredible results.

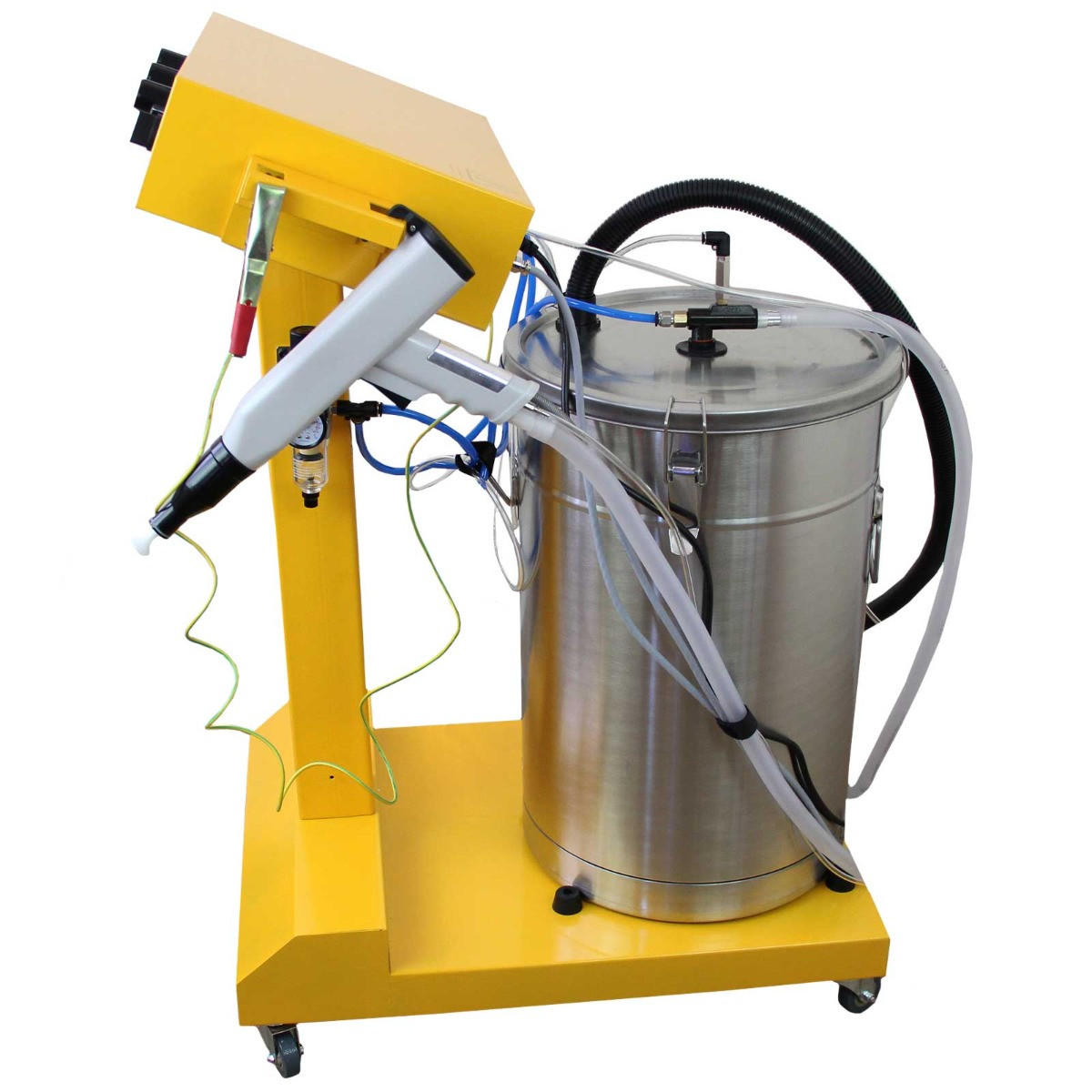

This electrostatic powder coating machine has a large 45L powder capacity, which means it’s great for big projects.

The T-Mech machine is fully portable, has an easy to navigate control panel and comes with 1 spray gun.

Powder coating is used to create a durable and high-quality finish, which is great for tough machinery! Power coated products are more resistant to corrosion, fading and chipping so when done correctly it should last a very long time.

Sandblasting and powder coating machines are perfect for use in a range of industries including auto parts, medical equipment, home appliances and so much more!

Product Features:

• Extremely Powerful Machines
• Super Portable with Built in Wheels
• Easy To Navigate Control Panel
• Gun Kit and Protective Gloves Included
• 12-month electrical warranty

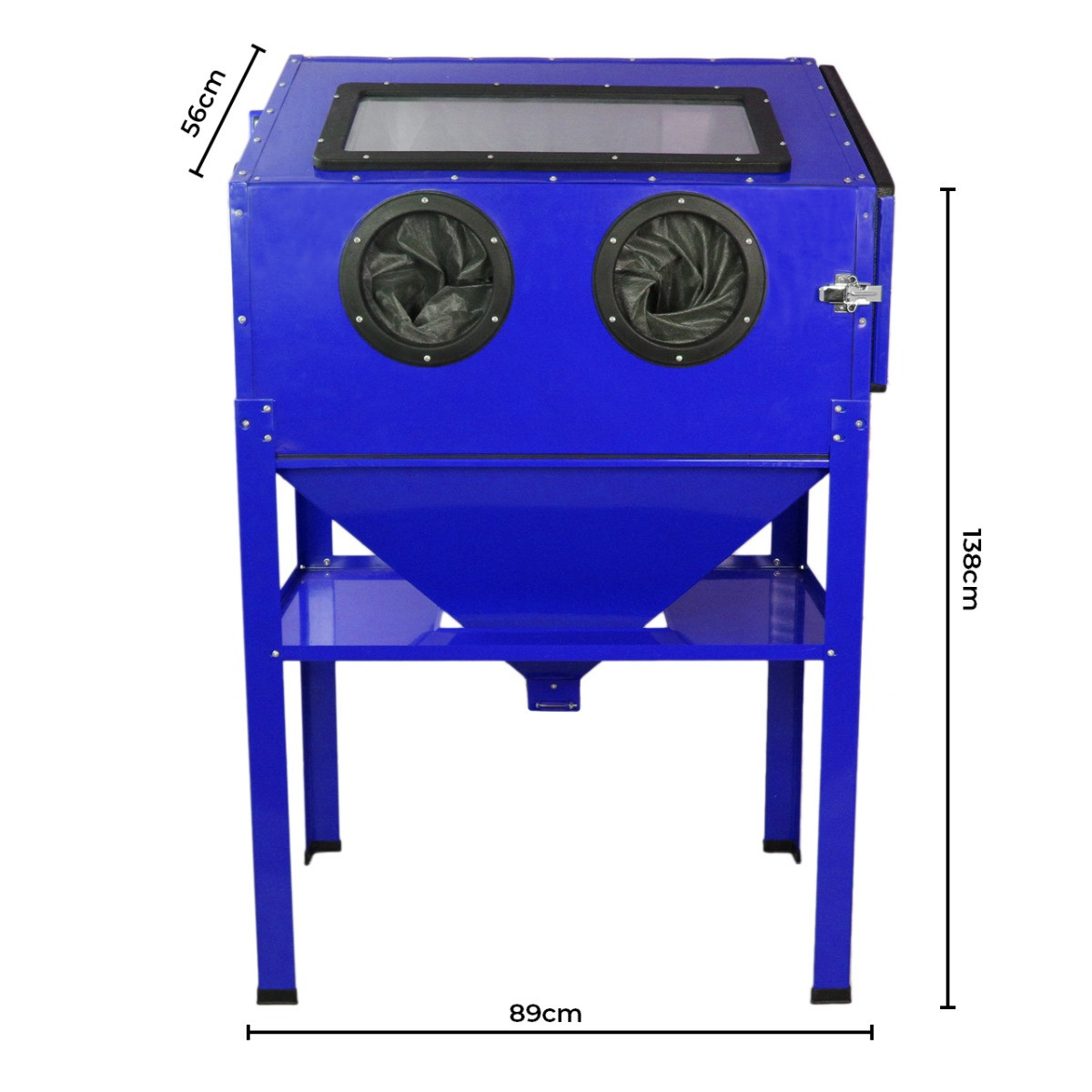

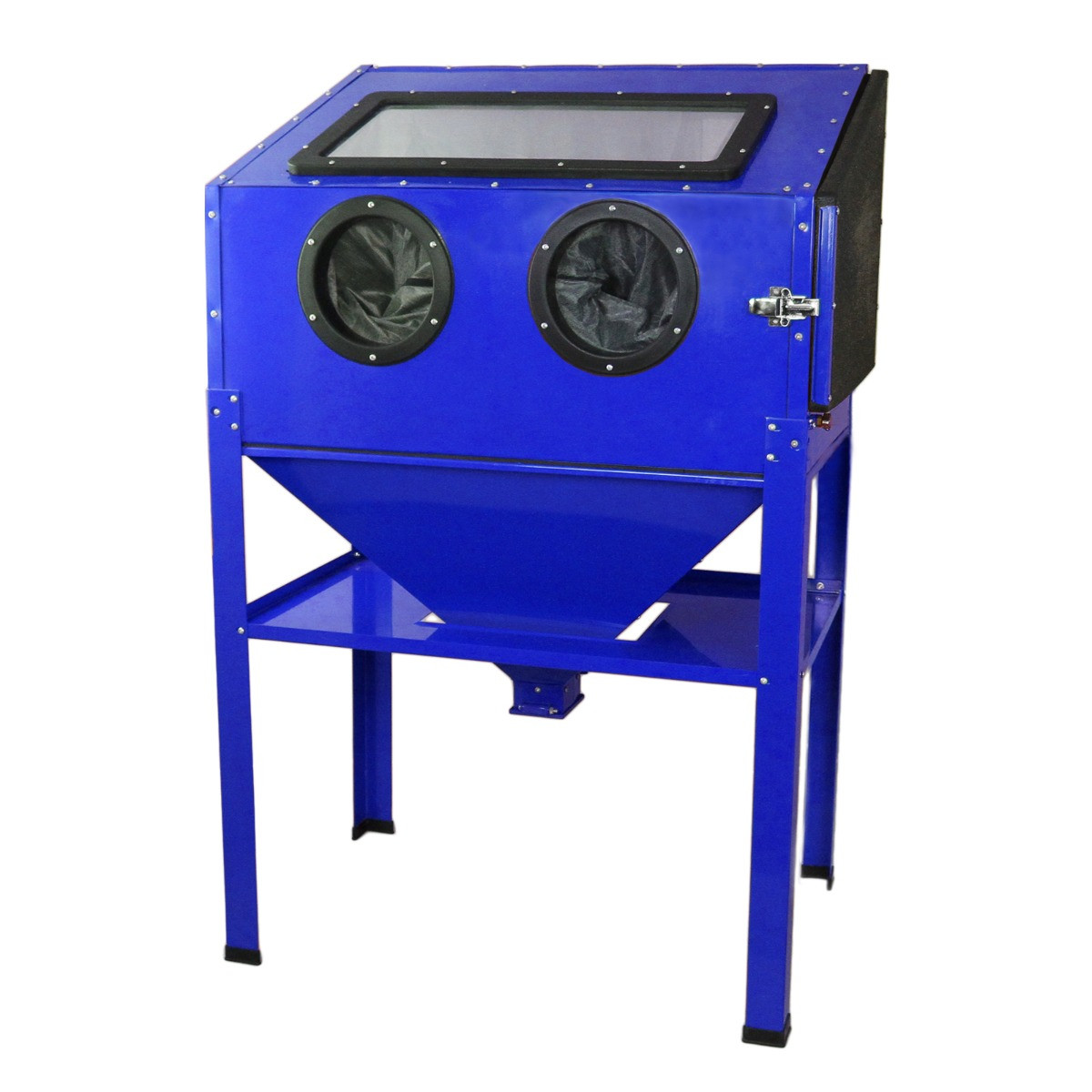

220L Sandblasting Cabinet Specifications:

• Colour: Blue
• Weight: 41kg
• Capacity: 220L
• Dimensions: 138cm (L) x 89cm (W) x 56 (D).


• Working Space: 840mm (L) x 550mm (W) x 370mm - 550mm (H).


• Viewing Window: 540mm (W) x 250mm (H).


• Power Supply: AC 220V – 240V 50Hz.


• Lighting: 10W – 12VDC LED.


• Operating Pressure: 40-80PSI @ 15-25CFM.


• Average Air Consumption: 270 litre/min at 6 bar.


• Maximum Working Pressure: 116.

  03 psi.


• Operating Pressure: 40-80PSI at 15-25CFM.


• Air Inlet: ¼ NPT.


• Abrasive Capacity: +/- 18kg.


• Dust Port: 63mm.

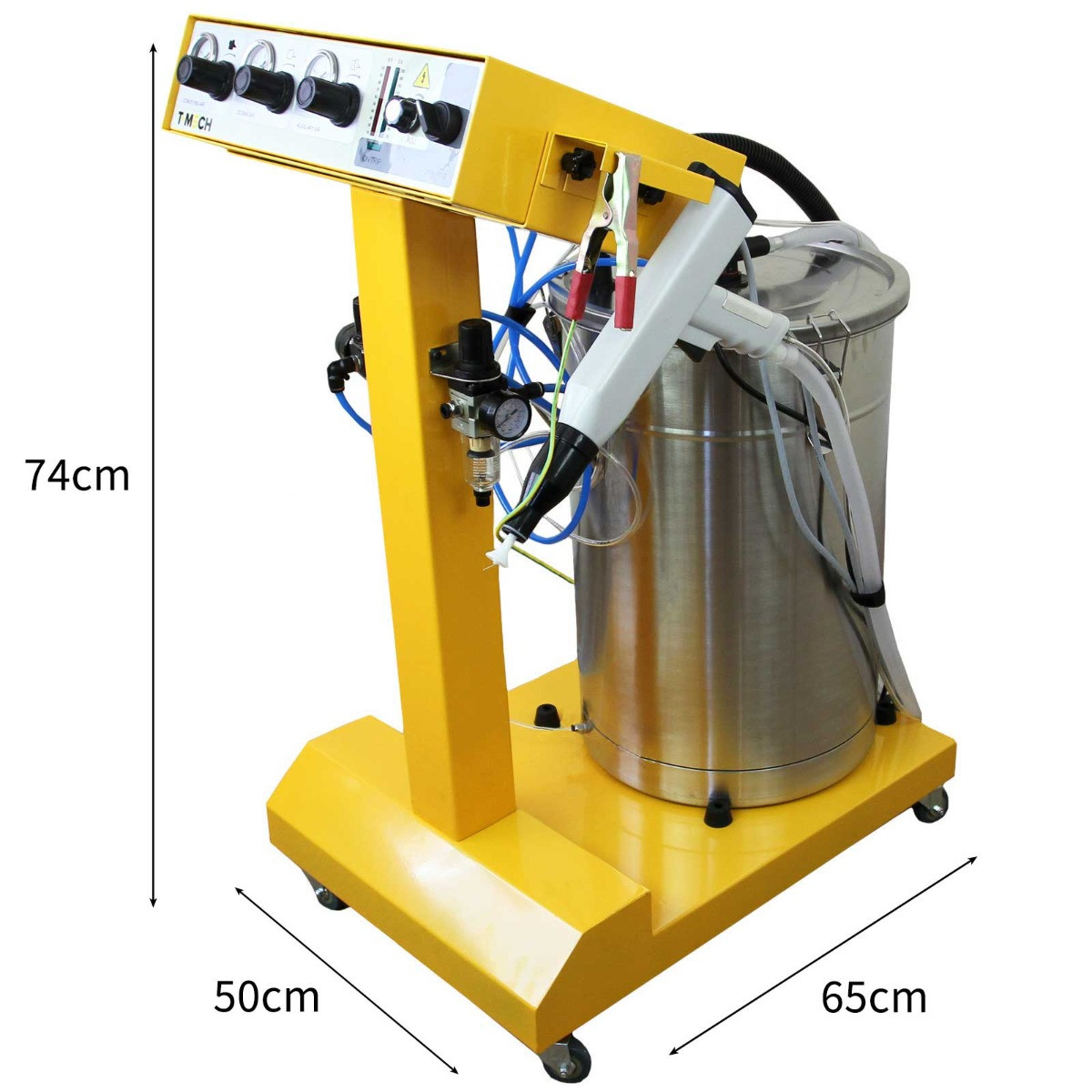

Electrostatic Powder Coating Machine Specifications:

• Colour: Yellow
• Weight: 26.

  3kg
• Dimensions: 74cm (H) x 65cm (W) x 50cm (D)
• CE Approved: Yes
• Input Power Voltage: 220V – 230V AC
• Frequency: 50Hz-60Hz
• Input Power: 40W
• Electromagnetic valve control power voltage: 24V DC
• Input Air Pressure: 0-0.

  6Mpa
• Output Air Pressure: 0-0.

  5Mpa
• Air Consumption: 13.

  2m3/h
• Output Powder Volume: Max.

  600g/min
• Output Powder Voltage: 0-100KV
• Output Current: 0-150uA
• Powder Hopper Volume: 45L

Electrical data

• Nominal input voltage: 200-240V
• Rated output voltage (to gun): 24V
• Rated output current (to gun): 1.

  2A
• Protection type: IP54
• Temperature range: 0 °C -+40 °C (+32 °F - +104 °F)
• Solenoid Valve Voltage: DC24V
• Gun output voltage: 0-100KV
• Gun output current: 0-150uA

Pneumatical data

• Max input pressure: 0.

  8Mpa
• Min input pressure: 0.

  5Mpa
• Output pressure: 0.

  8Mpa
• Max water vapour content of the compressed air: 1.

  3g/m3
• Max oil vapour content of the compressed air: 0.

  1mg/m3
• Max compressed air consumption: 13.

  2m/h（0.

  4MPa)

Gun Parameter

• Input: 24V
• Voltage Frequency: Around 25KHZ
• Input Current: 1.

  2A
• Output Voltage: 0~100KV DC
• Max Output powder volume: Around 600G/MIN
• Gun cable: 6M
• Gun weight: 460G
• Container Capacity: 45L
