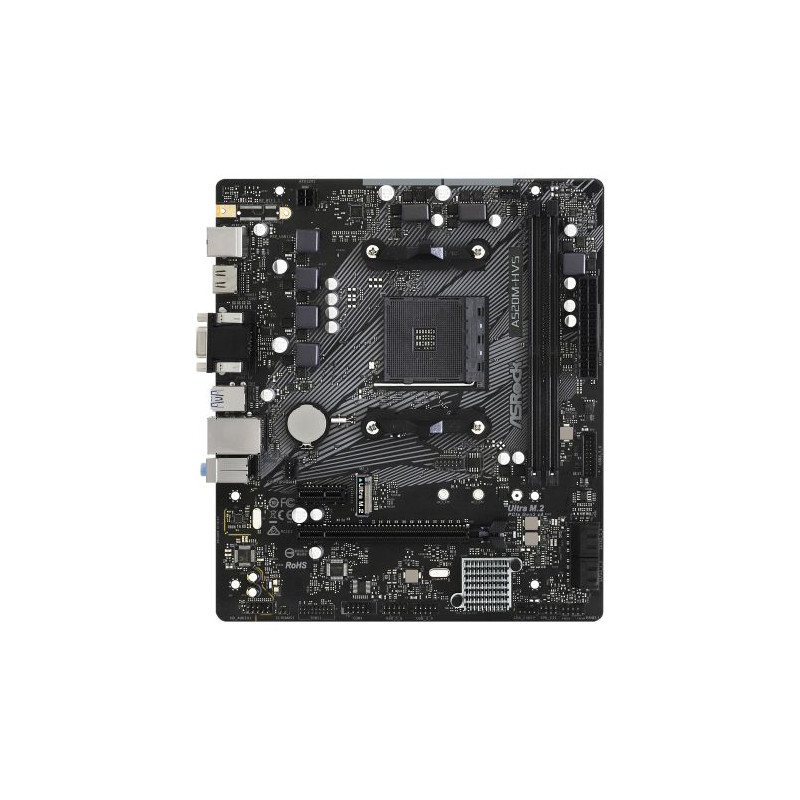

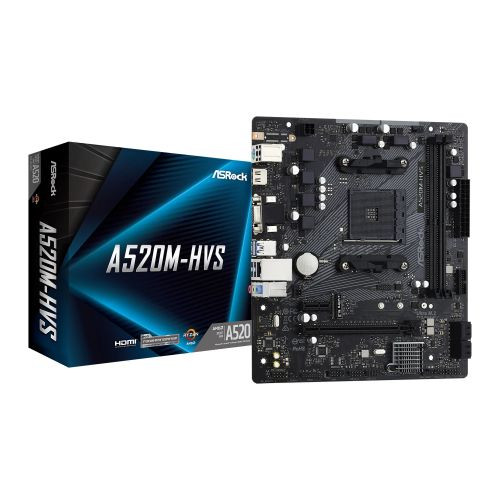

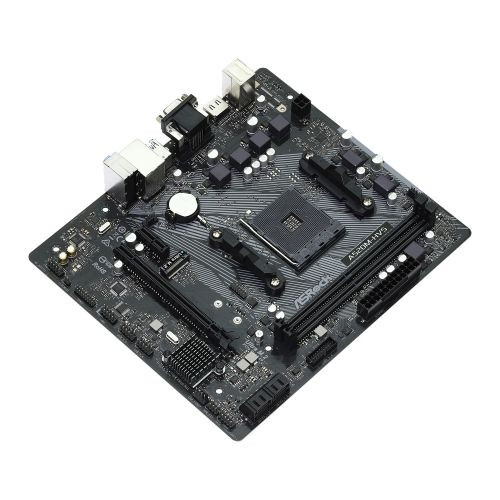

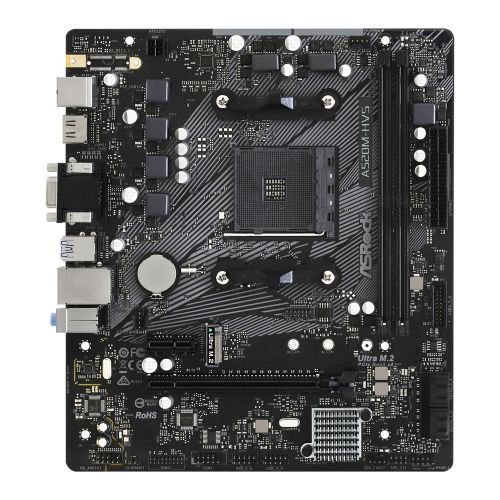

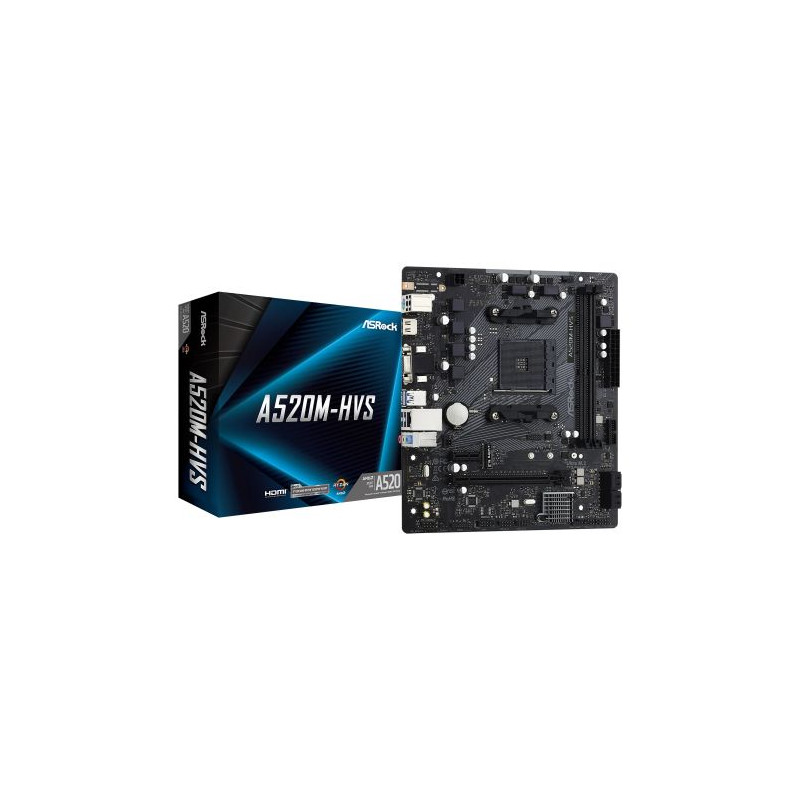

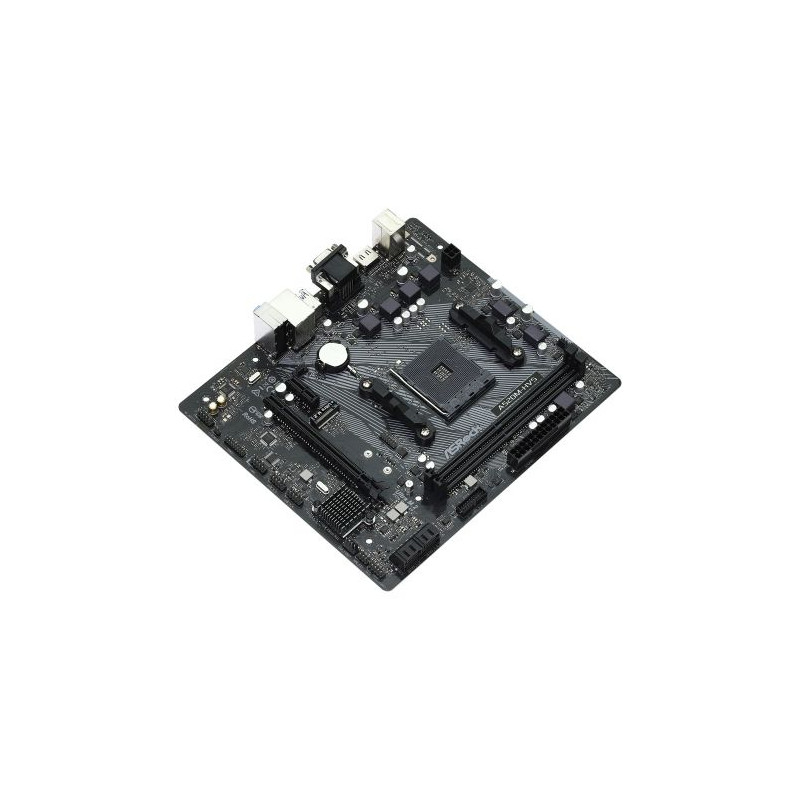

Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2

Condition: New product

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 and SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN

Ultra M.2 32Gb/s (PCIe Gen3 x4 and SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update and APP Shop

ASRock Live Update and APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update and APP Shop.

179 Item Items Warning: Last items in stock!

£ 60.53

Quantity

Data sheet

Manufacturer Number:	A520M-HVS
Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM4

Chipset

AMD A520

CPU Support

Click here for CPU support

*Note: not compatible with Ryzen 5 3400G and Ryzen 3 3200G CPUs

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz

Maximum Memory

64GB

Graphics

Integrated Graphics Processor*

Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI

Multi-GPU Support

PCI/PCI Express

1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - SATA and PCIe

RAID

RAID 0, 1, 10

Wireless

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

USB Ports Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

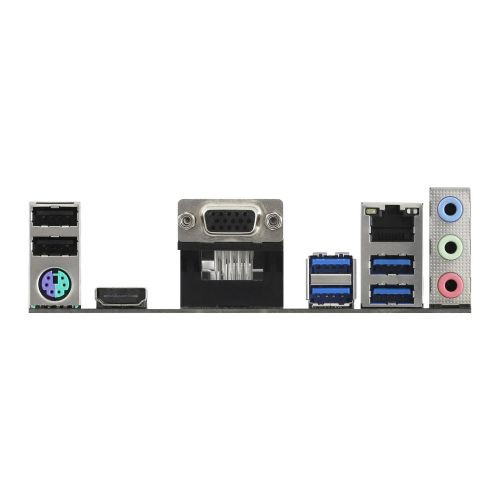

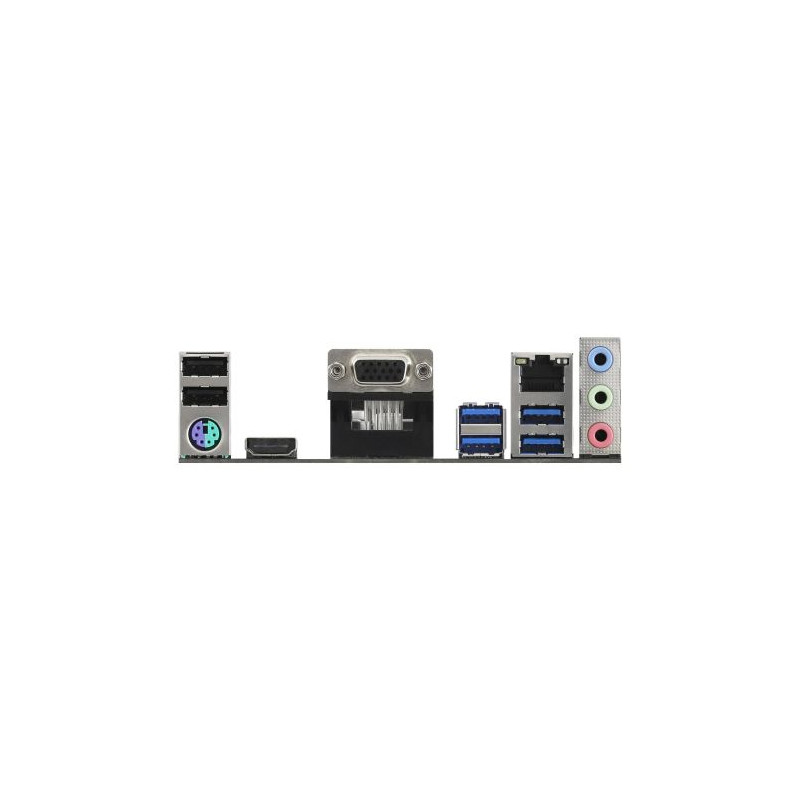

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1

Accessories

2 x SATA Data Cables
1 x Screw for M.2 Socket

Additional Features

See Overview

Package Type

Retail

Package Weight

0.7920 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link
