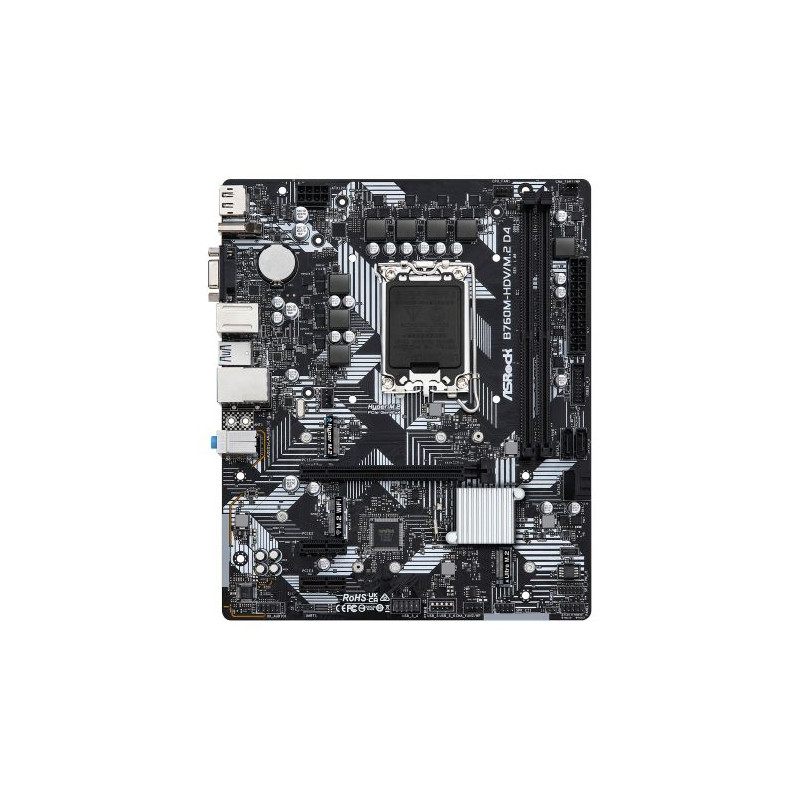

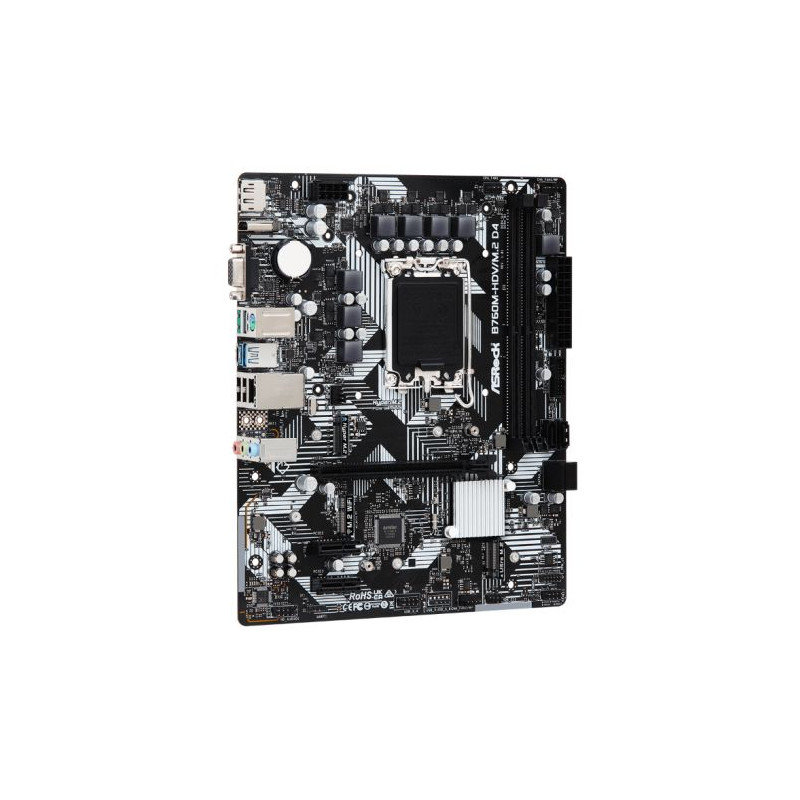

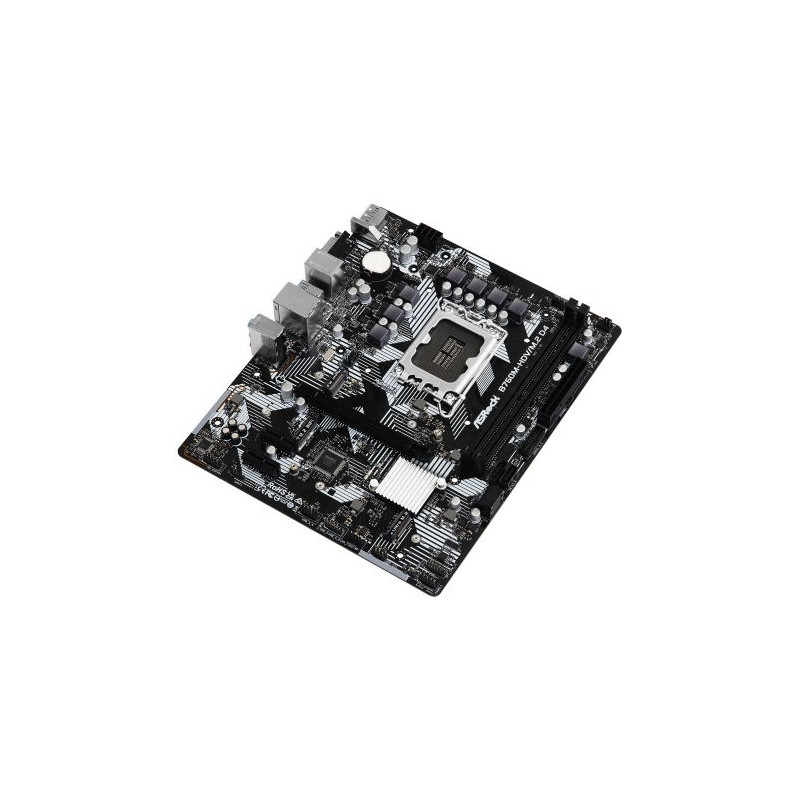

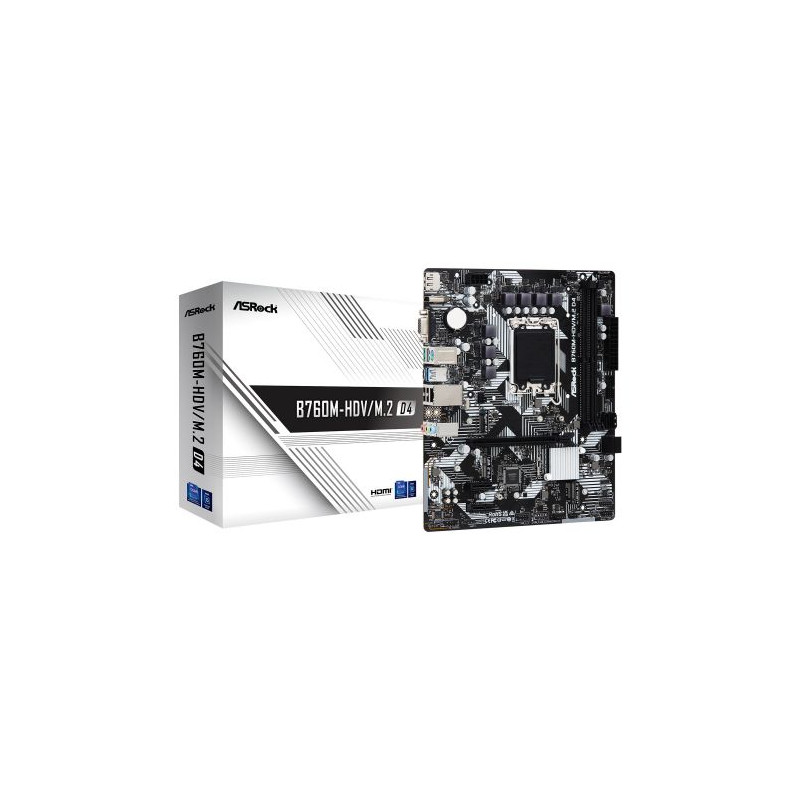

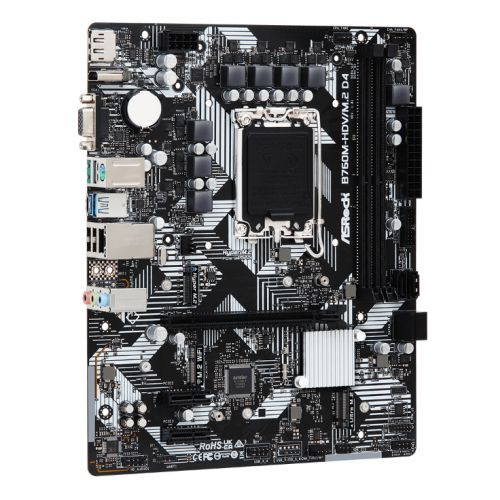

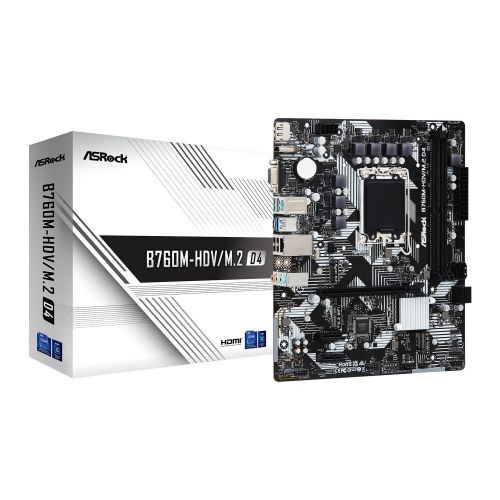

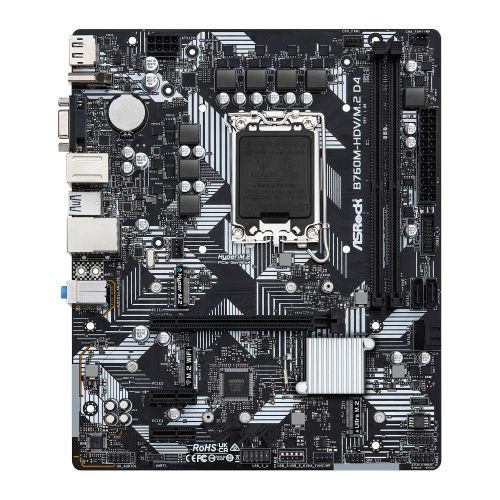

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

Condition: New product

20 Item Items Warning: Last items in stock!

£ 89.45

Quantity

Data sheet

Manufacturer:	ASROCK
Manufacturer Number:	B760M-HDV/M.2 D4
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

Up to 5333+(OC)

Maximum Memory

64GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA and PCIe

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Wireless

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

USB Ports Supported

1 x USB 3.2 Gen1 Type-C (at back)
5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
5 x USB 2.0 (2 at back, 3 at mid-board)

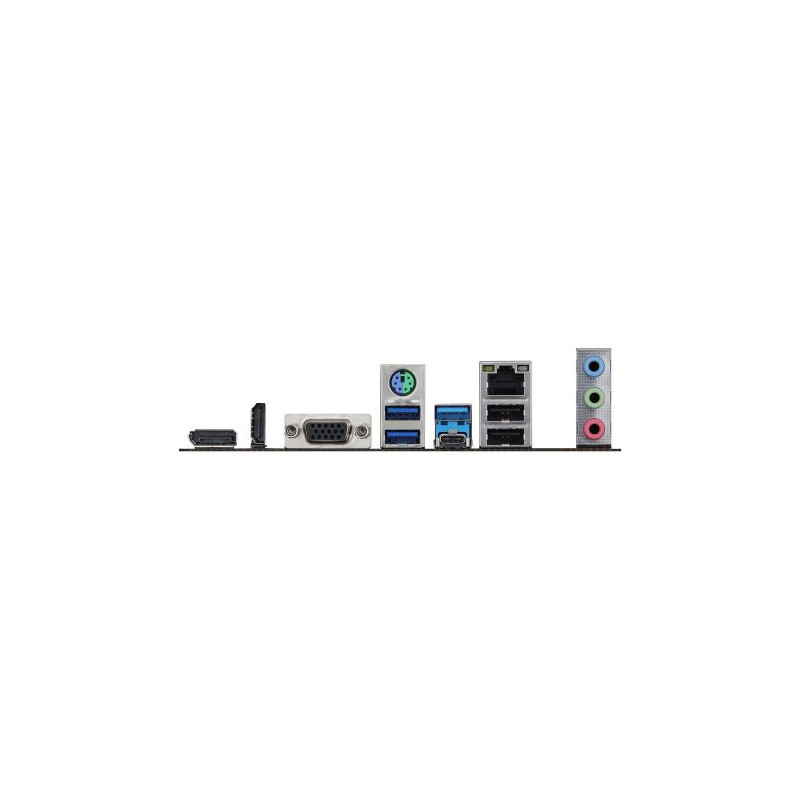

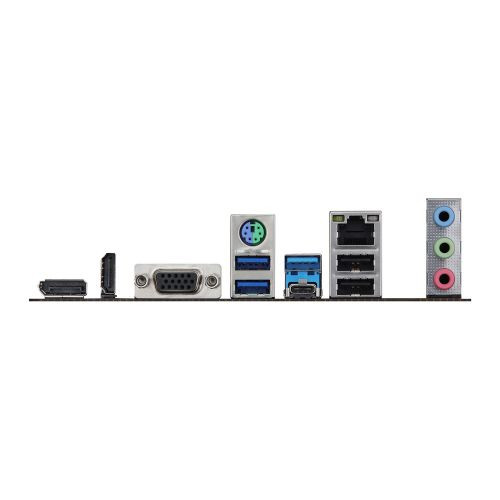

Back Panel I/O Ports

2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1

Accessories

1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets

Additional Features

See Overview

Package Type

Retail

Package Weight

0.9000 kg

Warranty

3 Year Replacement Warranty
