Asus TUF GAMING B550-PLUS WIFi II, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2

Condition: New product

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt 3 header support
Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
AI noise-canceling microphone: provides crystal-clear in-game voice communication

Durable. Stable. Reliable.

TUF GAMING B550-PLUS WIFI II distils essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF GAMING B550-PLUS WIFI II is the perfect foundation for your next high-core-count battle rig.

Easy PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

Immersive Gaming

TUF GAMING B550-PLUS WIFI II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Click here for full details

23 Item Items Warning: Last items in stock!

£ 213.91

Quantity

Data sheet

Manufacturer Number:	90MB19U0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM4

Chipset

AMD B550

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 4866(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics Processor*

Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
3 x PCIe 3.0 x1

Storage

6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA and PCIe

RAID

RAID 0, 1, 10

Wireless

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
Supports 2.4/5GHz frequency band
Bluetooth v5.2

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A and 1 Type-C at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

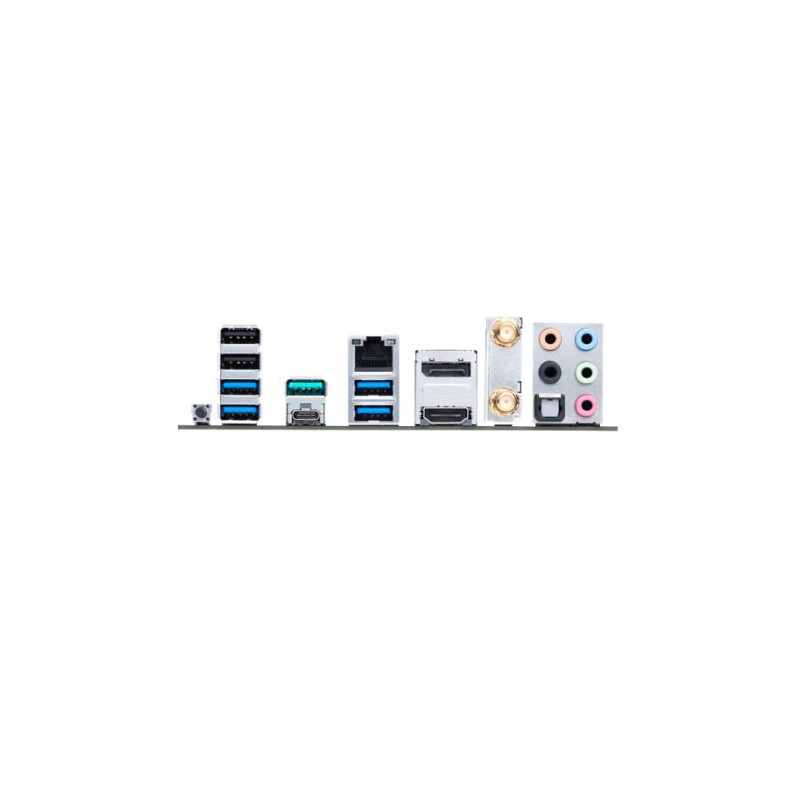

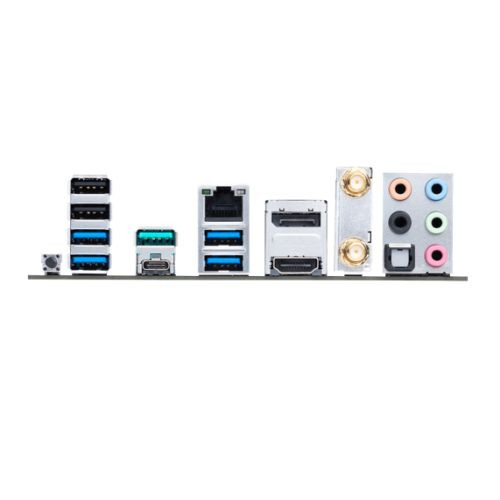

Back Panel I/O Ports

2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB

1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt

Accessories

I/O Shield
2 x SATA 6Gb/s cables
1 x TUF Gaming Sticker
1 x TUF Certification card
1 x 2x2 Dual Band Wi-Fi Antenna
1 x M.2 SSD screw package
1 x M.2 Rubber Package

Additional Features

See Overview

Package Type

Retail

Package Weight

1.6100 kg

Warranty

3 Years
