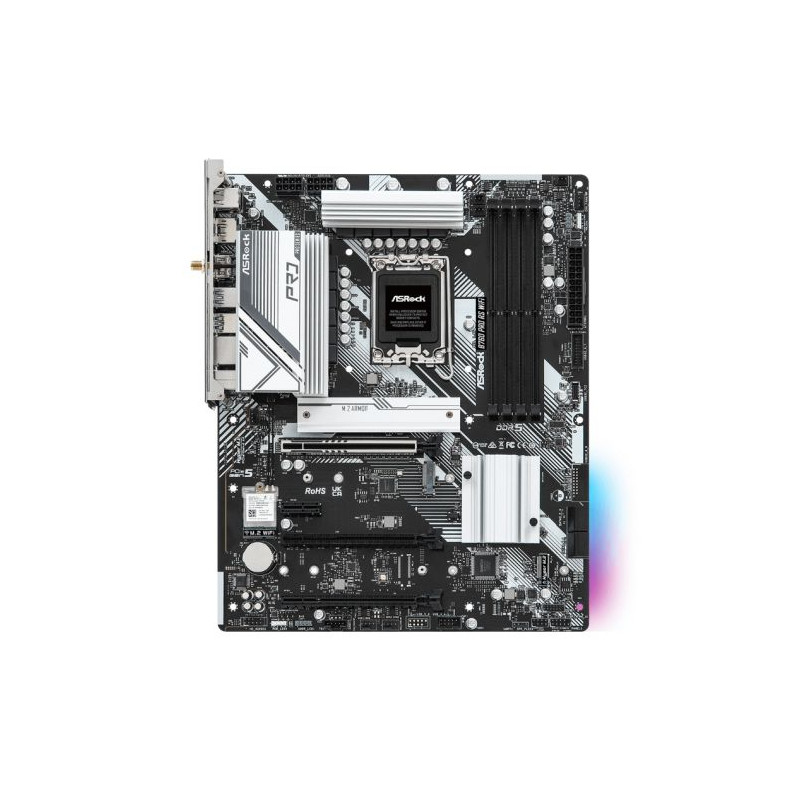

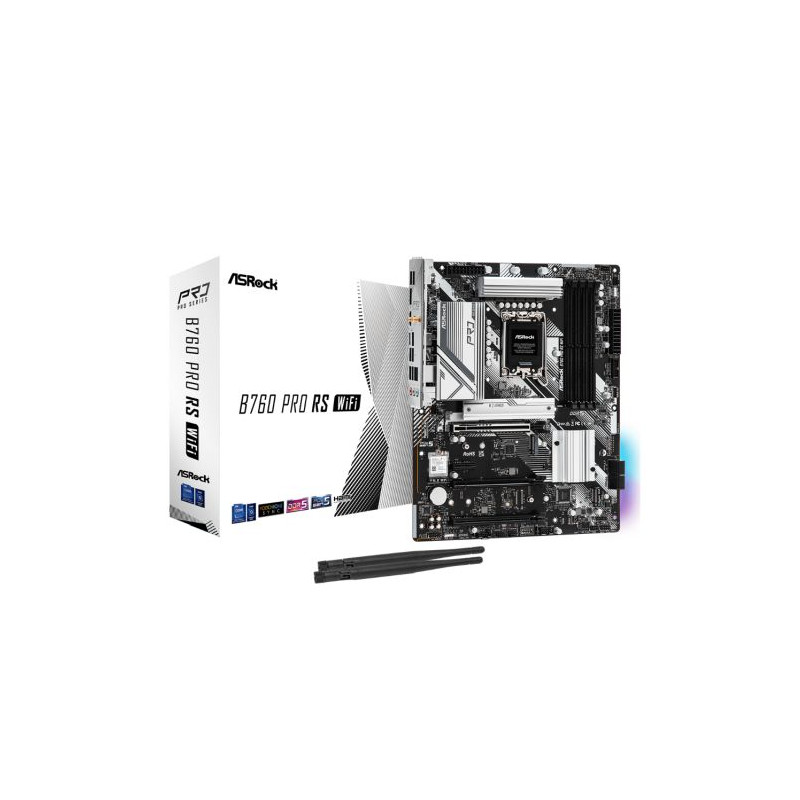

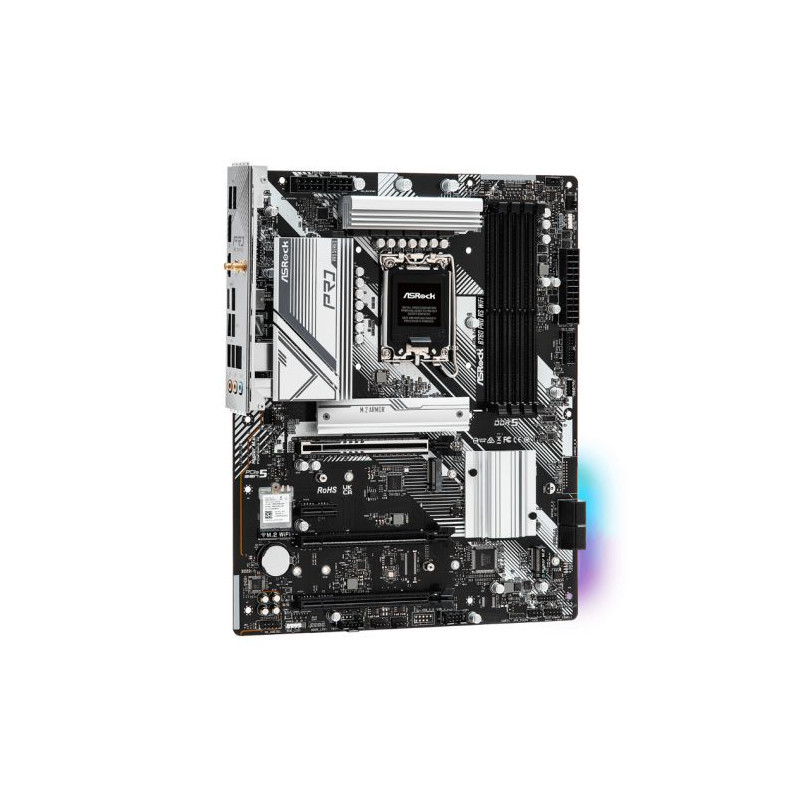

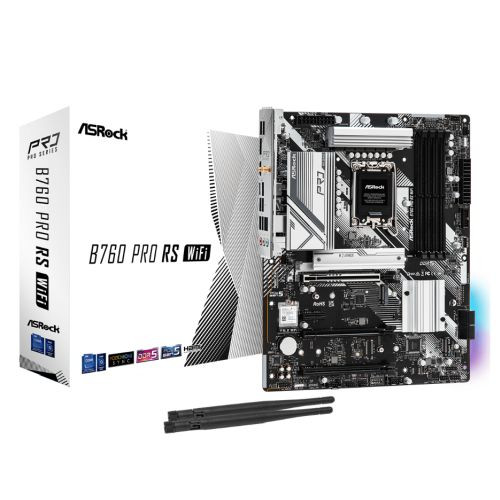

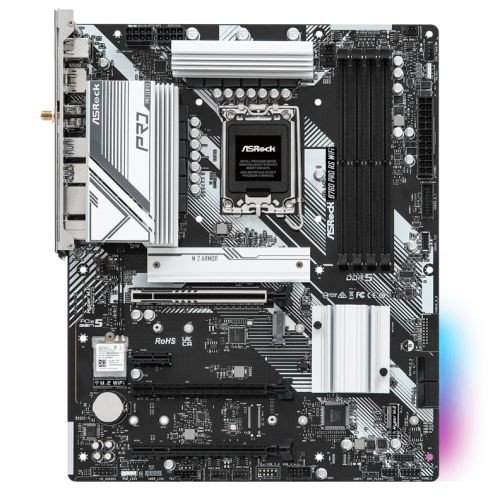

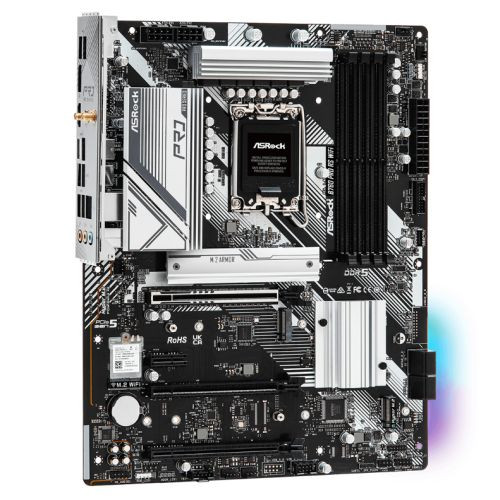

Asrock B760 PRO RS WIFI, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB

Condition: New product

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Supports 13th Gen and 12th Gen Intel® Core™ Processors (LGA1700)
10+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
1 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort, eDP
Realtek ALC897 7.1 CH HD Audio Codec,
Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen4x2)
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
4 USB 2.0 (2 Rear, 2 Front
Dragon 2.5G LAN,
802.11ax Wi-Fi 6E + Bluetooth
Supports ASRock Auto Driver Installer

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

10+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP and EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.

The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Reinforced Steel Slot [PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:

- Extra anchor points

- Stronger latch

- Ensure signal stability

- Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Polychrome RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Built in eDP Signal Connector

Supports ASRock 13.3” Side Panel kit

An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.

EZ Setting

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Pre-Installed IO Shield

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.

12 Item Items Warning: Last items in stock!

£ 187.42

Quantity

Data sheet

Manufacturer:	ASROCK
Manufacturer Number:	B760 PRO RS WIFI
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 7200+(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort
1 x eDP 1.4

Multi-GPU Support

Supports AMD CrossFire

PCI/PCI Express

1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x16 (supports x1 mode)
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2260/2280) - PCIe 4.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x2
1 x M.2 (2260/2280) - PCIe 4.0 x4

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Wireless

802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with ext. 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.3 + High speed class II
Supports MU-MIMO

LAN

2.5GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

Rear:
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1
2 x USB 2.0

Front:
2 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 3.2 Gen2 Type-C

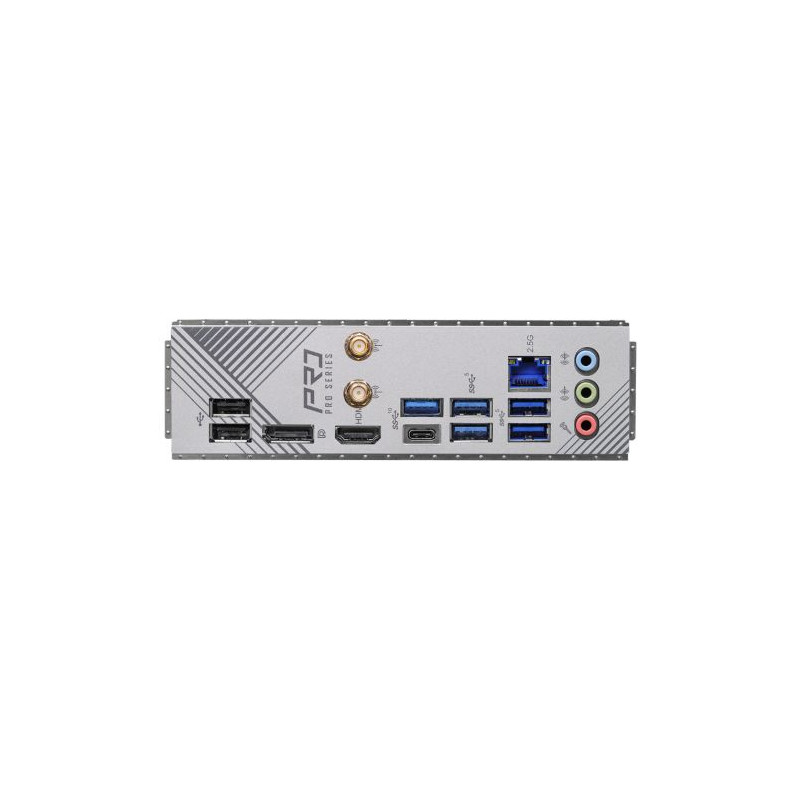

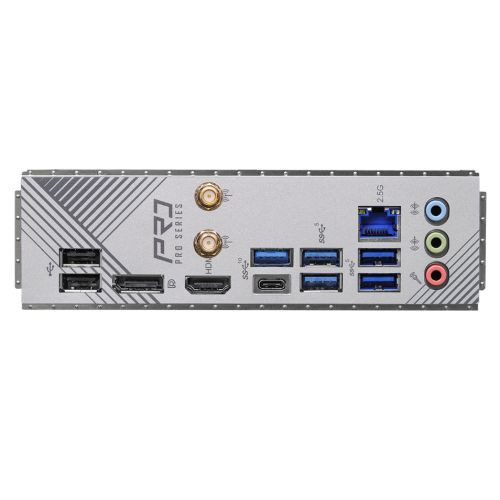

Back Panel I/O Ports

2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x eDP Signal
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC

1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2

Accessories

1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Additional Features

See Overview

Package Type

Retail

Package Weight

1.6500 kg

Warranty

3 Year Replacement Warranty
