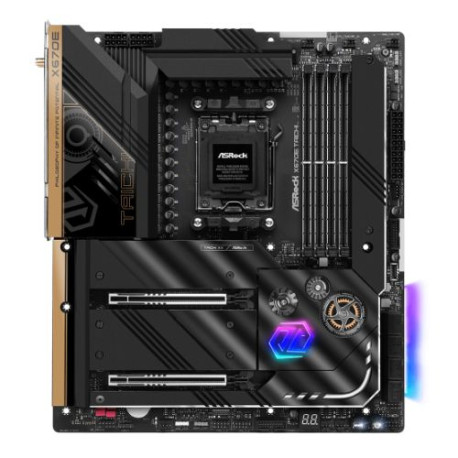

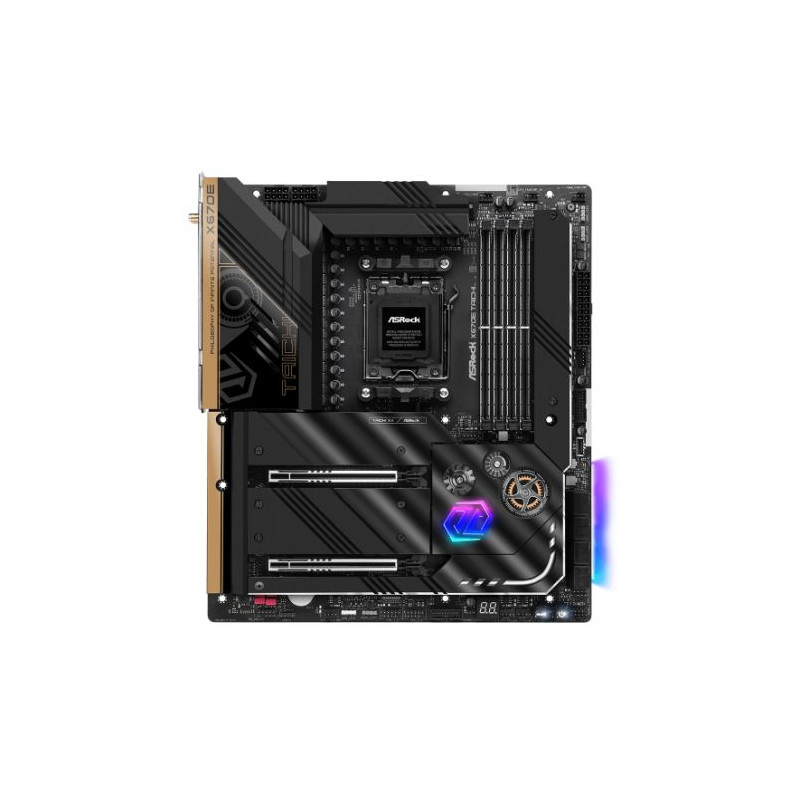

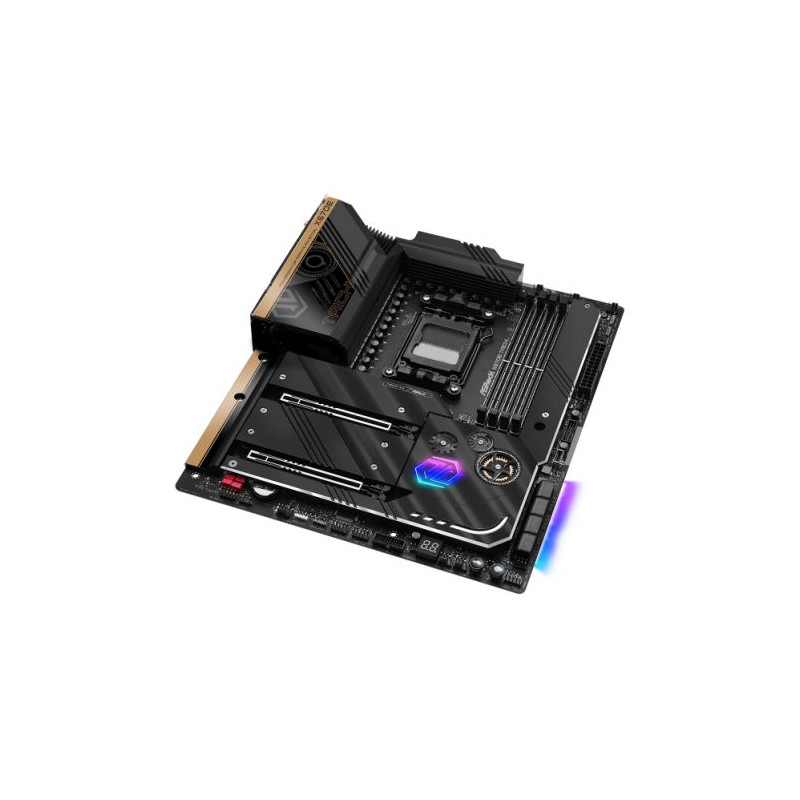

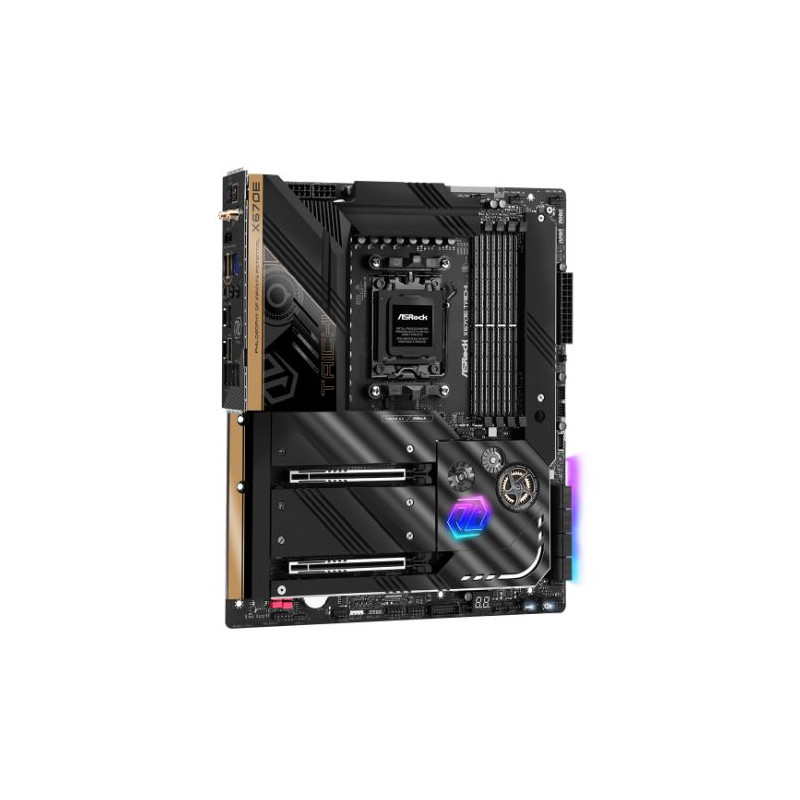

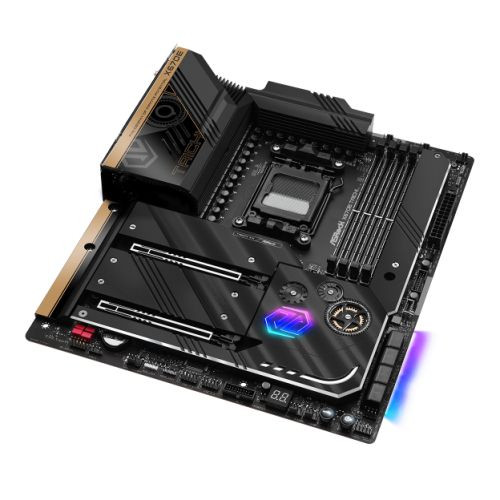

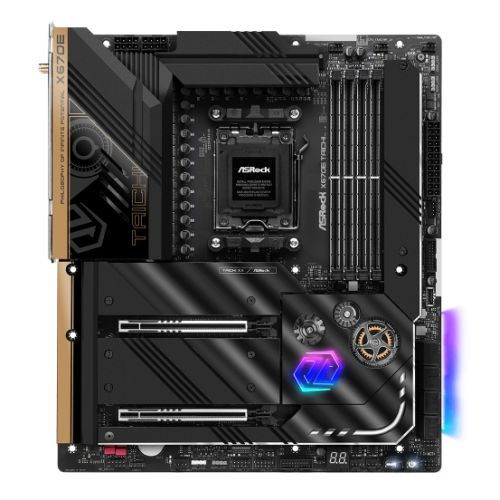

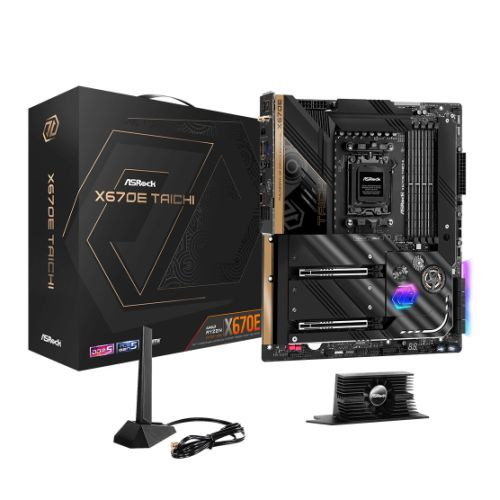

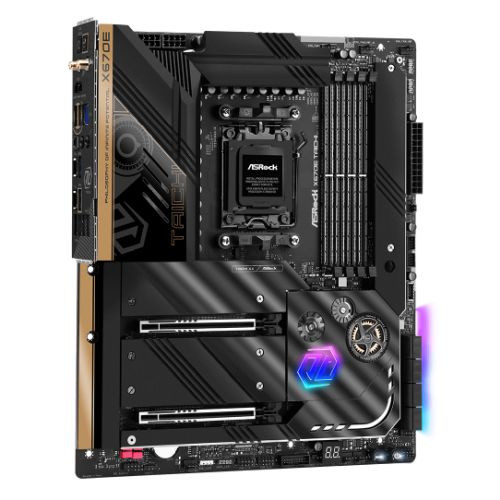

Asrock X670E TAICHI, AMD X670, AM5, EATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 6E, 2.5G LAN, PD 3.0 27W, PCIe5, RGB, 4x M.2

Condition: New product

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

Supports AMD Ryzen™ 7000 Series Processors
24+2+1 Phase Power Design, SPS for VCore+GT
4 x DDR5 DIMMs, supports up to 6600+(OC)
2 PCIe 5.0 x16
Graphics Output Options: 2 USB4 Type-C, 1 HDMI
Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9218 DAC, WIMA Audio Caps
1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4 and SATA3), 2 Hyper M.2 (PCIe Gen4x4), 8 SATA3
2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 5 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front)
Killer 2.5G LAN
Killer 802.11ax Wi-Fi 6E + Bluetooth

Optimized VRM Design

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

24+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Server Grade Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

8 Layer PCB design

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

DDR5 Memory with Protection Circuit

Reinforced DIMM Slot

The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

DIY Friendly Design

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.

The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

KiLLER Networking

KiLLER E3100 + AX1675

The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet and WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

KiLLER Doubleshot Pro

Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.

Benefits

Speed: DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time.
Intelligence: The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.
Maximum Control: Utilize the Killer Control Center 2.0 to see and manage which network connection your applications are using. Set limits using Visual Bandwidth Control or shut them down completely with application blocking, so they don’t interfere with higher priority apps

USB4 Type-C

Enhanced USB4 Type-C

USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and supports up to 9V@3A 27W with the next generation PD 3.0 for superfast charging!

Fast Charging Technology

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

High Definition Sound Effects

ESS SABRE9218 DAC

Embrace the audio stunning performance with ES9218 SABRE DAC!

- True Hi-Fi Audio. No distorted digital signal

- 130dB SNR

- 112dB THD+N and supports higher impedance up to 600 Ohmheadphone

WIMA Audio Cap

Optimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

- Static Noise Suppression

- Echo Cancellation

- Lateral Sound Cancellation

- Voice Stabilizer

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Polychrome RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

11 Item Items Warning: Last items in stock!

£ 590.09

Quantity

Data sheet

Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.
Manufacturer Number:	X670E TAICHI

More info

Motherboard Type

Desktop

Form Factor

Extended ATX

Socket

AMD AM5

Chipset

AMD X670

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 6600+(OC)

Maximum Memory

128GB

Graphics

Integrated AMD RDNA 2 graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI 2.1
2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz

Multi-GPU Support

Supports AMD CrossFire

PCI/PCI Express

2 x PCIe 5.0 x16 (support x16 or x8/x8 modes)

Storage

4 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2230/2242/2260/2280/22110) - SATA and PCIe
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - PCIe

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 160MHz w/ ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot Pro

LAN

2.5GB LAN

Audio

5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)

USB Ports Supported

2 x USB4 Type-C (at back)
5 x USB 3.2 Gen2 Type-A (at back)
7 x USB 3.2 Gen1 (3 at back, 4 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header

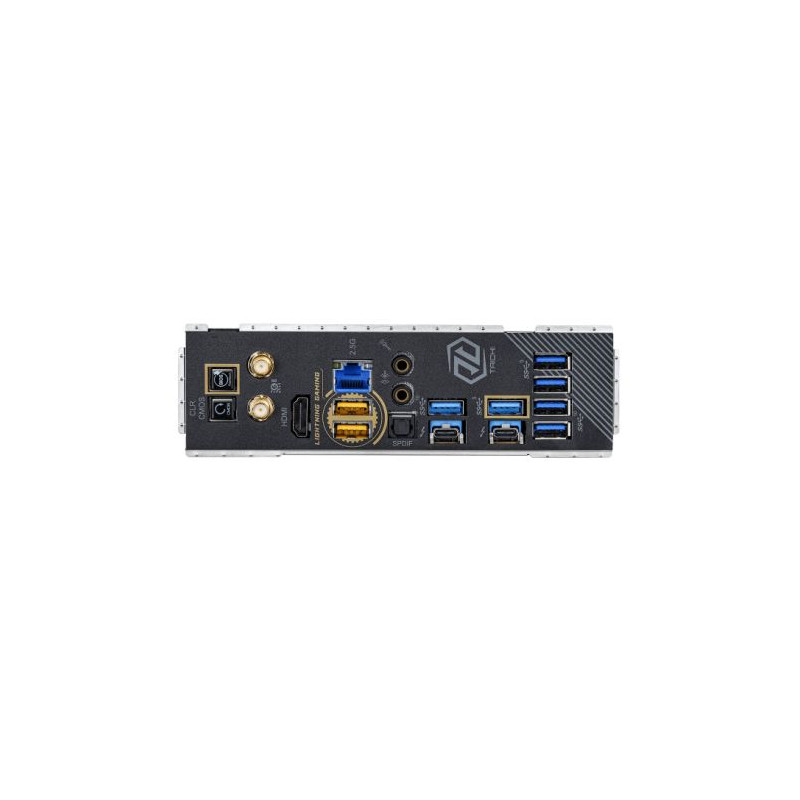

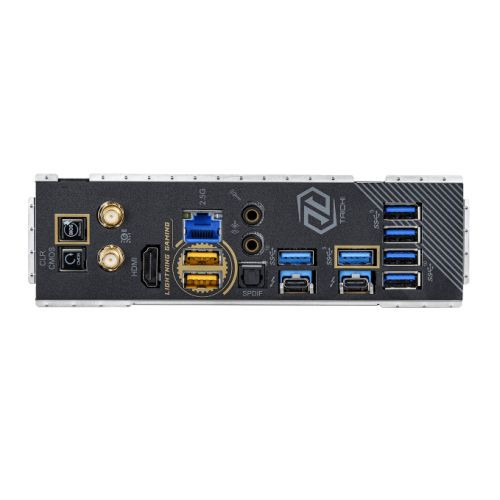

Back Panel I/O Ports

2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x USB4 Type-C
5 x USB 3.2 Gen2 Type-A (USB32_12 = Lightning Gaming Ports)
3 x USB 3.2 Gen1
1 x RJ-45 LAN
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack

Internal I/O Connectors

1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
6 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2

1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED

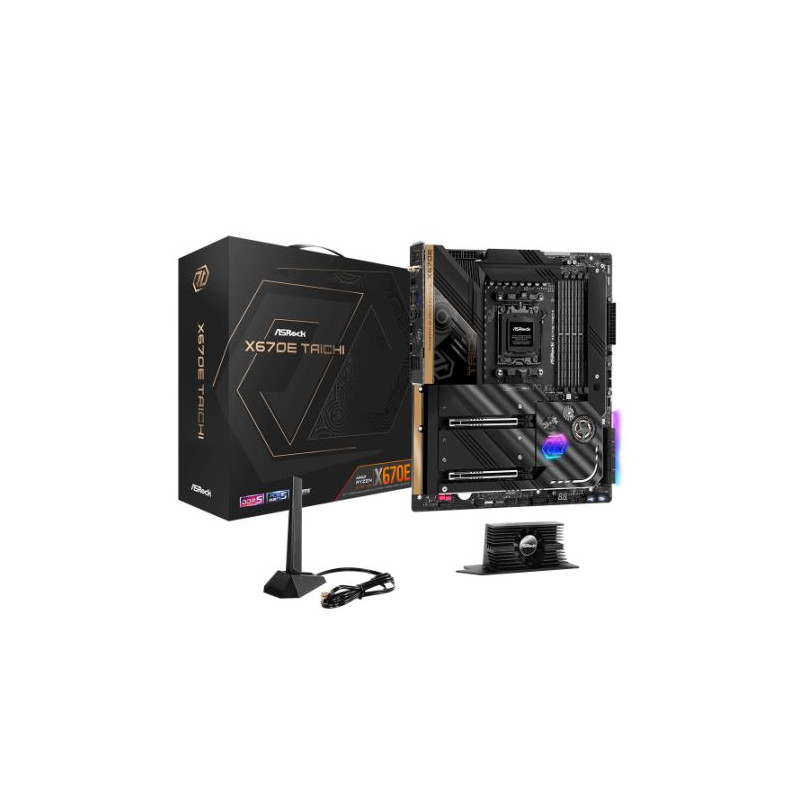

Accessories

1 x User Manual
4 x SATA Data Cables
1 x Wireless Dongle USB Bracket
1 x Blazing M.2 Gen5 Fan Heatsink
1 x ASRock WiFi 2.4/5/6 GHz Antenna
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Additional Features

See Overview

Package Type

Retail

Package Weight

3.8000 kg

Warranty

3 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
