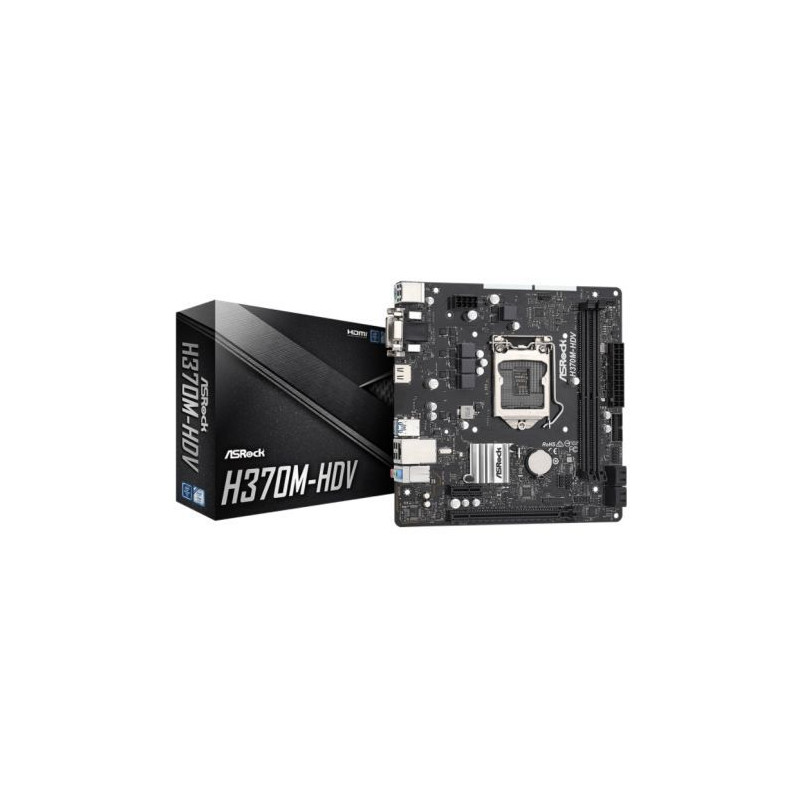

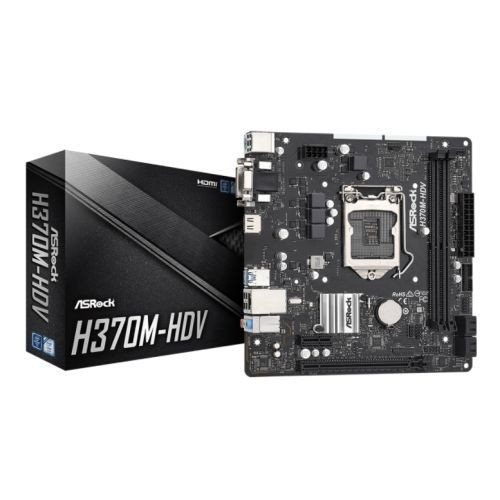

Asrock H370M-HDV, Intel H370, 1151, Micro ATX, 2 DDR4, VGA, DVI, HDMI

Condition: New product

Supports 9th and 8th Gen Intel® Core™ Processors
4 Power Phase design
2 DIMMs, Up to DDR4 2666 MHz
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, DVI-D, HDMI
7.1 CH HD Audio (Realtek 887/897 Audio Codec)
4 x SATA3
4 x USB 3.2 Gen1 (2 Front, 2 Rear)
6 x USB 2.0 (2 Front, 4 Rear)
Realtek Gigabit LAN

4 x USB3.2 Gen1

Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

HEVC 10-bit Decoding/Encoding

Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

Super Alloy Motherboard

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Live Update and APP Shop

ASRock Live Update and APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update and APP Shop.

12 Item Items Warning: Last items in stock!

£ 67.45

Quantity

Data sheet

Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	H370M-HDV
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1151 - Coffee Lake

Chipset

Intel H370

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

2666 / 2400 / 2133 MHz

Maximum Memory

64GB

Graphics

Supports Intel HD Graphics

Graphics Ports

1 x VGA
1 x DVI-D
1 x HDMI

Multi-GPU Support

PCI/PCI Express

1 x PCIe 3.0 x16
1 x PCIe 3.0 x1

Storage

4 x SATA III

RAID

RAID 0, 1, 5, 10

Wireless

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek 887/897 Audio Codec)

USB Ports Supported

4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)

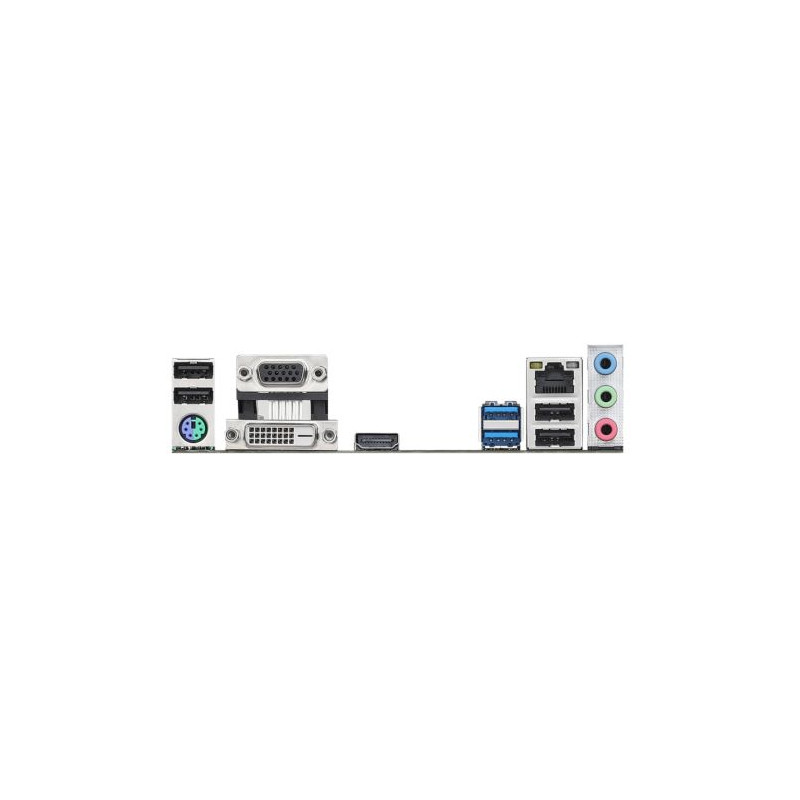

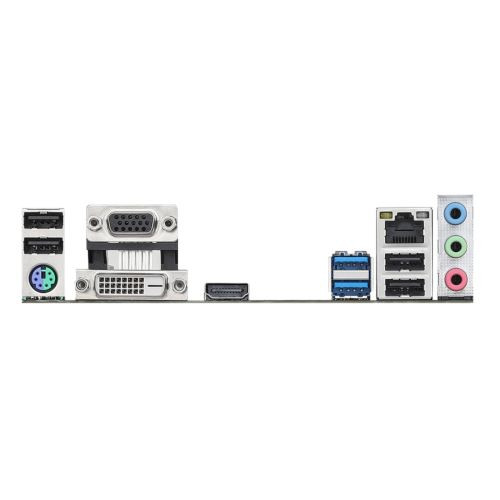

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
4 x USB 2.0
2 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1

Accessories

Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables

Additional Features

See Overview

Package Type

Retail

Package Weight

0.6900 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link
