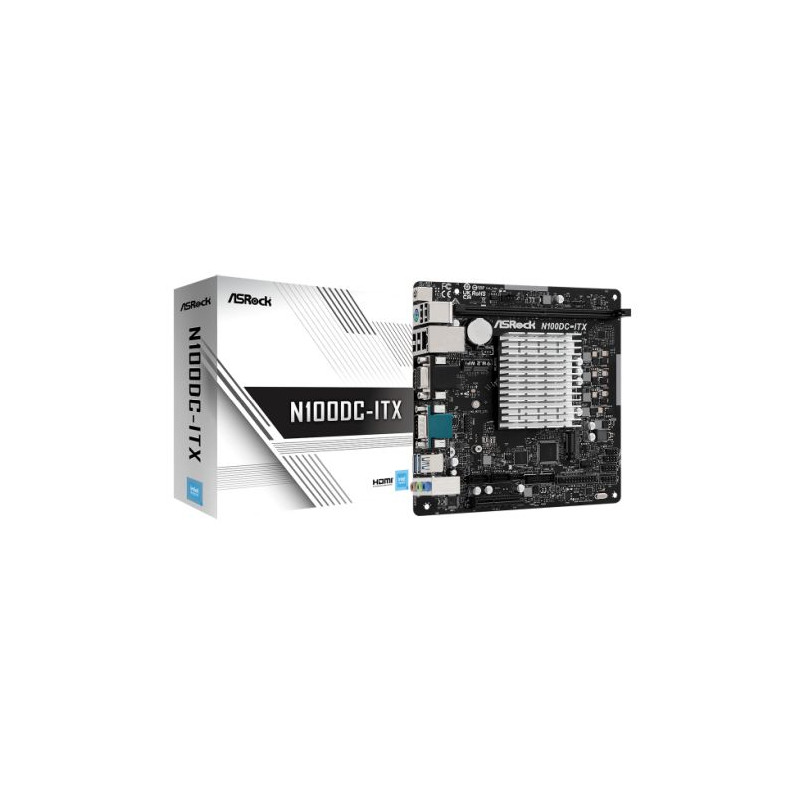

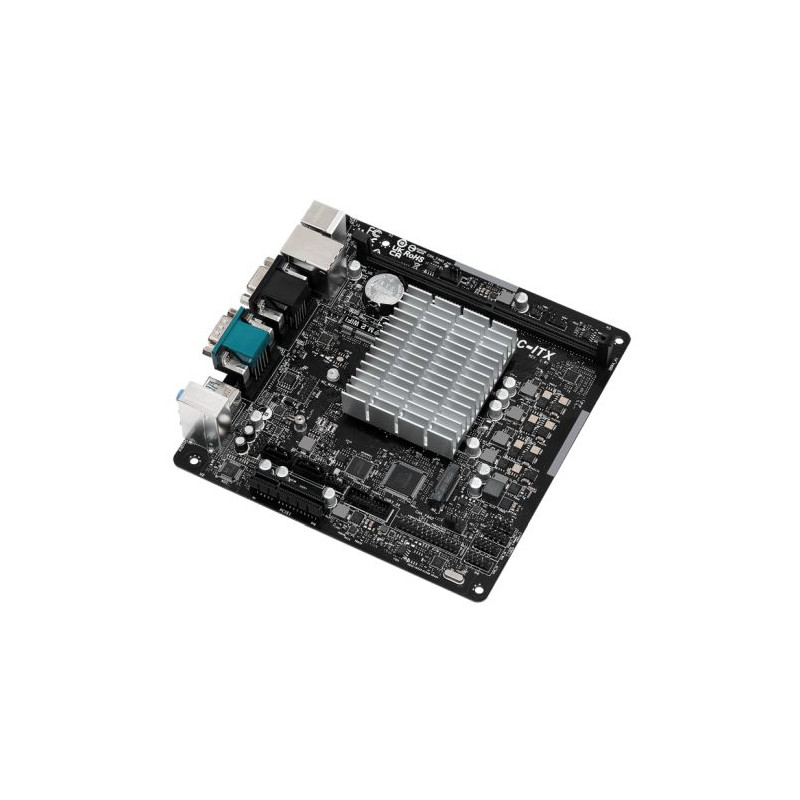

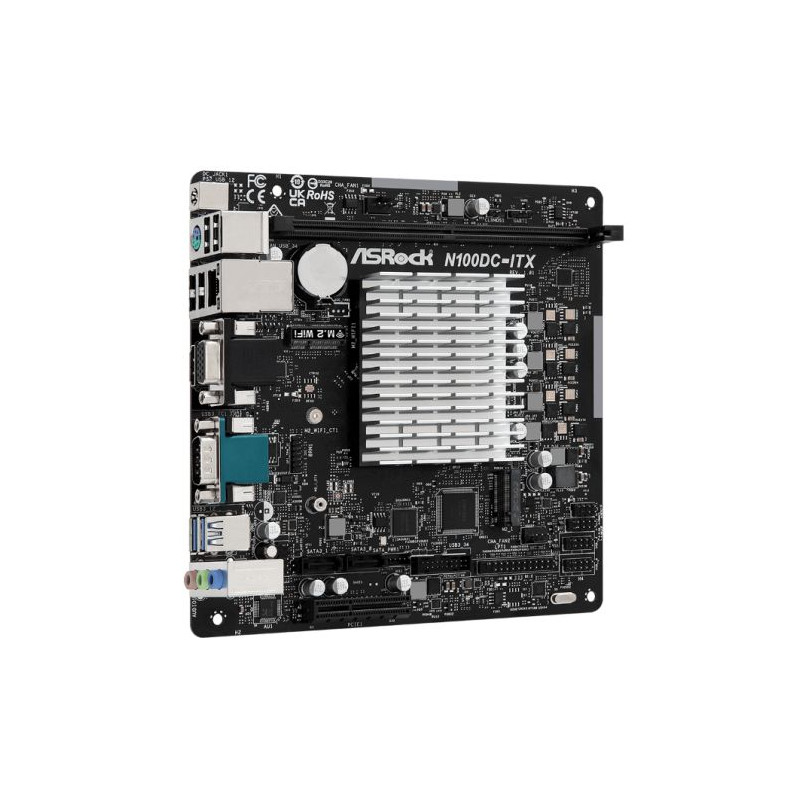

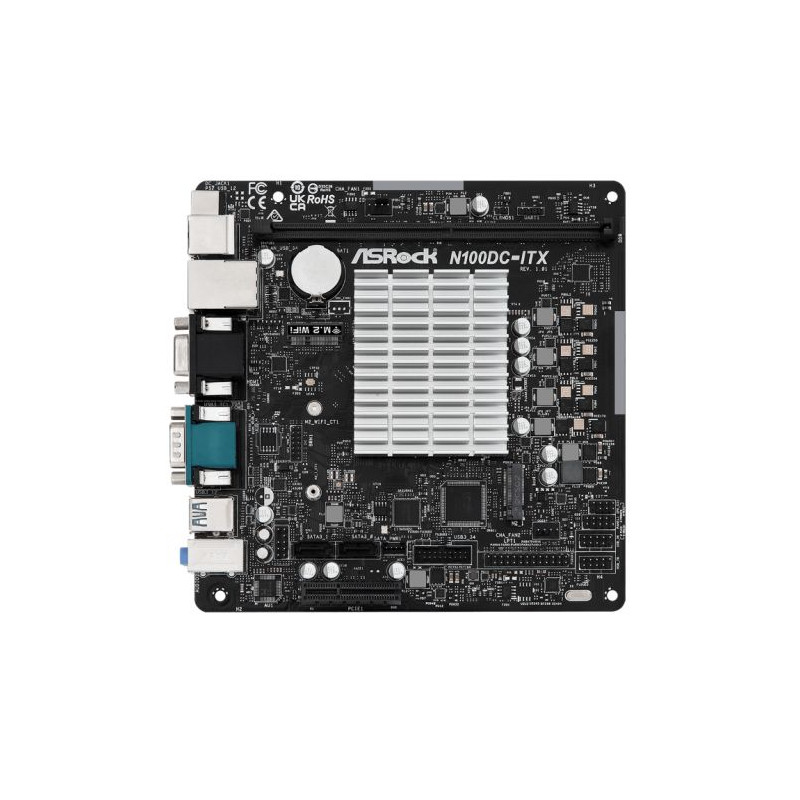

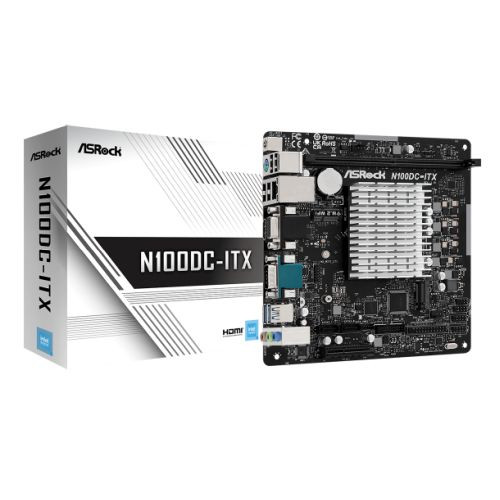

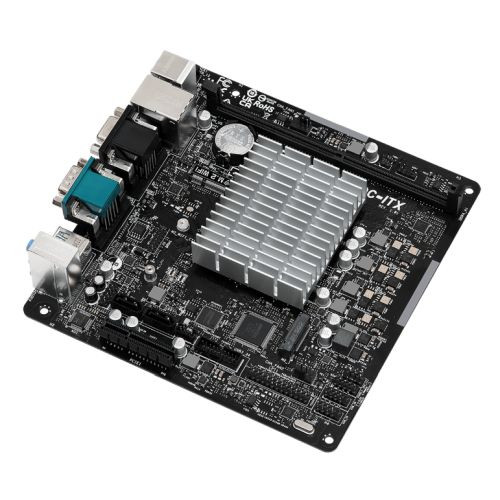

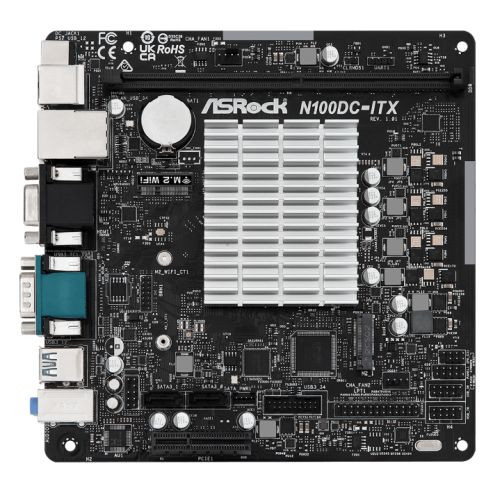

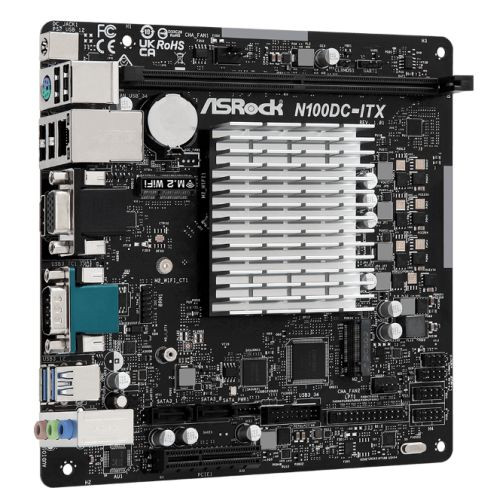

Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2

Condition: New product

19 Item Items Warning: Last items in stock!

£ 150.43

Quantity

Data sheet

Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	N100DC-ITX
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Embedded CPU

CPU

Intel Quad-Core Processor N100 (Up to 3.4 GHz)

CPU Support

N/A (Integrated CPU)

RAM Technology

Supports DDR4 non-ECC, un-buffered memory

RAM Slots

1 x DIMM

RAM Speeds

Up to 3200 MHz

Maximum Memory

16GB

Graphics

Integrated Intel UHD Graphics
24 EUs inside (Up to 750MHz)

Graphics Ports

1 x VGA
1 x HDMI

PCI/PCI Express

1 x PCIe 3.0 x4 (supports x2 mode)

Storage

2 x SATA III
1 x M.2 (2280) - PCIe 3.0 x2

Wireless

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

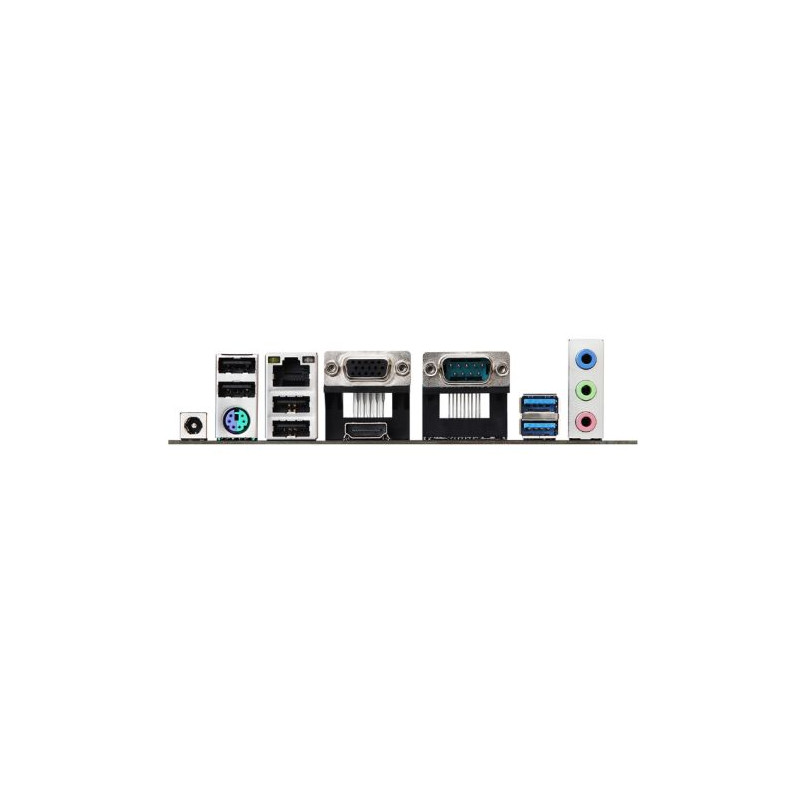

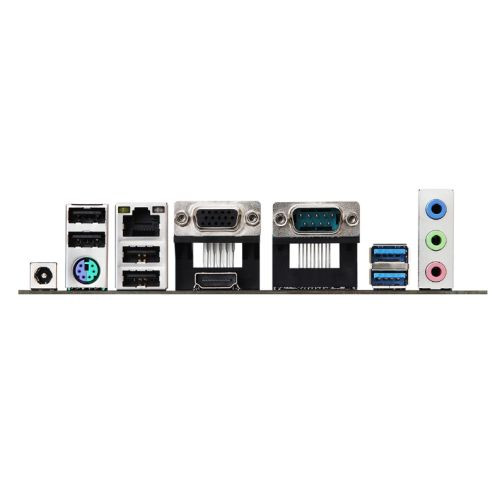

Back Panel I/O Ports

1 x DC Jack (Compatible with 19V power adapters)
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x Serial Port: COM1
1 x D-Sub
1 x HDMI
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x Print Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
2 x Chassis Fan
1 x Front Panel Audio
2 x USB 2.0 Headers
1 x USB 3.2 Gen1

Accessories

1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x SATA Power Cable
2 x Screws for M.2 Sockets

Additional Features

See Overview

Package Type

Retail

Package Weight

0.6400 kg

Warranty

3 Year Replacement Warranty
