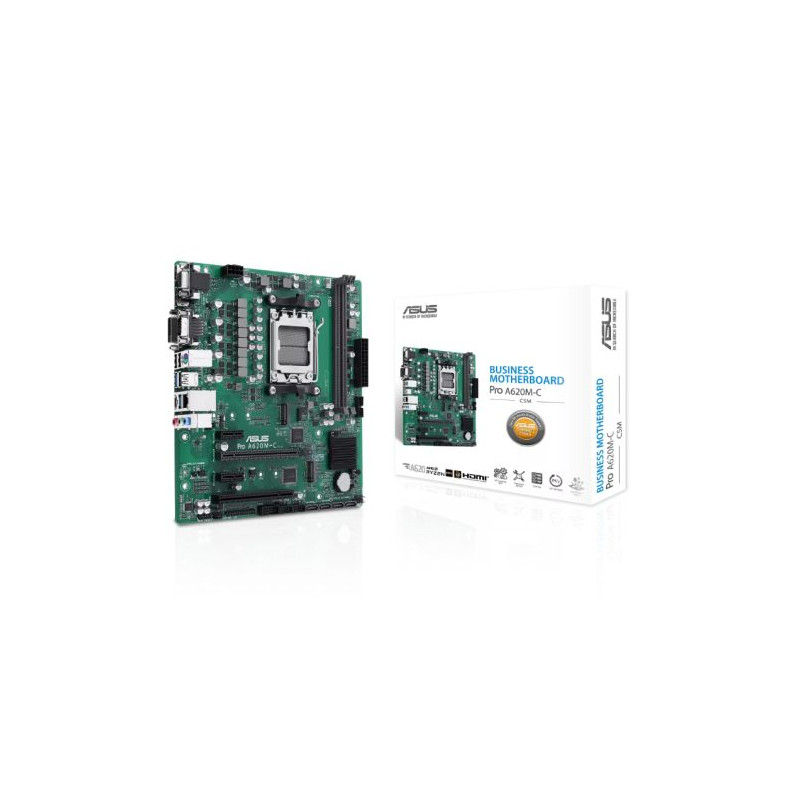

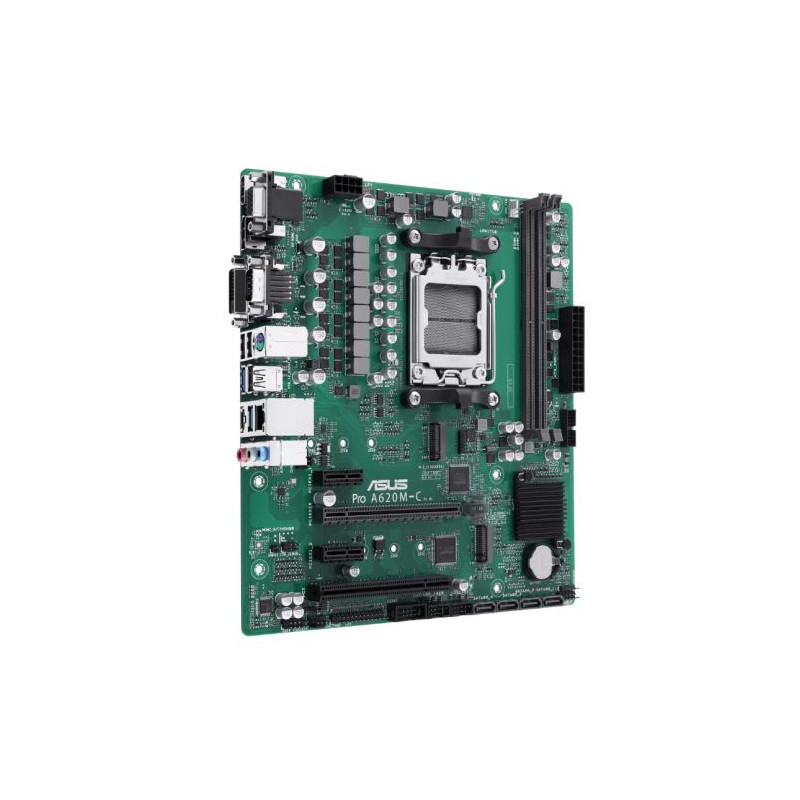

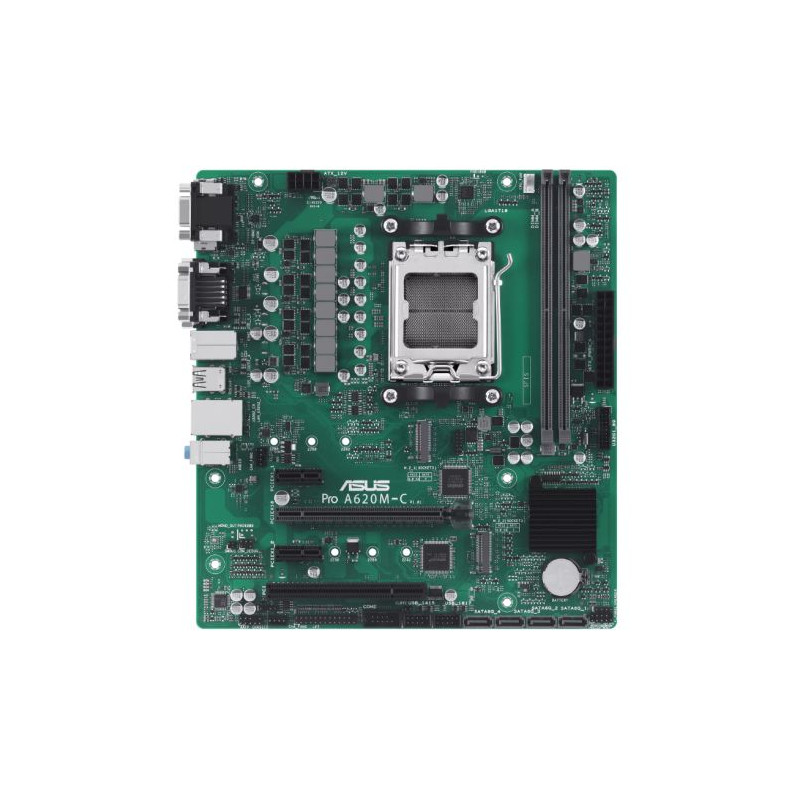

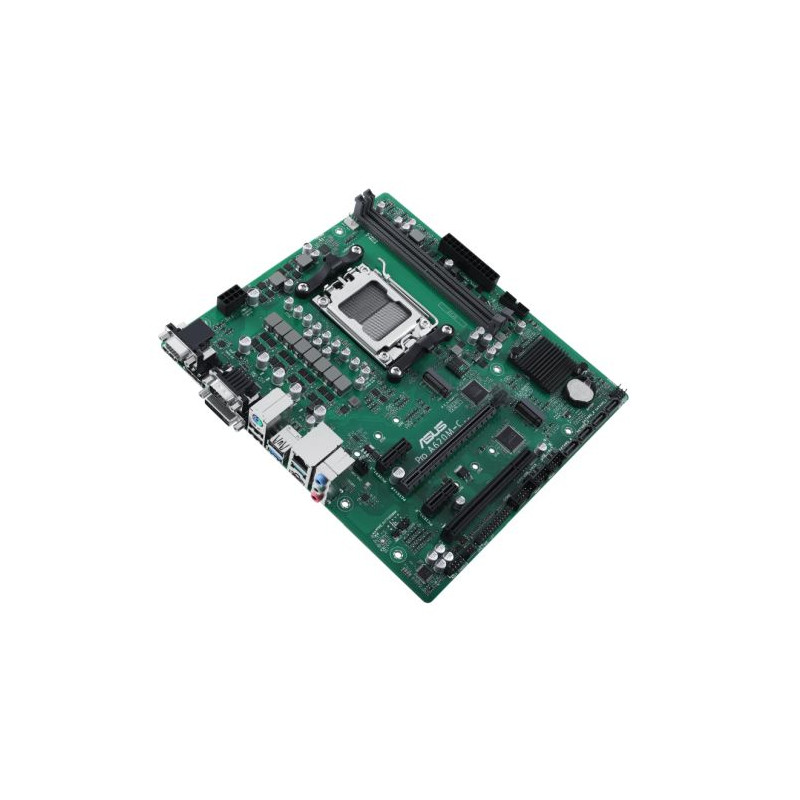

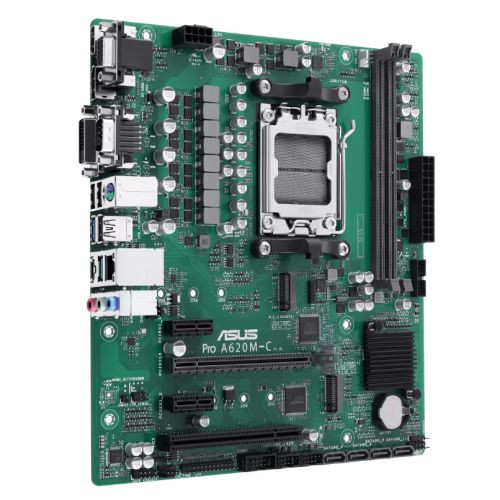

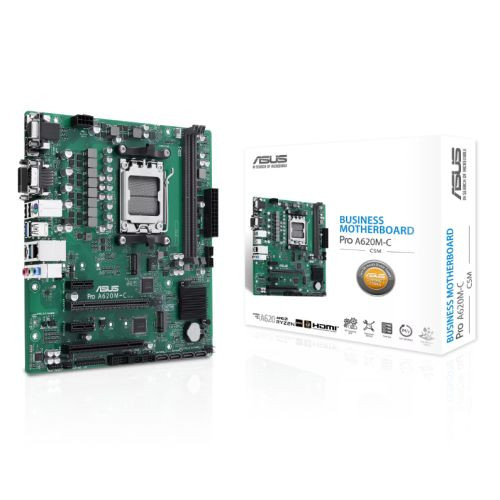

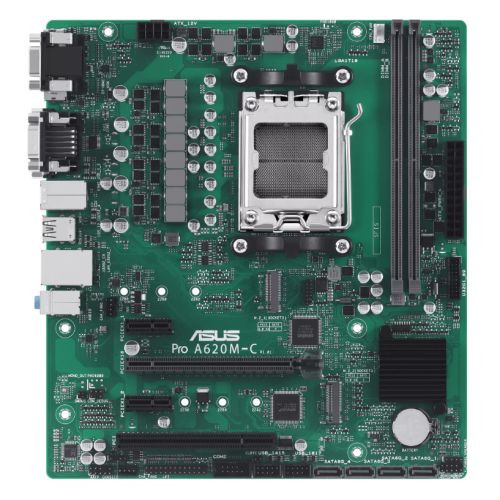

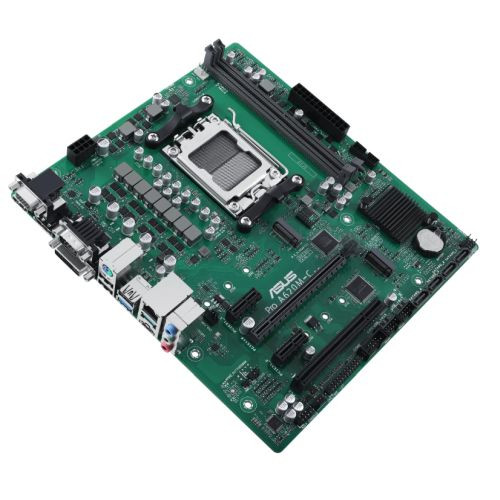

Asus PRO A620M-C-CSM - Corporate Stable Model, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

Condition: New product

AMD A620 Micro-ATX business motherboard with enhanced security, reliability, manageability and serviceability

AM5 Socket for AMD Ryzen™ Desktop Processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast connectivity: DDR5, dual M.2 PCIe 4.0 slots, rear USB 3.2 Gen 2 Type-C® and front USB 3.2 Gen 1 header

Pro

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Learn more

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Learn more

** Click here for full product details **

14 Item Items Warning: Last items in stock!

£ 146.86

Quantity

Data sheet

Manufacturer Number:	90MB1F80-M0EAYC
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD A620

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

RAM Slots

2 x DIMM

RAM Speeds

Up to 8000+(OC)

Maximum Memory

96GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1
1 x PCI

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
1 x USB 3.2 Gen1 Type-A
3 x USB 2.0

Front:
2 x USB 3.2 Gen1
4 x USB 2.0

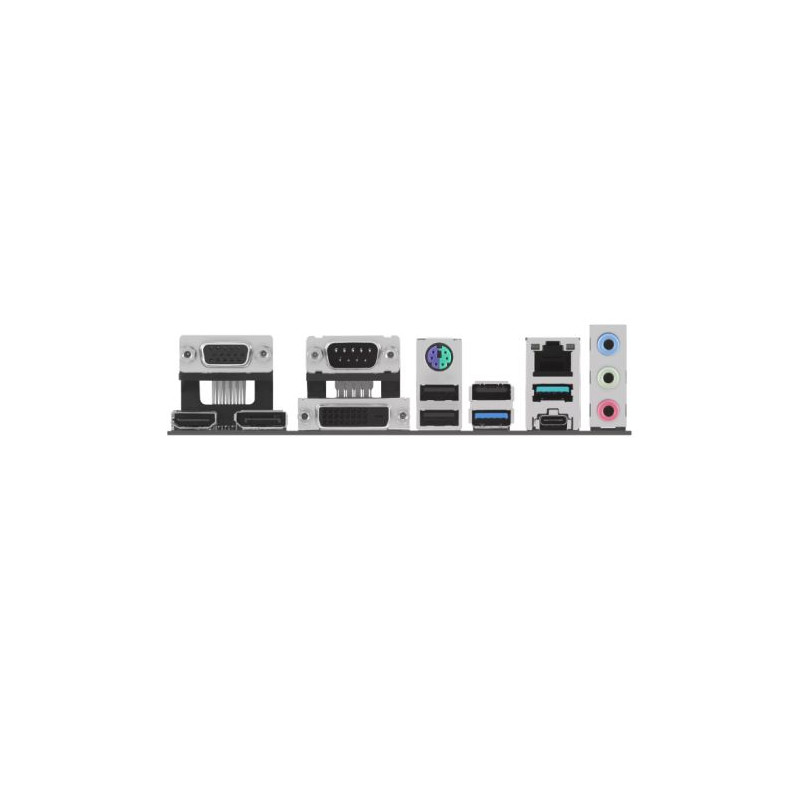

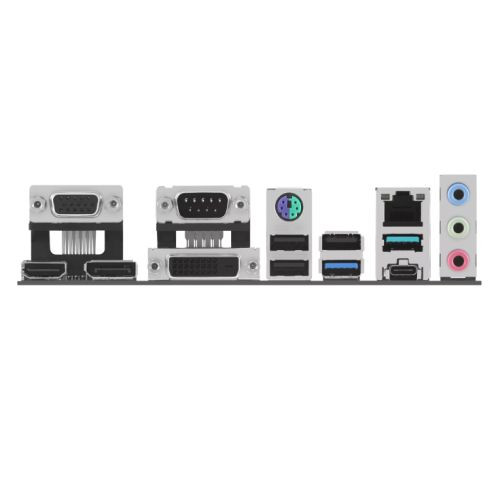

Back Panel I/O Ports

2 x USB 3.2 Gen2 (1 Type-A, 1 x Type-C)
1 x USB 3.2 Gen1 Type-A
3 x USB 2.0
1 x DisplayPort
1 x VGA
1 x DVI-D
1 x HDMI
1 x Realtek 1Gb Ethernet
1 x COM
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrude
1 x COM Port
1 x Front Panel Audio

1 x COM debug
1 x LPT
1 x SMBUS
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
2 x M.2 Anchors
1 x ACC Express Activation Key Card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.1000 kg

Warranty

3 Years
