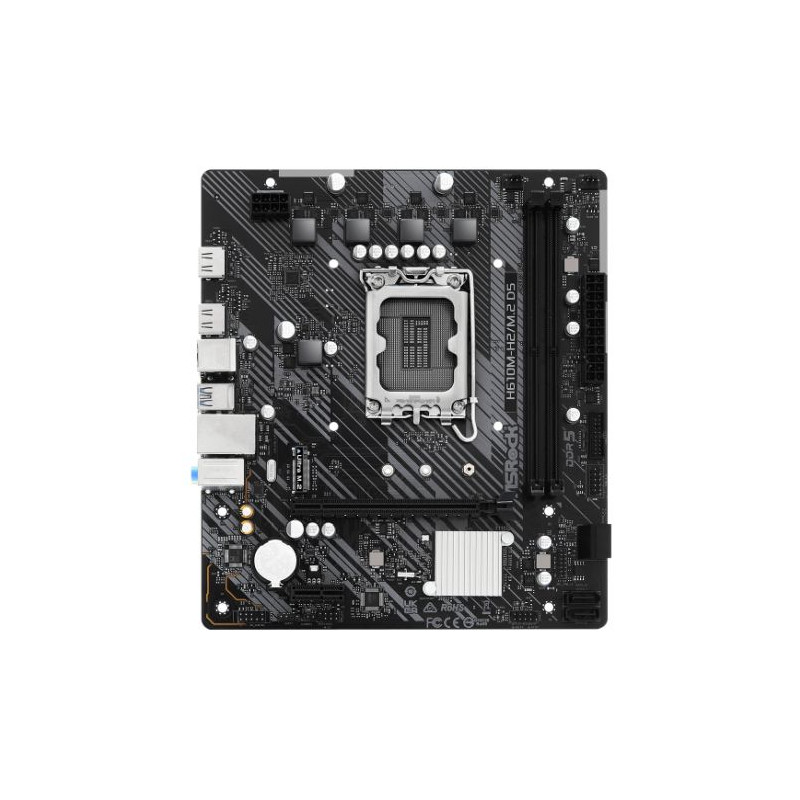

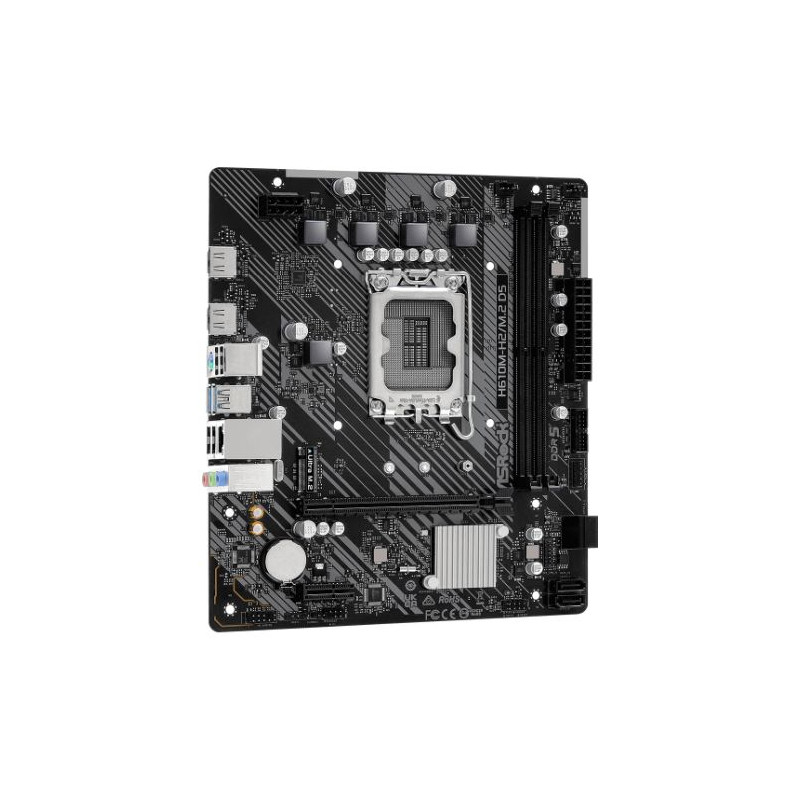

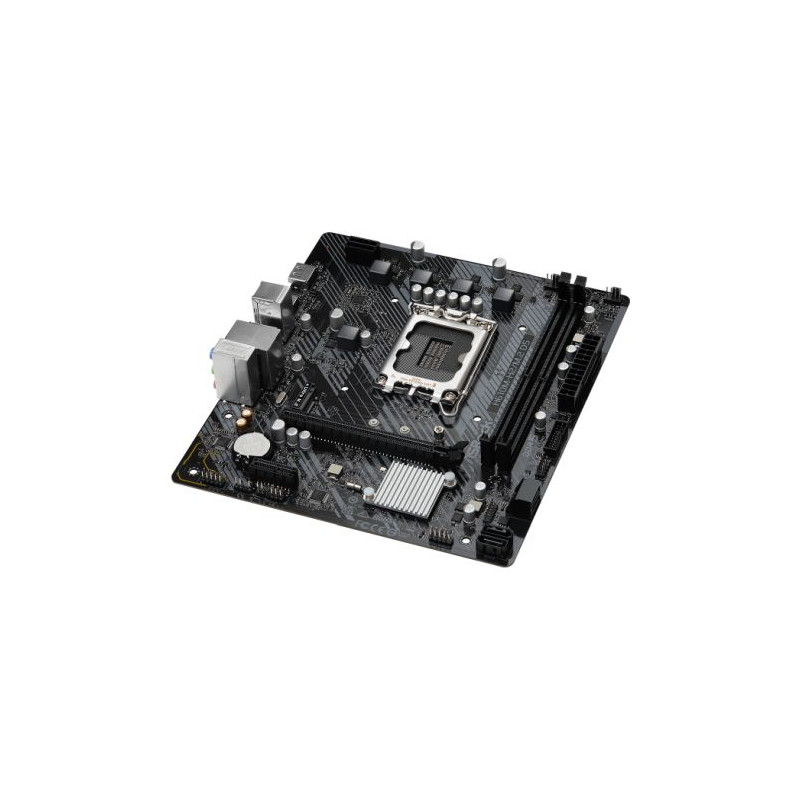

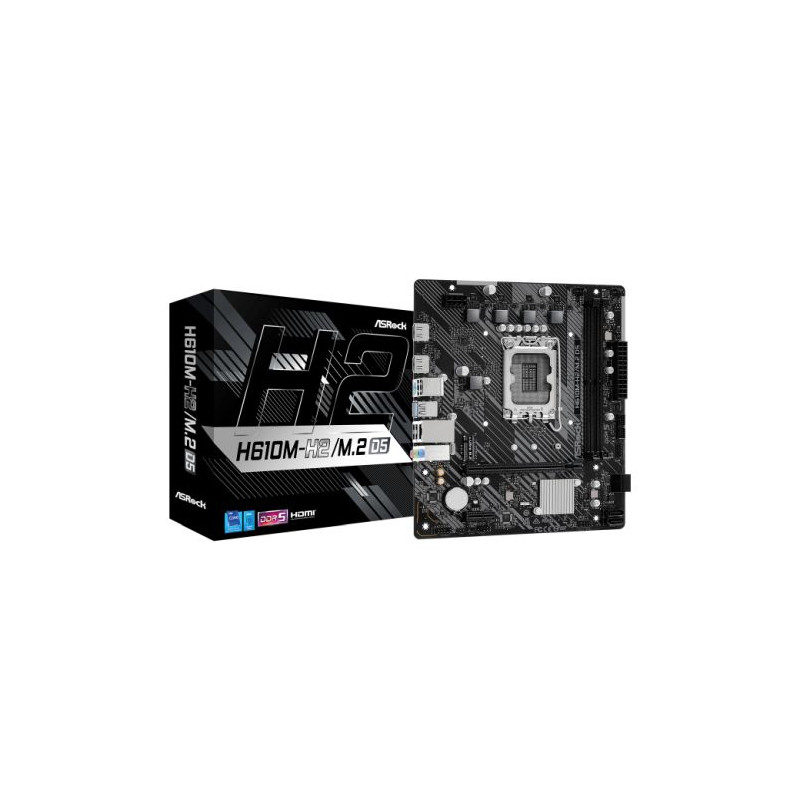

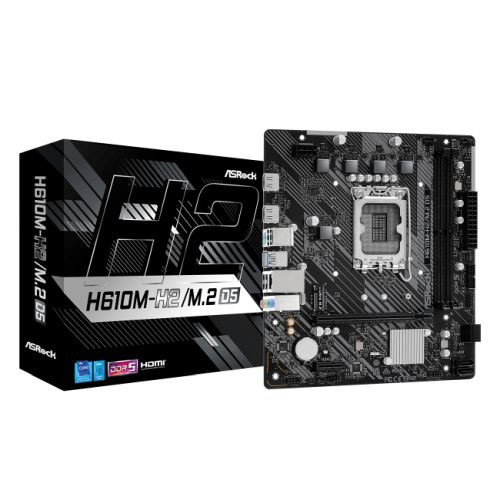

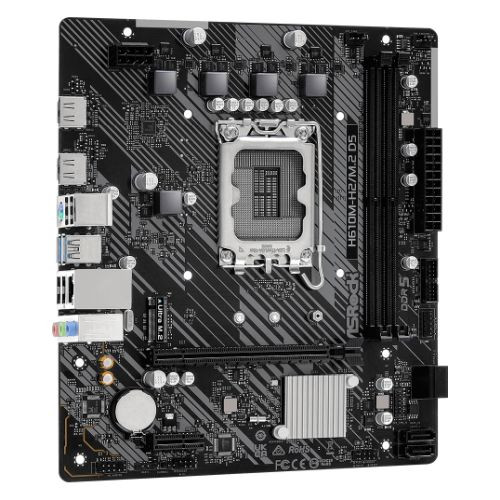

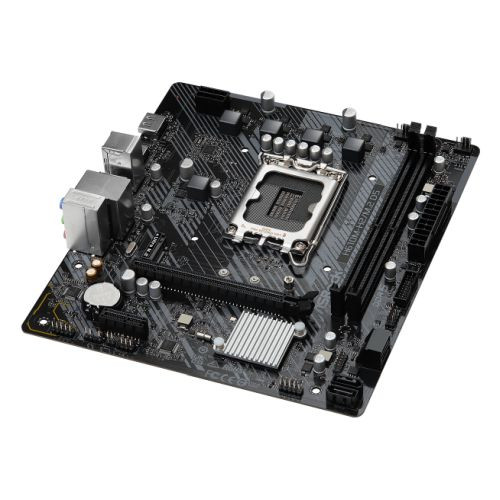

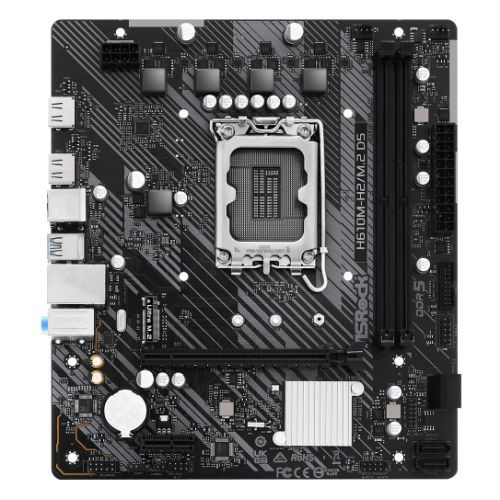

Asrock H610M-H2/M.2 D5, Intel H610, 1700, Micro ATX, 2 DDR5, 2 HDMI, GB LAN, PCIe4, 1x M.2

Condition: New product

25 Item Items Warning: Last items in stock!

£ 78.67

Quantity

Data sheet

Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	H610M-H2/M.2 D5
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports Intel XMP 3.0

RAM Slots

2 x DIMM

RAM Speeds

Up to 5600 MHz

Maximum Memory

96GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

2 x HDMI 2.1

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

USB Ports Supported

Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

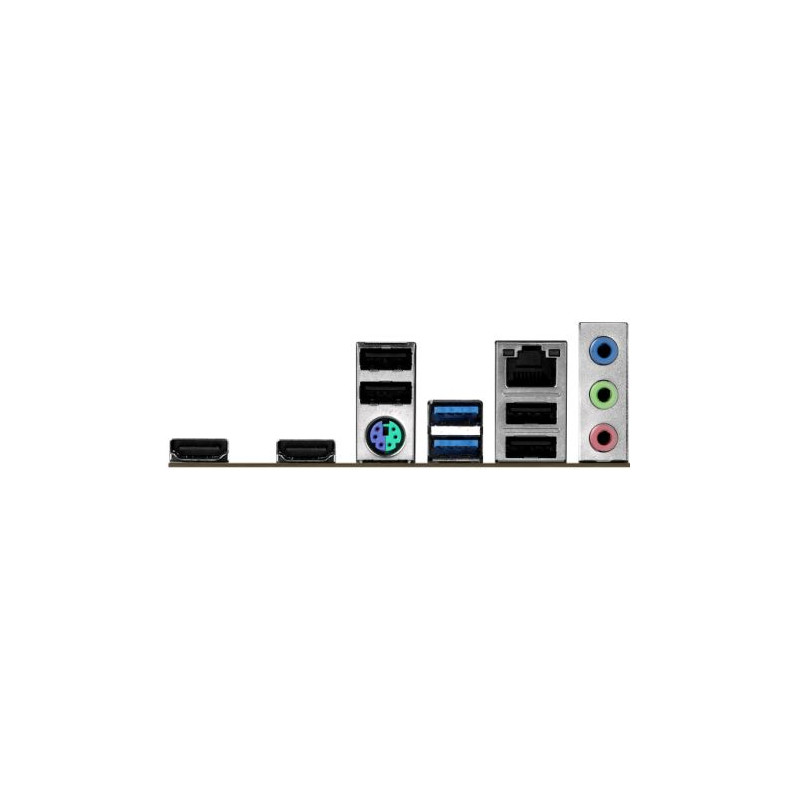

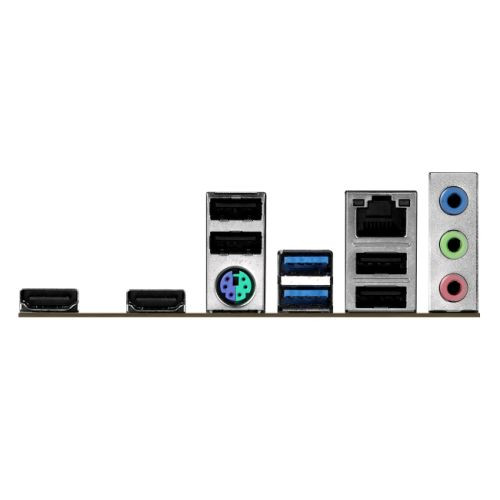

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard
2 x HDMI
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1

Accessories

1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket

Additional Features

See Overview

Package Type

Retail

Package Weight

0.7100 kg

Warranty

3 Year Replacement Warranty
