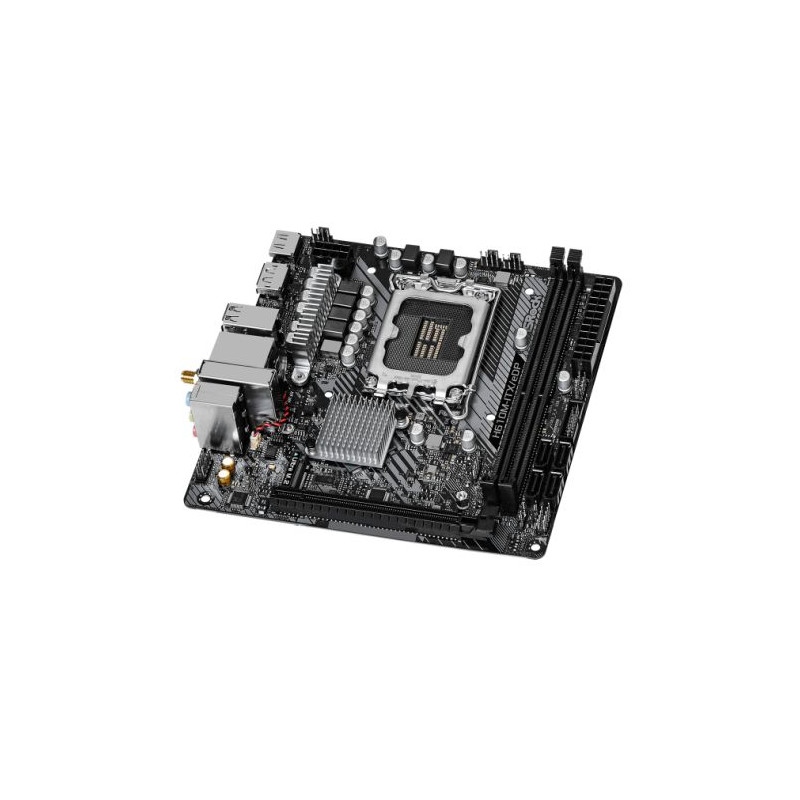

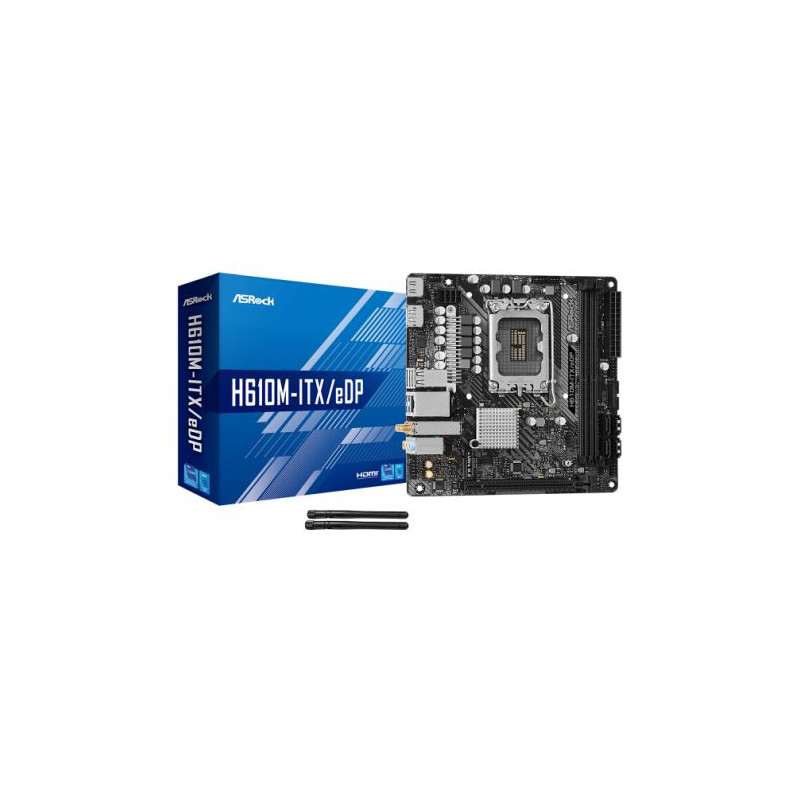

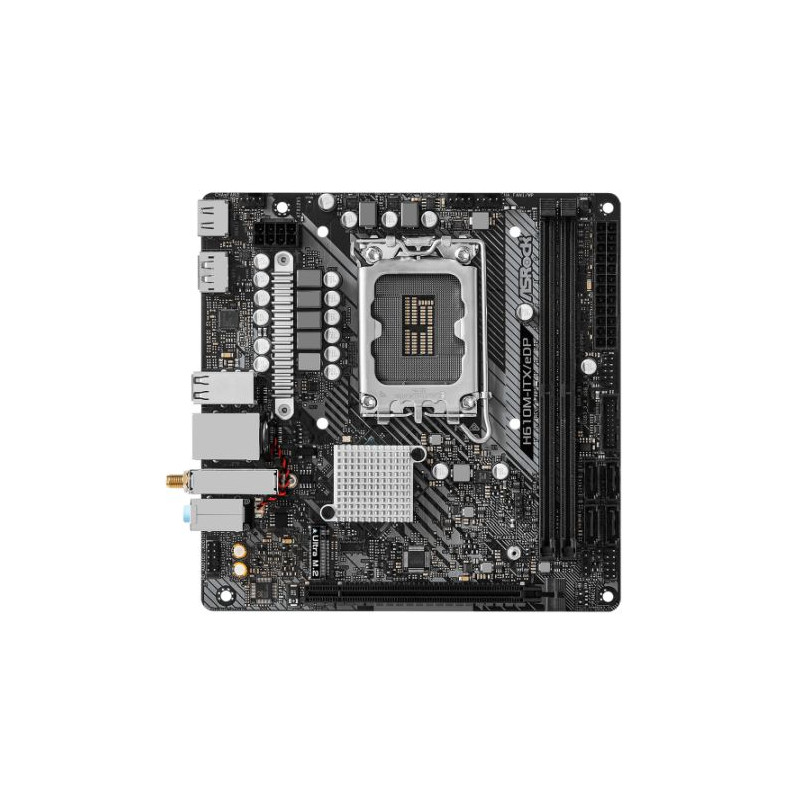

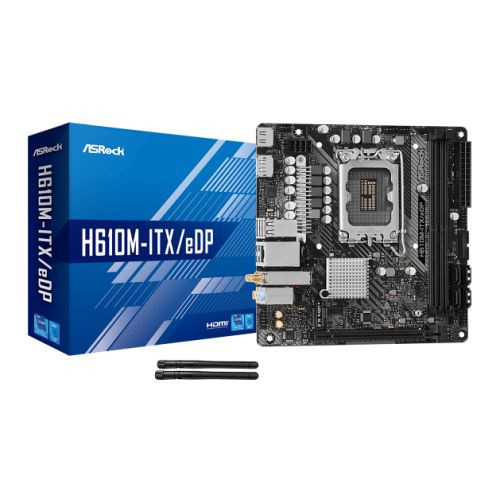

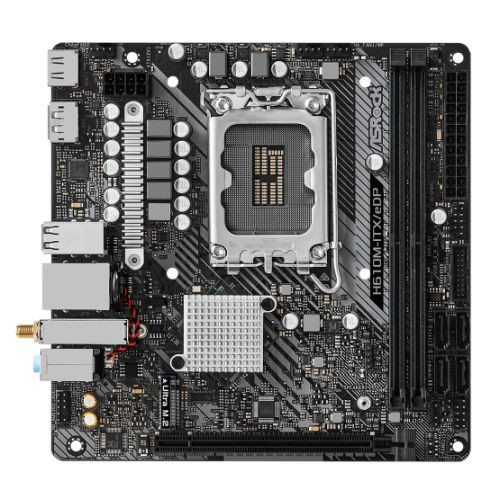

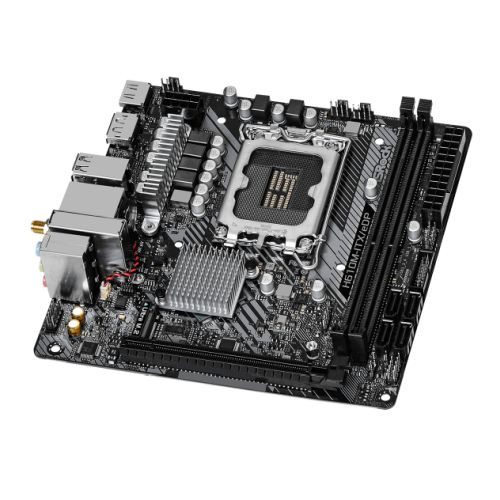

Asrock H610M ITX/eDP, Intel H610, 1700, Mini ITX, 2 DDR4, HDMI, DP, eDP, Wi-Fi, PCIe4, 1x M.2

Condition: New product

H610M-ITX/eDP

Supports 12th Gen Intel® Core™ Processors (LGA1700)
6 Phase Dr.MOS Power Design
Supports DDR4 3200MHz
1 PCIe 4.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3 x4 and SATA3)
4 USB 3.2 Gen1 (2 Front, 2 Rear)
6 USB 2.0 (2 Front, 4 Rear)
Intel® Gigabit LANIntel® 802.11ac WiFi + Bluetooth 5.1

ASRock SPD (Side Panel Display)

It’s compatible with eDP side panels, which could be connected without adapter boards and display in a wonderful way!

Ultra M.2 32Gb/s (PCIe Gen3 x4 and SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

16 Item Items Warning: Last items in stock!

£ 152.27

Quantity

Data sheet

Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	H610M ITX/EDP
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

Up to 3200 MHz

Maximum Memory

64GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort 1.4
1 x eDP 1.4

PCI/PCI Express

1 x PCIe 4.0 x16

Storage

4 x SATA III
1 x M.2 (2280) - SATA and PCIe

Wireless

802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
Supports Bluetooth 5.1 + High speed class II

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)

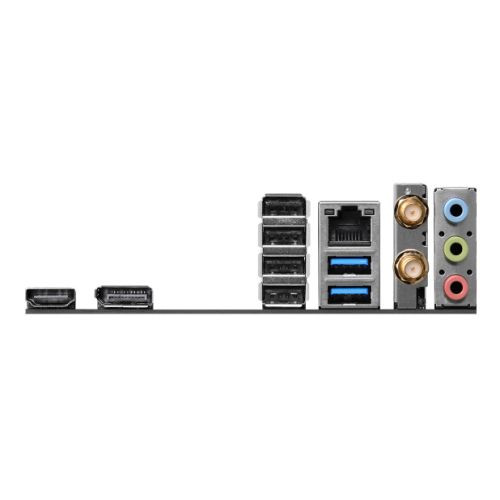

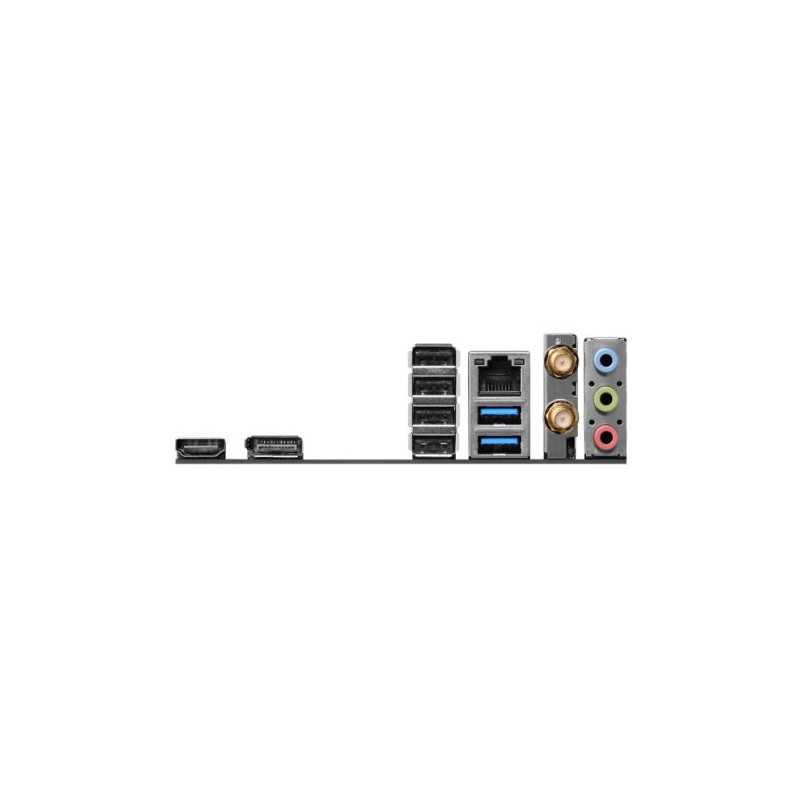

Back Panel I/O Ports

2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x eDP Signal
1 x CPU Fan
1 x Chassis Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1

Accessories

Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
1 x Screw for M.2 Socket
