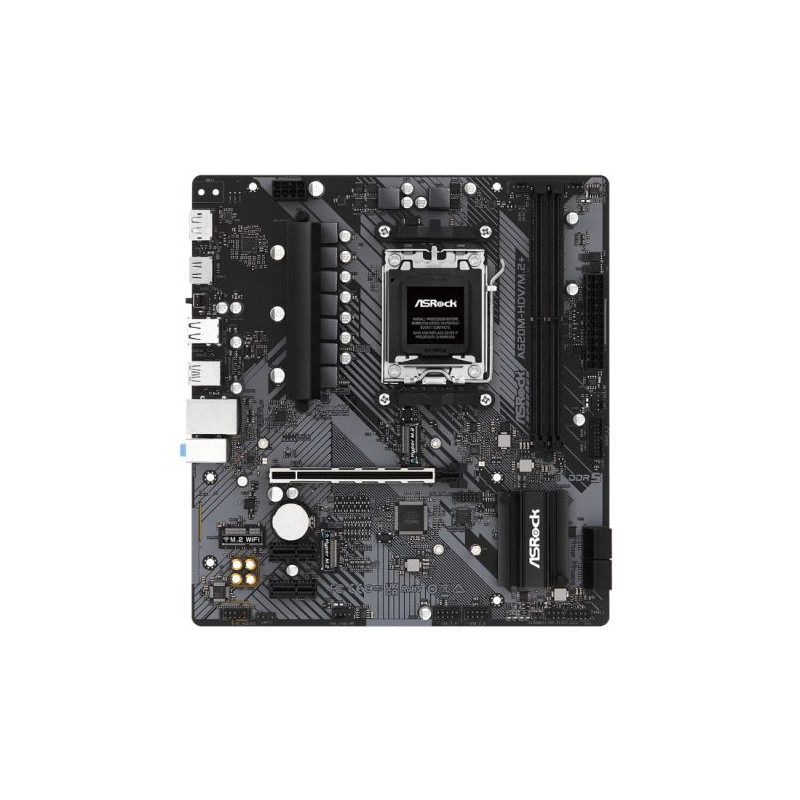

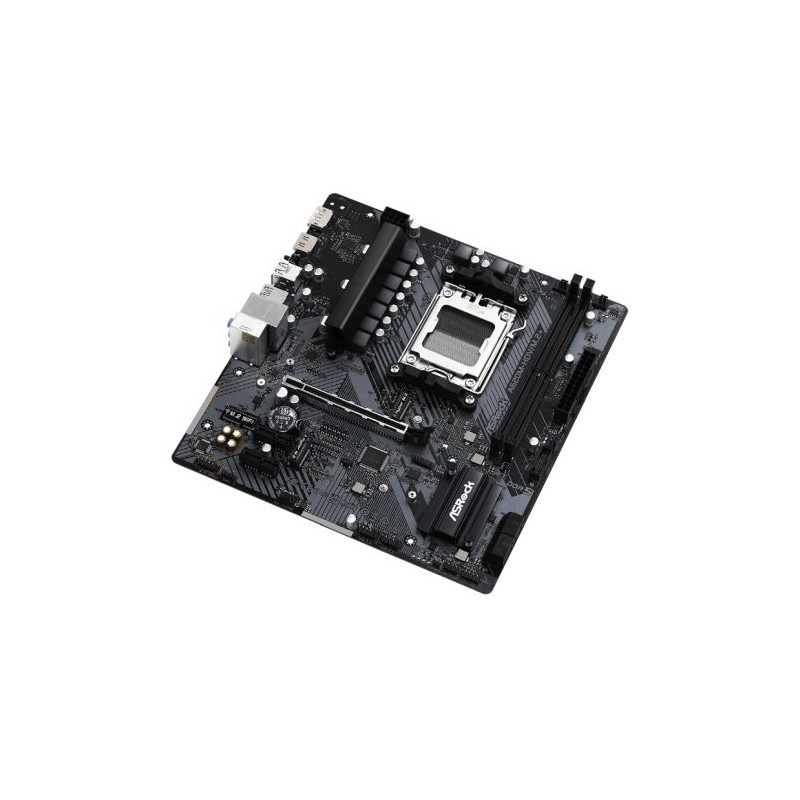

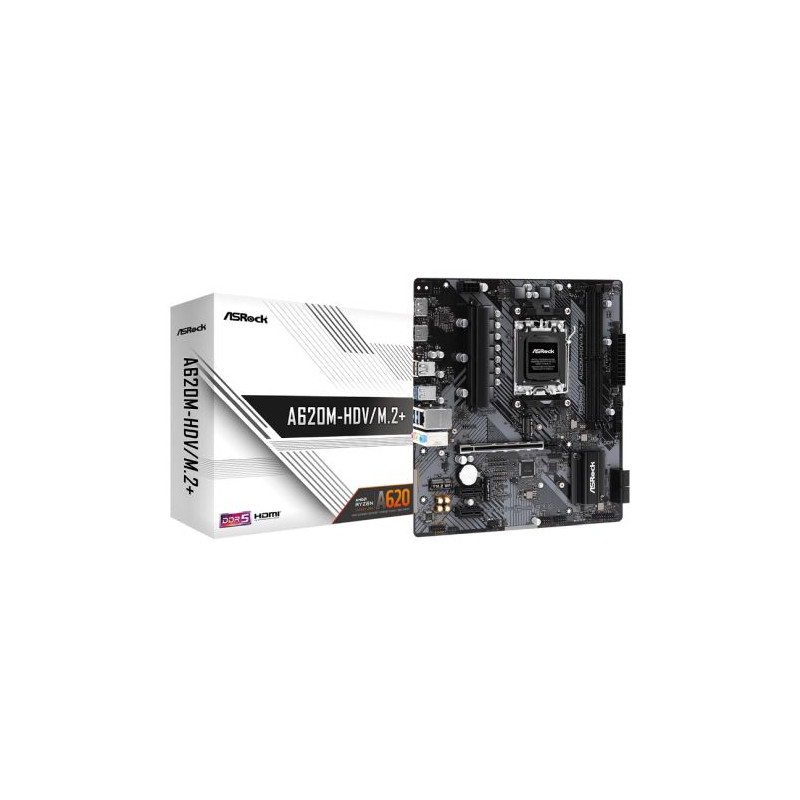

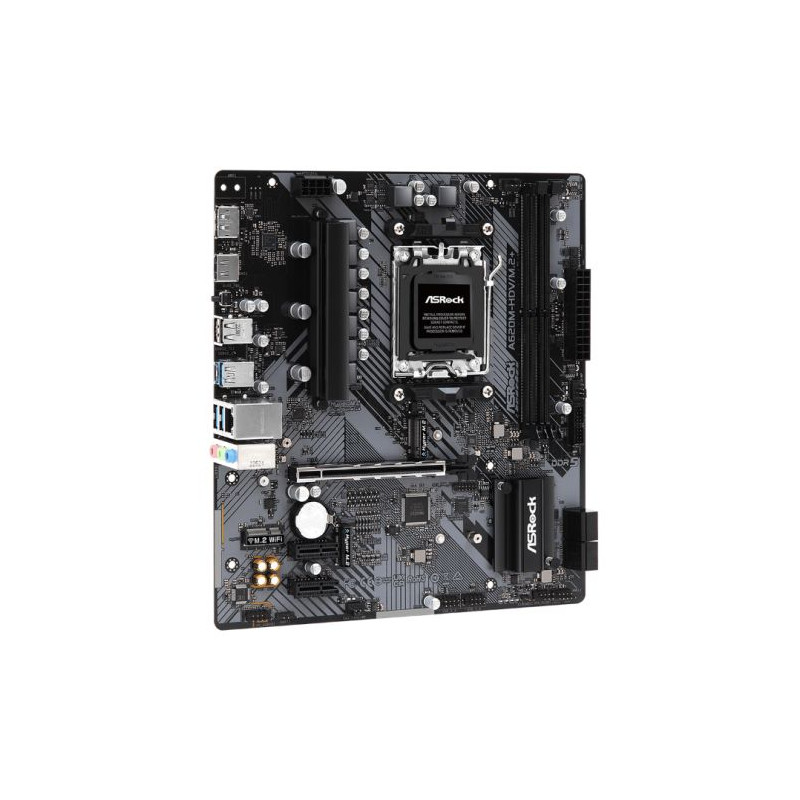

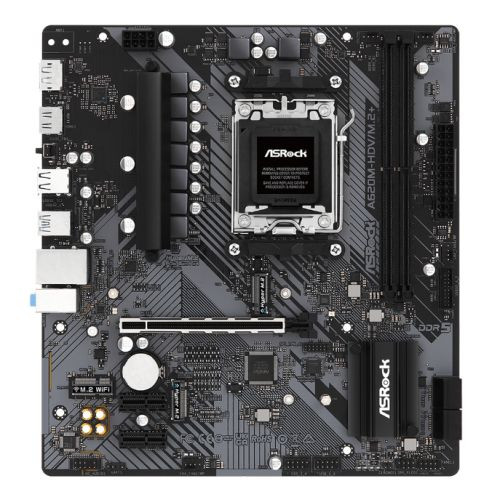

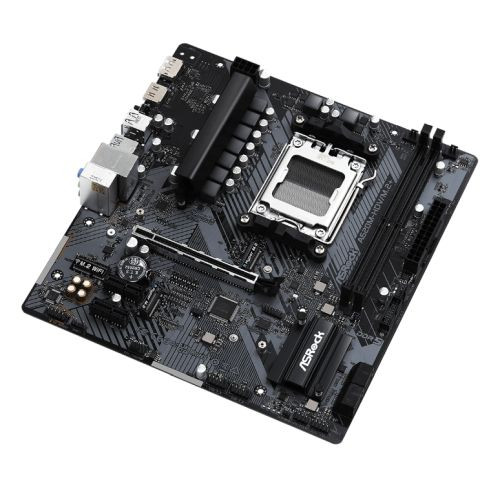

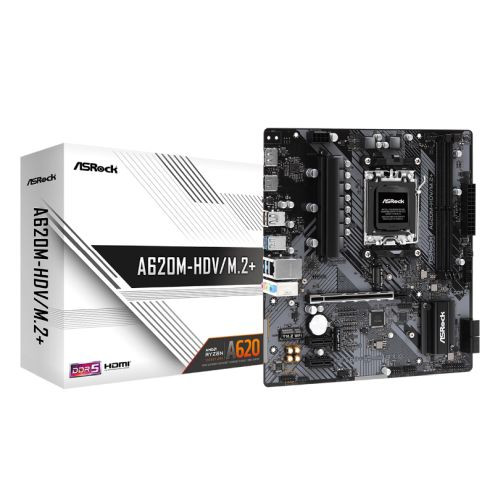

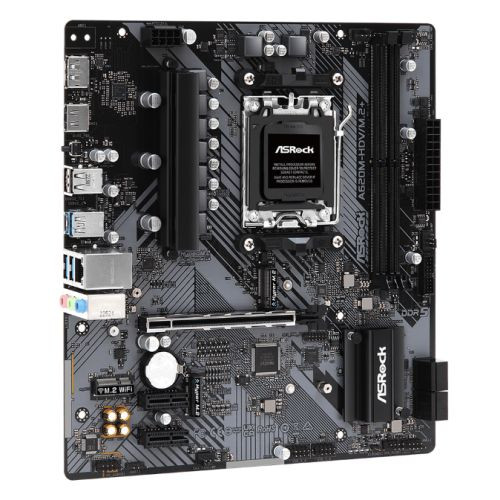

Asrock A620M-HDV/M.2+, AMD A620, AM5, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, PCIe4, 2x M.2

Condition: New product

A620M-HDV/M.2+

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
6+1+1 Power Phase, Dr.MOS, 120W CPU Ready
Supports DDR5 6400+ MHz (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA™ 2 Graphics*
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer, BIOS Flashback

Optimized VRM Design

Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

- Extra anchor points

- Stronger latch

- Ensure signal stability

- Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

*Wi-Fi module is not included.

EZ Setting

Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

12 Item Items Warning: Last items in stock!

£ 103.54

Quantity

Data sheet

Manufacturer Number:	A620M-HDV/M.2+
Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD A620

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

Up to 6400+(OC)

Maximum Memory

64GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2260/2280) - PCIe

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

1 x USB 3.2 Gen1 Type-C (at back)
5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

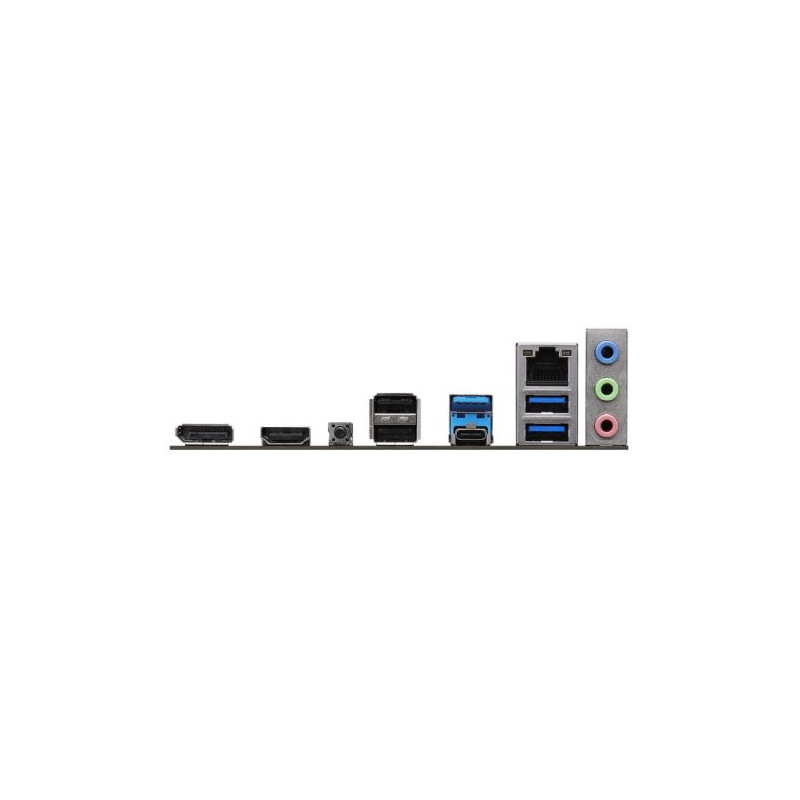

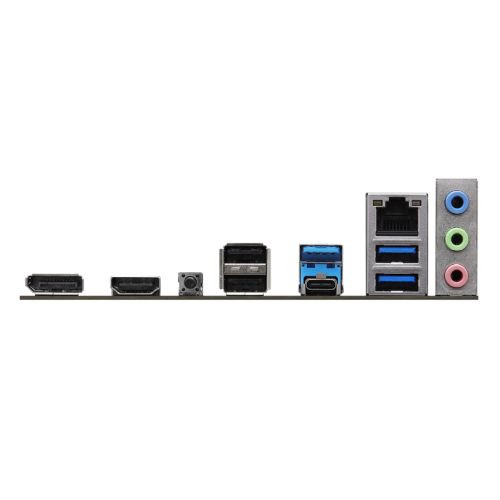

Back Panel I/O Ports

2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x Power LED and Speaker
1 x CPU Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1

Accessories

1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets

Additional Features

See Overview

Package Type

Retail

Package Weight

1.1000 kg

Warranty

3 Year Replacement Warranty

Full Box Quantity
