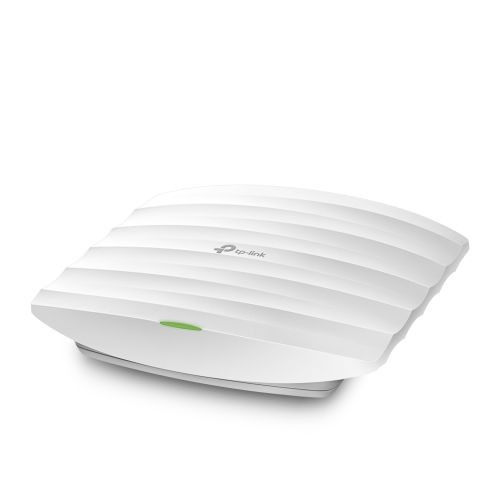

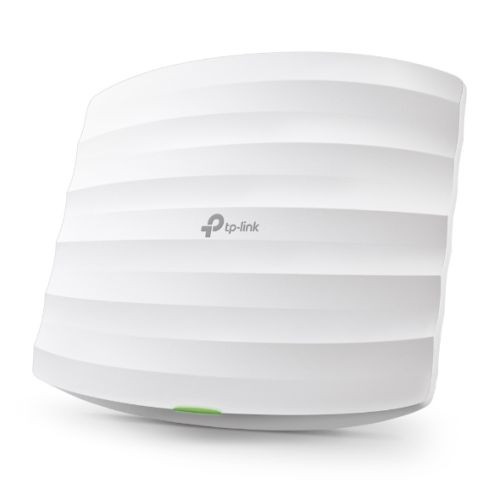

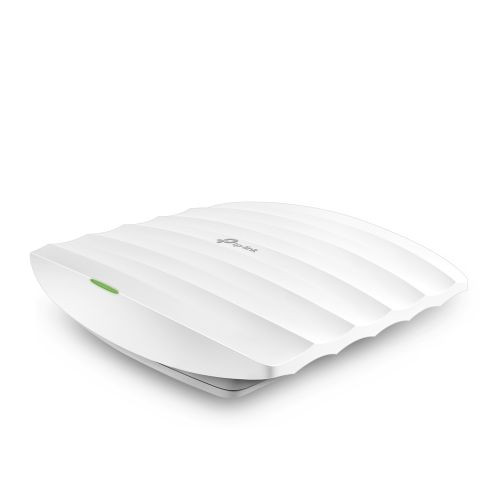

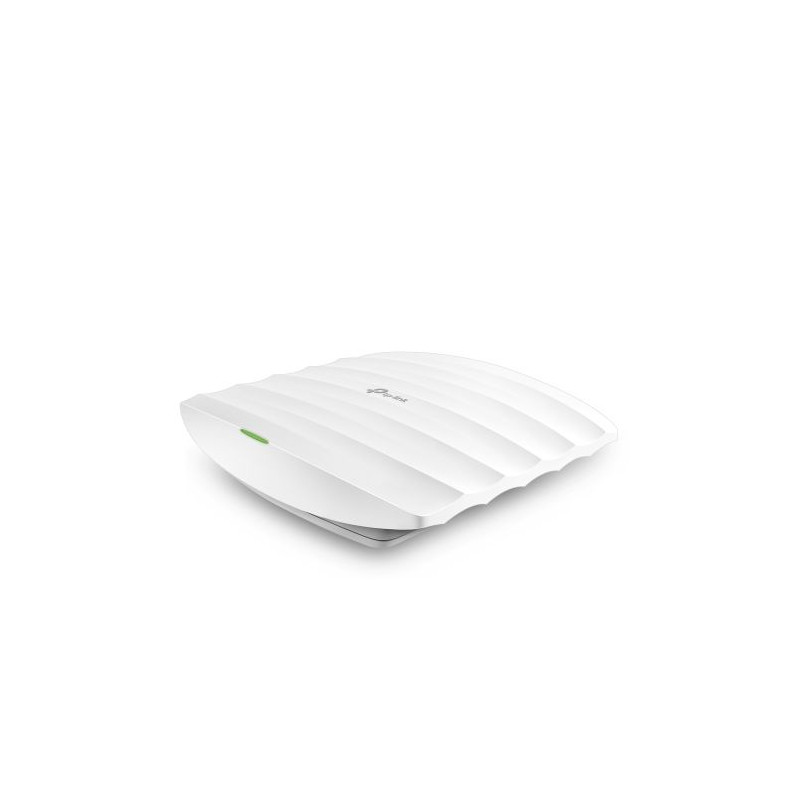

TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point, PoE, GB LAN, Clusterable, MU-MIMO, Free S

Condition: New product

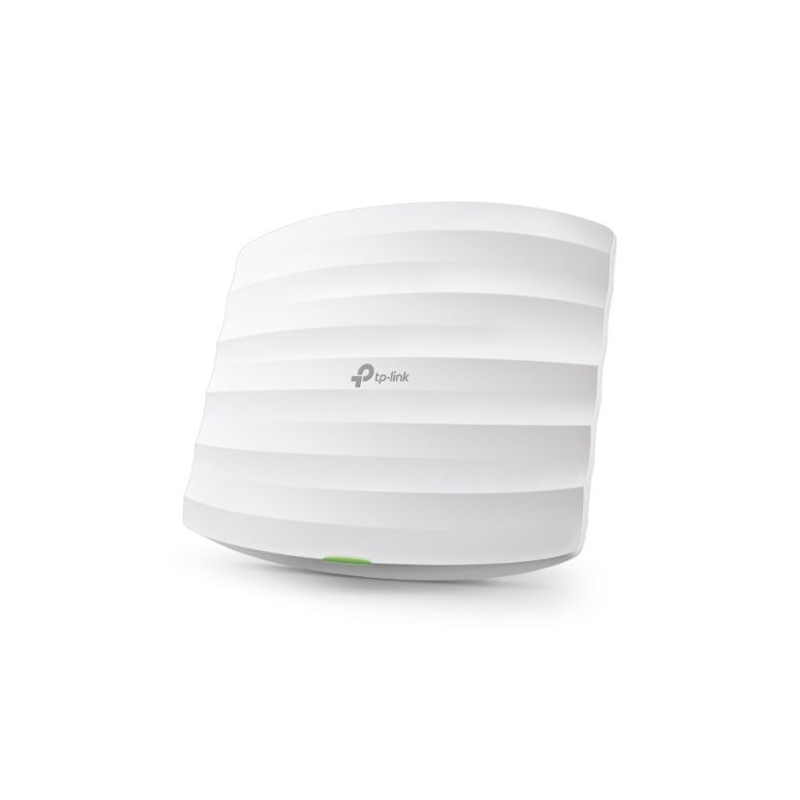

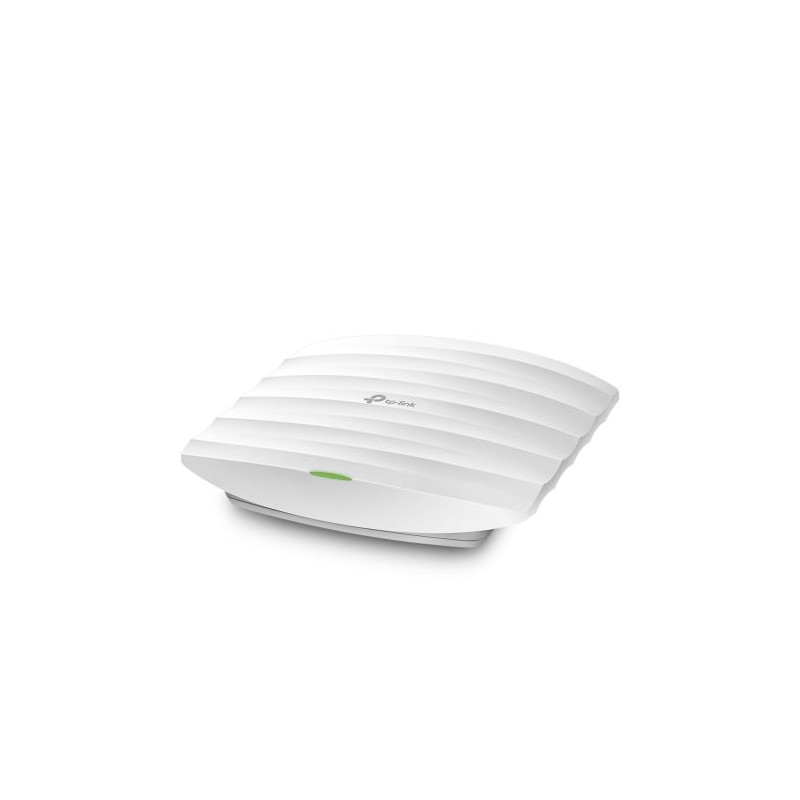

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
Cloud centralized management and Omada app for ultra convenience and easy management
Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation.

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Unified Wi-Fi for Multi-user Business Environment

The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.

Wireless Functions

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

113 Item Items Warning: Last items in stock!

£ 87.22

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	EAP225 V5
Manufacturer:	TP-LINK
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Primary Function

Access Point

Bands

Dual Band

Max Wireless Transfer Rate

867 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

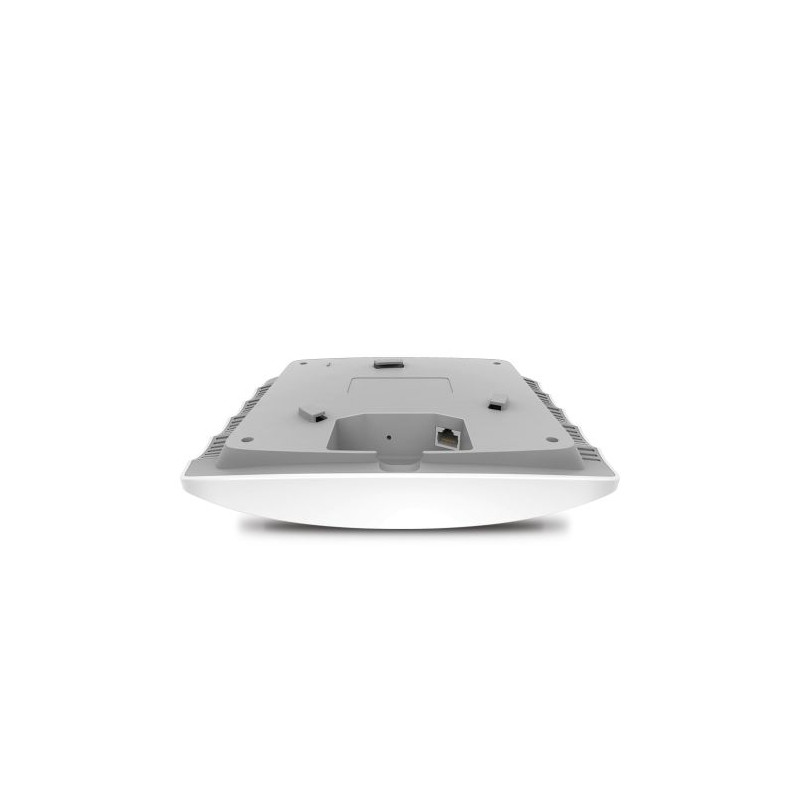

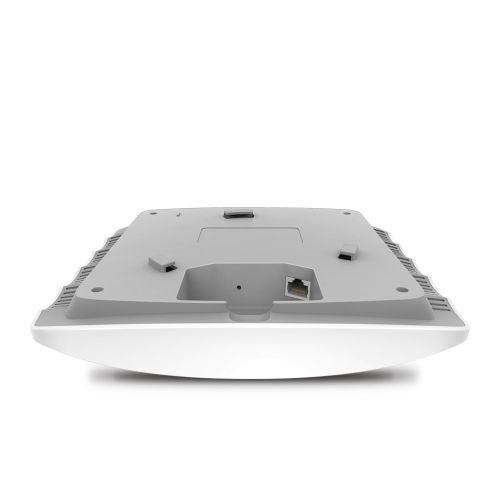

1 x Gigabit Ethernet (RJ-45) Port

Wireless Standards

IEEE 802.11ac/n/g/b/a

Antenna(s)

Internal Antenna:
2.4 GHz: 3x 4 dBi
5 GHz: 2x 5 dBi

Button(s)

Reset

Power Supply

802.3af/at PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption

10.5 W

Dimensions

205.5 x 181.5 x 37.1 mm

Weatherproof

Frequency

2.4GHz and 5GHz

Wireless Functions

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Management

Omada App
Omada Hardware Controllers - OC300 and OC200
Omada Software Controller
Omada Cloud-Based Controller
EAP Controller Software
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP v1,v2c
Local/Remote Syslog
Telnet
SSH
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning

Environment

Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

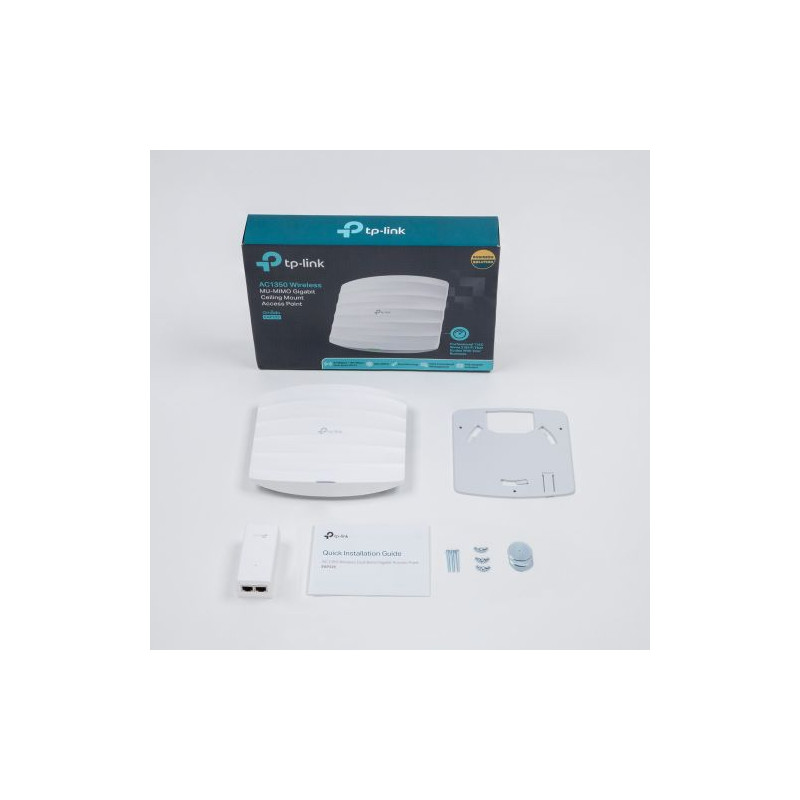

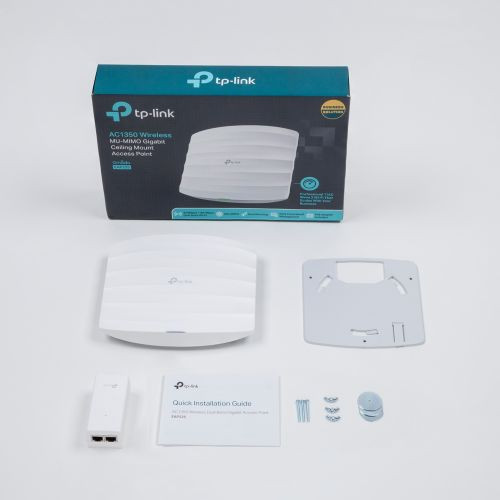

Package Contents

Access Point EAP225
Passive PoE Adapter
Power Cord
Ceiling and Wall Mounting Kits
Installation Guide

Package Type

Retail

Package Weight

0.9600 kg

Warranty

Limited Lifetime
