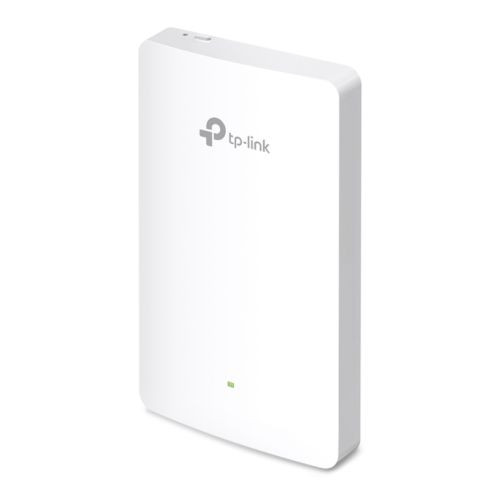

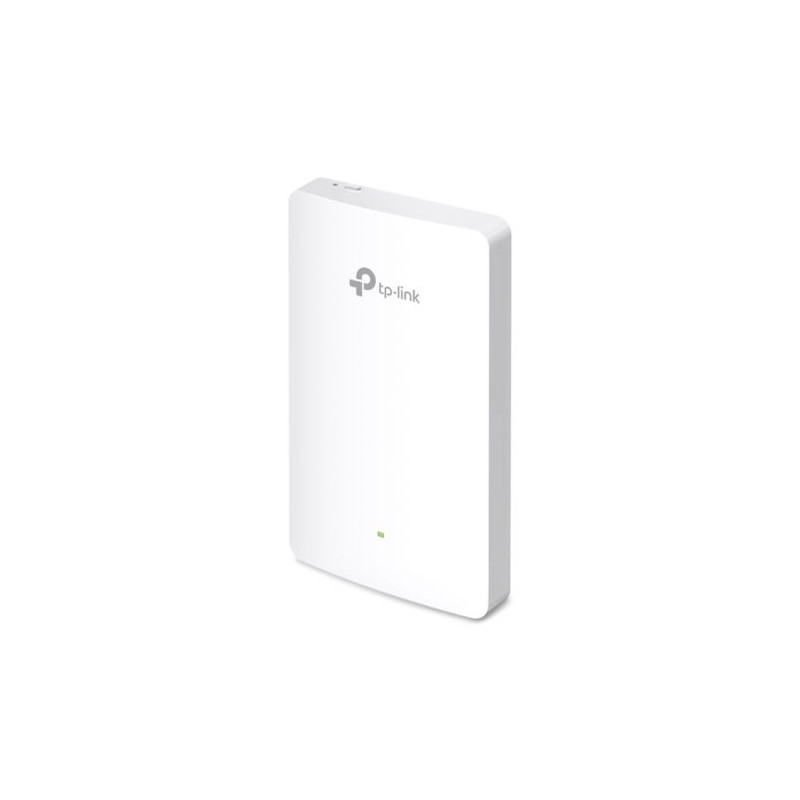

TP-LINK (EAP615-WALL) AX1800 Wireless Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, Gigabit, OFDMA & DL/UL MU-MIMO, Free Soft

Condition: New product

17 Item Items Warning: Last items in stock!

£ 112.38

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	EAP615-WALL
Manufacturer:	TP-LINK
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Primary Function

Access Point

Bands

Dual Band

Max Wireless Transfer Rate

1201 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

Uplink: 1 x 10/100/1000 Mbps Ethernet Port

Downlink: 3 x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W)

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Antenna(s)

2 Dual-Band Antennas:
2.4 GHz: 2 x 3 dBi
5 GHz: 2 x 4 dBi

Button(s)

Reset

Power Supply

802.3af/at PoE

Power Consumption

10W (802.3at PoE, PoE Out off)

Dimensions

143 x 86 x 20 mm

Weatherproof

Frequency

2.4 GHz and 5 GHz

Wireless Functions

16 SSIDs (Up to 8 SSIDs each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control
QoS(WMM)
Seamless Roaming
Beamforming
MU-MIMO
Rate Limit
Load Balance

Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management

Omada App
Centralized Management
Omada Hardware Controller
Omada Hardware and Software Controller
Cloud Access
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP v1, v2c, v3
Local/Remote Syslog
SSH
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN

Advanced Functions

See Overview

Environment

Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
Installation Guide
Mounting Kits

Package Type

Retail

Package Weight

0.3250 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
