TP-LINK (EAP620 HD NEW) AX1800 Dual Band Wireless Ceiling Mount Wi-Fi 6 Access Point, PoE, GB LAN, MU-MIMO, Free Software

Condition: New product

AX1800 Wireless Dual Band Ceiling Mount Access Point

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE Power Supply: With IEEE 802.3af/at PoE or Passive PoE, you can use Ethernet cables to transfer both electrical power and network data, making deployment more flexible and removing the need to install additional power cabling.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

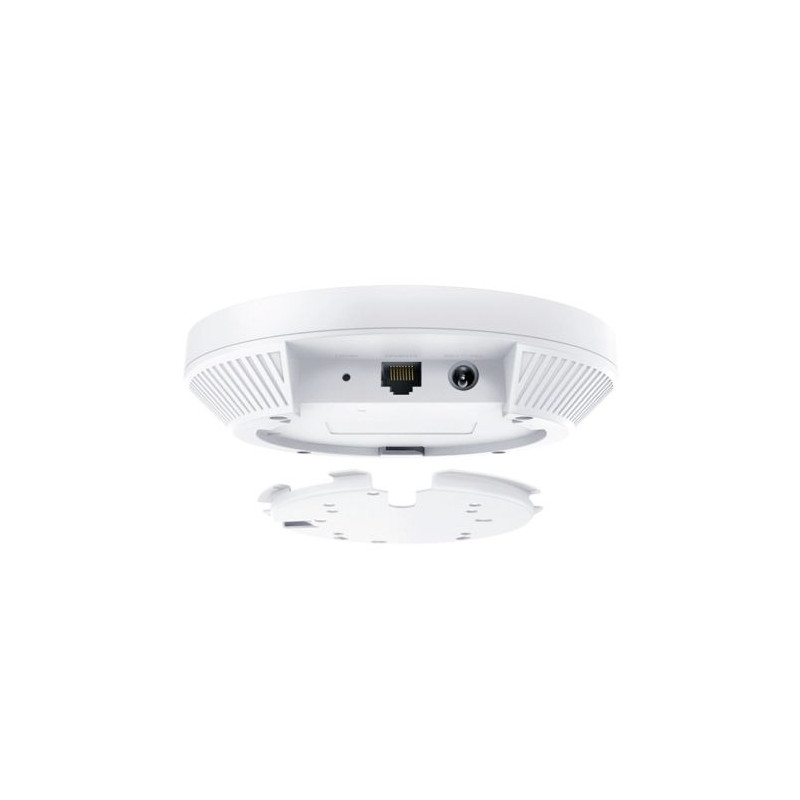

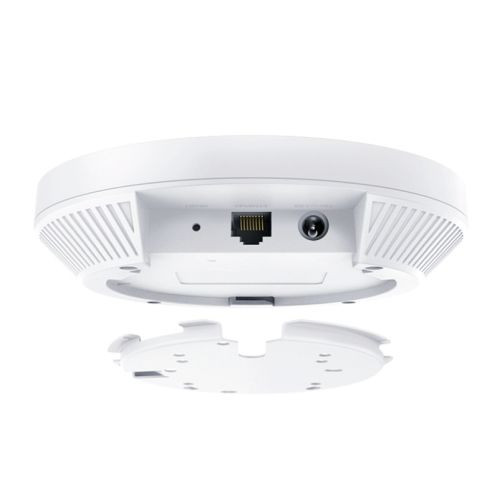

Easy-Mount Design

The Ceiling Mount EAP's elegant appearance and easy-mount design promote fast installation on any wall or ceiling surface, and allow it to blend in seamlessly with most interior decorating styles. The slimline, inconspicuous Wall Plate EAP can be easily installed into any standard EU/US wall junction box or 86 mm wall junction box.

PoE Power Supply

With IEEE 802.3af/at PoE or Passive PoE, you can use Ethernet cables to transfer both electrical power and network data, making deployment more flexible and removing the need to install additional power cabling.

Business-Class Hardware Design

Enterprise-class chipsets offer outstanding performance and support longer running time, higher client capacity and greater range. Dedicated high-power amplifiers, specialized antennas and professionally designed RF shields ensure excellent wireless performance.

Seamless Roaming

802.11k and 802.11v seamless roaming provide seamless switching to the access point with optimal signal when moving between APs.

Mesh

Omada Mesh technology enables wireless connectivity between access points for extended range, making wireless deployments more flexible and convenient.

Increased Efficiency with OFDMA

The Wi-Fi 6 standard uses OFDMA for more efficient channel use and reduced latency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac Wi-Fi, each delivery truck could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.

Advanced RF Management

MU-MIMO, Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications. Easy Centralized Management Configure and monitor hundreds of Omada EAPs with ease using the Omada controller

19 Item Items Warning: Last items in stock!

£ 150.96

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	EAP620 HD NEW
Manufacturer:	TP-LINK
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Primary Function

Access Point

Bands

Dual Band

Max Wireless Transfer Rate

1200 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Ethernet Port

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Antenna(s)

Internal Omni
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi

Button(s)

Reset bhutton

Power Supply

802.3at PoE, 12V/1.5A DC, 48V Passive PoE

Power Consumption

14.4 W

Dimensions

160 x 160 x 33 mm

Weatherproof

Frequency

5GHz: Up to 1201Mbps
2.4GHz: Up to 574Mbps

Wireless Functions

Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment
Transmit Power: Control Adjust transmit Power on dBm
QoS (WMM)
Seamless Roaming
Mesh
Beamforming
MU-MIMO

Rate Limit: Based on SSID/Client
Load Balance
Airtime Fairness
Band Steering
RADIUS Accounting
MAC Authentication
Reboot Schedule
Wireless Schedule
Wireless Statistics
Static IP/Dynamic IP

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Quality of Service

QoS(WMM)

Management

LED ON/OFF Control
Management MAC Access Control
Web-based Management
Telenet
SNMP: v1, v2c, v3
SSH
Restore and Backup
Firmware update via Web
NTP
System Log
Email Alerts

Advanced Functions

See Overview

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents

EAP620 HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide

Package Type

Retail

Package Weight

0.8100 kg

Warranty

Limited Lifetime

Full Box Quantity
