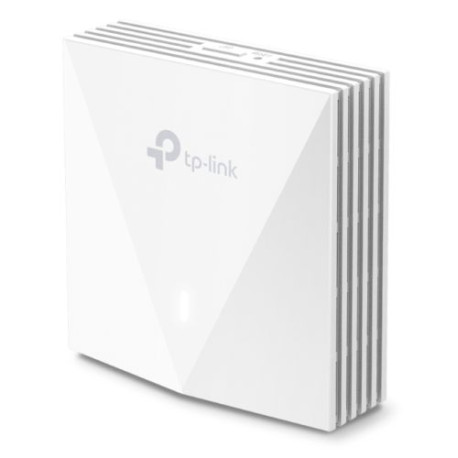

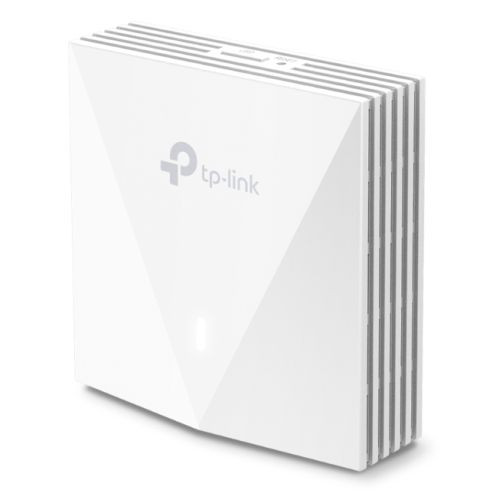

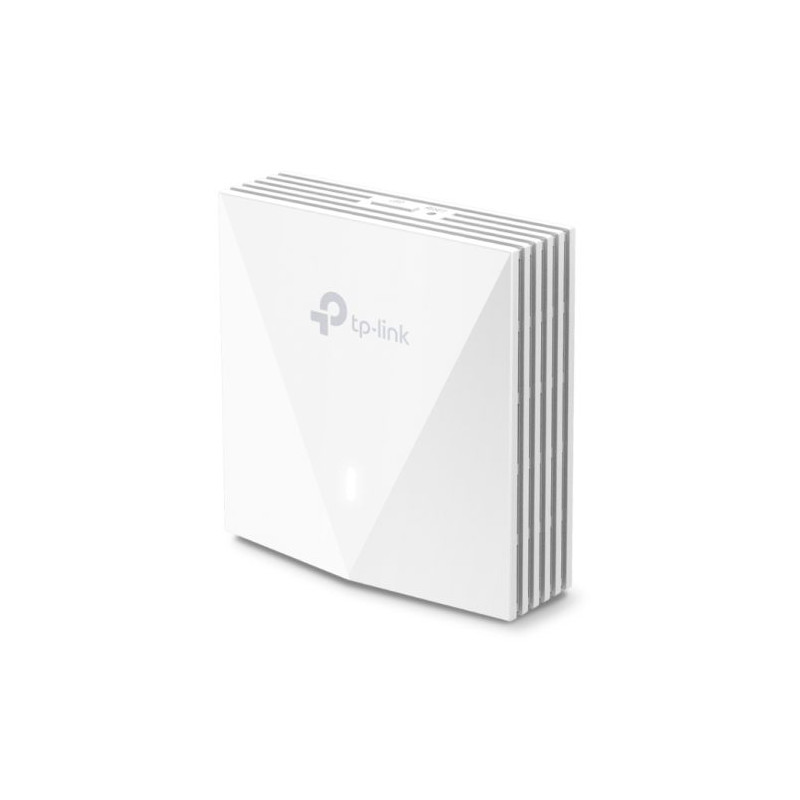

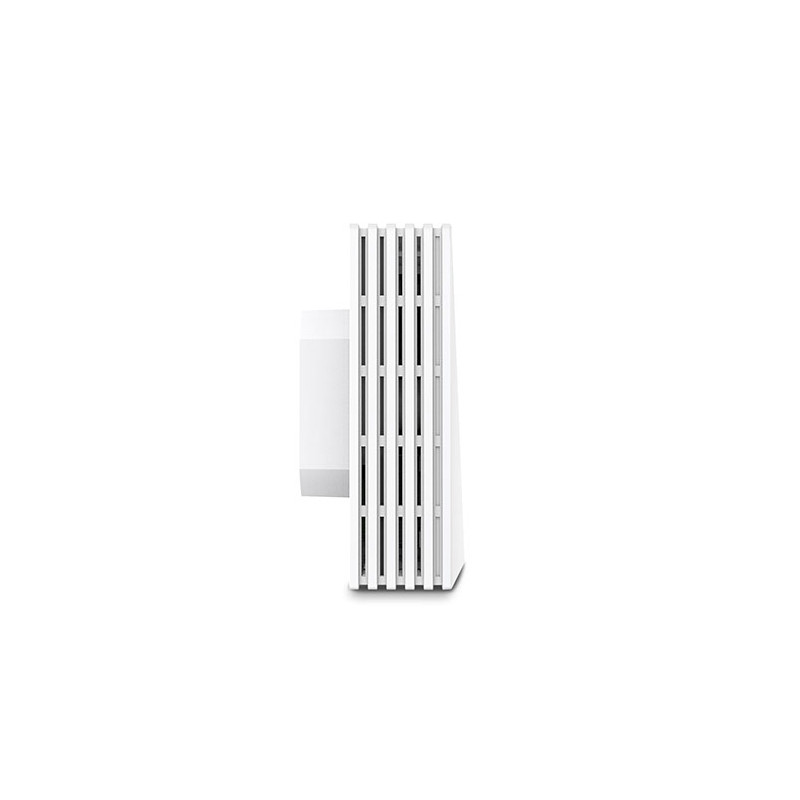

TP-LINK (EAP650-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 1x GB LAN, OFDMA, Free Software

Condition: New product

AX3000 Wall Plate WiFi 6 Access Point

Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
Gigabit Port: Connect wired devices with one downlink gigabit port.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm and EU standard junction box, and 802.3af/at PoE support.

Dedicated Complete Private WiFi Network in Each Room

Hospitality - Room-by-room connection with elegant appearance

Dormitory - Stable wireless and wired connections

Apartment - Private and secure network access for every family

Villa - Whole-home WiFi coverage with seamless roaming

Meeting Room - Faster streaming, downloading, video conferencing, and everything to satisfy your needs

Lightning-Fast AX3000 WiFi 6 Speeds

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.

Better User Experience with High-Performance WiFi 6 Connectivity

The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

More than Speed, Security Matters

Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Secure Guest Network with Up to 16 SSIDs

Guest networks provide enhanced security. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login

Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.

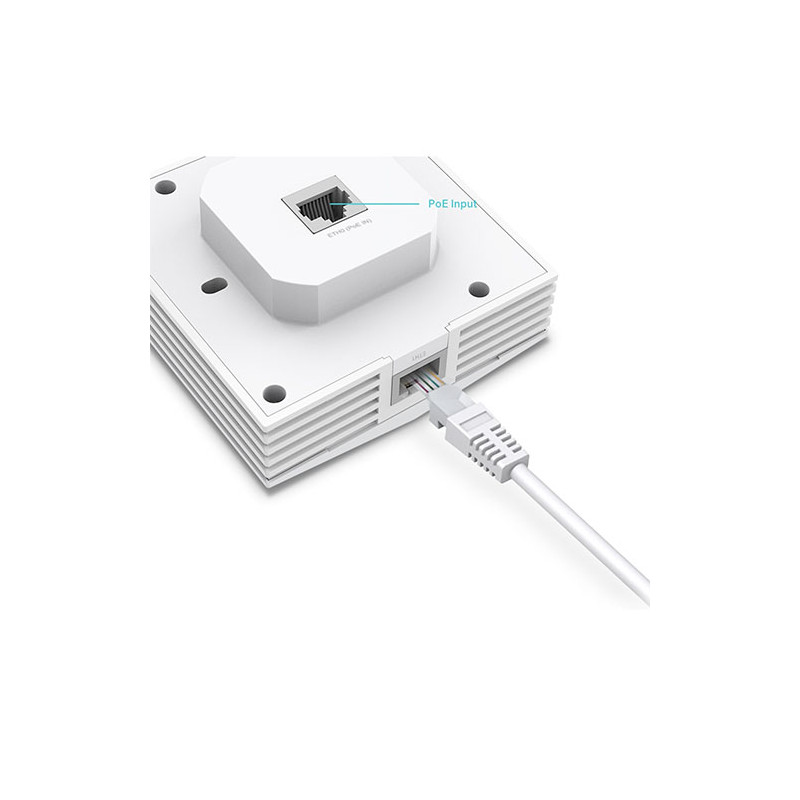

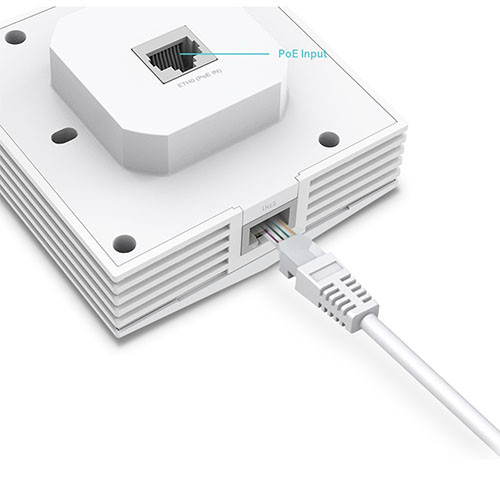

Gigabit Ports to Bridge Network

The gigabit downlink port allows to connect wired device to the gigabit network.

Quick, Simplified Installation

With an easy-to-install design, there is no need to bring someone in to install our EAP.

Effortless Deployment with PoE Powered

With 802.3af/802.3at PoE support, there's no need for more wiring. Plug it into the existing Ethernet cables, and you're ready.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface.

Easy Management with the Omada App

Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.

28 Item Items Warning: Last items in stock!

£ 109.03

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	EAP650-WALL
Manufacturer:	TP-LINK
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Primary Function

Access Point

Bands

Dual Band

Max Wireless Transfer Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

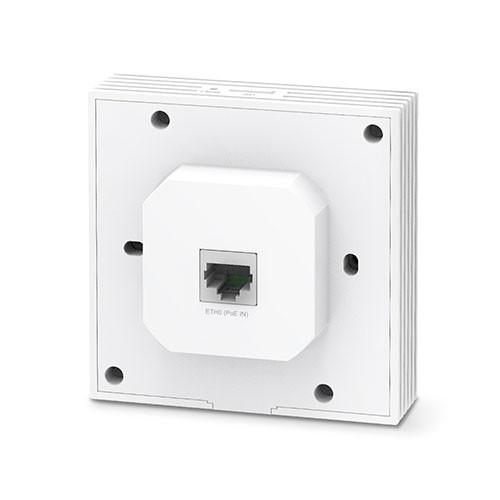

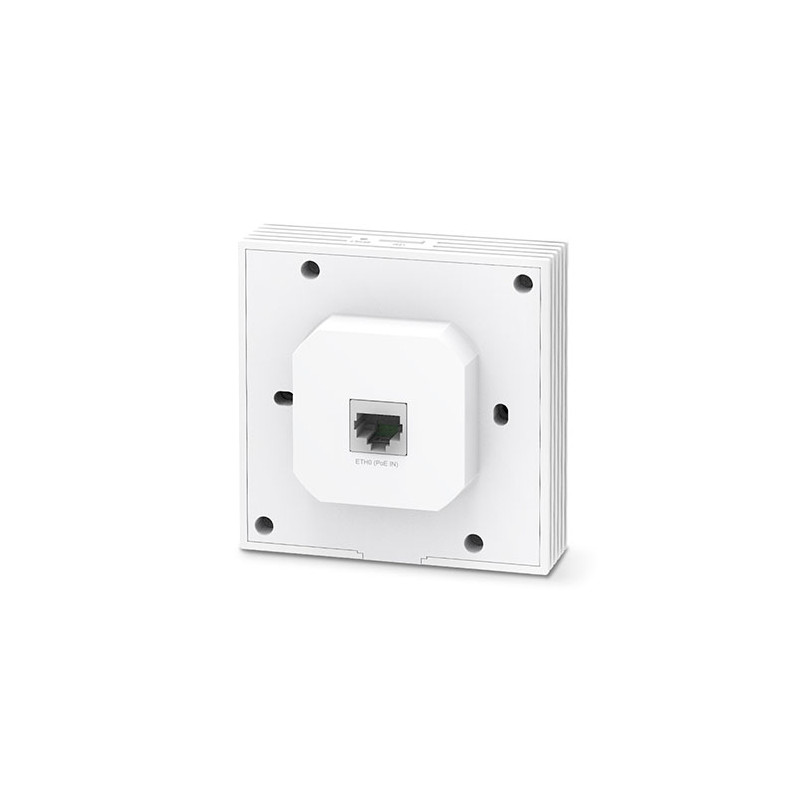

Uplink: 1 x10/100/1000 Mbps Ethernet Port
Downlink: 1 x 10/100/1000 Mbps Ethernet Port

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Antenna(s)

2 x Dual-Band Antennas
2.4 GHz: 2 x 3 dBi
5 GHz: 2 x 5 dBi

Button(s)

Reset, LED

Power Supply

802.3af/at PoE

Power Consumption

11.5 W

Dimensions

86 x 86 x 42.6 mm

Weatherproof

Frequency

2.4 GHz and 5 GHz

EIRP

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust on dBm)
QoS(WMM)
Seamless Roaming§
Beamforming
Rate Limit
Load Balance
Airtime Fairness

Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3 Personal/Enterprise

Quality of Service

QoS(WMM)

Management

Omada App
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning

Advanced Functions

See Overview

Environment

Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
Installation Guide
Mounting Kits

Package Type

Retail

Package Weight

0.3240 kg

Warranty

Limited Lifetime
