TP-LINK (TL-WA1801) AX1800 Dual Band Gigabit Wi-Fi 6 Access Point, Passive PoE, Range Extender, Multi-SSID & Client Modes

Condition: New product

AX1800 Gigabit Wi-Fi 6 Access Point

Gigabit WiFi 6 Speed – 1.8 Gbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.
Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
Captive Portal – Offers a designed portal page for heightened security and marketing.

The Advanced Wi-Fi is Upon Us

Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in Wi-Fi development, delivering a huge boost in speed and total capacity. Mainstream adoption of Wi-Fi 6 is inching ever closer with more and more AX clients available. It's the right time to upgrade your router to the newest generation of Wi-Fi!

Lightning-Fast AX1800 Dual Band Wi-Fi

Upgrade your home or office network with the latest-generation of dual band 802.11ax access point, which offers combined speeds of up to 1800 Mbps and is perfectly suited to serve multiple devices at the same time. The 5GHz band is ideal for Ultra-HD streaming video and online gaming, while the 2.4GHz band is there for all of your everyday Internet needs, like sending email and browsing the Internet.

Boosted Wi-Fi Coverage

Four external antennas equipped with Beamforming technology concentrate Wi-Fi signals towards your devices to extend reliable Wi-Fi to every corner of your home or office—even over long distances.

WPA3 - New Level of Cyber Security

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Gigabit-Class Wired Performance

The gigabit Ethernet port makes full use of gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, IPTVs, and game consoles, etc.

Deploy Anywhere with Just One Cable

Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration.

Captive Portal Marketing

Captive Portal provides a secure guest network and offers unique marketing opportunities, especially for small businesses like cafes or salons. Utilize a flexibly designed portal page—requiring customers to view an advertisement or accept a set of terms for internet access—to improve brand awareness or deliver marketing messages.

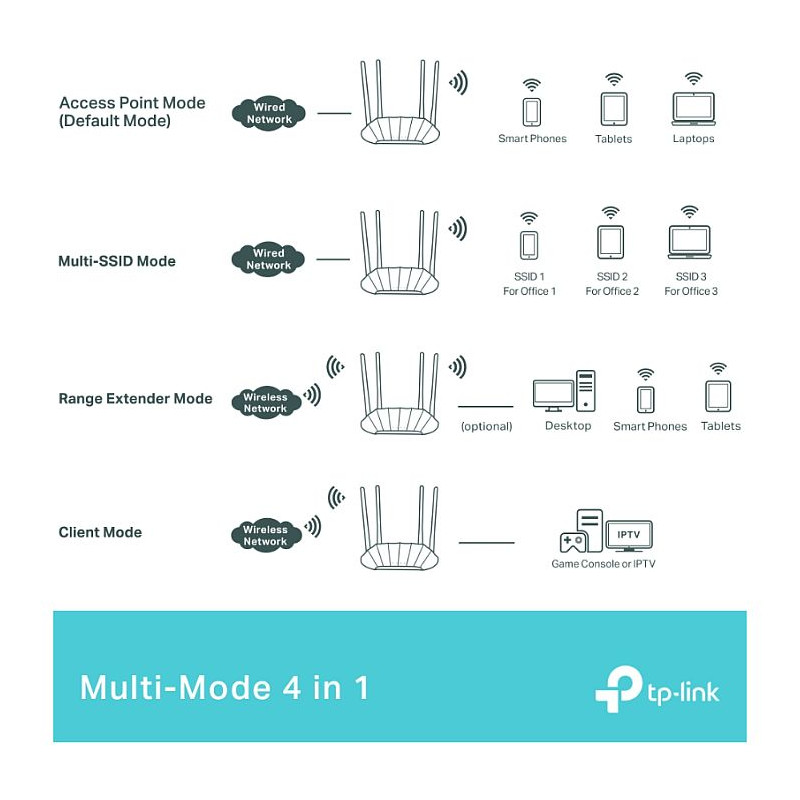

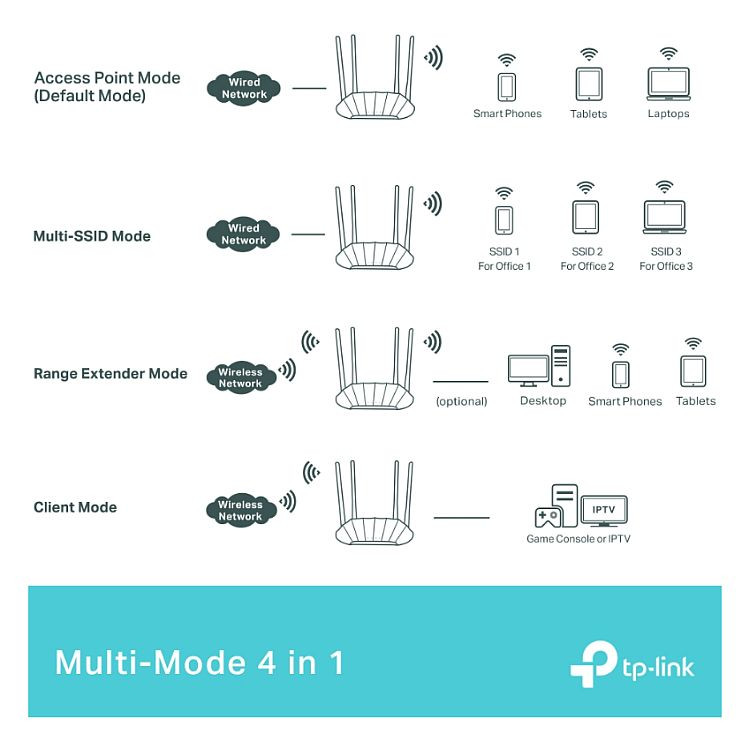

Multi-Mode 4 in 1

Multiple operation modes are supported to give you full flexibility to tailor the Access Point to fit your network's needs.

Easy Setup and Management with the Tether APP

The free Tether app is available for both Android and iOS devices, making it easy to set up the TL-WA1801 and manage your network settings.

10 Item Items Warning: Last items in stock!

£ 83.87

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	TL-WA1801
Manufacturer:	TP-LINK
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Primary Function

Access Point

Bands

Dual Band

Max Wireless Transfer Rate

1201 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Port (Supports Passive PoE)

Wireless Standards

IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz

Antenna(s)

4 external antennas with Beamforming technology

Button(s)

Power On/Off Button
WPS Button
Reset Button

Power Supply

External Power Supply: 48V/0.375A

Dimensions

(WxDxH) 225 x 145.5 x 37 mm

Weatherproof

Frequency

5GHz: Up to 1201Mbps
2.4GHz: Up to 574Mbps

Reception Sensitivity

5GHz:
11a 6Mbps: -97dbm
11a 54Mbps:-76dbm
11ac VHT20_MCS0: -96dbm
11ac VHT20_MCS8: -72dbm
11ac VHT40_MCS0: -93dbm
11ac VHT40_MCS9: -67dbm
11ac VHT80_MCS0: -90dbm
11ac VHT40_MCS9:-63dbm
11ax HE20_MCS0:-96dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -93dbm
11ax HE40_MCS11: -61dbm
11ax HE80_MCS0: -90dbm
11ax HE80_MCS11:-60dbm

2.4GHz:
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm

Wireless Modes

Access Point, Range Extender, Client, Multi-SSID

Wireless Functions

Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control

Wireless Security

WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions

DHCP

Server, DHCP Client List

Quality of Service

WMM

Advanced Functions

See Overview
