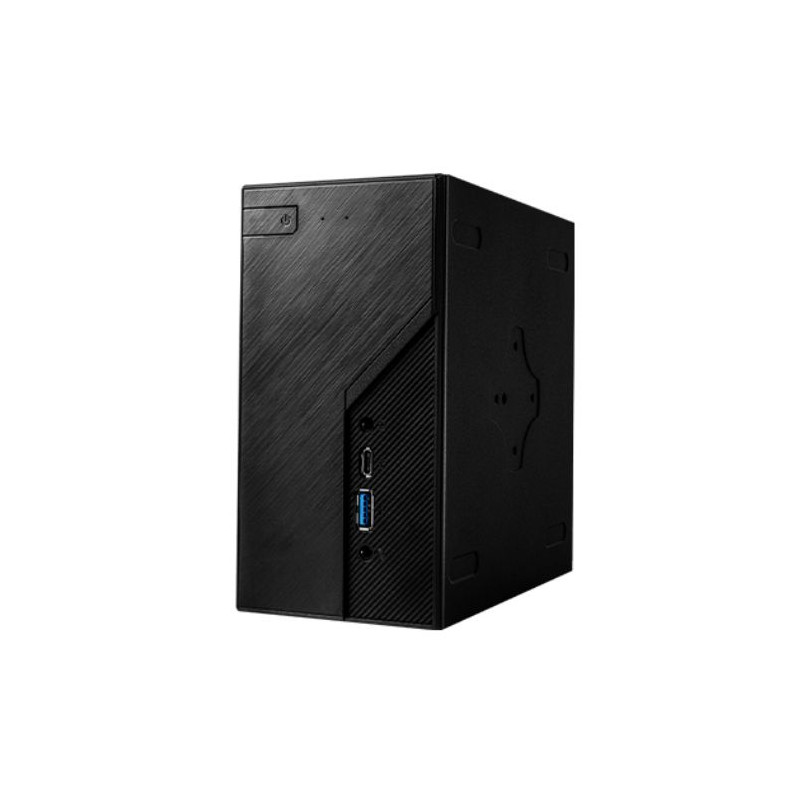

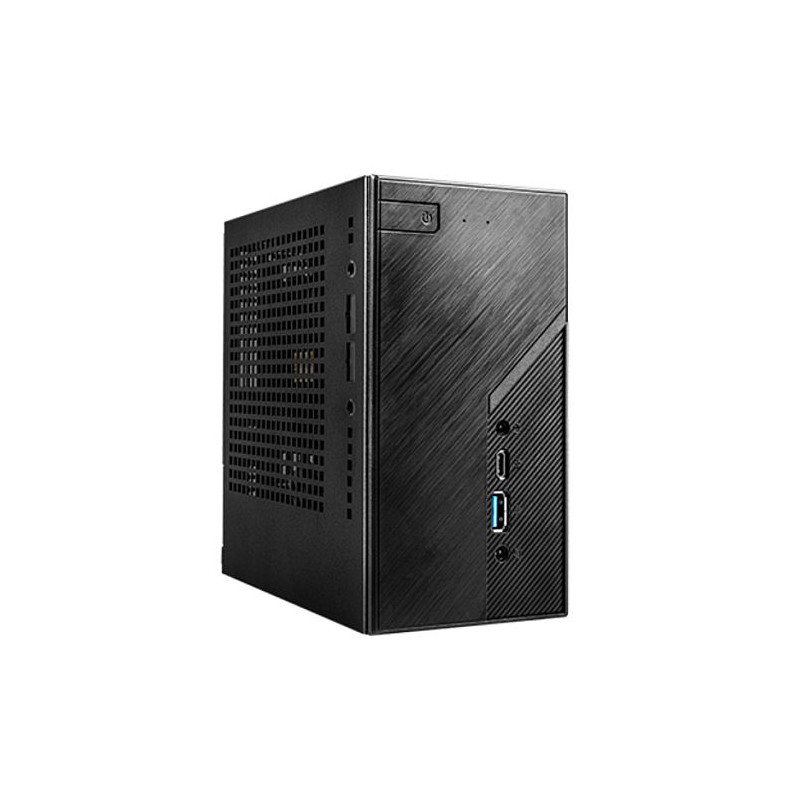

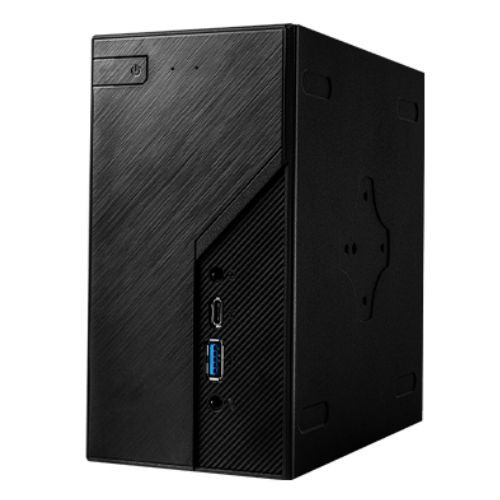

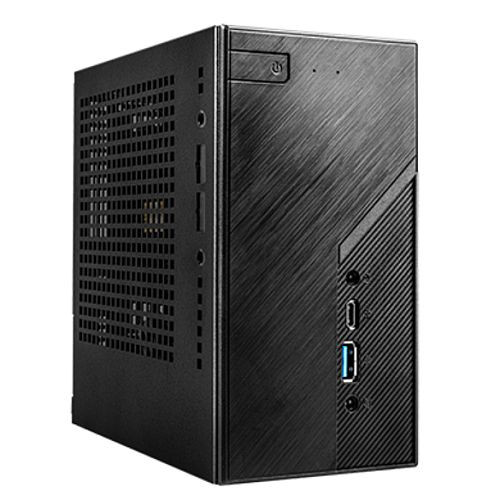

Asrock DeskMini B760 Mini Barebone PC, LGA1700 (B760), DDR4 SO-DIMM, 2.5" SATA, M.2, VGA, HDMI, DP, USB-C, 2.5G LAN - No CPU, R

Condition: New product

Mini Size, Mighty Power

DeskMini B760 adopts LGA1700 CPU socket which supports the latest 13th Gen Intel Core Processors for delivering ultimate computing performance within a tiny PC.

Supports 13th Gen and 12th Gen Intel Core Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Multi Video Outputs:1 x DisplayPort, HDMI and D-Sub
1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x Blazing M.2 (PCIe Gen5 x4) Slot
1 x Hyper M.2 (PCIe Gen4 x4) Slot
2 x 2.5" HDD/SSD with RAID 0/1
1 x M.2 Key-E for Wi-Fi

Dr.MOS

The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Heatsink on MOSFET

ASRock DeskMini B760 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system's stability in loading.

Dual Channel DDR4-3200

DeskMini B760 supports Dual Channel DDR4-3200MHz high-speed memory, up to 64GB.

2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

USB Alternate Mode

A USB 3.2 Gen2 Type-C with alternate mode is available on the rear I/O, offering a high-resolution DisplayPort signal, an incredible 60-watt power delivery, and a 10Gbps data transfer rate.

USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Rapid USB Connectivity

DeskMini B760 supports a USB 3.2 Gen2 Type-A in the front panel, delivering 10Gbps speedy data transfer rate. In addition, DeskMini B760 brings 4 x

Optane Memory Technology

The Supports on Intel Optane memory technology and Intel Optane storage technology redefines a new standard of high performance and responsiveness.

High Speed M.2 Solution

DeskMini B760 offers two M.2 2280 slots. One of them can even support the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation. All of your apps and programs will load with lightning speed which makes you working or gaming faster than ever.

Mini Home Data Center

DeskMini B760 supports RAID 0/1 function! Build mini data center at home!

Quadruple Displays

Up to four video outputs can be used simultaneously for productivity and multitasking. DisplayPort 1.4 ports allow you to enjoy Ultra HD content on an 8K monitor or TV.

*Rear USB Type-C supports DisplayPort 1.4 signal

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer

step2: Update drivers needed

step3: Done!

DeskMini Addressable LED (purchased separately)

Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. Attach the magnetic strip inside the chassis to create cool personalized lighting for you.

DeskMini USB Hub (purchased separately)

Attach the magnetic DeskMini USB Hub inside the chassis. Let you easy connect to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.

VESA Mount Kit (Optional)

Let you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.

The availability of VESA Mount Kit may vary from model or region to another.

Rear Audio Cable (purchased separately)

Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on

Intel Wi-Fi Kit (purchased separately)

ASRock M.2 Wi-Fi Kit includes Intel M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini.

Intel AX210 or Intel AC3168

USB 2.0 Cable (purchased separately)

Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini Series side plane.

17 Item Items Warning: Last items in stock!

£ 241.10

Quantity

Data sheet

Manufacturer Number:	90BXG4E01-A10GA0W
Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chassis

Asrock DeskMini

Tower / Small Form Factor

Small Form Factor

Processor

None

Processor Details

Supports 13th Gen and 12th Gen Intel Processors (LGA1700)
Max. TDP 65W
Supports Intel CPU Cooler (Max. Height 47mm)

Chipset

Intel B760

Graphics

VGA
HDMI (4K@60Hz)
DisplayPort 1.4
DisplayPort 1.4 (over USB Type-C Alt Mode)

Memory

None

Memory Details

2 x SO-DIMM DDR4-3200MHz
Max. 64GB (non-ECC)

Hard Drive

None

SSD Drive

None

Optical Drive

None

Supported Drives

2 x SATA3 6Gb 2.5" 7mm/9.5mm Hard Drive (RAID 0/1)
1 x Blazing M.2 (2280) PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 (2280) PCIe Gen4x4 (64 Gb/s) mode

Operating System

No O/S

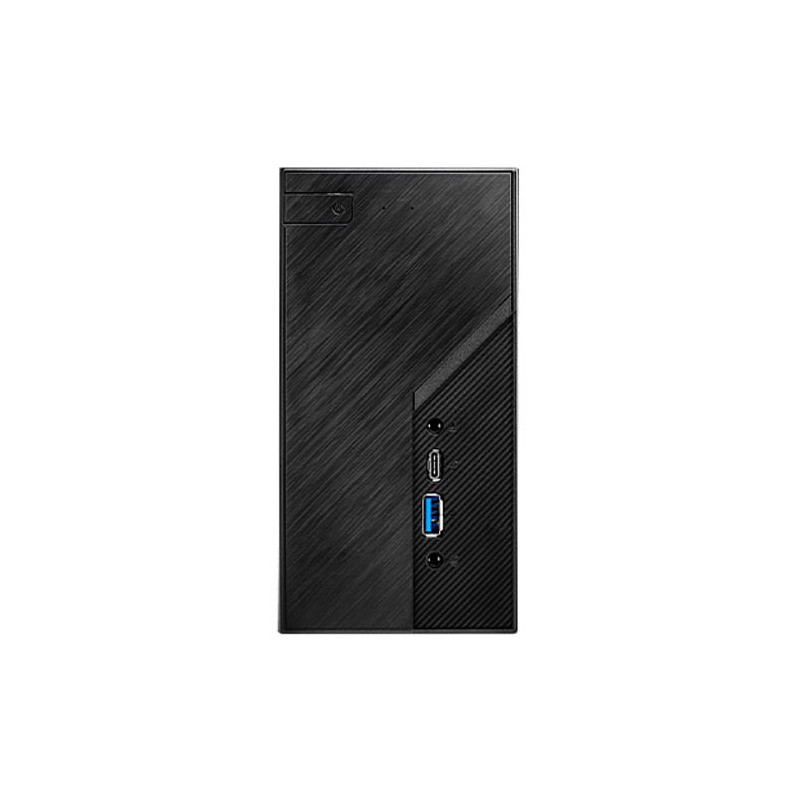

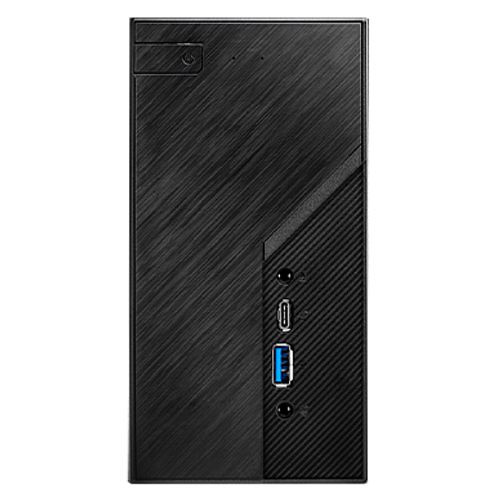

Front I/O

1 x MIC-In
1 x USB 3.2 Gen2x2 Type-C (20 Gb/s)
1 x USB 3.2 Gen2 Type-A (10 Gb/s)
1 x Head Phone with MIC Jack

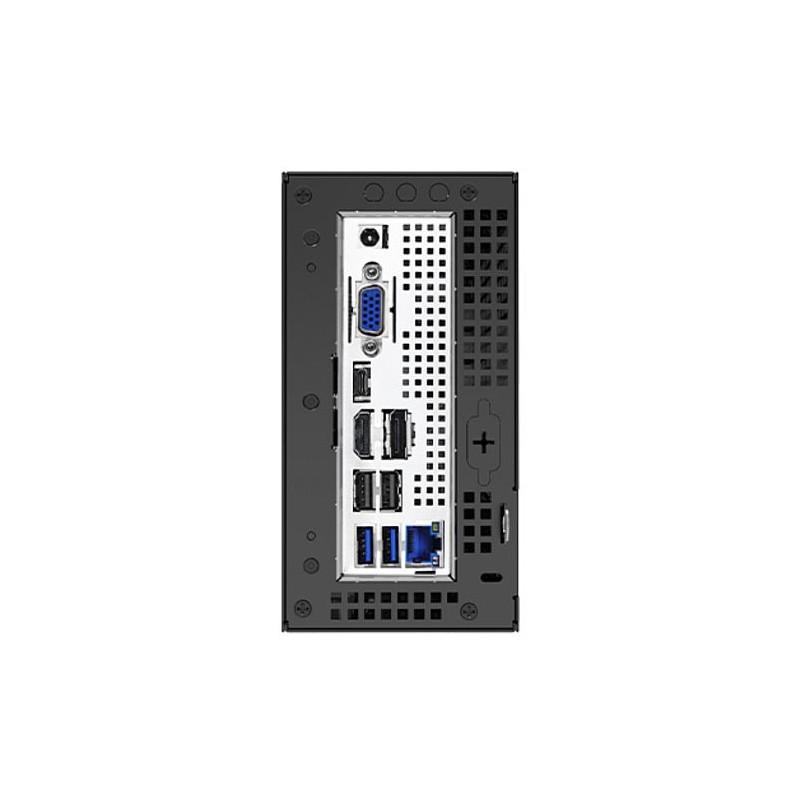

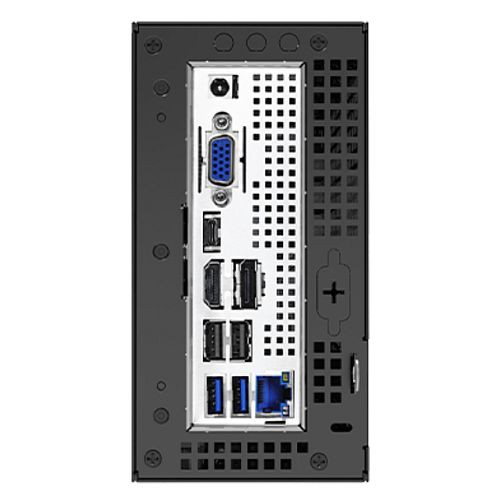

Back I/O

1 x DC-In Jack (Compatible with the 19V power adapter)
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C (Supports USB Type-C Alt Mode)
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED

LAN

2.5GB LAN (Dragon RTL8125BG)

Wireless

None
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)

Sound

Realtek ALC269 Audio Codec

Expansion

1 x USB 2.0 Header
1 x Front Panel Header
2 x 4-Pin fan connectors (CPU, SYS)
1 x Internal Speaker Header (4-Pin)
1 x Audio Header (4-Pin)

Power Unit

120W/19V adapter

Keyboard and Mouse
