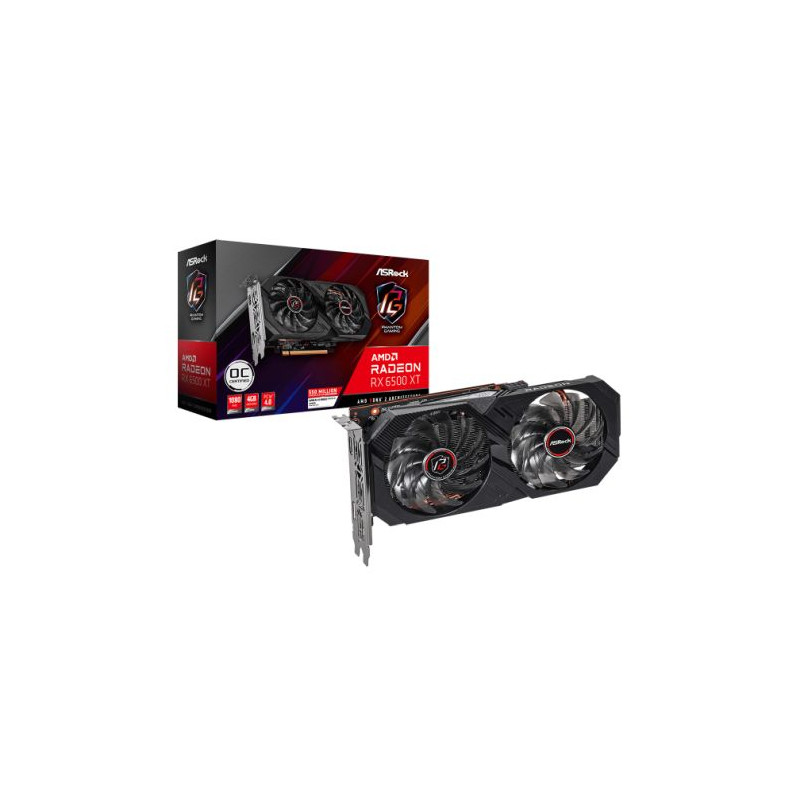

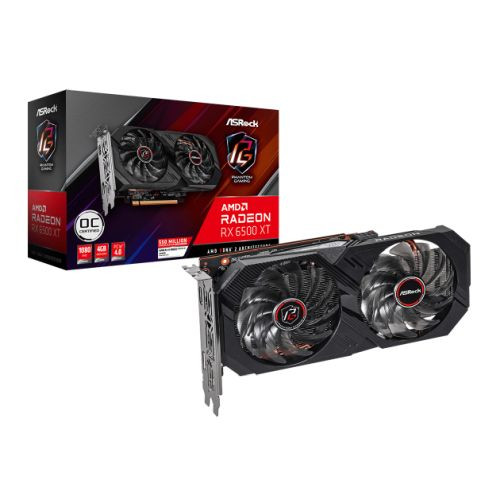

Asrock RX6500 XT Phantom Gaming D 4GB OC, 4GB DDR6, PCIe4, HDMI, DP, 2820MHz Clock, Overclocked

Condition: New product

AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC

Boost Clock: Up to 2820 MHz / 18 Gbps
Game Clock: Up to 2650 MHz / 18 Gbps
Base Clock: 2365 MHz / 18 Gbps
6nm AMD Radeon™ RX 6500 XT
4GB GDDR6
AMD RDNA™ 2 Architecture
DirectX® 12 Ultimate
PCI® Express 4.0 Support
1 x 8-pin Power Connector
1 x DisplayPort™ 1.4 with DSC
1 x HDMI™ 2.1 VRR
Dual Fan Design
Stylish Metal Backplate
Striped Axial Fan
0dB Silent Cooling
Super Alloy Graphics Card
ASRock Tweak 2.0
AMD FidelityFX™ Super Resolution
Hardware Raytracing

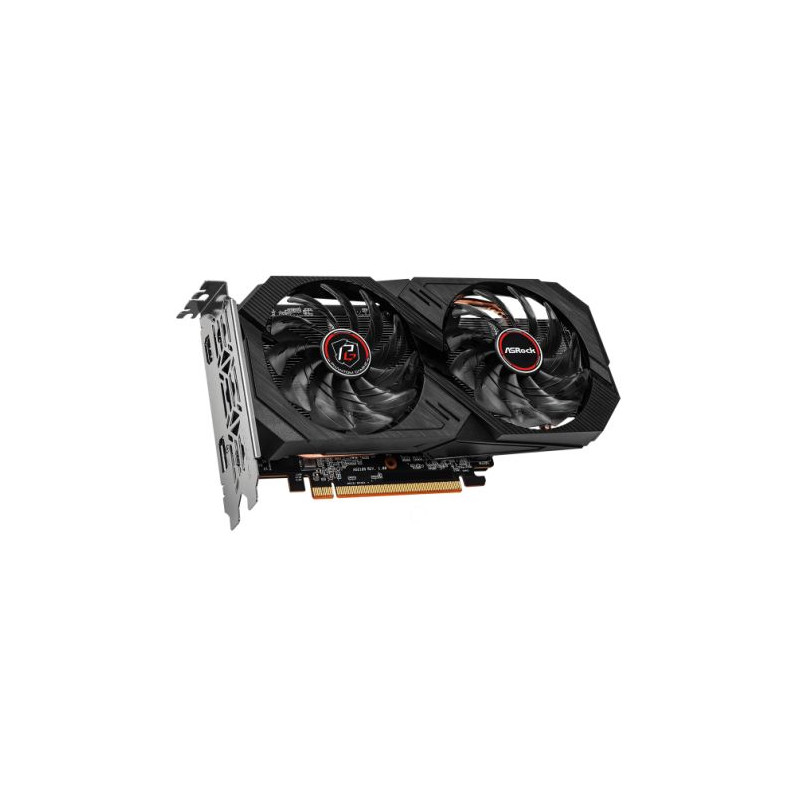

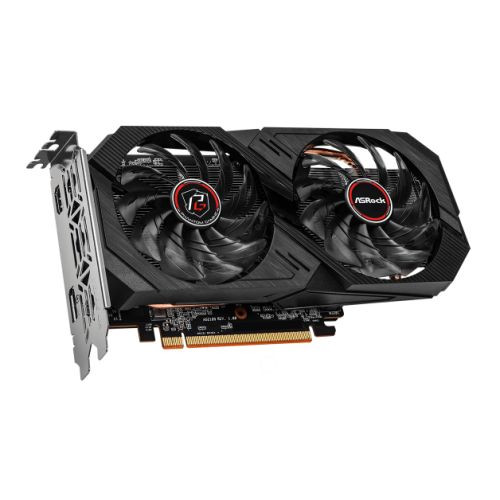

Dual Fan Design

Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

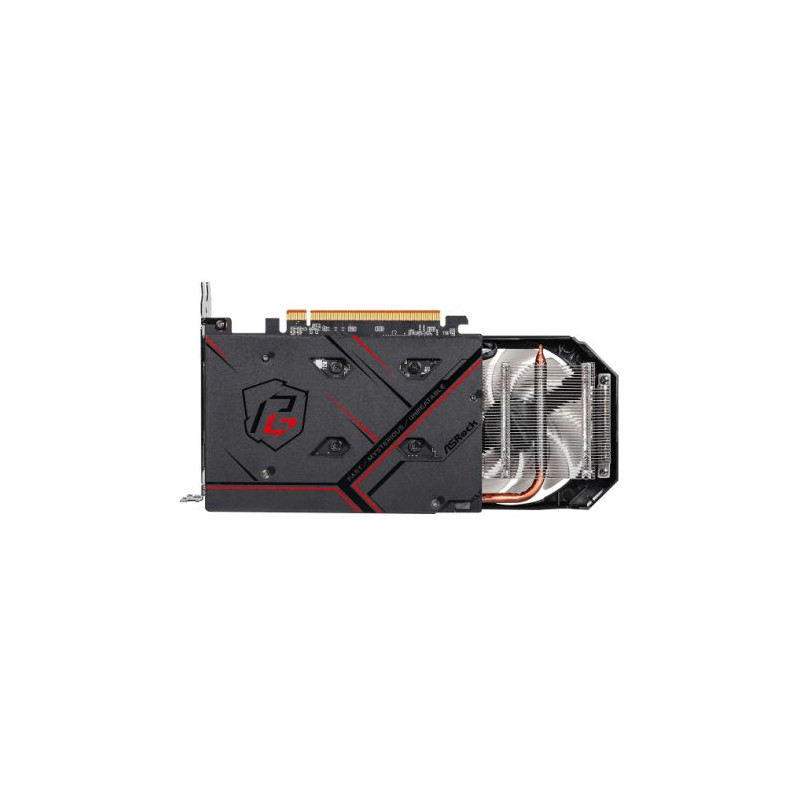

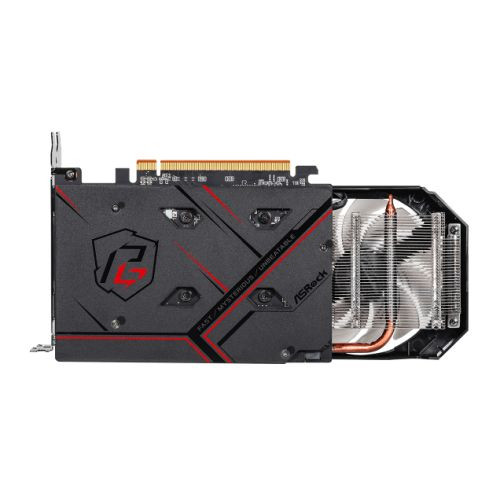

Stylish Metal Backplate

With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke

Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0

Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support

This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

Intense 1080p Performance

AMD Radeon™ RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA™ 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache™, and up to 4GB of dedicated GDDR6 memory.

Vivid Visuals

With immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6500 XT graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX™ technology features, optimized for AMD RDNA™ 2 architecture.

Get A Boost In Frames

For Your Games

AMD FidelityFX™ Super Resolution (FSR) technology boosts your frame rates by 2.4X on average across select FidelityFX Super Resolution supported games2 with high-quality, high-resolution gaming experiences delivered by AMD Radeon™ RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.

The Best Gaming Experience

For The Best Gaming OS

AMD Radeon™ graphics with Windows 11 enables the ultimate gaming experience through superior graphics, amazing performance, optimized security features. With support for DirectX® 12 Ultimate, Auto HDR, AMD Radeon graphics, and Radeon™ software all stand ready to supercharge your gaming experience with Windows 11.

11 Item Items Warning: Last items in stock!

£ 184.19

Quantity

Data sheet

Manufacturer Number:	90-GA3DZZ-00UANF
Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chipset Manufacturer

AMD

Interface

PCI Express 4.0

Graphics Chipset

AMD RX 6500 XT

Memory Size

4GB

Memory Type

DDR6

Memory Interface

64-bit

Core Clock

Boost Clock: Up to 2820 MHz
Game Clock: Up to 2650 MHz
Base Clock: 2365 MHz

Memory Clock

18 Gbps

CUDA Cores / Stream Processors

1024 Stream Processors

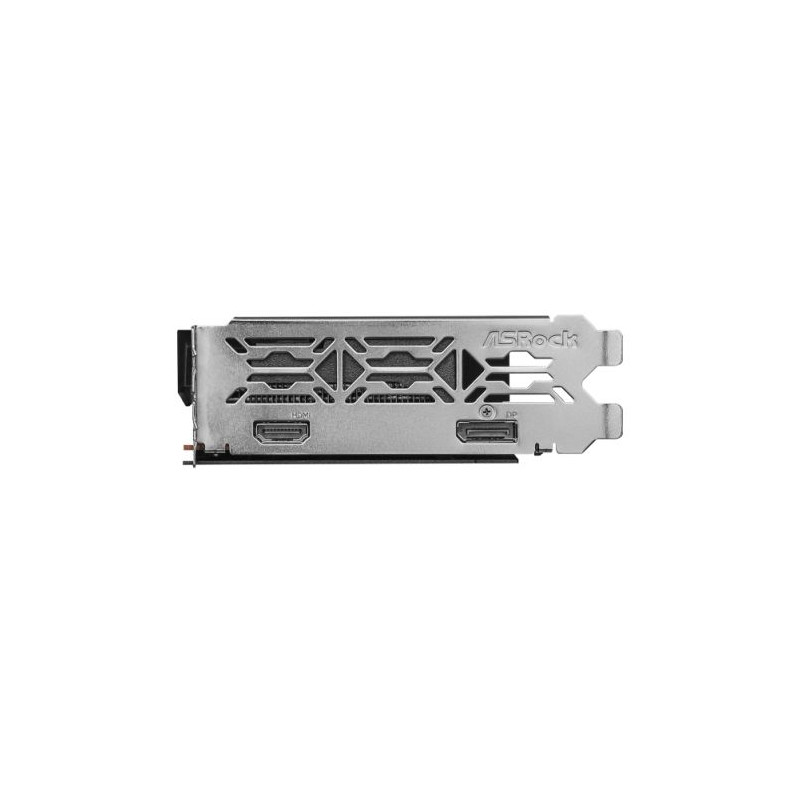

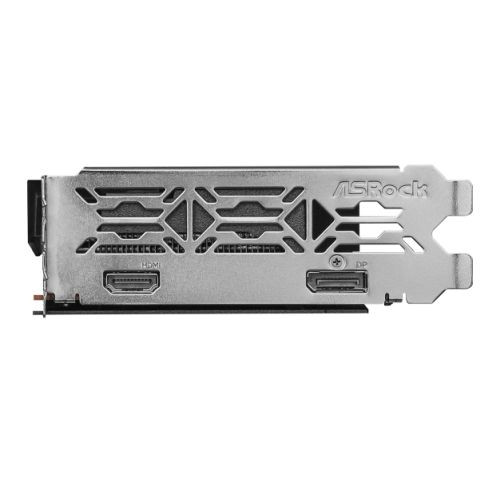

Outputs

1 x HDMI 2.1
1 x DisplayPort 1.4a HBR3 / DSC

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

DirectX Support

DirectX12 Ultimate

Max Display Support

Cooling

Dual Fan Design
Striped Axial Fan
0dB Silent Cooling

PSU Requirements

400W or greater recommended

Connectors Required

1 x 8-pin PCIe power

Additional Features

See Overview

Dimensions

240 x 129 x 42 mm

Accessories

1 x Quick Installation Guide

Package Type

Retail

Package Weight

0.8000 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
