Asrock RX6750 XT Challenger Pro 12GB OC, 12GB DDR6, PCIe4, HDMI, 3 DP, 2618MHz Clock, Overclocked

Condition: New product

AMD Radeon RX 6750 XT Challenger Pro 12GB OC

Boost Clock: Up to 2618 MHz / 18 Gbps
Game Clock: Up to 2512 MHz / 18 Gbps
Base Clock: 2235 MHz / 18 Gbps
7nm AMD Radeon™ RX 6750 XT Graphics
12GB 192-bit GDDR6
AMD RDNA™ 2 Architecture
DirectX 12 Ultimate
PCI® Express 4.0 Support
2 x 8-pin Power Connectors

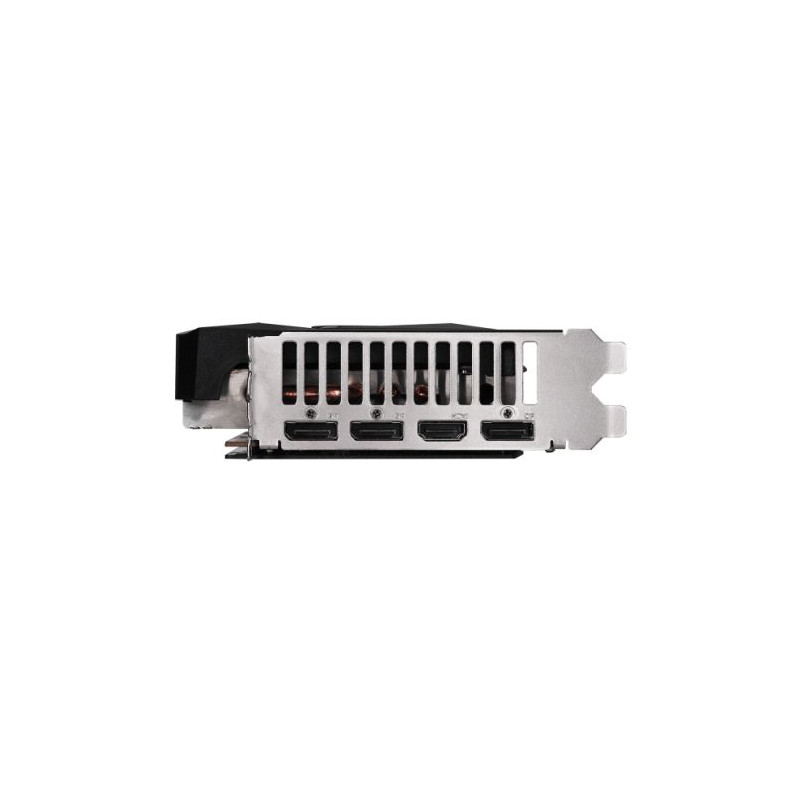

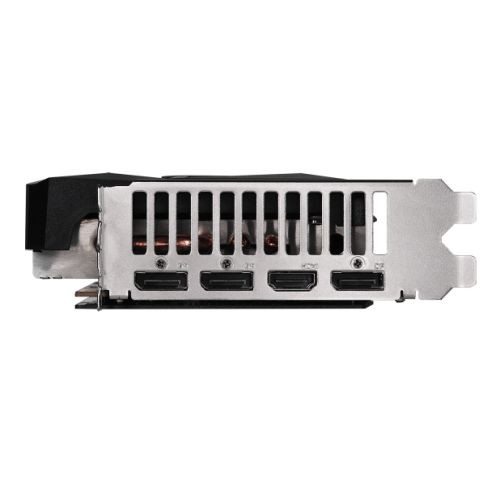

3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR

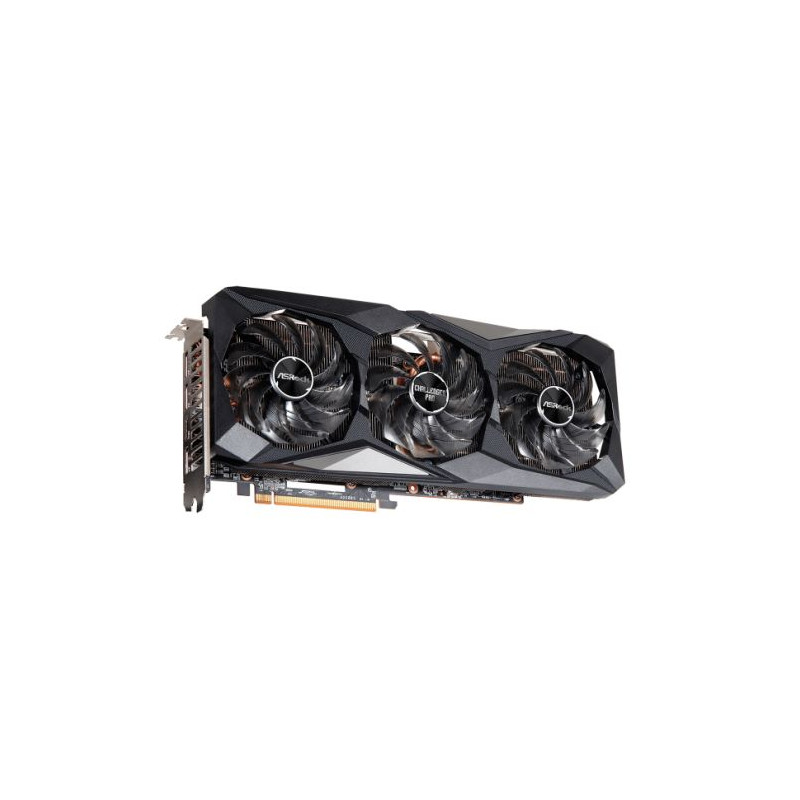

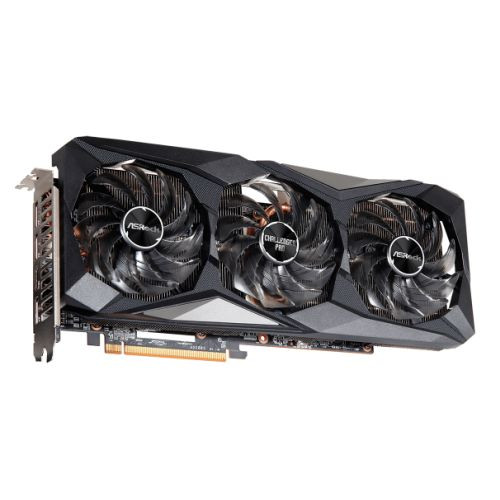

Triple Fan Design
Striped Axial Fan
Ultra-fit Heatpipe
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

OC Edition

Great Performance.

Delivers great performance which is more higher than reference cards based on the solid hardware design.

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature

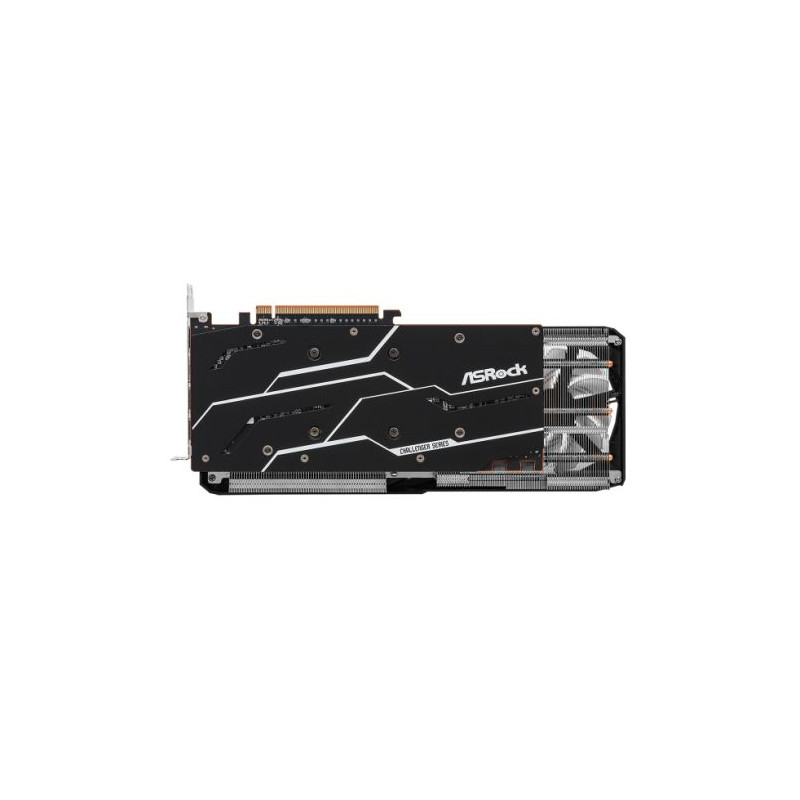

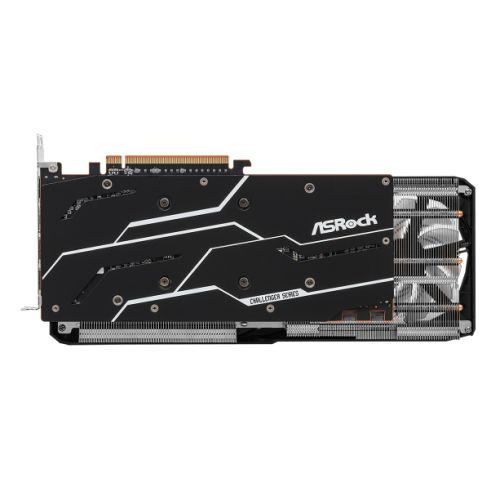

Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke

Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

ASRock Tweak 2.0

Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support

This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

12 Item Items Warning: Last items in stock!

£ 402.48

Quantity

Data sheet

Manufacturer Number:	90-GA3QZZ-00UANF
Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chipset Manufacturer

AMD

Interface

PCI Express 4.0

Graphics Chipset

AMD RX 6750 XT

Memory Size

12GB

Memory Type

DDR6

Memory Interface

192-bit

Core Clock

Boost Clock: Up to 2618 MHz
Game Clock: Up to 2512 MHz
Base Clock: 2235 MHz

Memory Clock

18 Gbps

Outputs

1 x HDMI 2.1 VRR
3 x DisplayPort 1.4 with DSC

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680x4320

DirectX Support

DirectX 12 Ultimate

Max Display Support

Cooling

Triple Fan Design
Striped Axial Fan
Ultra-fit Heatpipe
Stylish Metal Backplate
0dB Silent Cooling

PSU Requirements

700W or greater recomended

Connectors Required

2 x 8-pin PCIe power

Additional Features

See Overview

Dimensions

303 x 131 x 45 mm

Slot Size

2.3 Slot

Accessories

1 x Quick Installation Guide

Package Type

Retail

Package Weight

1.7000 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
