Asrock RX6750 XT Phantom Gaming D OC, 12GB DDR6, PCIe4, HDMI, 3 DP, 2623MHz Clock, Crossfire, RGB, Overclocked

Condition: New product

AMD Radeon RX 6750 XT Phantom Gaming D 12GB OC - RX6750XT PGD 12GO

Boost Clock: Up to 2623 MHz / 18 Gbps
Game Clock: Up to 2554 MHz / 18 Gbps
Base Clock: 2623 MHz / 18 Gbps
7nm AMD Radeon™ RX 6750 XT Graphics
12GB 192-bit GDDR6
AMD RDNA™ 2 Architecture
DirectX 12 Ultimate
PCI® Express 4.0 Support
2 x 8-pin Power Connectors

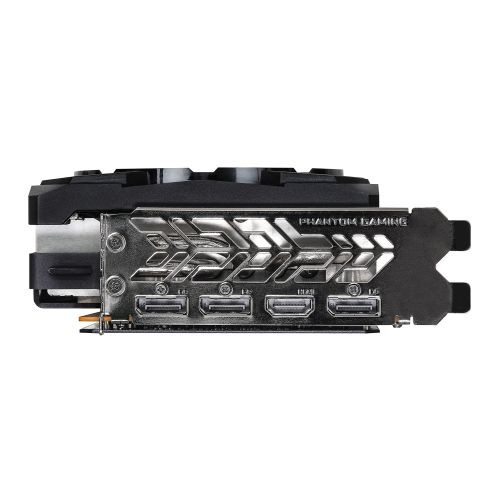

3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

OC Edition - Great Performance.

Delivers great performance which is more higher than reference cards based on the solid hardware design.

Cooling

Phantom Gaming 3X Cooling System - For Cool and Silent.

Crafted for the best balance between the thermal efficiency and silence by all the details.

Striped Axial Fan - Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting Fin

Guide Airflow to Go Through Regularly and Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe - Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base - Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding - Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste - Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad - Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque - Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent Cooling - Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Engineering

Polychrome SYNC - Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch - On or Off? Switch as You Want.

You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-header - More ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal Frame

Enhances the structure to prevent the PCB from being bent.

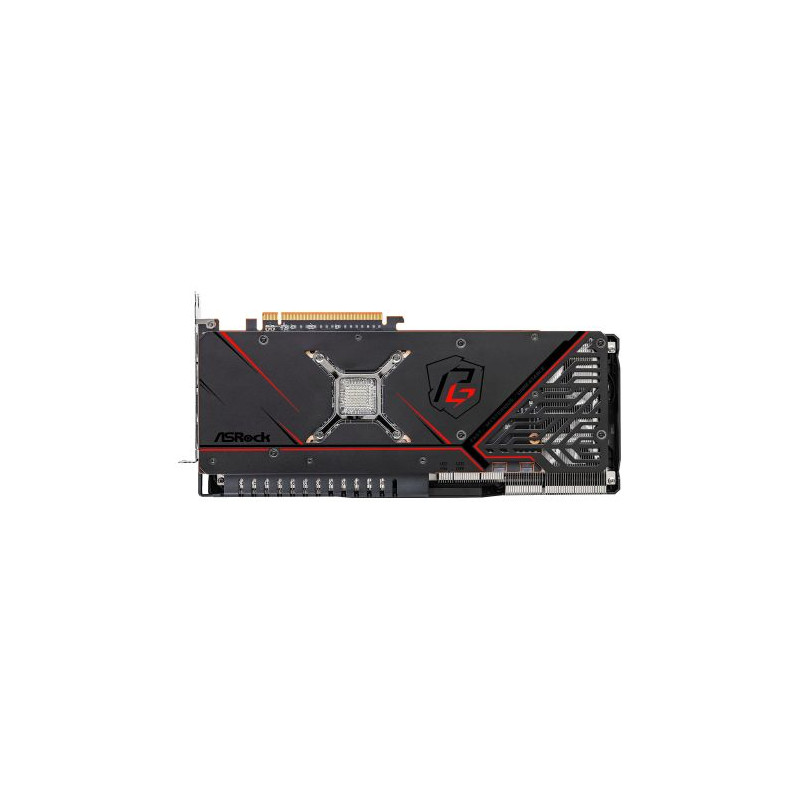

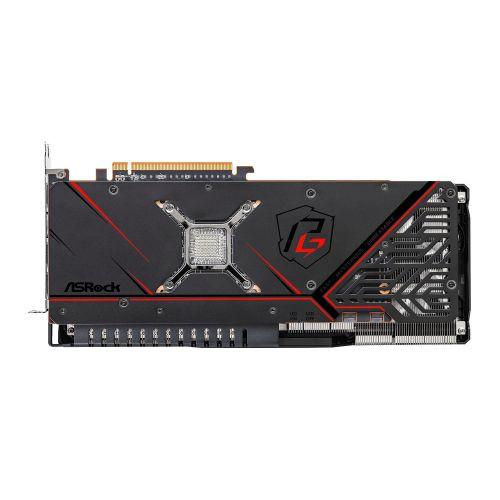

Stylish Metal Backplate - Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Super Alloy Graphics Card

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0 Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

Provides the smart fan speed control and instant performance tweaking. - 8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI Express 4.0 Support

This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

19 Item Items Warning: Last items in stock!

£ 416.13

Quantity

Data sheet

Manufacturer Number:	90-GA3NZZ-00UANF
Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chipset Manufacturer

AMD

Interface

PCI Express 4.0

Graphics Chipset

AMD RX 6650 XT

Memory Size

12GB

Memory Type

DDR6

Memory Interface

192-bit

Core Clock

Boost Clock: Up to 2623 MHz
Game Clock: Up to 2554 MHz
Base Clock: 2623 MHz

Memory Clock

18 Gbps

CUDA Cores / Stream Processors

2560 Stream Processors

Outputs

1 x HDMI 2.1 VRR
3 x DisplayPort 1.4 with DSC

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680x4320

DirectX Support

DirectX 12 Ultimate

Max Display Support

Cooling

Phantom Gaming 3X System
Striped Axial Fans
Air Deflecting Fin
Ultra-fit Heatpipe
Nickel Plated Copper Base
High Density Metal Welding
Nano Thermal Paste
Premium Thermal Pad
0dB Silent Cooling

PSU Requirements

700W or greater recomended

Connectors Required

2 x 8-pin PCIe power

Additional Features

See Overview

Dimensions

305 x 131 x 55 mm

Slot Size

2.75 Slot

Accessories

1 x Quick Installation Guide

Package Type

Retail

Package Weight

1.8500 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
