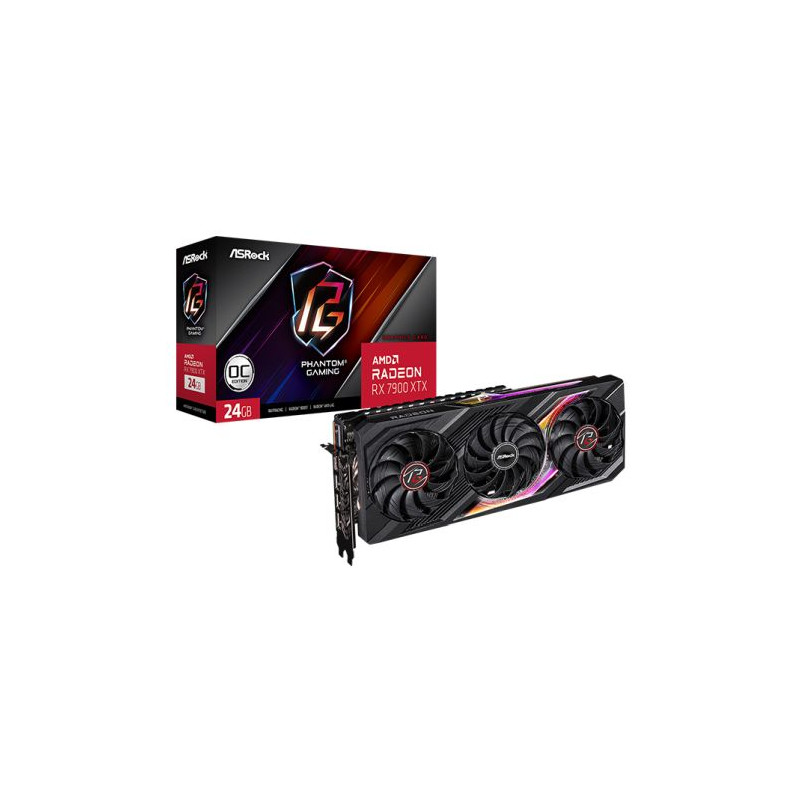

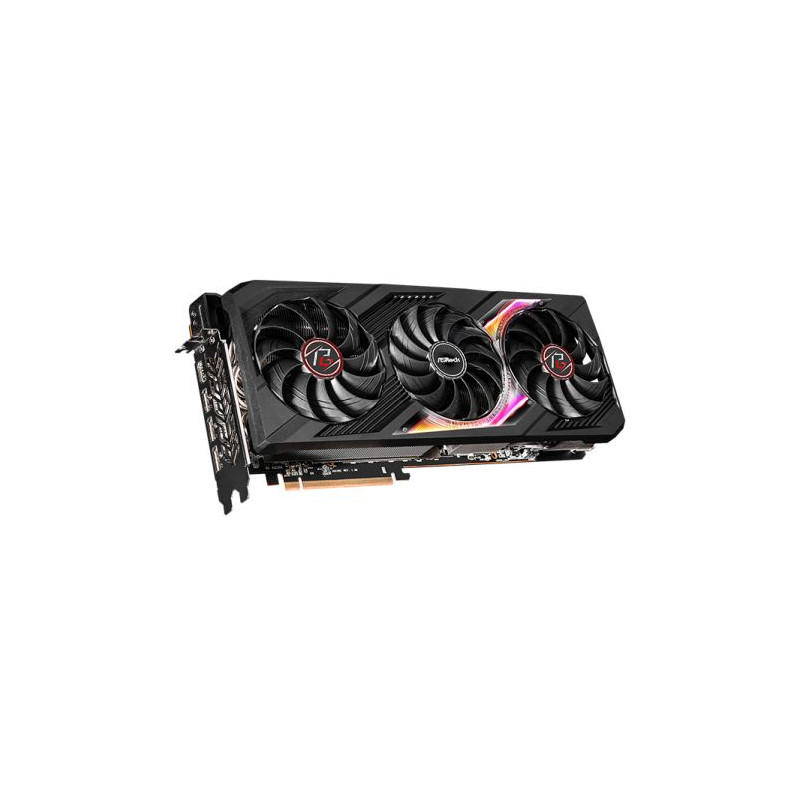

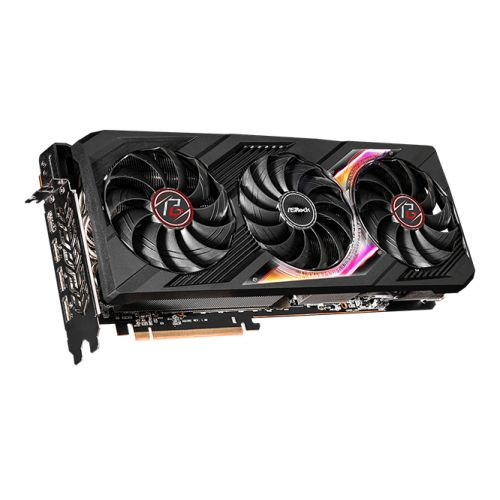

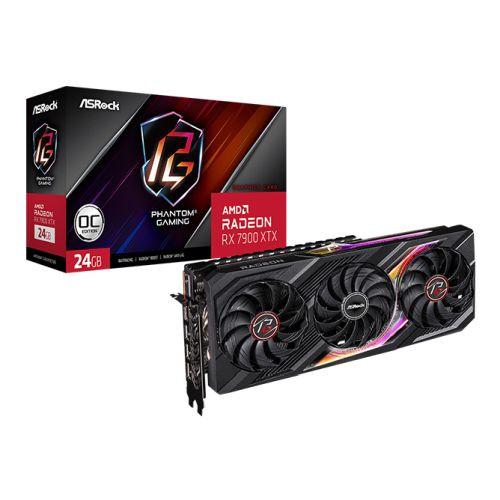

Asrock RX7900 XTX Phantom Gaming OC, PCIe4, 24GB DDR6, HDMI, 3 DP, 2615MHz Clock, Overclocked, RGB

Condition: New product

AMD Radeon™ RX 6750 XT Phantom Gaming D 12GB OC

Boost Clock: Up to 2623 MHz / 18 Gbps
Game Clock: Up to 2554 MHz / 18 Gbps
Base Clock: 2623 MHz / 18 Gbps
7nm AMD Radeon™ RX 6750 XT Graphics
12GB 192-bit GDDR6
AMD RDNA™ 2 Architecture
DirectX 12 Ultimate
PCI® Express 4.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

OC Edition

Great Performance.

Delivers great performance which is more higher than reference cards based on the solid hardware design.

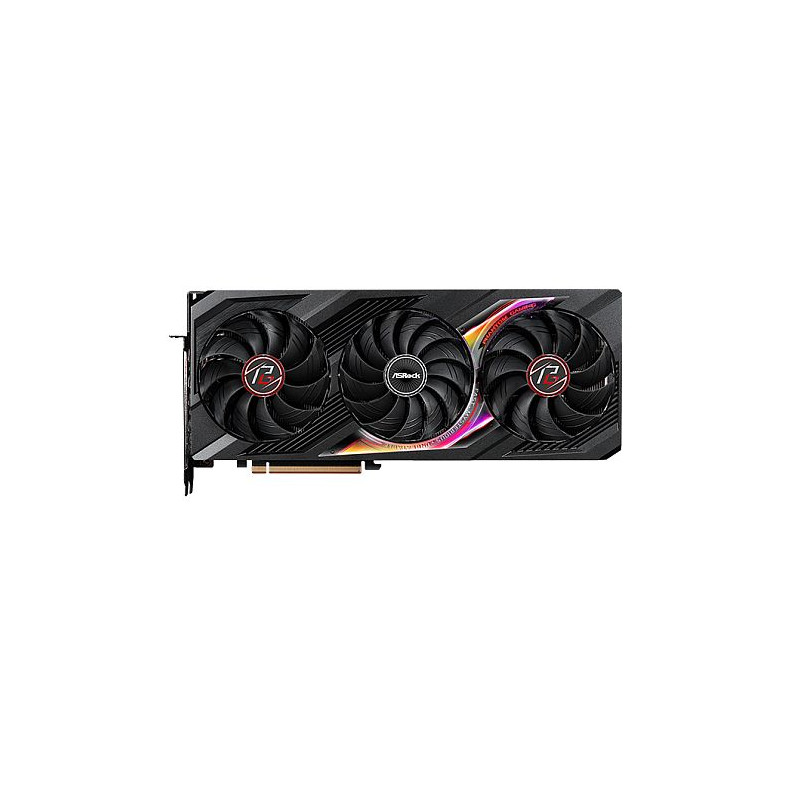

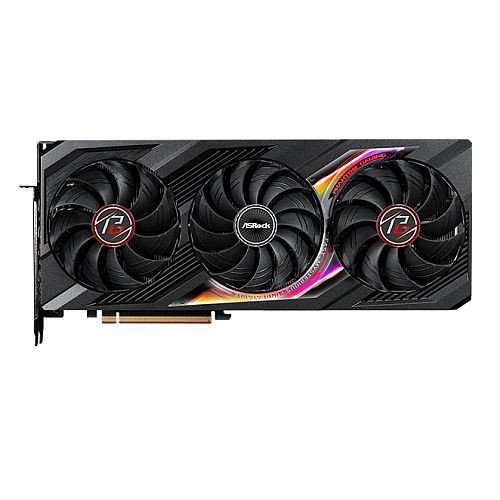

Phantom Gaming 3X Cooling System

For Cool And Silent.

Crafted for the best balance between the thermal efficiency and silence by all the details.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting Fin

Guide Airflow To Go Through Regularly and Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-Fit Heatpipe

Consolidated To Maximize The Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-Plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-Density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Polychrome SYNC

Create Your Own Unique Colorful Light Effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch

On Or Off? Switch As You Want.

You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-Header

More ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal Frame

Enhances the structure to prevent the PCB from being bent.

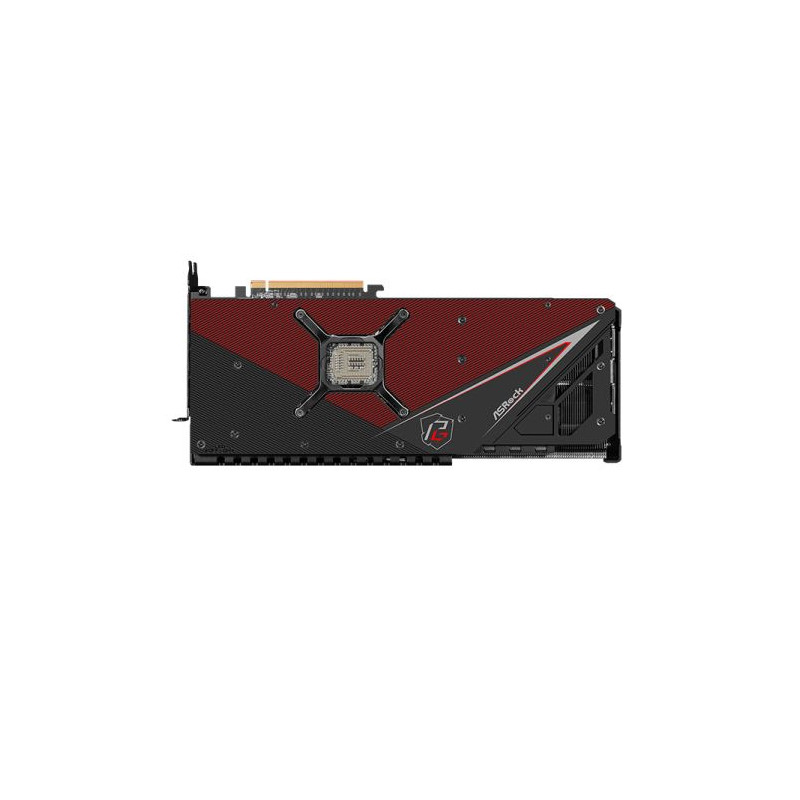

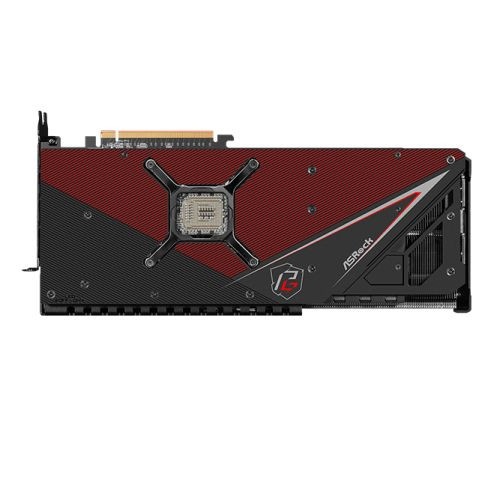

Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke

Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0

Pro And Easy-To-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support

This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

138 Item Items Warning: Last items in stock!

£ 1,073.19

Quantity

Data sheet

Manufacturer Number:	90-GA3YZZ-00UANF
Manufacturer:	ASROCK
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chipset Manufacturer

AMD

Interface

PCI Express 4.0

Graphics Chipset

AMD RX 7900 XTX

Memory Size

24GB

Memory Type

DDR6

Memory Interface

384-bit

Core Clock

Boost Clock: Up to 2615 MHz
Game Clock: 2455 MHz

Memory Clock

20 Gbps

CUDA Cores / Stream Processors

6144 Stream Processors

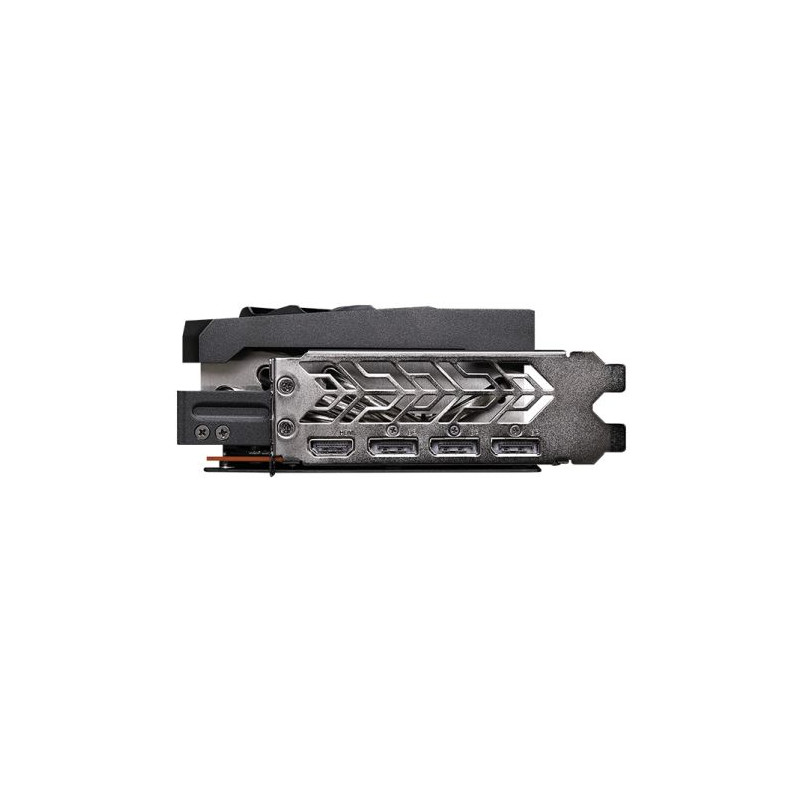

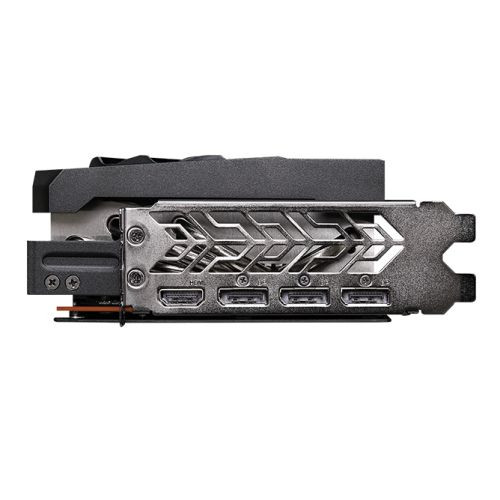

Outputs

1 x HDMI
3 x DisplayPort

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

DirectX Support

DirectX 12 Ultimate

Max Display Support

Cooling

Phantom Gaming 3X Cooling System
Striped Ring Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling

PSU Requirements

1000W or greater recommended

Connectors Required

3 x 8-pin PCIe Power

Software

AMD Adrenalin Edition

Additional Features

See Overview

Dimensions

330 x 140 x 57.6 mm

Slot Size

2.8 Slot

Accessories

1 x Quick Installation Guide

Package Type

Retail

Package Weight

2.4000 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
