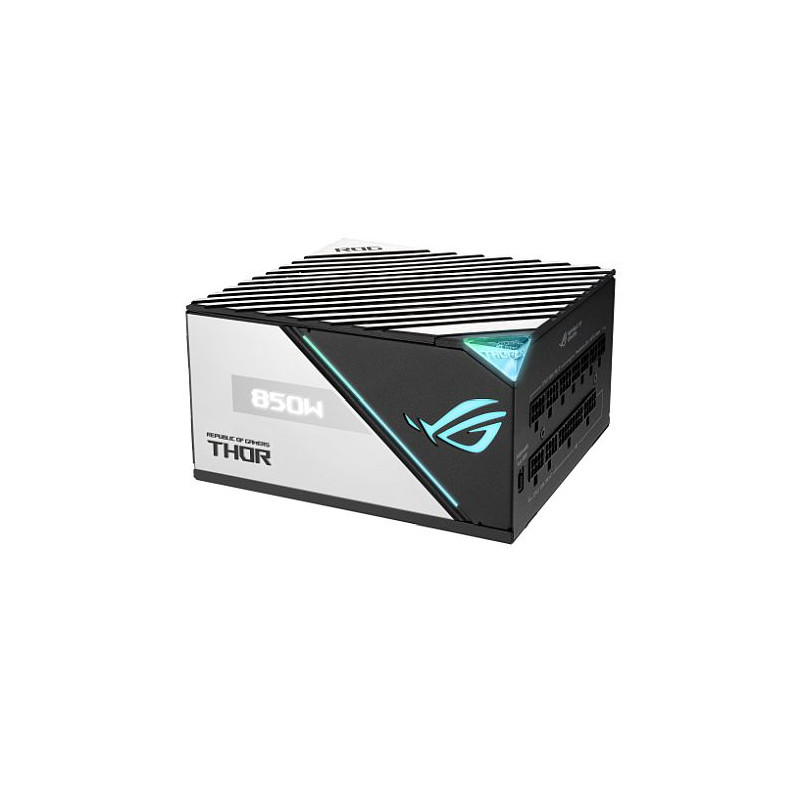

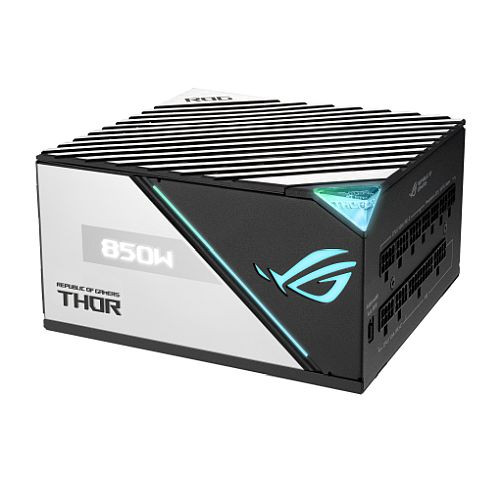

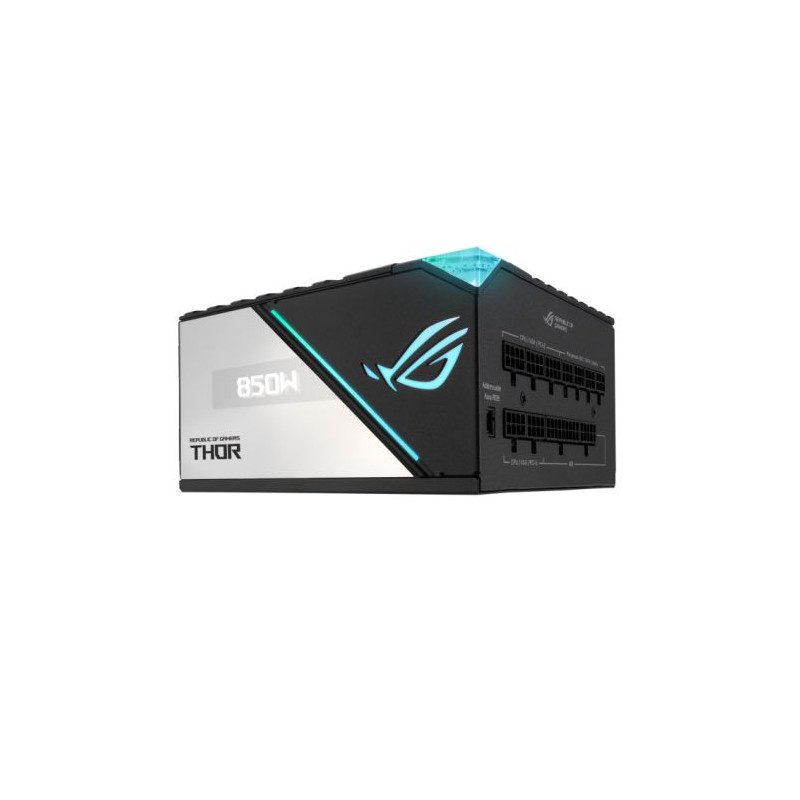

Asus 850W ROG Thor Platinum II PSU, Double Ball Bearing Fan, Fully Modular, 80+ Platinum, RGB Lighting, OLED Display, PCIe 5.0,

Condition: New product

ROG Thor 850W Platinum II is the quietest PSU in its class.

Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.
ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
A 135mm wing-blade fan with PWM control delivers lower noise and keeps thermals in check.
Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification.
OLED display monitors power draw in real time.
Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.

The Quietest 850W Platinum Power Supply

Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.

Cooling

ROG Heatsinks

ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

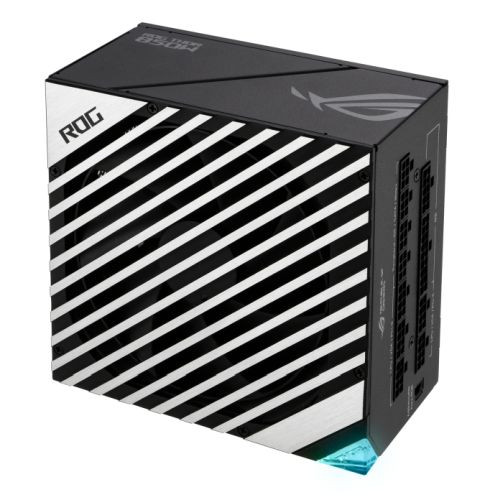

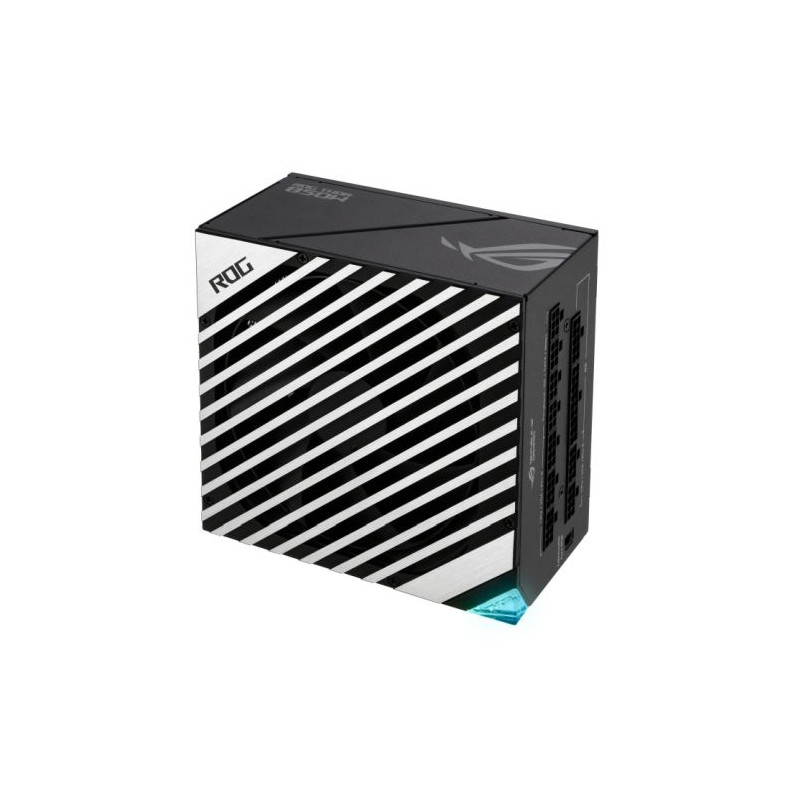

Axial-tech Fan Design

A 135mm Wing-blade fan with PWM control delivers lower noise and keeps thermals in check.

Dual Ball Fan Bearings

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.

Lambda A++ Certification

Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.

80 Plus Platinum Certification

The ROG Thor 850W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

Experience

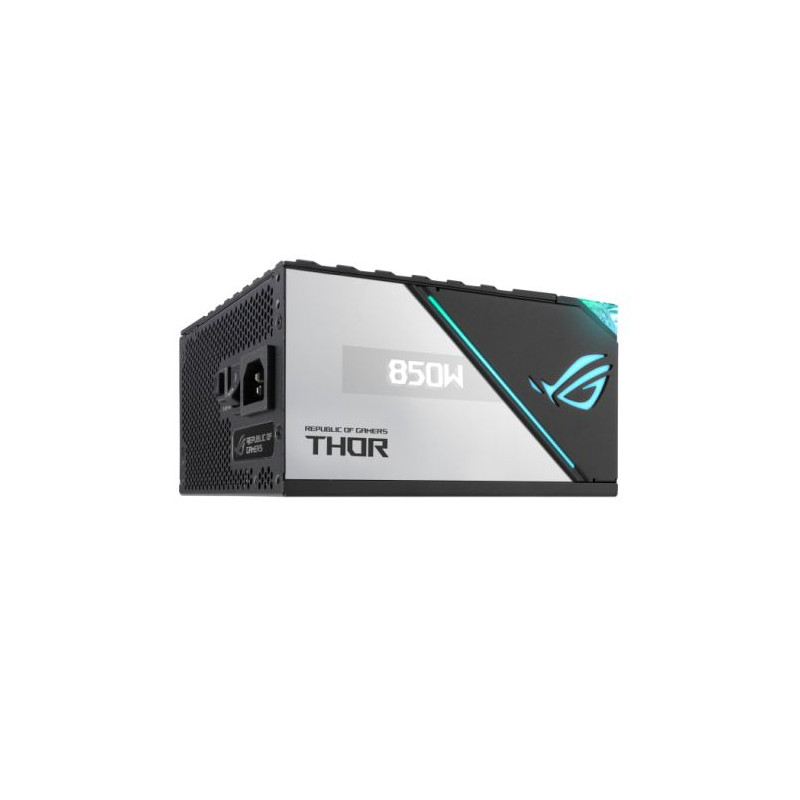

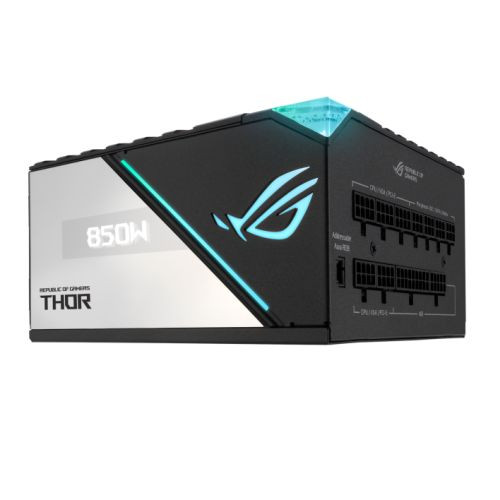

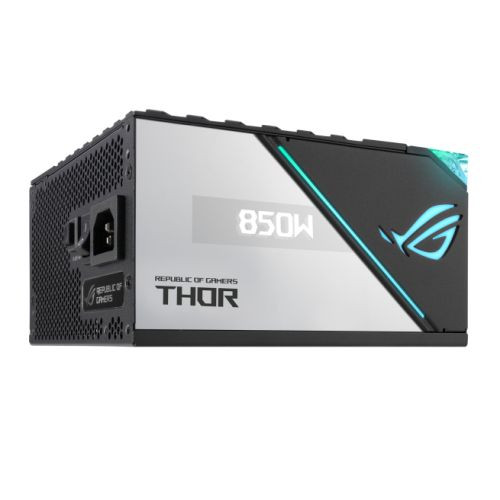

OLED Power Display

The built-in OLED panel makes it easy to tune your system for best performance and efficiency.

Aura Sync

Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.

Sleeved Cables

A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.

PCIe Gen 5.0 Ready

Each ROG Thor 850W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.

10-year Warranty

The ROG Thor 850W Platinum II is backed with a 10-year warranty.

35 Item Items Warning: Last items in stock!

£ 269.32

Quantity

Data sheet

Manufacturer Number:	90YE00L2-B0NA00
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

ATX

Series

Asus ROG Thor

Wattage

850 W

Modular

Fully Modular

Compatibility

ATX 12V and EPS 12V

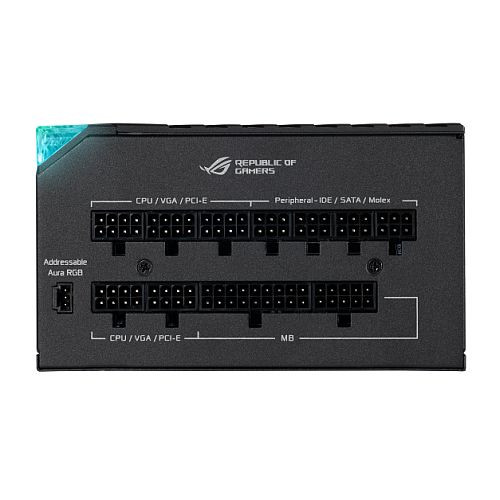

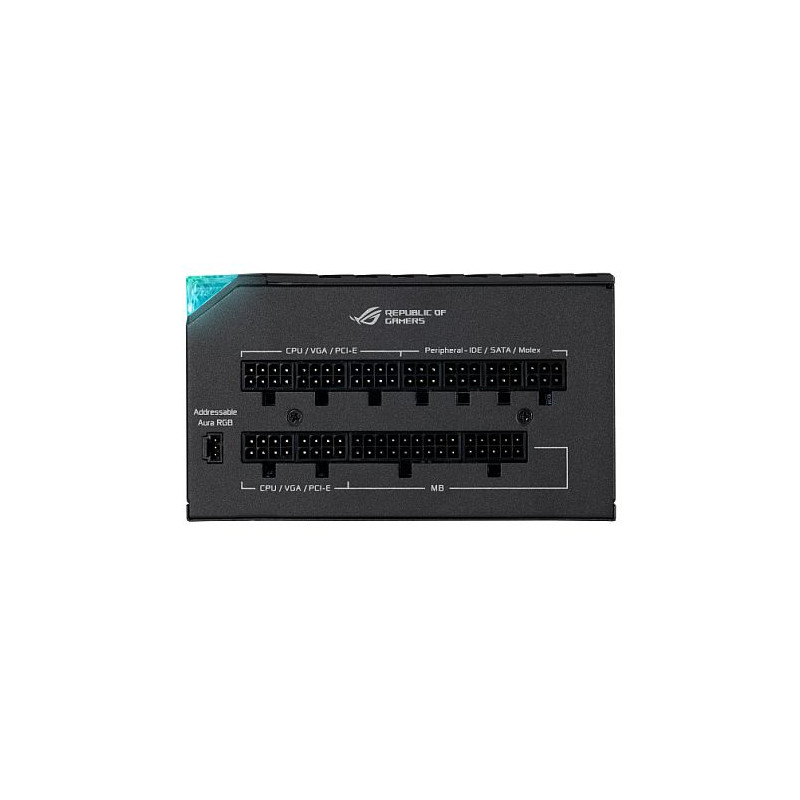

Connectors

1 x MB 24/20-pin
2 x CPU 4+4-pin
1 x PCI-E 16-pin
3 x PCI-E 6+2-pin
10 x SATA
6 x PERIPHERAL

Rail Design

Single rail

AC Input

100-240Vac

Fan Type

135mm wing-blade PWM fan
Dual Ball Bearing

Fan Bearing

Ball Bearing

Noise

Cybenetics Noise Level Certification: A++

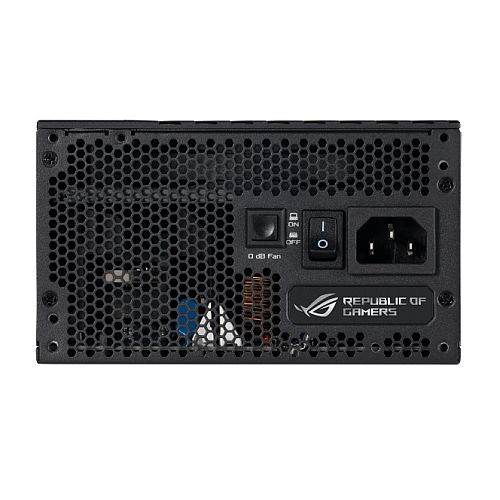

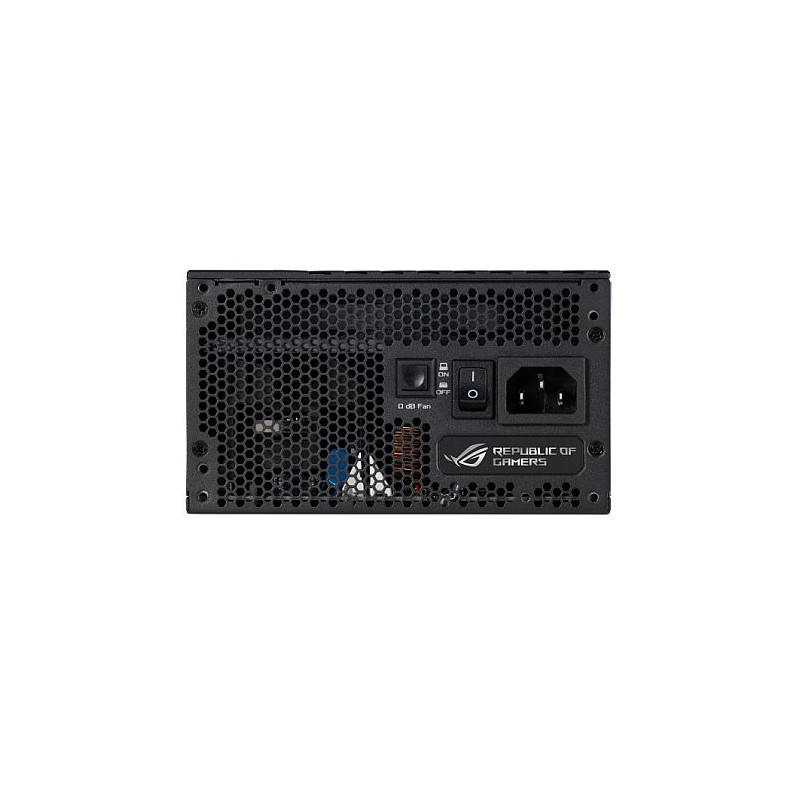

0dB Fan Button

80+ Certification

80+ Platinum

Efficiency

89% at 100% load
92% at 50% load

Protection

OPP/OVP/UVP/SCP/OCP/OTP

Additional Features

See Overview

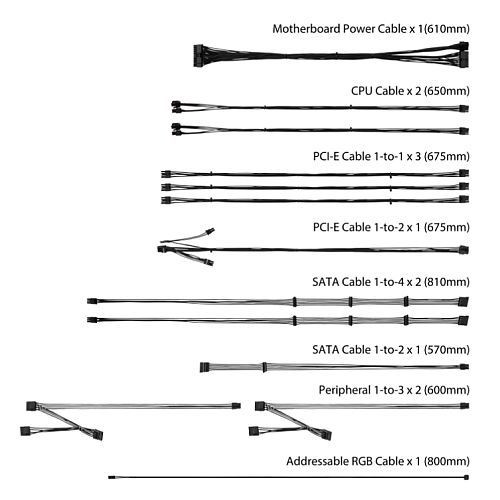

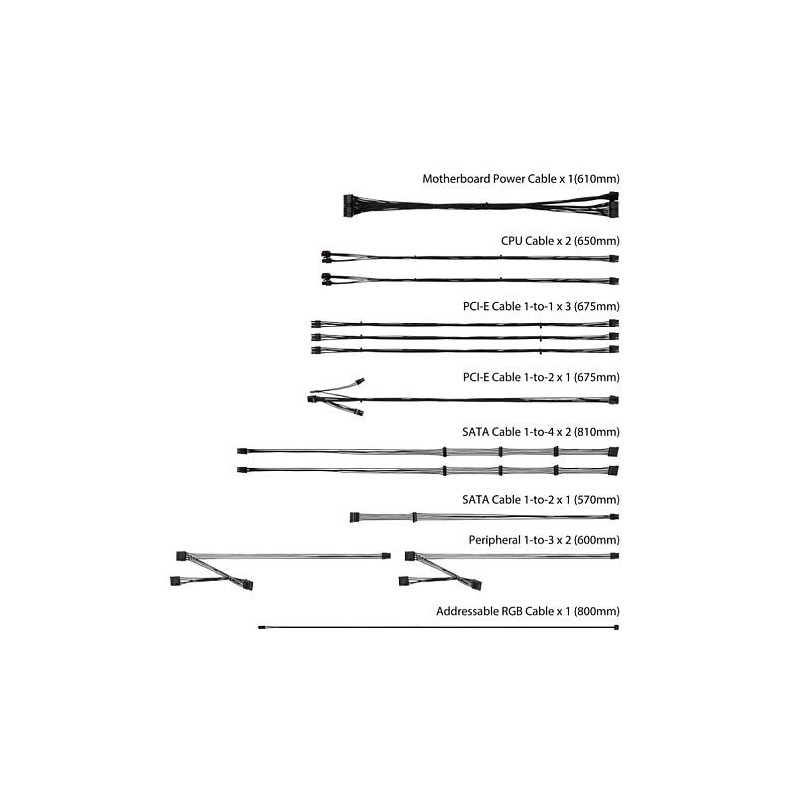

Package Contents

1 x Power Cord
1 x MB Power Cable (610mm)
2 x CPU Cable (650mm)
1 x PCIE Cable 16-pin (675mm)
3 x PCIE 1-to-1 Cable (675mm)
2 x PCIE 1-to-2 Cable (675+75mm)
1 x SATA 1-to-2 Cable (400+120mm)
2 x SATA 1-to-4 Cable (400+120+120+120mm)
2 x Peripheral 1-to-3 Cable (450+120+120mm)
1 x Addressable RGB Cable (800mm)
2 x Sleeved Cable Combs (6-pin)
6 x Sleeved Cable Combs (8-pin)
2 x Sleeved Cable Combs (24-pin)
1 x Screws Package

Weight/Dimensions

1.865 kg

160 x 150 x 86 mm

Package Weight

3.5000 kg

Warranty

Core product :10 Years
OLED panel and RGB LEDs: 3 Years
