Asus DUAL RTX4070 SUPER EVO, PCIe4, 12GB DDR6X, HDMI, 3 DP, 2505MHz Clock

Condition: New product

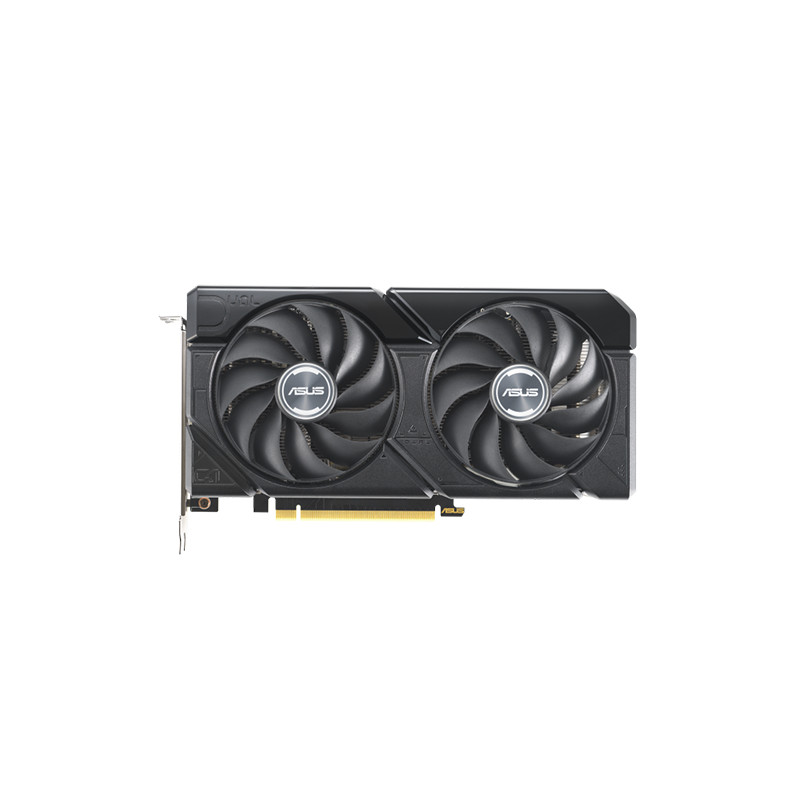

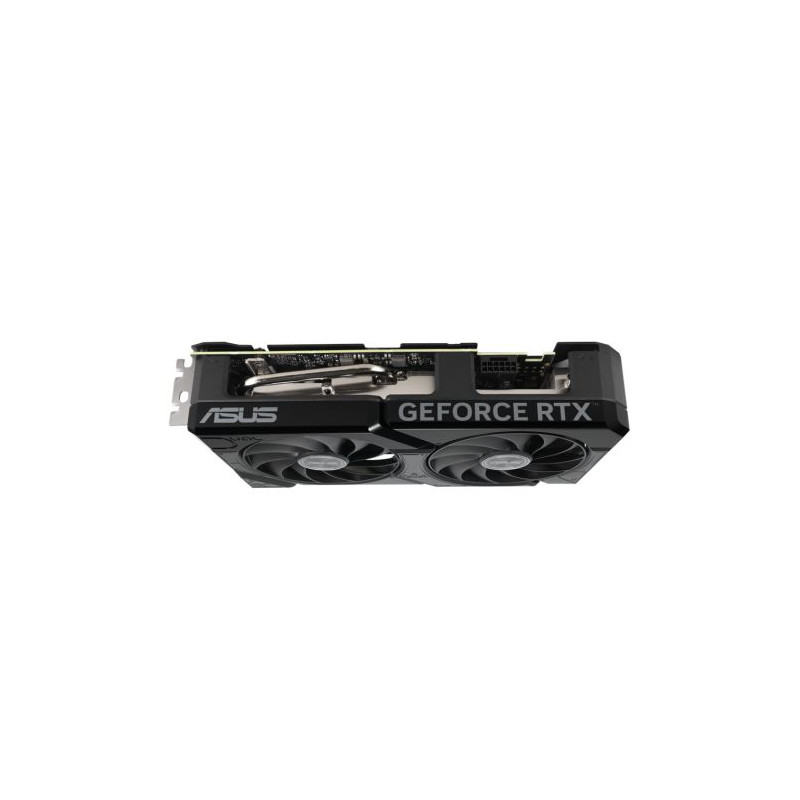

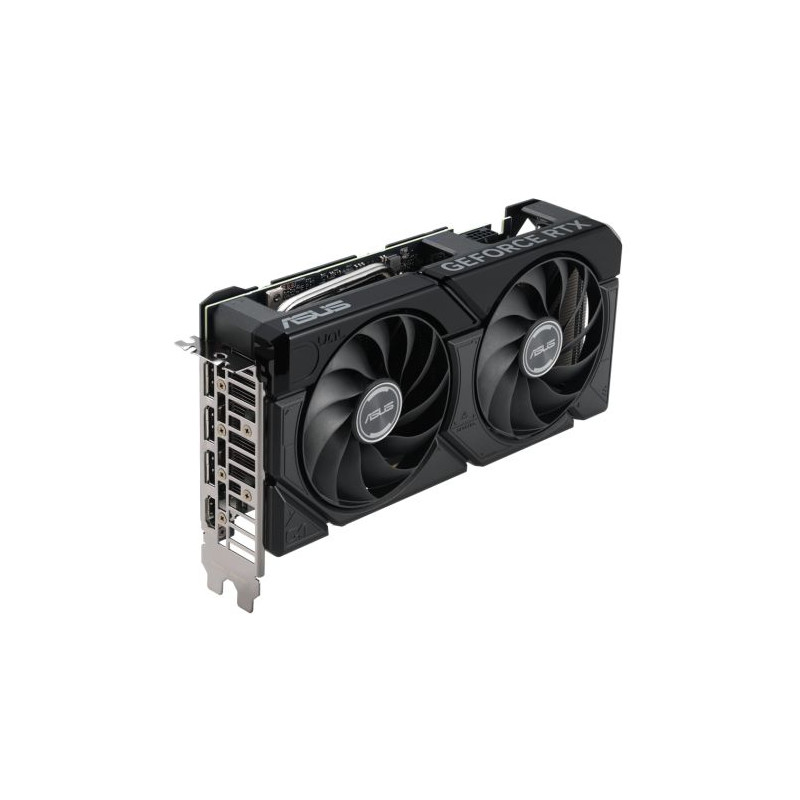

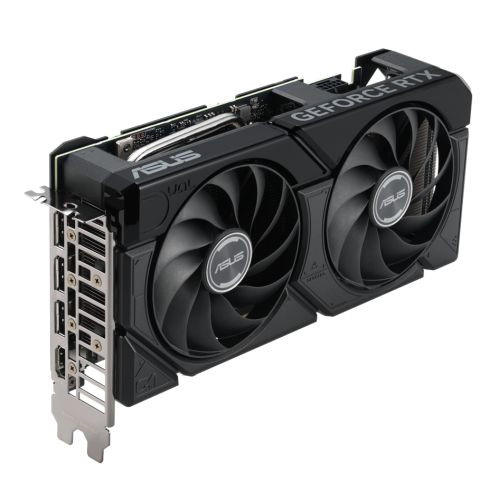

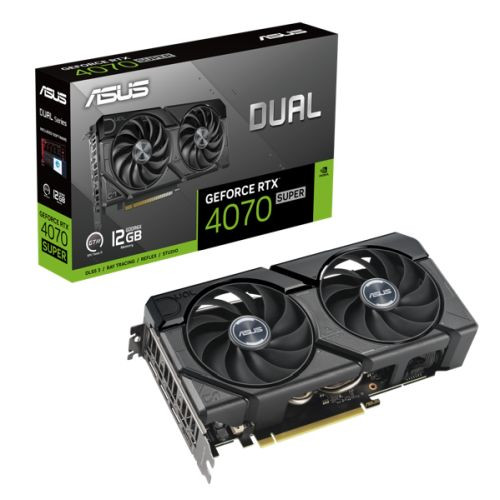

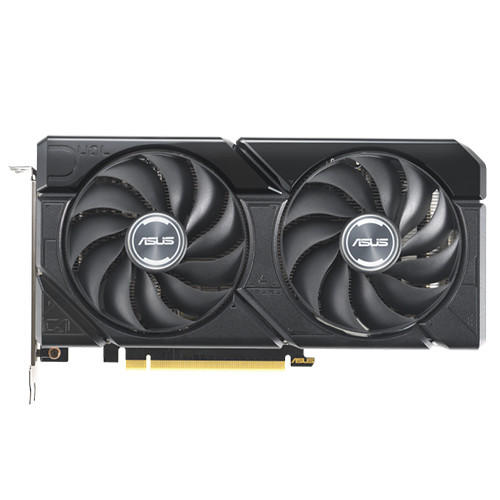

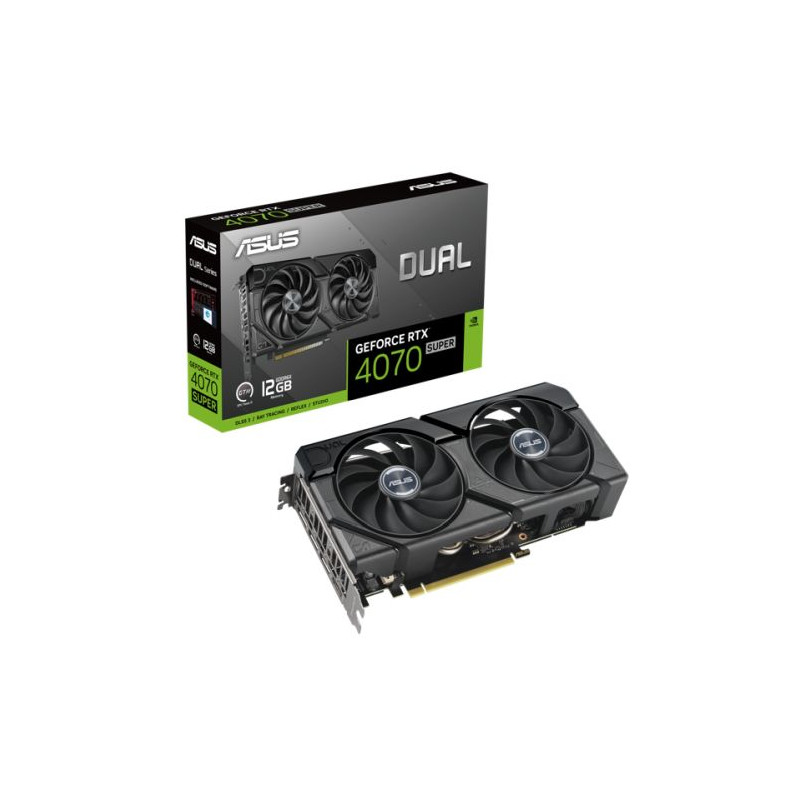

ASUS Dual GeForce RTX 4070 SUPER EVO Edition 12GB GDDR6X with two powerful Axial-tech fans and a 2.5-slot design for broad compatibility

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
0dB technology lets you enjoy light gaming in relative silence.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

2x Fans. 2x Fun.

ASUS Dual GeForce RTX 4070 SUPER EVO fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for maximizing airflow to the heatsink - are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling

Axial-tech Fan Design

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology

To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

Dual Ball Fan Bearings

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

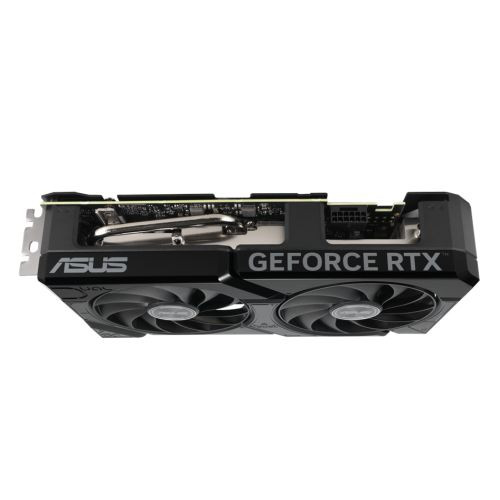

2.5-slot Design

A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card's size.

Dual BIOS

Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.

Engineering

Auto-Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

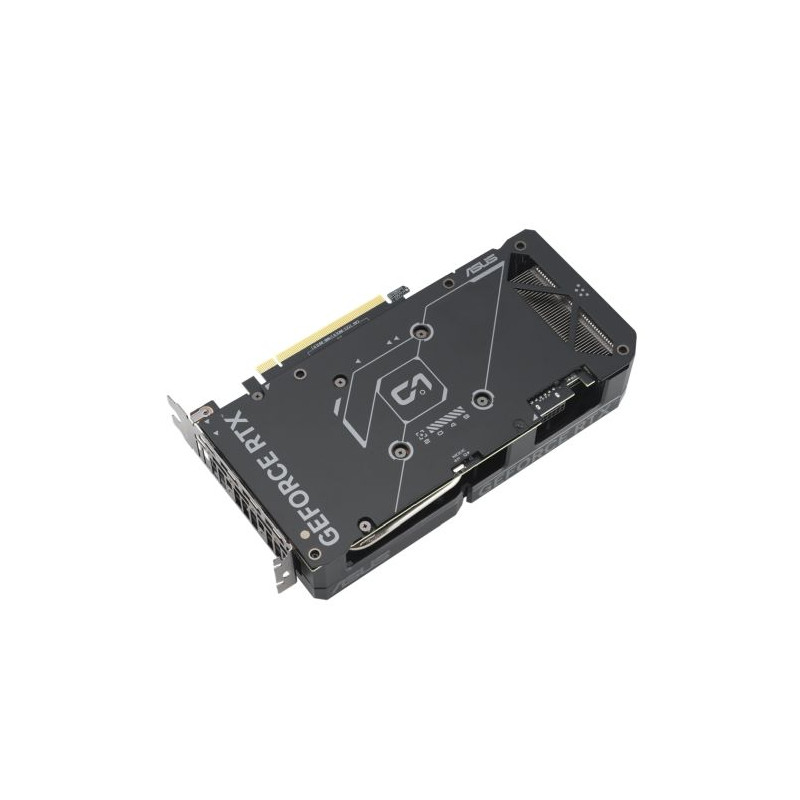

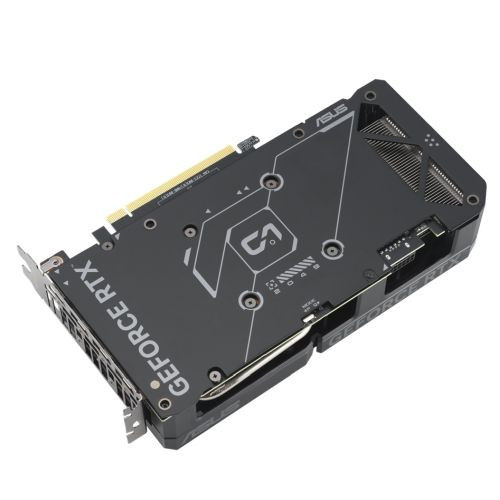

Protective Backplate

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

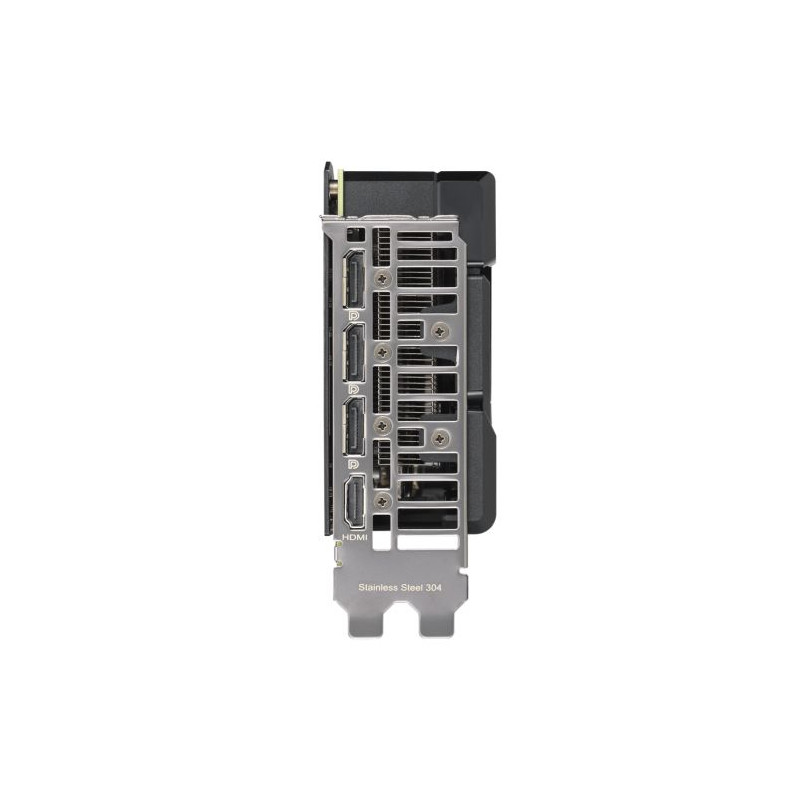

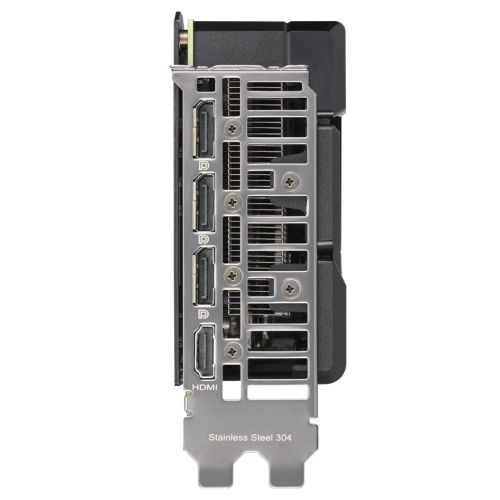

Stainless Steel Bracket

The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that's harder and more resistant to corrosion.

Software

GPU TWEAK III

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

QuantumCloud

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card's computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn't collect any personal data, so your privacy stays protected. Get started right away with just one click!

Experience

144-hour Validation Program

A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.

69 Item Items Warning: Last items in stock!

£ 712.36

Quantity

Data sheet

Manufacturer Number:	90YV0KC1-M0NA00
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chipset Manufacturer

Nvidia

Interface

PCI Express 4.0

Graphics Chipset

Nvidia RTX 4070 SUPER

Memory Size

12GB

Memory Type

DDR6X

Memory Interface

192-bit

Core Clock

OC mode: 2505 MHz (Boost Clock)
Default mode: 2475 MHz (Boost Clock

Memory Clock

21 Gbps

CUDA Cores / Stream Processors

7168 CUDA Cores

Outputs

1 x HDMI 2.1a
3 x DisplayPort 1.4a

HDCP Support

Yes

Resolution

7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Dual Fan
Axial Tech Fans
0dB technology
Dual ball fan bearings

PSU Requirements

750W or greater recommended

Connectors Required

1 x 16-pin power

Software

ASUS GPU Tweak III and GeForce Game Ready Driver and Studio Driver

Additional Features

See Overview

Dimensions

227.2 x 123.24 x 49.6 mm

Slot Size

2.5 Slot

Accessories

1 x Speedsetup Manual
1 x Thank you card
1 x Adapter cable (1 to 2)

Package Type

Retail

Package Weight

1.3400 kg

Warranty

3 Years

Full Box Quantity
