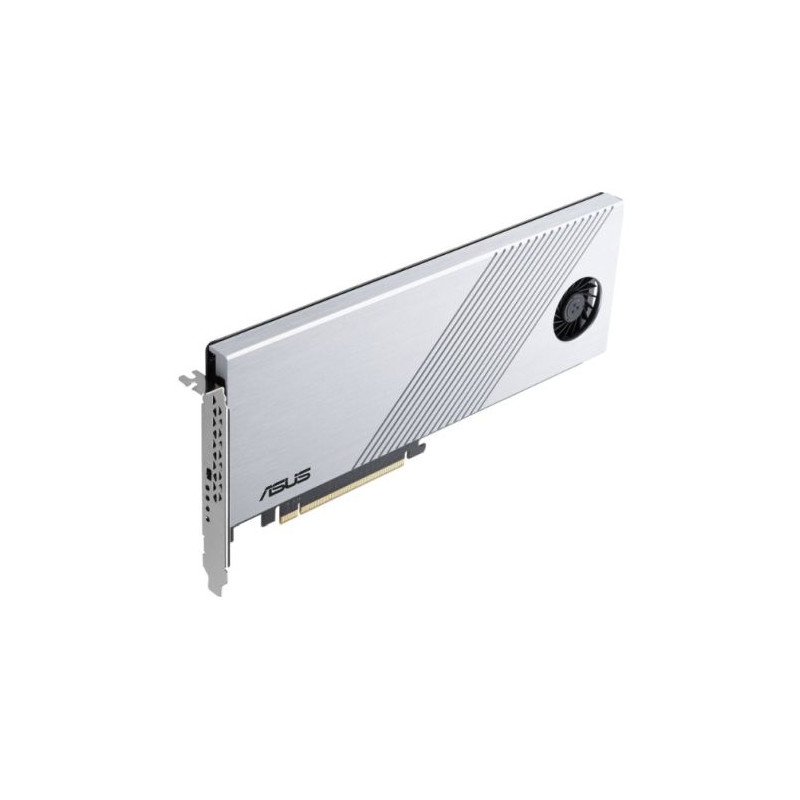

Asus Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0), Supports four NVMe M.2 Devices & PCIe 4.0 NVMe RAID and Intel RAID-on-CPU

Condition: New product

ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel® platform RAID-on-CPU functions

Two-phase power solution with up to 14-watt output supports the latest NVMe drives

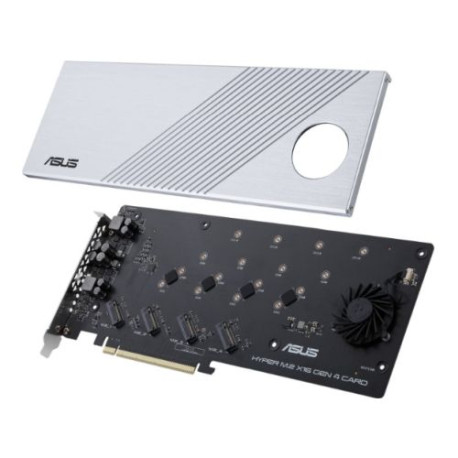

Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability

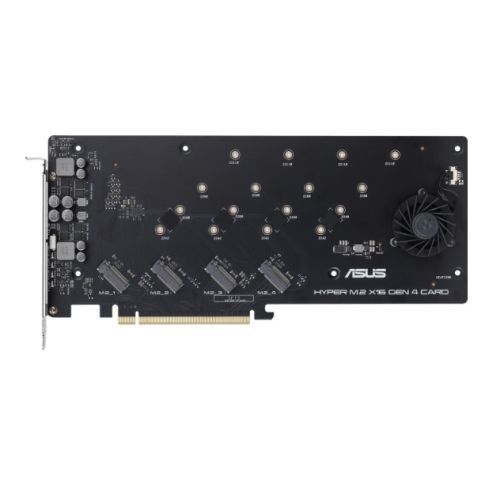

Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting

RAID on CPU

The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel® X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs*.

*M.2 SSD support dependent on CPU and motherboard design. Please check the specifications and user manual of your motherboard. Update to the latest BIOS and set up PCIe bifurcation settings before using the NVMe RAID function.

One card, 8X the bandwidth

The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.

Design for unthrottled transfer speed

The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.

14 Item Items Warning: Last items in stock!

£ 67.59

Quantity

Data sheet

Manufacturer Number:	90MC08A0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Type

M.2 Card

Host Interface(s)

PCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 slots, support data transfer rates up to 256 Gbps

Internal Interfaces

4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0/3.0)*

*Supports PCIe M.2 storage devices only

Compatibility

Max numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards

Click here for more details

Additional Features

See Overview

Dimensions

27 (L) x 12.2(W) x 1.5(H) cm

Package Type

Retail

Package Weight

1.2000 kg

Warranty

1 Year

Full Box Quantity

Manufacturer Link
