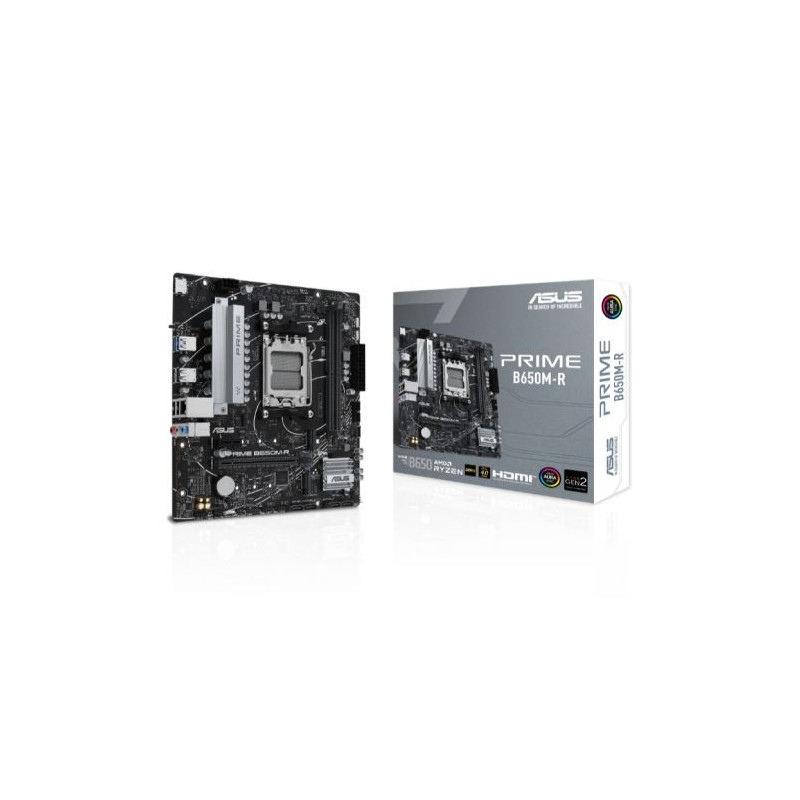

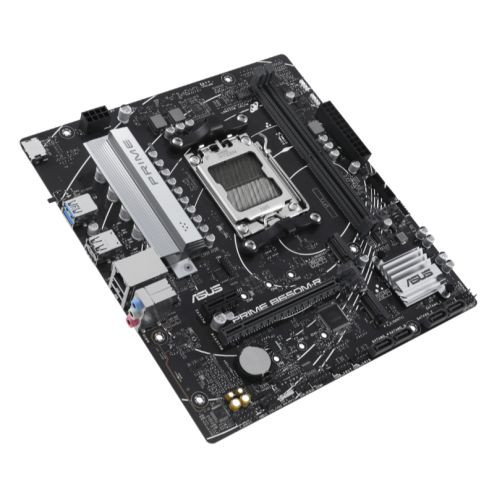

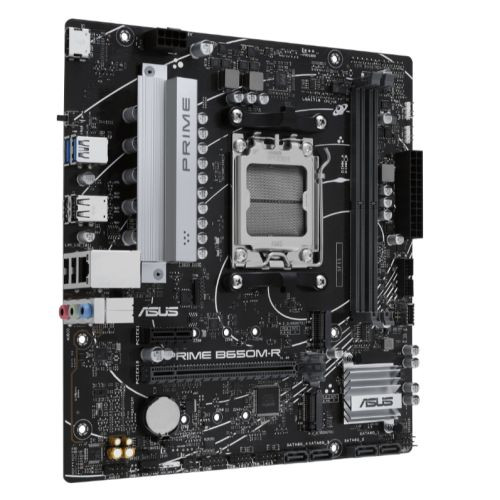

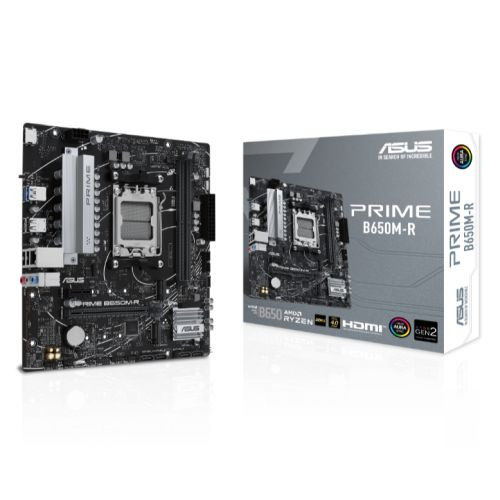

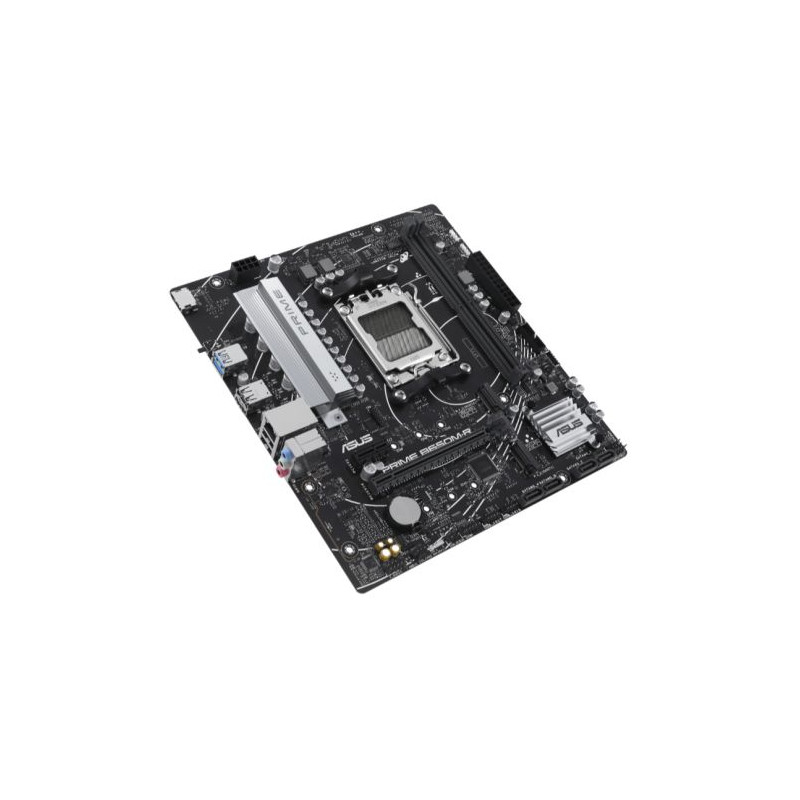

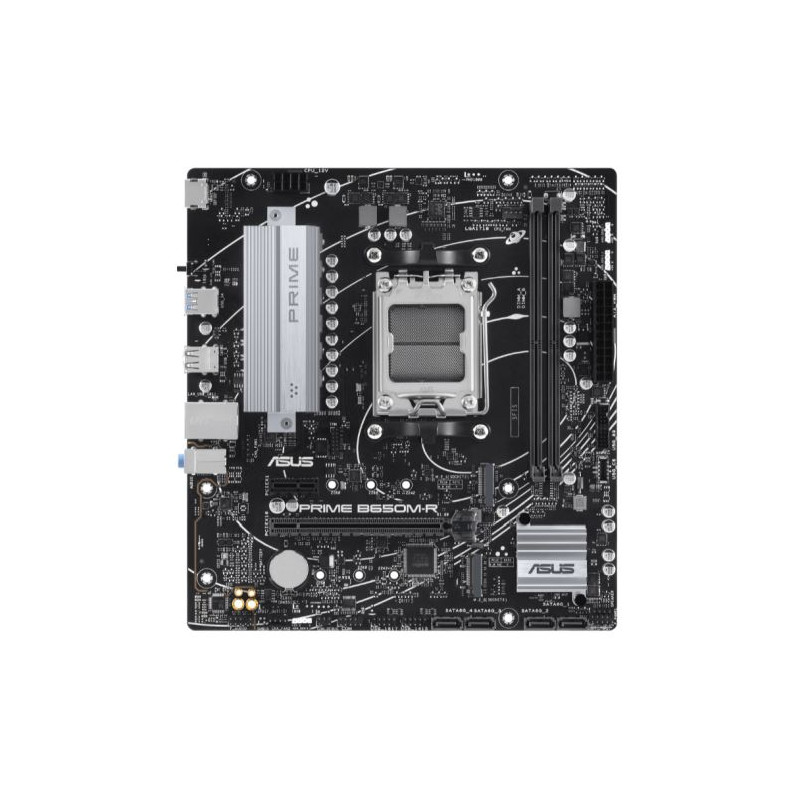

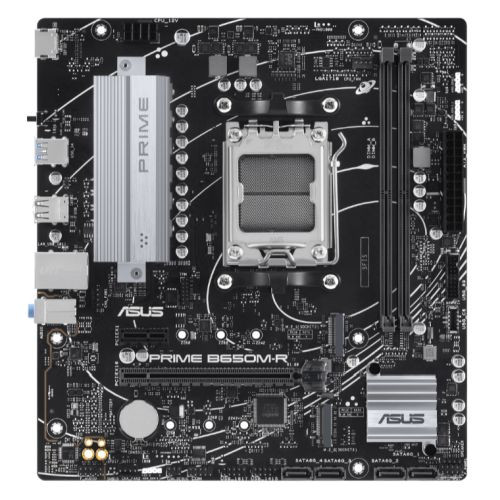

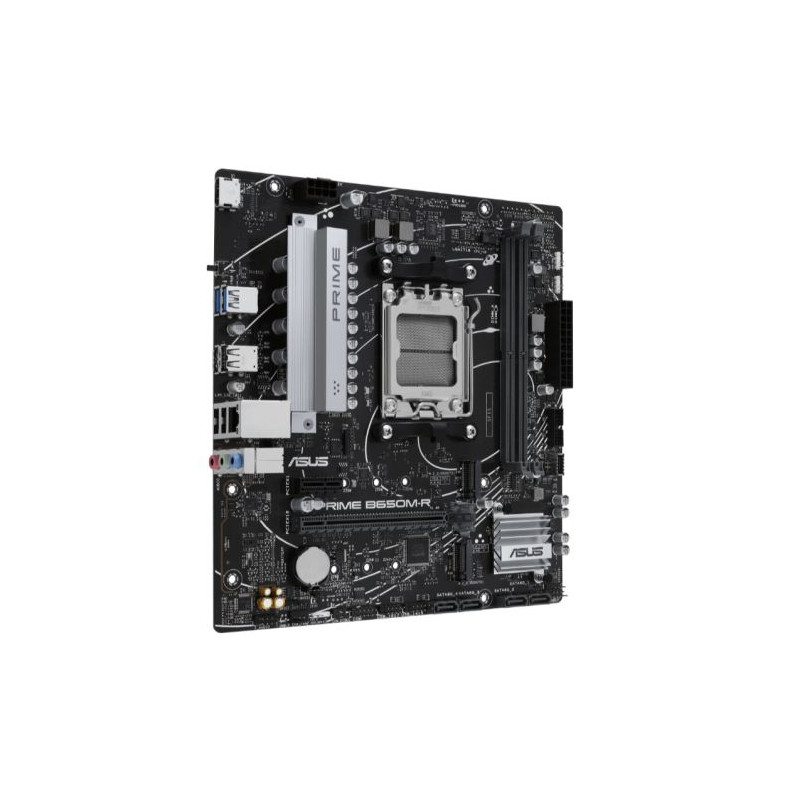

Asus PRIME B650M-R, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, 2.5G LAN, PCIe4, 2x M.2

Condition: New product

AMD B650 Micro-ATX motherboard, DDR5, PCIe 4.0 support, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps Type-C®, BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync

AM5 Socket for AMD Ryzen™ Desktop Processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, USB 5Gbps ports, front USB 5Gbps Type-C®
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-R provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Cooling

Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Performance

The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Customisation

The PRIME B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

** Click here for full product details **

38 Item Items Warning: Last items in stock!

£ 130.85

Quantity

Data sheet

Manufacturer Number:	90MB1H30-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD B650

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC, Un-buffered Memory
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

RAM Slots

2 x DIMM

RAM Speeds

Up to 7200+(OC)

Maximum Memory

96GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 5Gbps USB Type-C
2 x USB 5Gbps
4 x USB 2.0

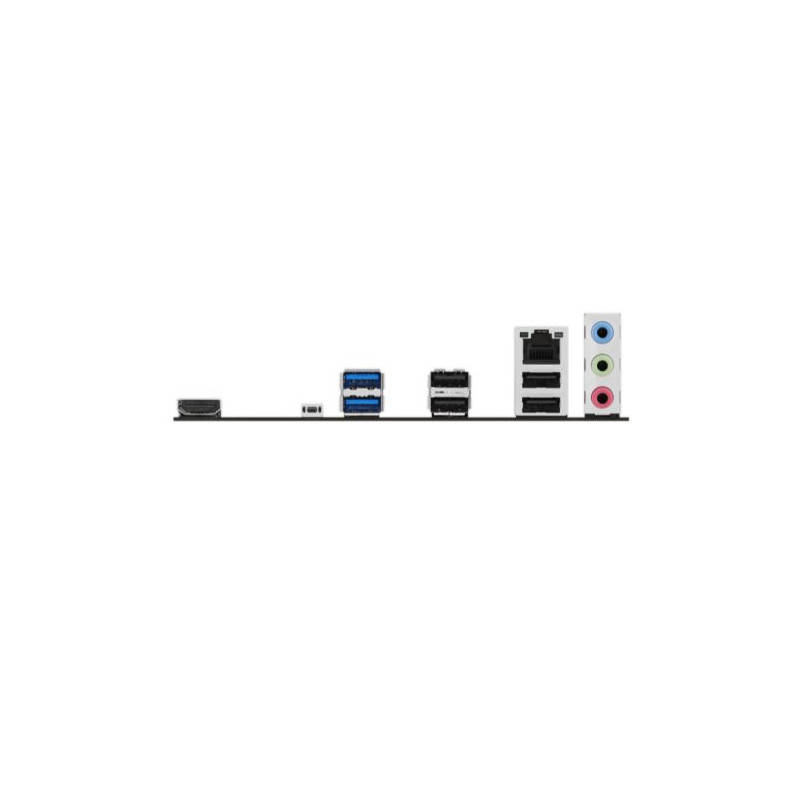

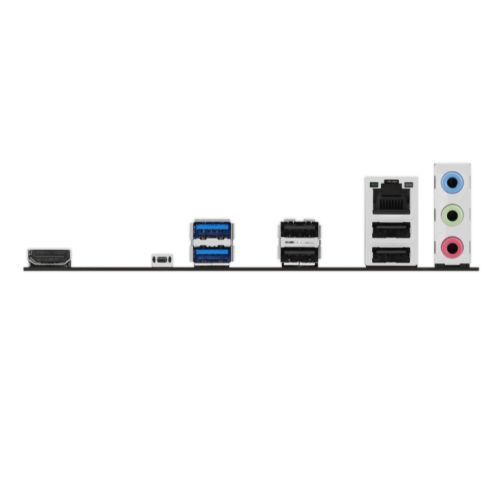

Back Panel I/O Ports

2 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Clear CMOS
1 x COM Port

1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
2 x M.2 Anchors
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.1000 kg

Warranty

3 Years
