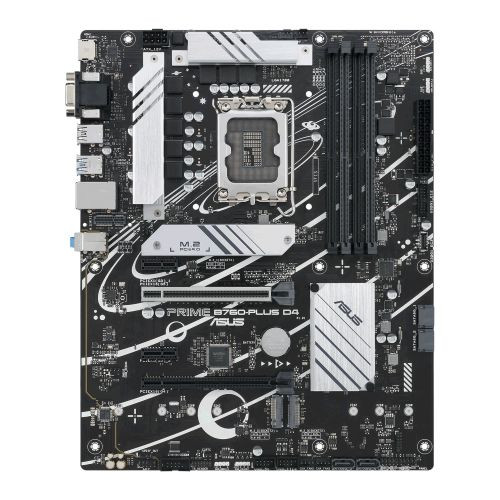

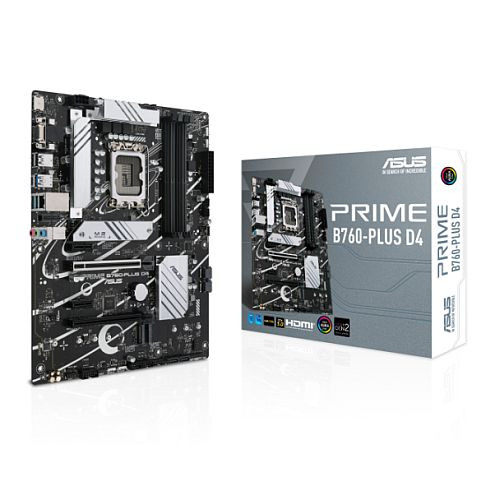

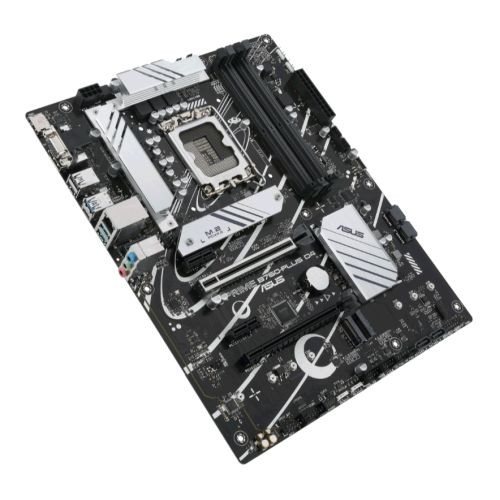

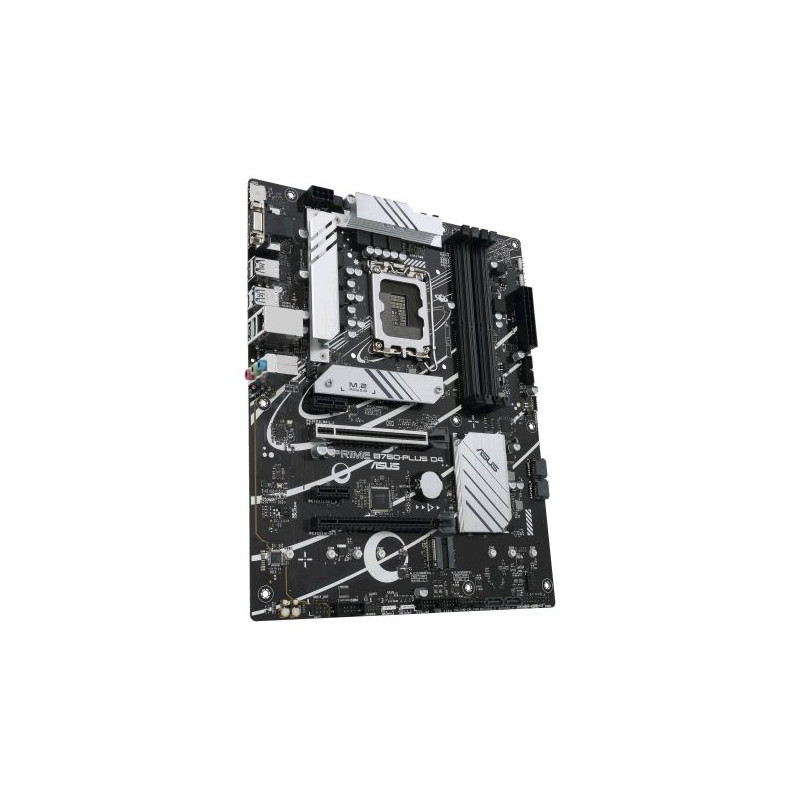

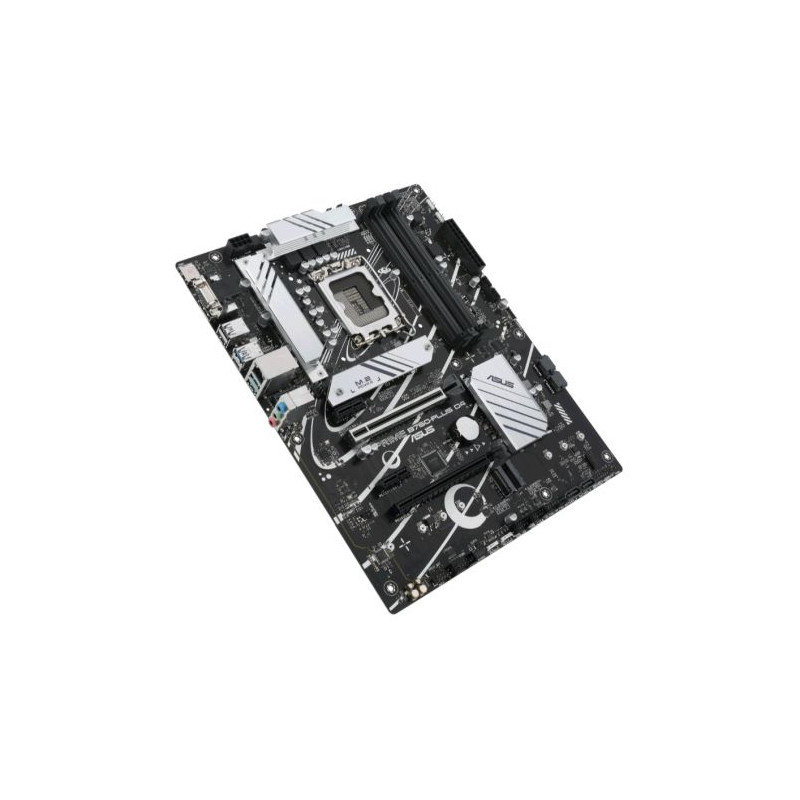

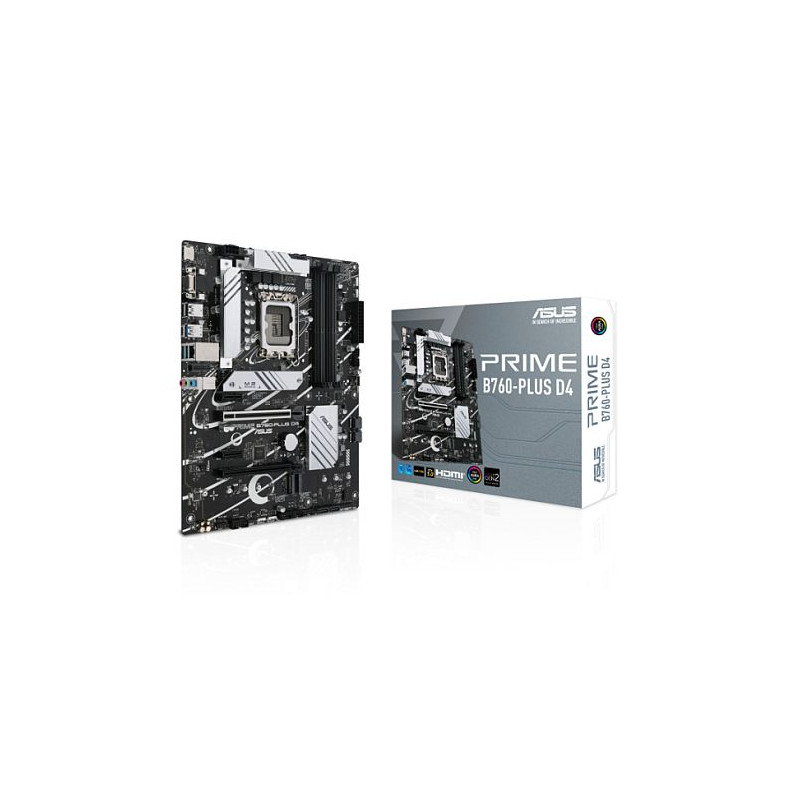

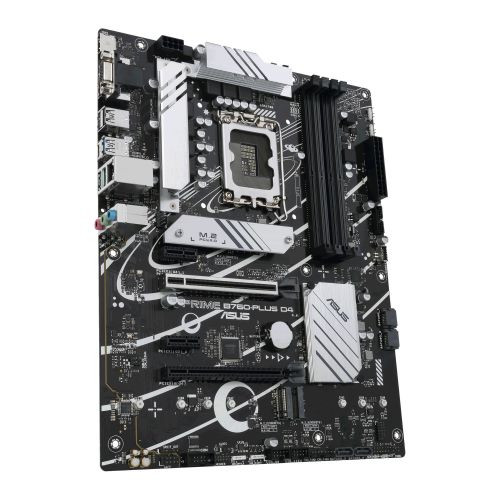

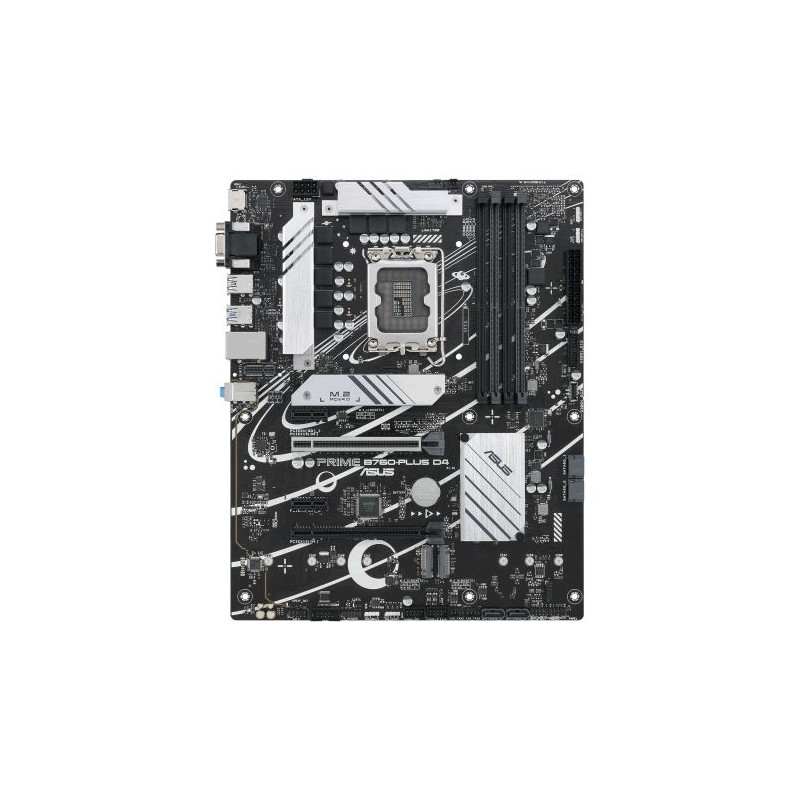

Asus PRIME B760-PLUS D4, Intel B760, 1700, ATX, 4 DDR4, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

Condition: New product

ASUS Prime B760-PLUS D4, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Cooling

PRIME B760-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Performance

The PRIME B760-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Customization

The PRIME B760-PLUS D4 motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

** Click here for full product details **

130 Item Items Warning: Last items in stock!

£ 155.55

Quantity

Data sheet

Manufacturer Number:	90MB1CW0-M1EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 5066(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
3 x USB 3.2 Gen1 (1 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header

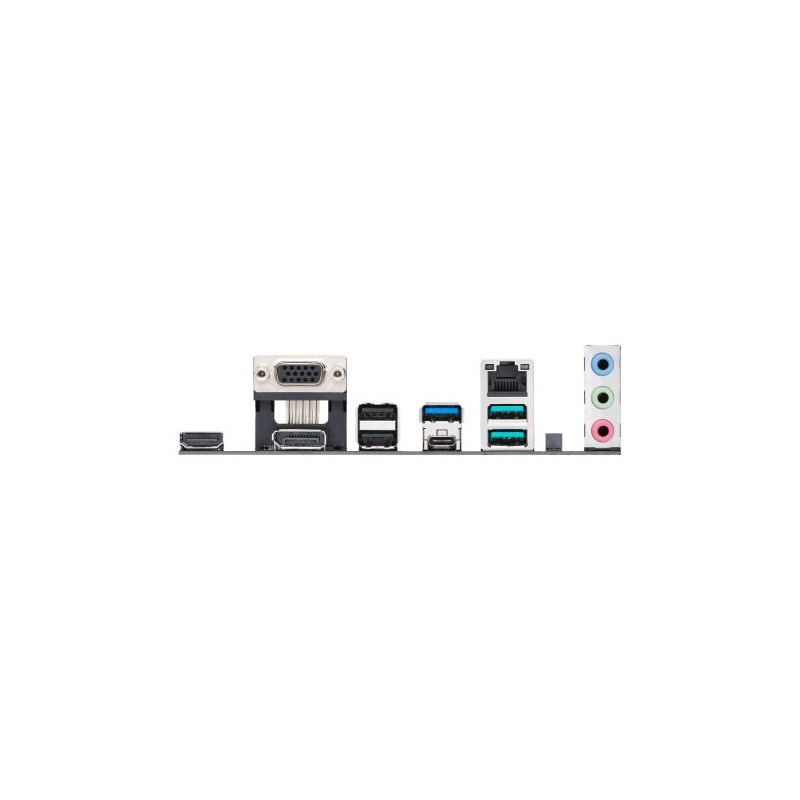

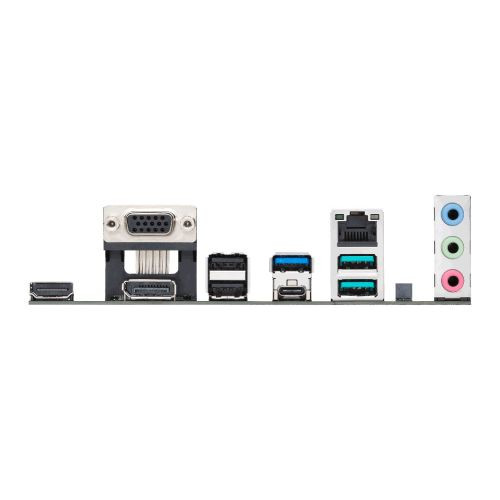

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Vertical M.2 (Key E)
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB

1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.1600 kg

Warranty

3 Years
