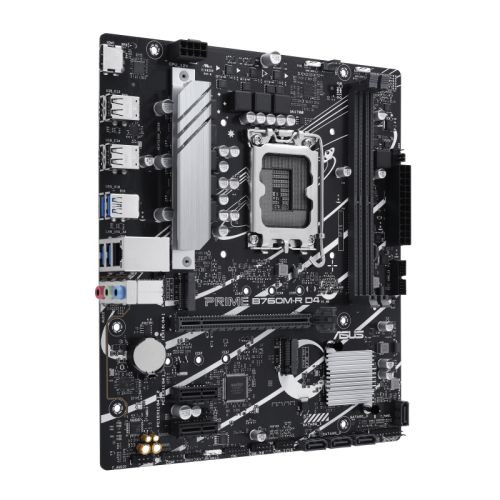

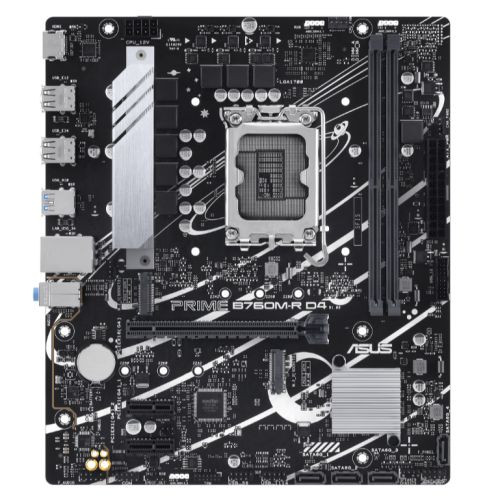

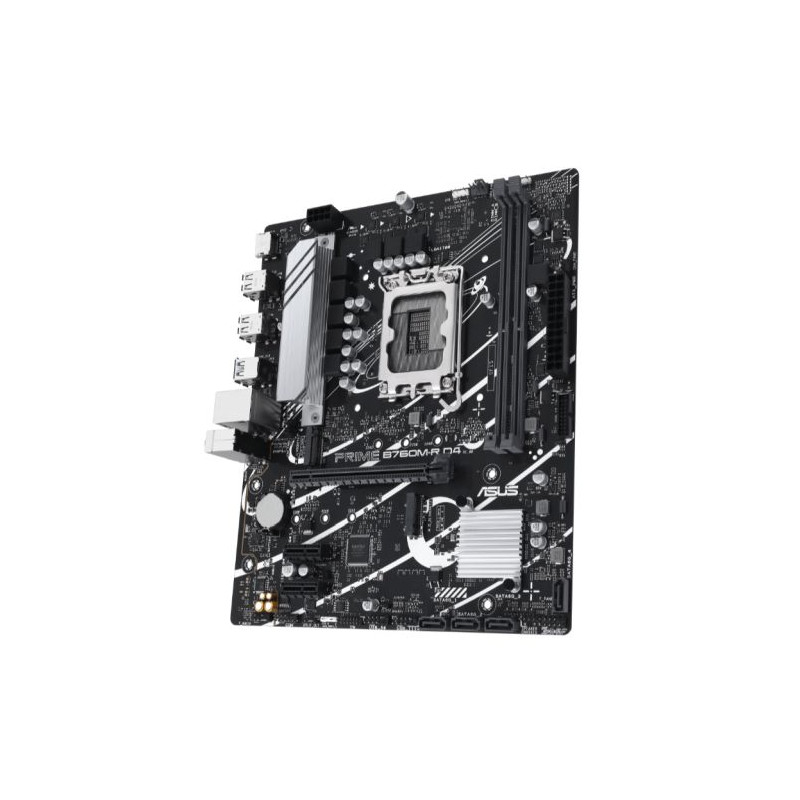

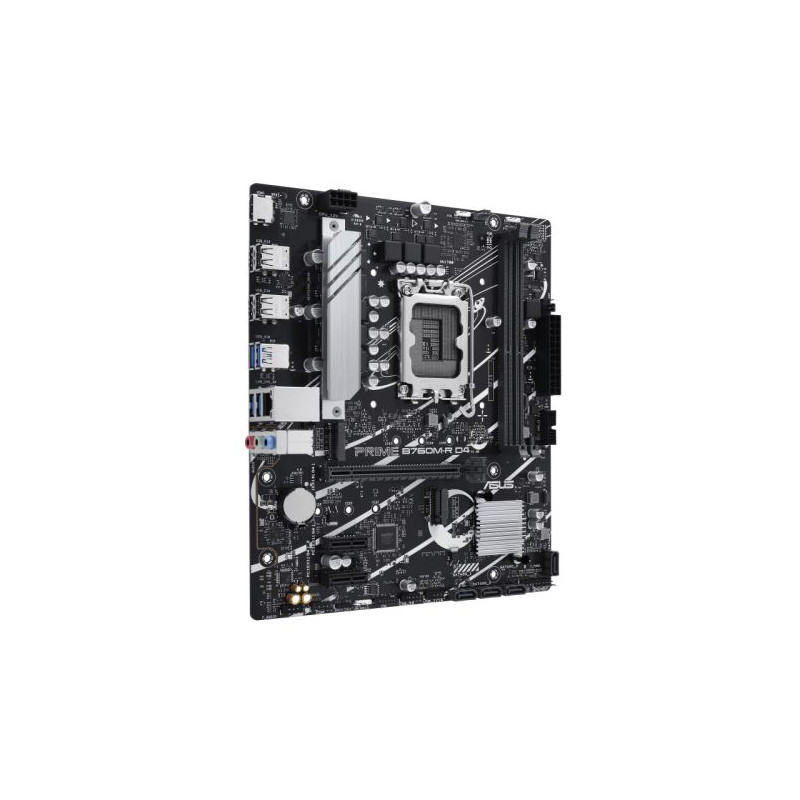

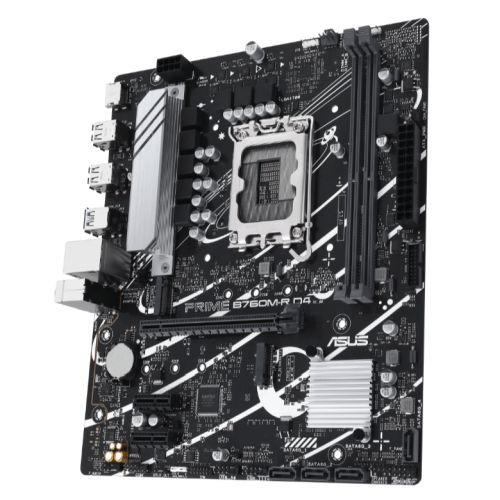

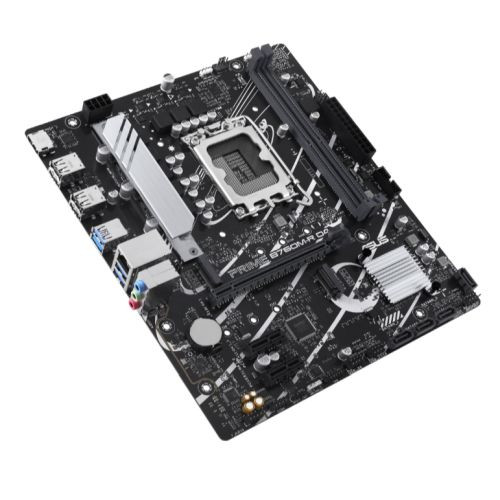

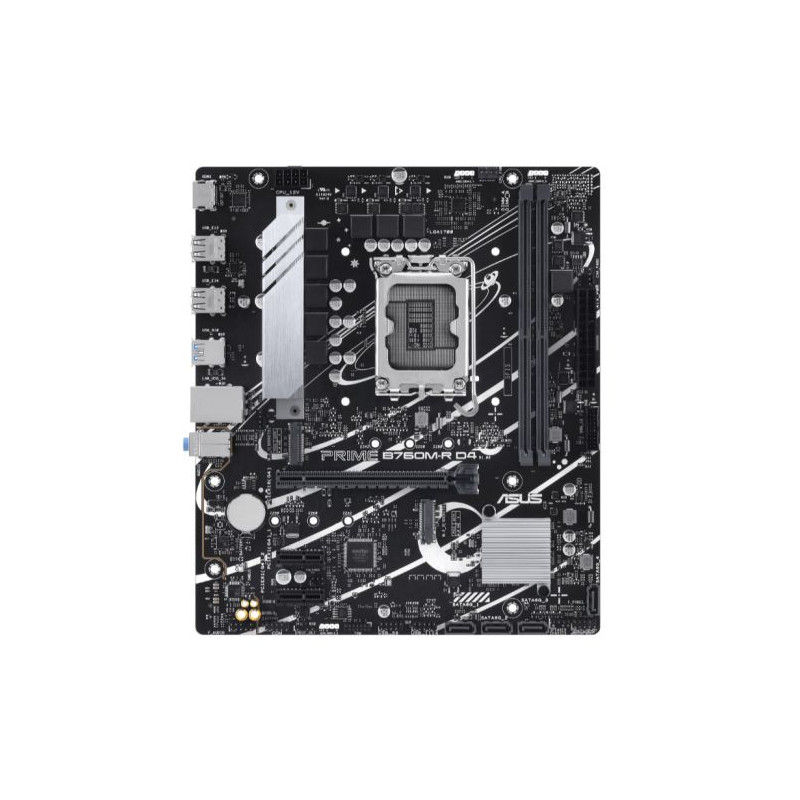

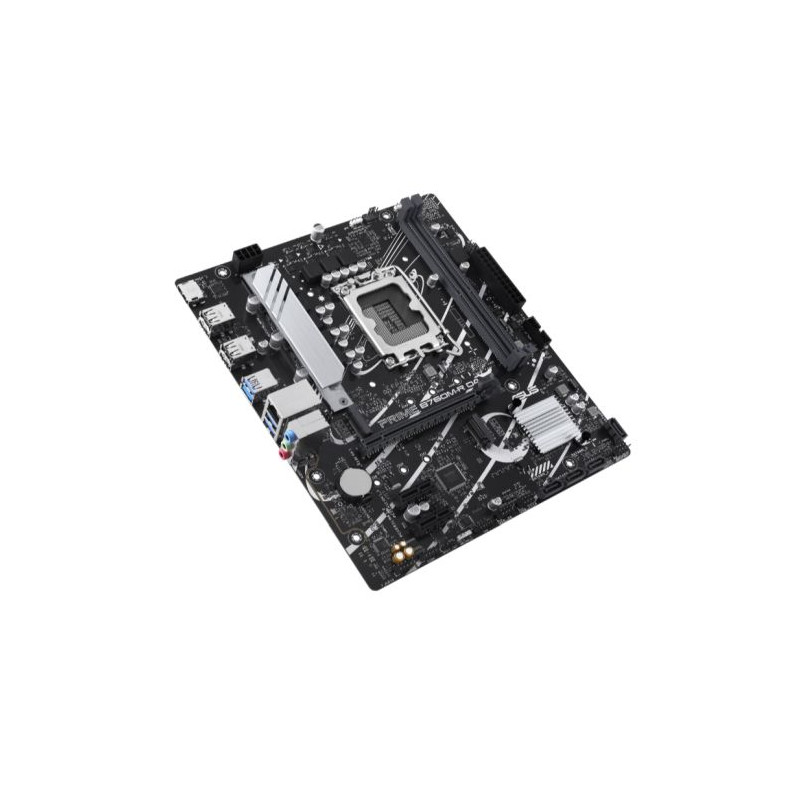

Asus PRIME B760M-R D4, Intel B760, 1700, Micro ATX, 2 DDR4, HDMI, 2.5G LAN, PCIe4, 2x M.2

Condition: New product

ASUS PRIME B760M-R D4, an Intel® B760 LGA 1700 micro-ATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync

Intel® LGA 1700 Socket: Ready for 14th,13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th and 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-R D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Cooling

PRIME B760 series are engineered with multiple onboard heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Performance

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th and 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Customization

PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

** Click here for full product details **

17 Item Items Warning: Last items in stock!

£ 118.36

Quantity

Data sheet

Manufacturer Number:	90MB1HA0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)
Supports Intel Extreme Memory Profile (XMP)

RAM Slots

2 x DIMM

RAM Speeds

Up to 5333(OC)

Maximum Memory

64GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI

PCI/PCI Express

1 x PCIe 4.0 x16
2 x PCIe 4.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
4 x USB 5Gbps Type-A
4 x USB 2.0

Front:
2 x USB 5Gbps
4 x USB 2.0

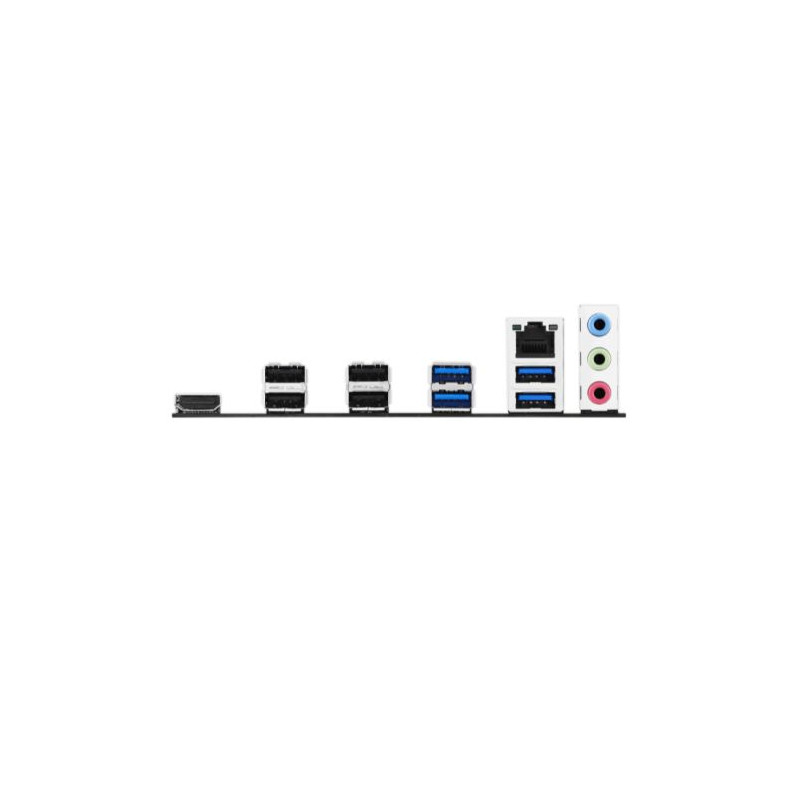

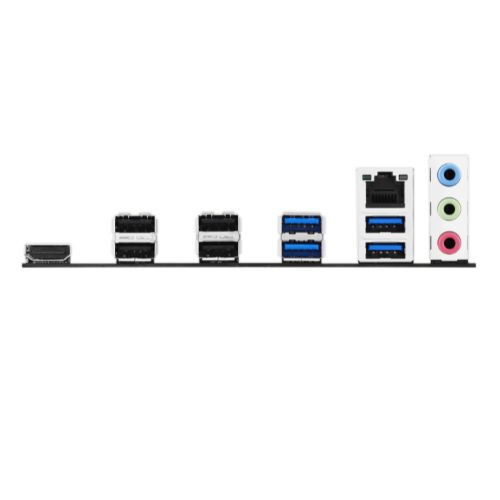

Back Panel I/O Ports

4 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Clear CMOS
1 x COM Port
1 x Front panel audio

1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O shield
2 x M.2 anchors
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

0.9800 kg

Warranty

3 Years
