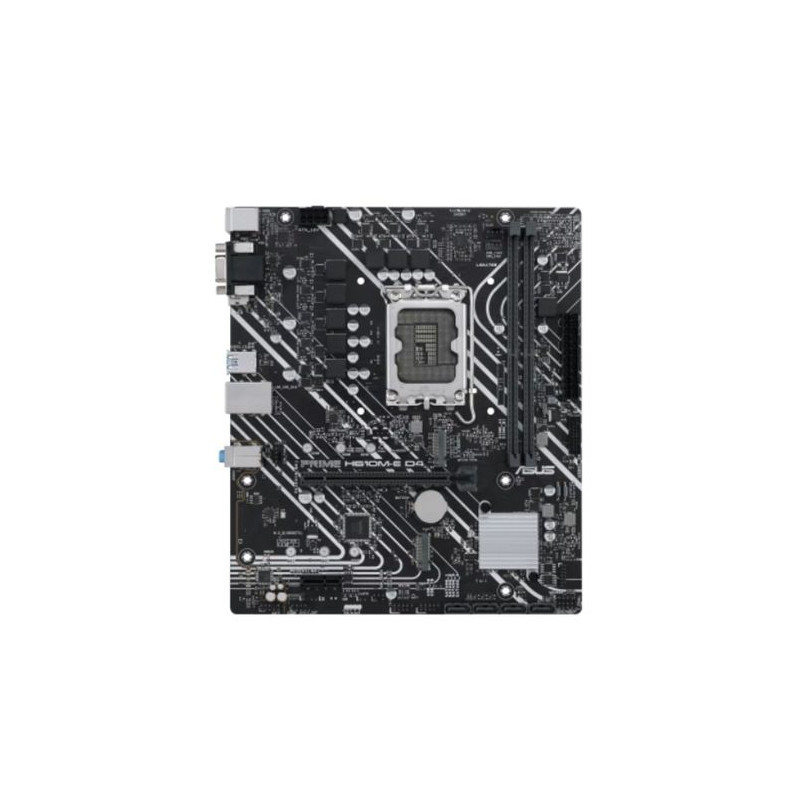

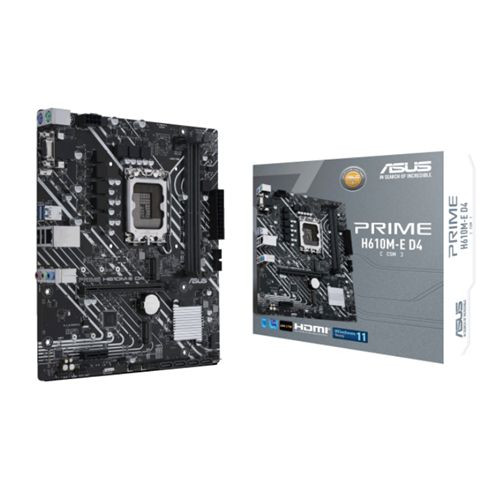

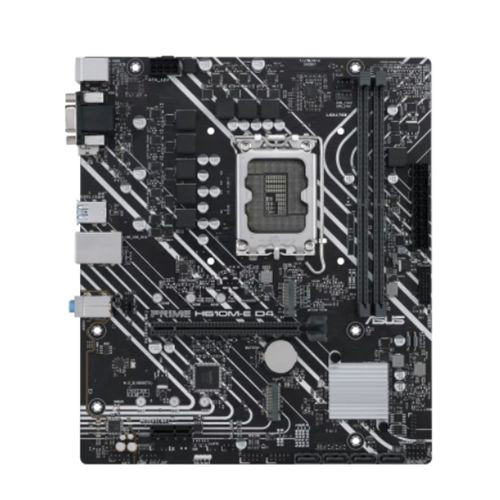

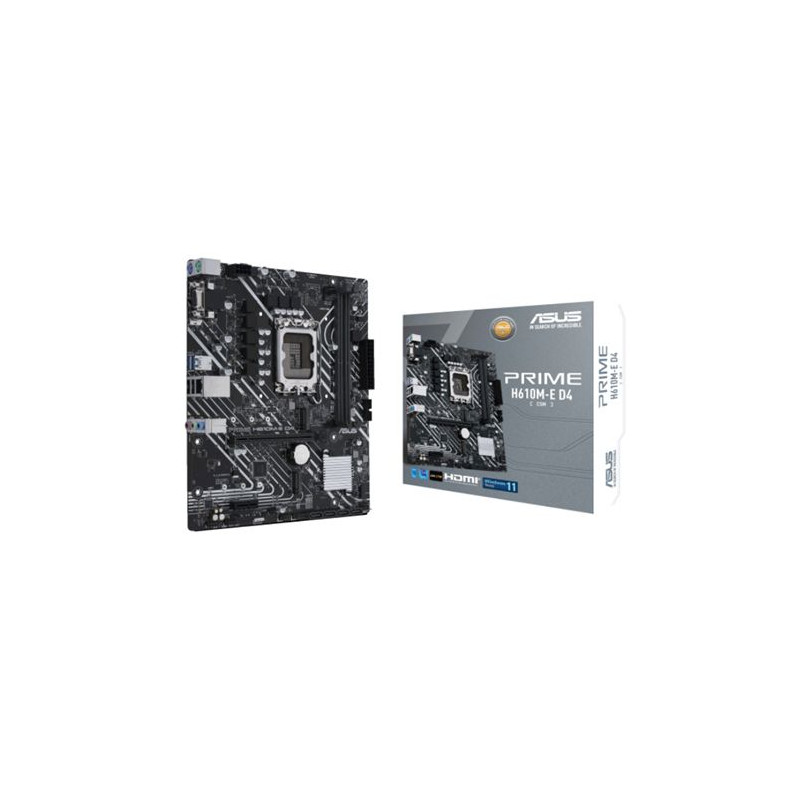

Asus PRIME H610M-E D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2

Condition: New product

45 Item Items Warning: Last items in stock!

£ 117.70

Quantity

Data sheet

Manufacturer Number:	90MB19N0-M1EAYC
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

Up to 32000 MHz

Maximum Memory

64GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Storage

4 x SATA III
2 x M.2 (2242/2260/2280) - PCIe

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

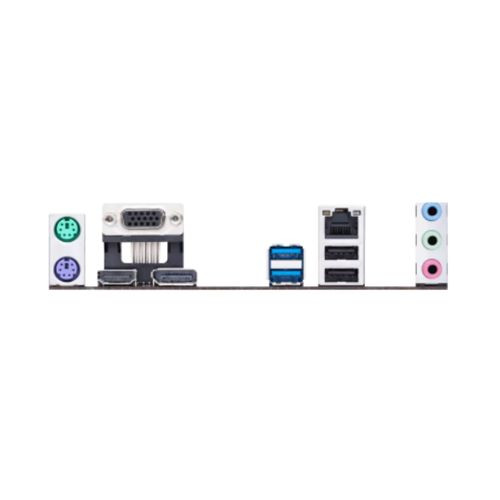

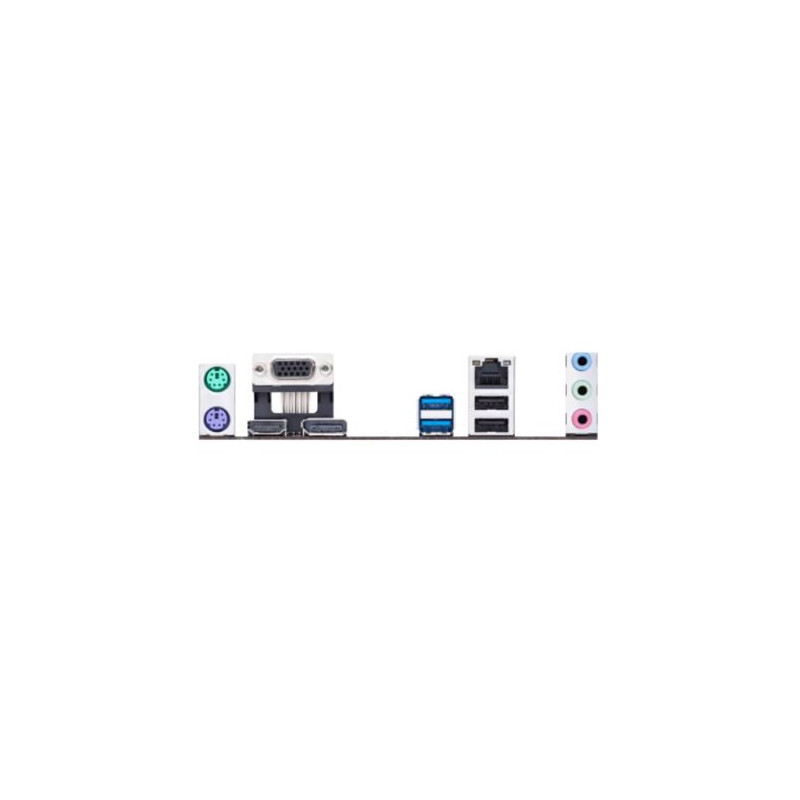

Back Panel I/O Ports

2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x D-Sub
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x RGB
1 x Clear CMOS
1 x Front Panel Audio
1 x COM Port

1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User guide

Additional Features

See Overview

Package Weight

1.0000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
