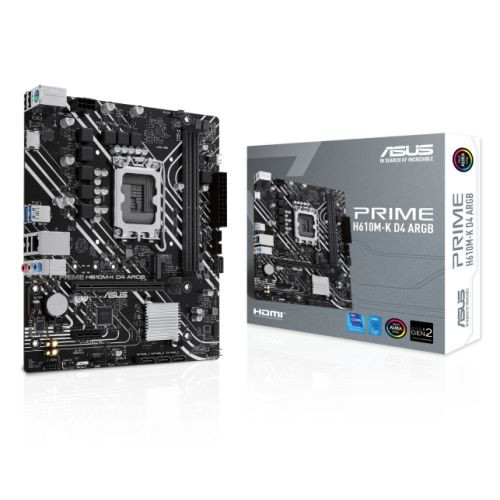

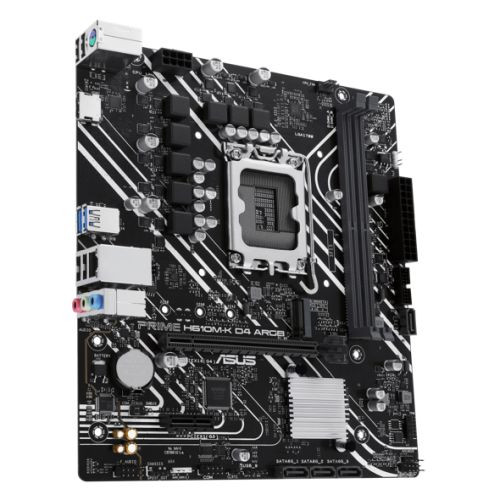

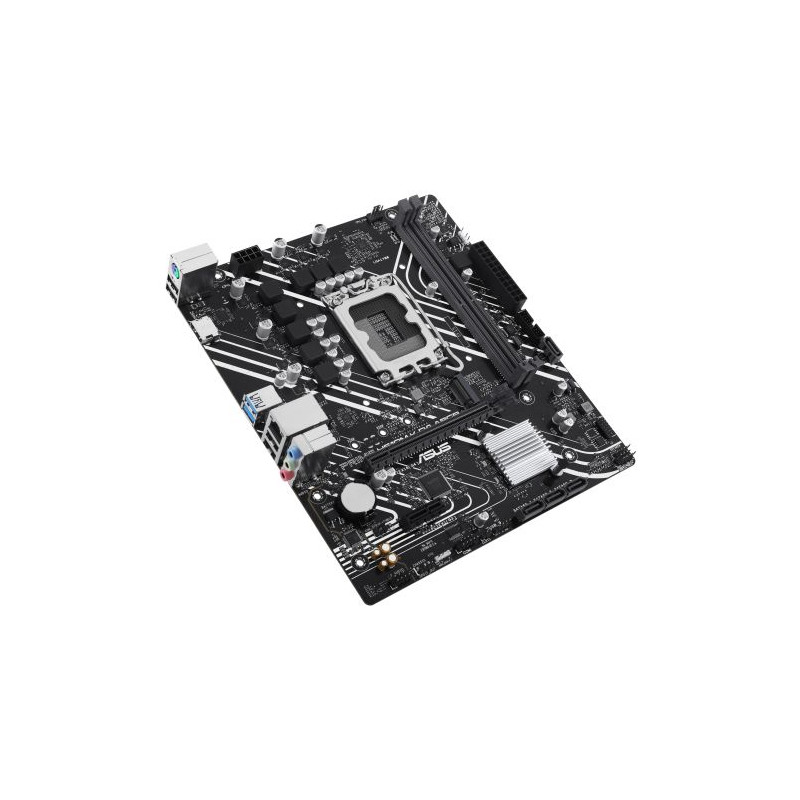

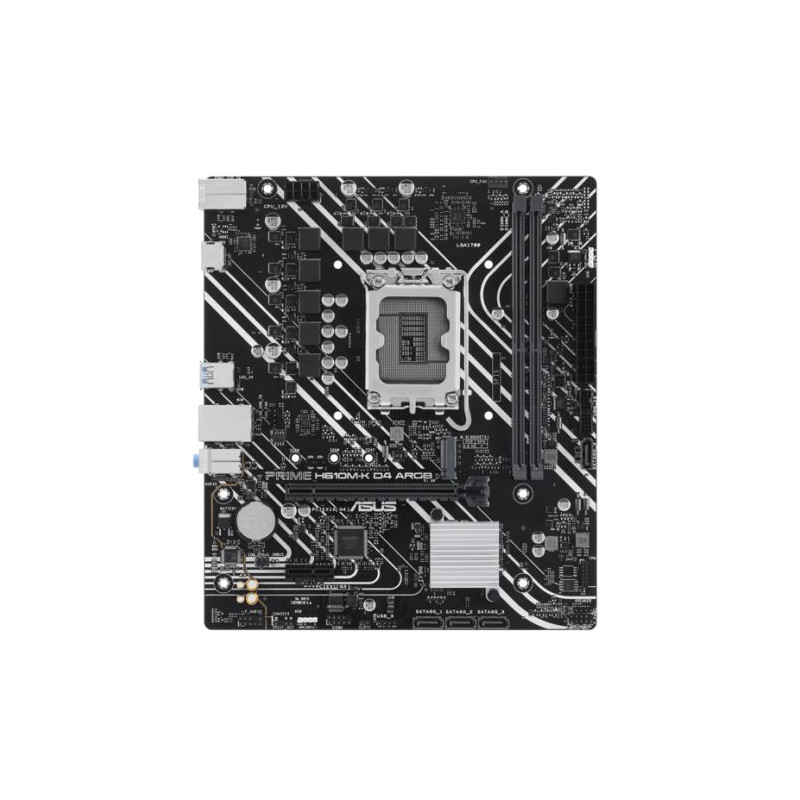

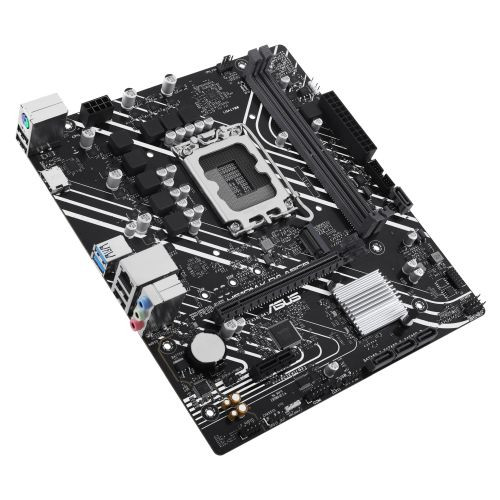

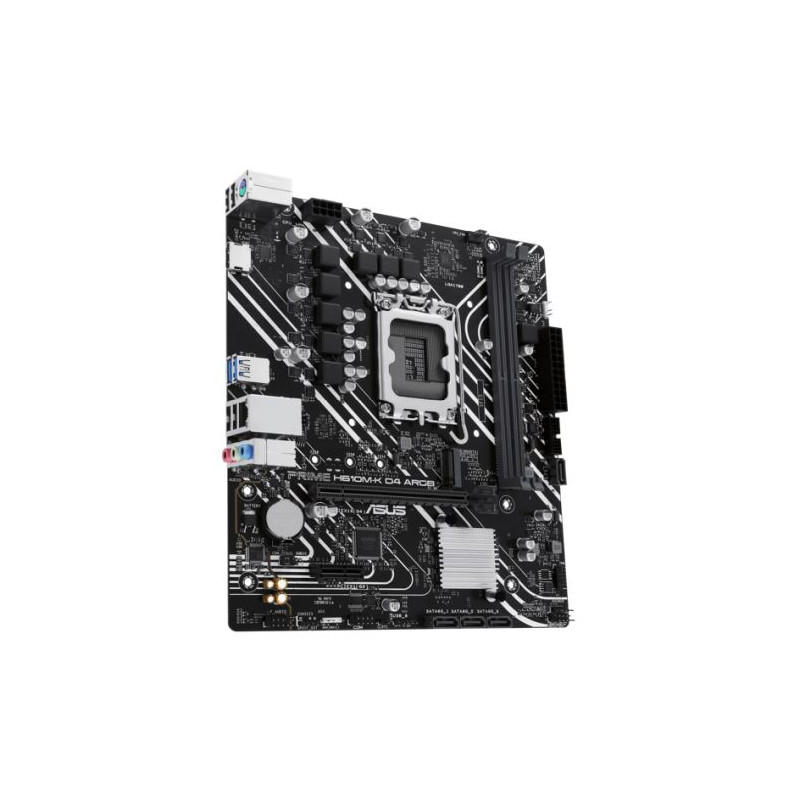

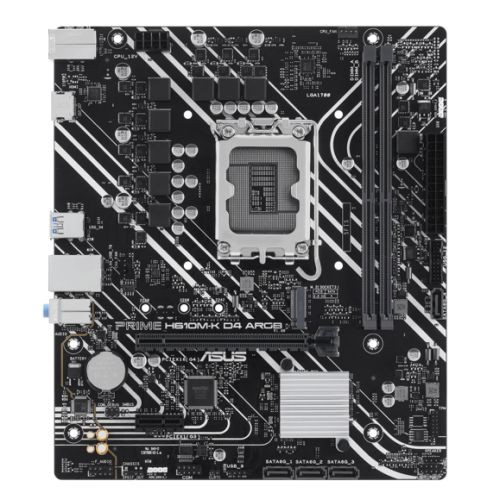

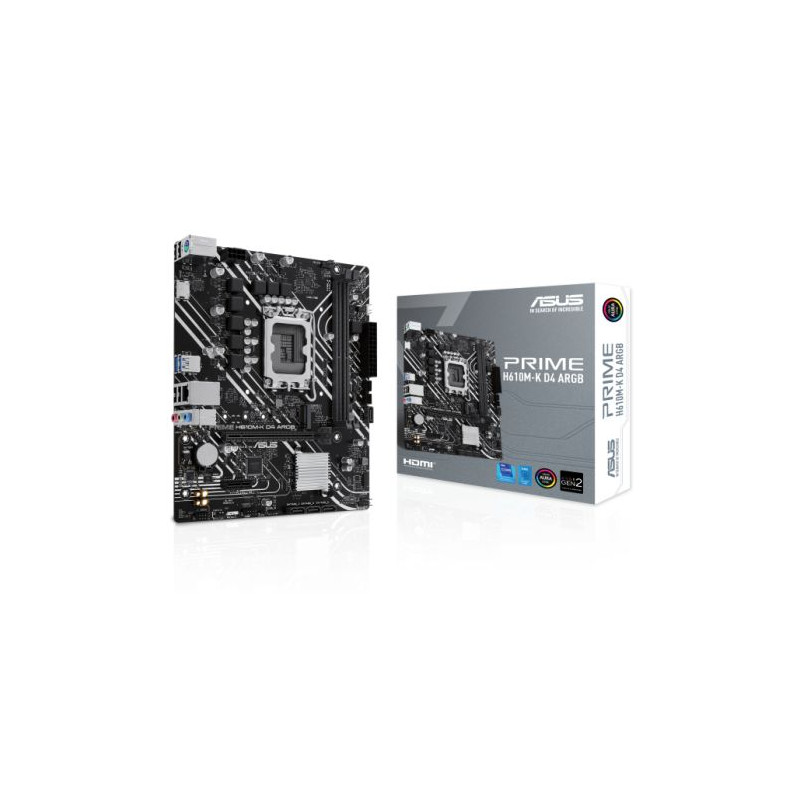

Asus PRIME H610M-K D4 ARGB, Intel H610, 1700, Micro ATX, 2 DDR4, HDMI, PCIe4, 1x M.2

Condition: New product

48 Item Items Warning: Last items in stock!

£ 113.66

Quantity

Data sheet

Manufacturer Number:	90MB1HN0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)
Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)

RAM Slots

2 x DIMM

RAM Speeds

Up to 3200 MHz

Maximum Memory

64GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI

PCI/PCI Express

1 x PCIe 4.0 x16 slot (supports x16 mode)
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
2 x USB 5Gbps
1 x USB 2.0

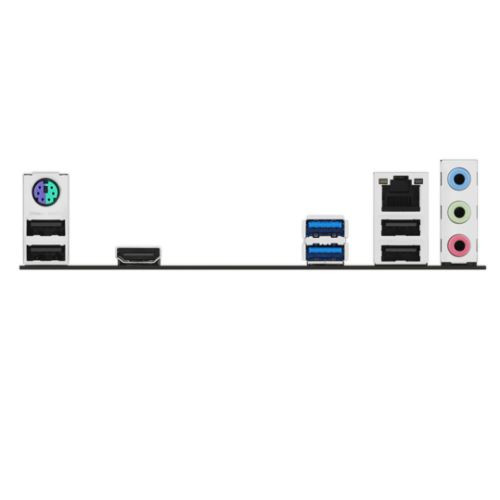

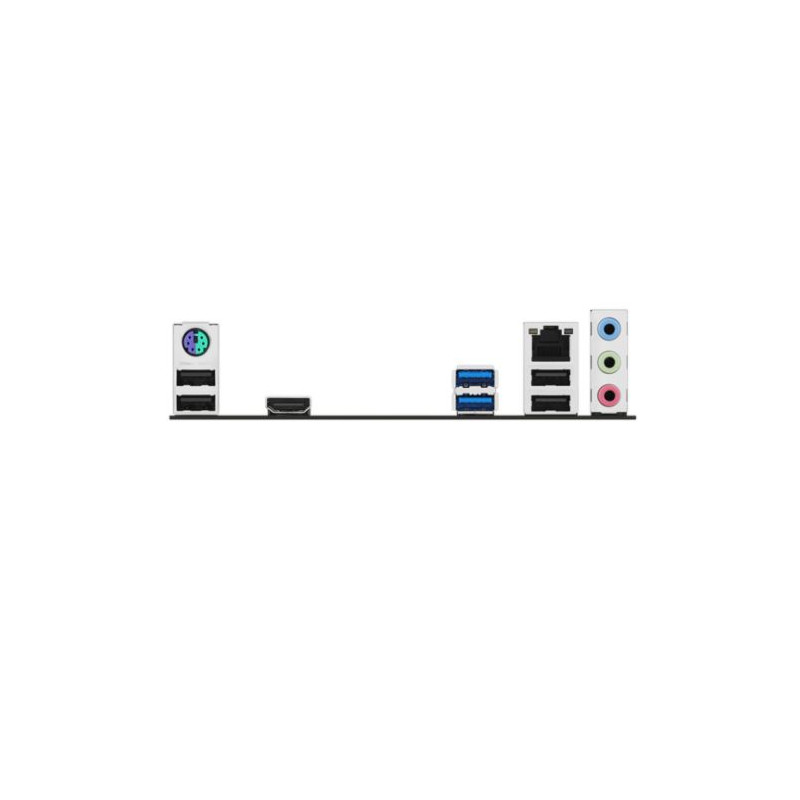

Back Panel I/O Ports

2 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 keyboard/mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps
1 x USB 2.0
2 x Addressable Gen2
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio

1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O shield
1 x M.2 anchor
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.0000 kg

Warranty

3 Years
