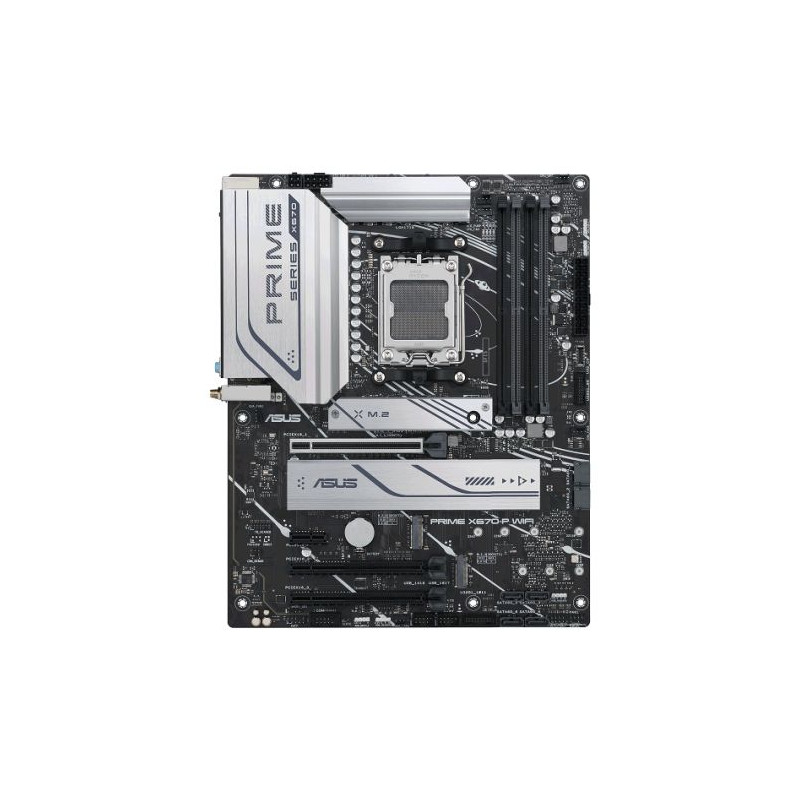

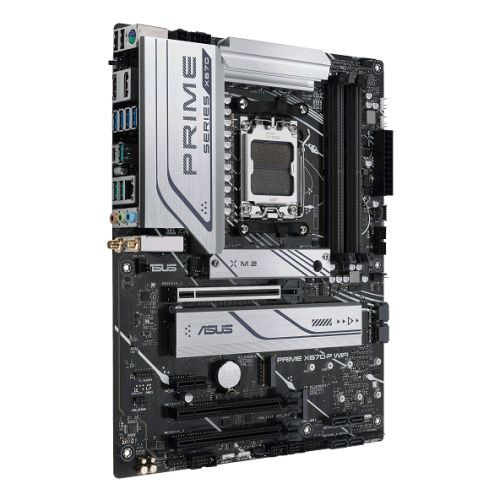

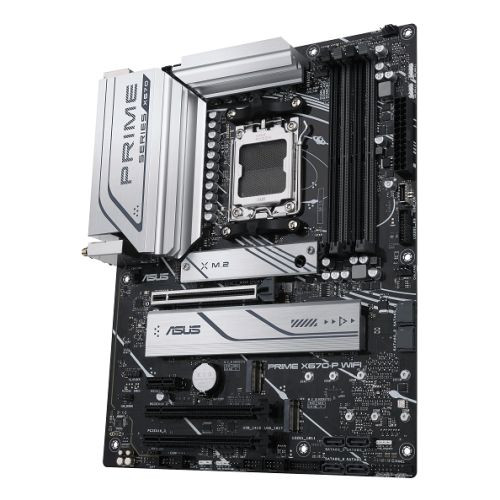

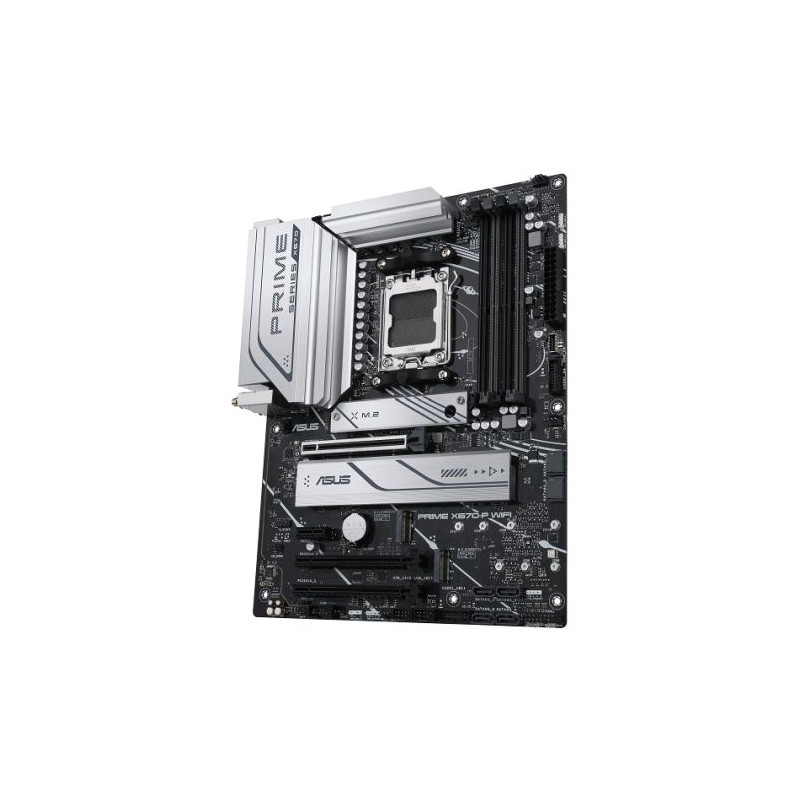

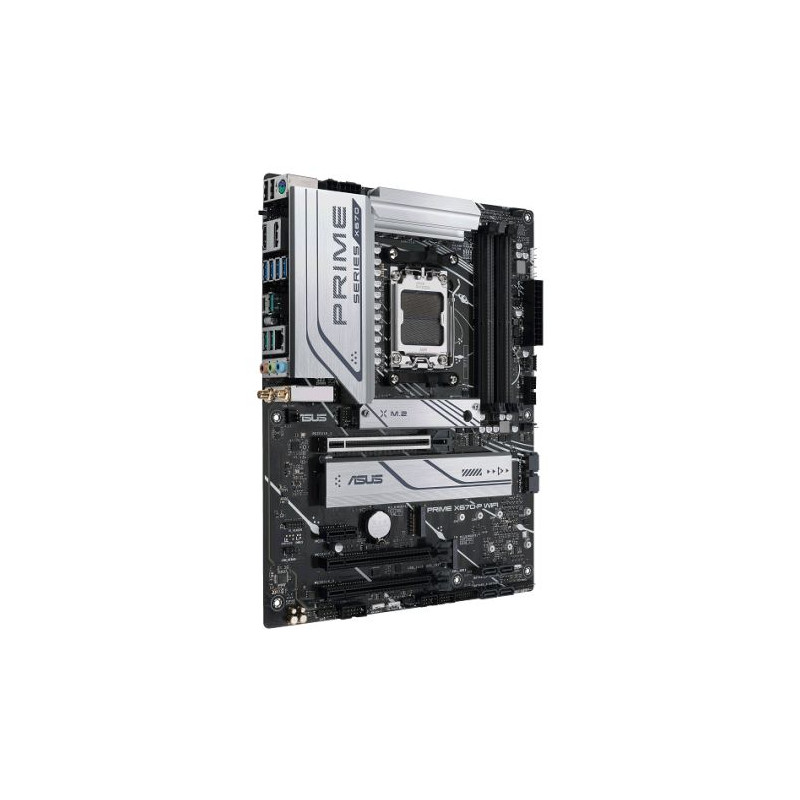

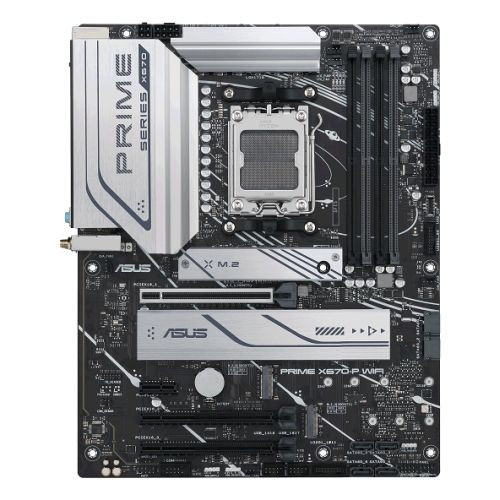

Asus PRIME X670-P WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe4, 3x M.2

Condition: New product

44 Item Items Warning: Last items in stock!

£ 312.53

Quantity

Data sheet

Manufacturer Number:	90MB1BV0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD X670

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 6400+(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 4.0 x16 (support x4 mode)
1 x PCIe 3.0 x1

Storage

6 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)
3 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x Front USB 3.2 Gen1 Type-C connector

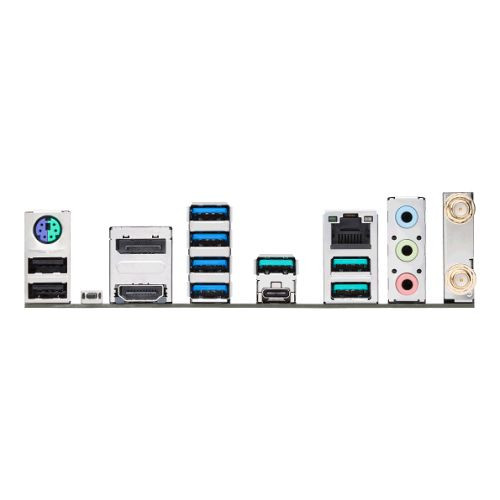

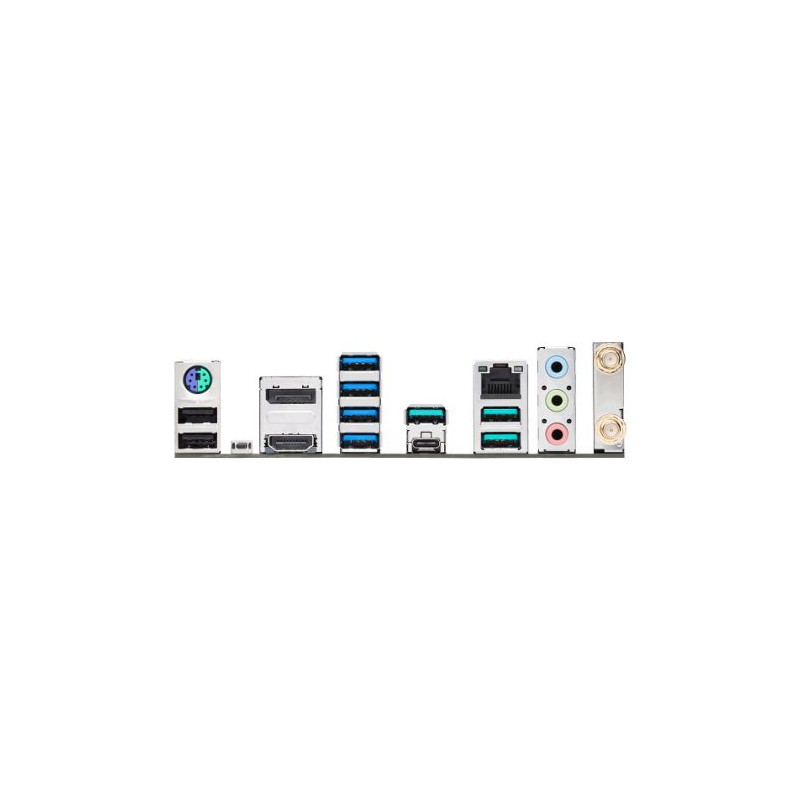

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
3 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0

3 x Addressable Gen2
2 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio (AAFP)
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-5 pin System Panel
1 x Thunderbolt

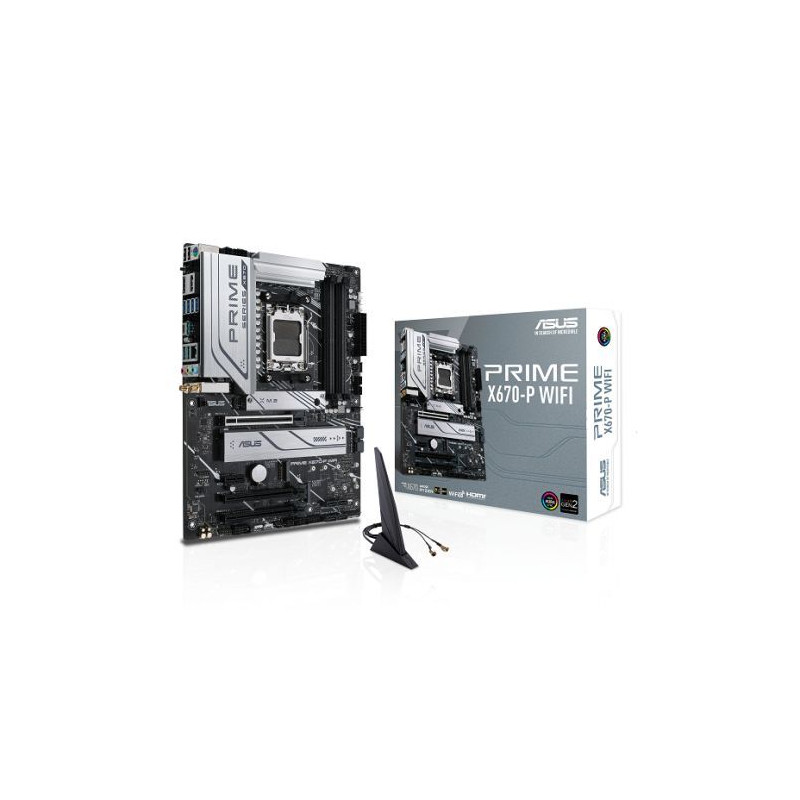

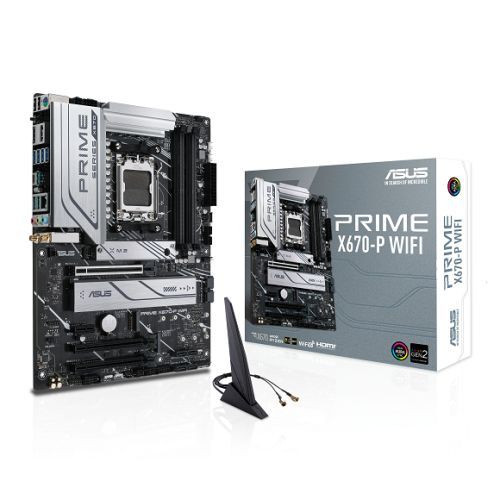

Accessories

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Rubber Package for M.2
2 x Screw Packages for M.2 SSD
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

2.1000 kg

Warranty

3 Years
