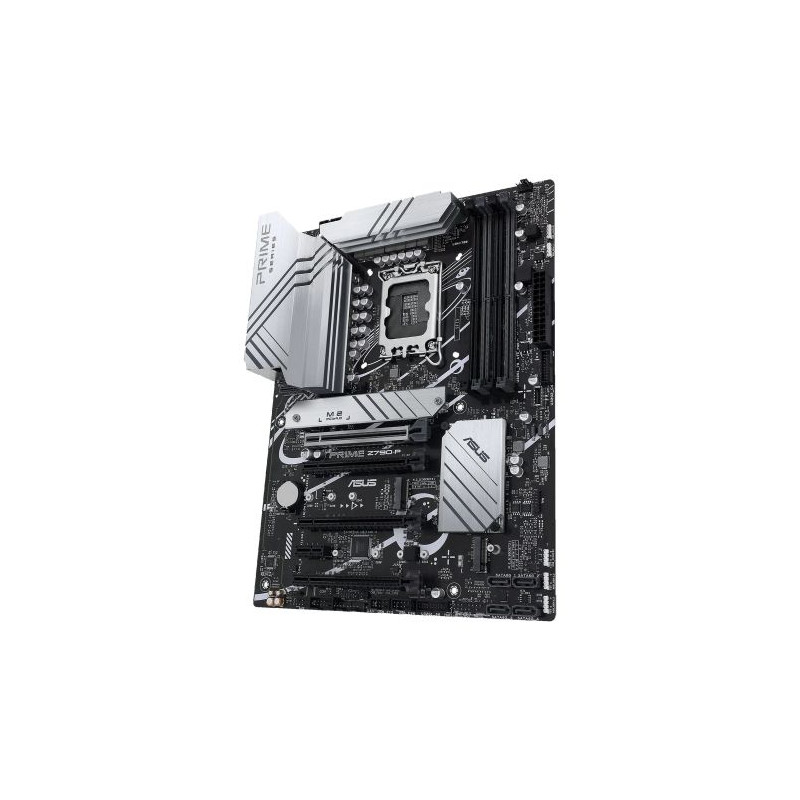

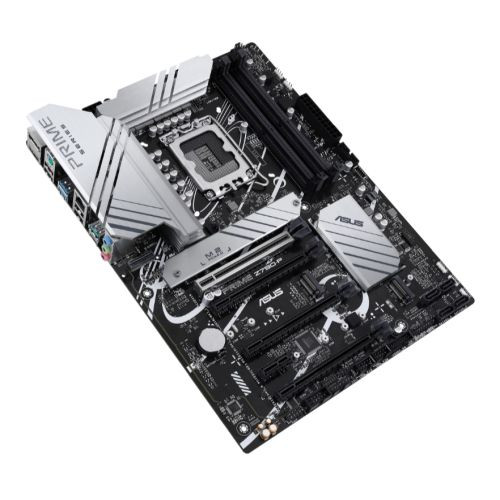

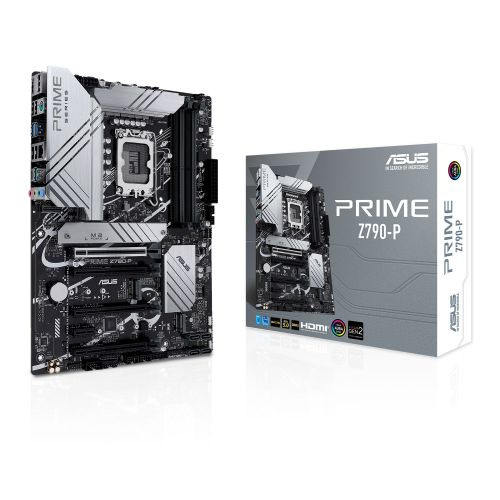

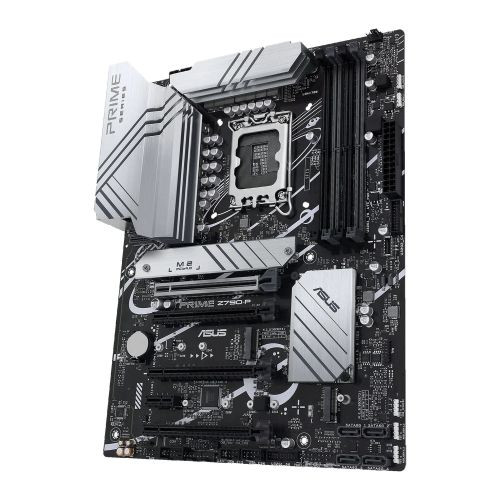

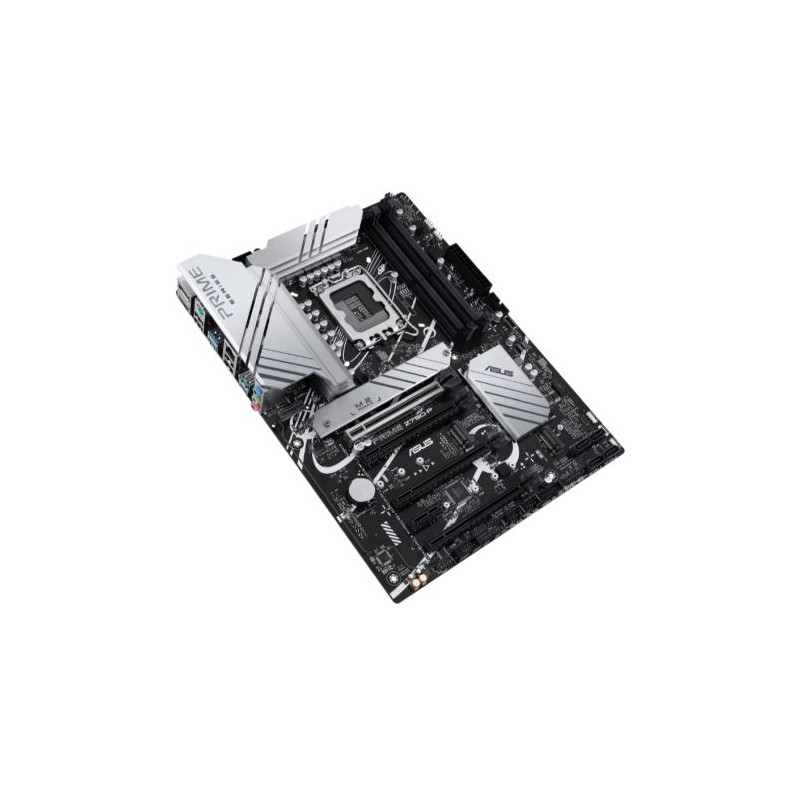

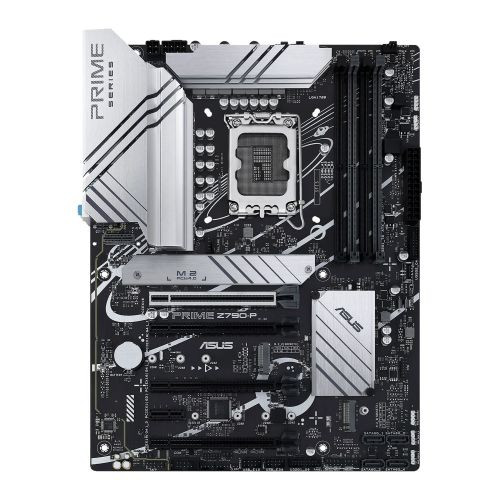

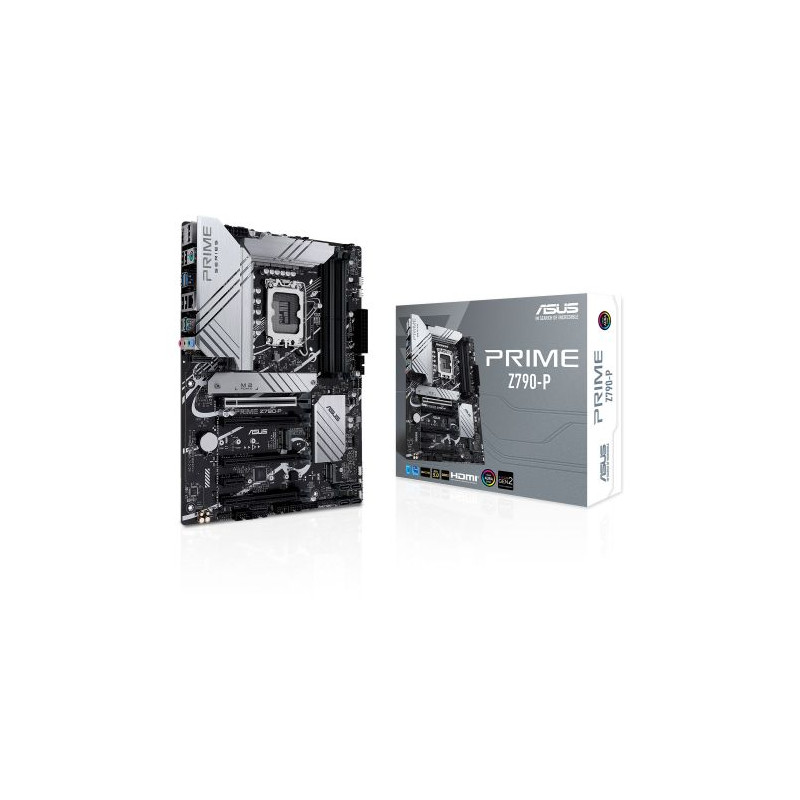

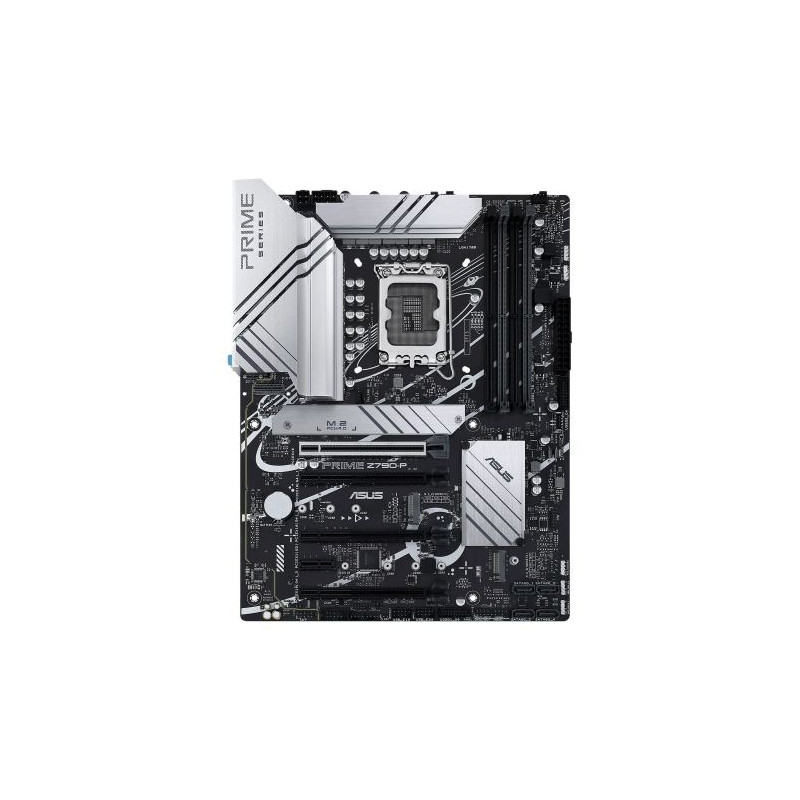

Asus PRIME Z790-P, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

Condition: New product

108 Items

£ 272.63

Data sheet

Manufacturer Number: 90MB1CK0-M1EAY0
Manufacturer: ASUS
Note: Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse: UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z790
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
Up to 7200+(OC)
Maximum Memory
128GB
Graphics
Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x DisplayPort
PCI/PCI Express
1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 (support x4 mode)
1 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - SATA and PCIe
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Wireless
-
LAN
2.5GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header

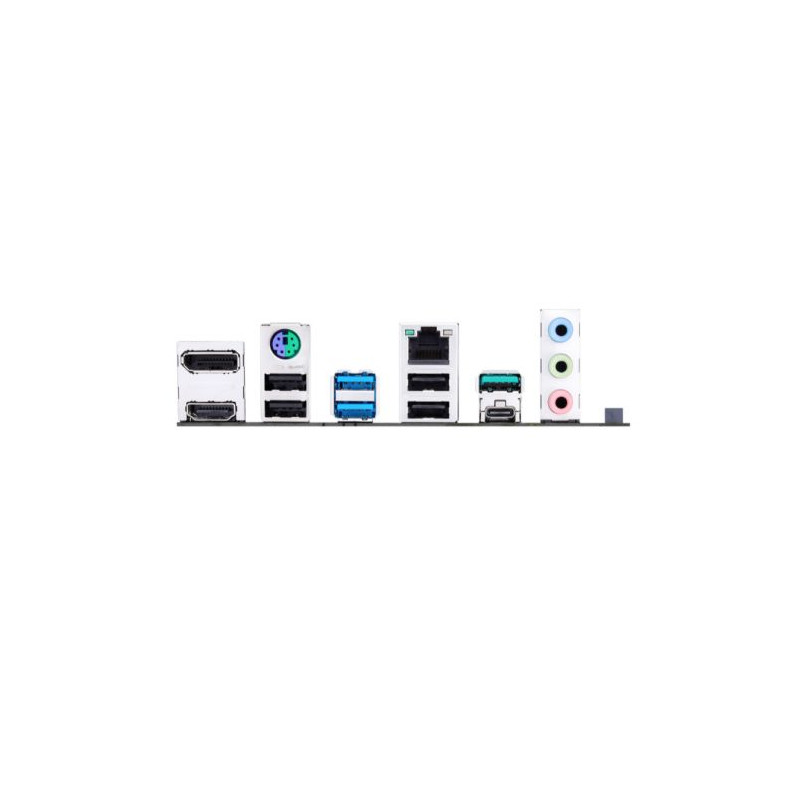

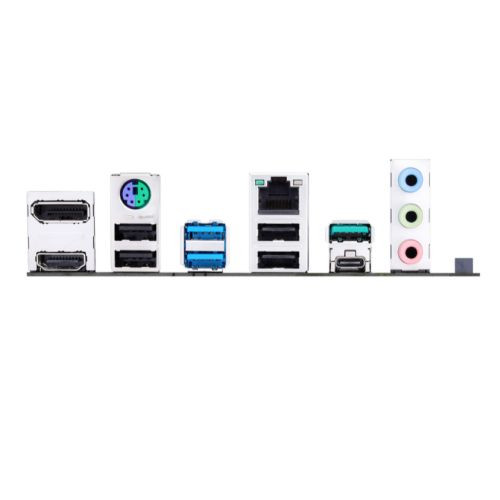

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Vertical M.2 (Key E)
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0

3 x Addressable Gen2
2 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-5pin System Panel
1 x Thunderbolt (USB4)
Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x User guide
Additional Features
See Overview
Package Type
Retail
Package Weight
1.6000 kg
Warranty
3 Years
Full Box Quantity
5
