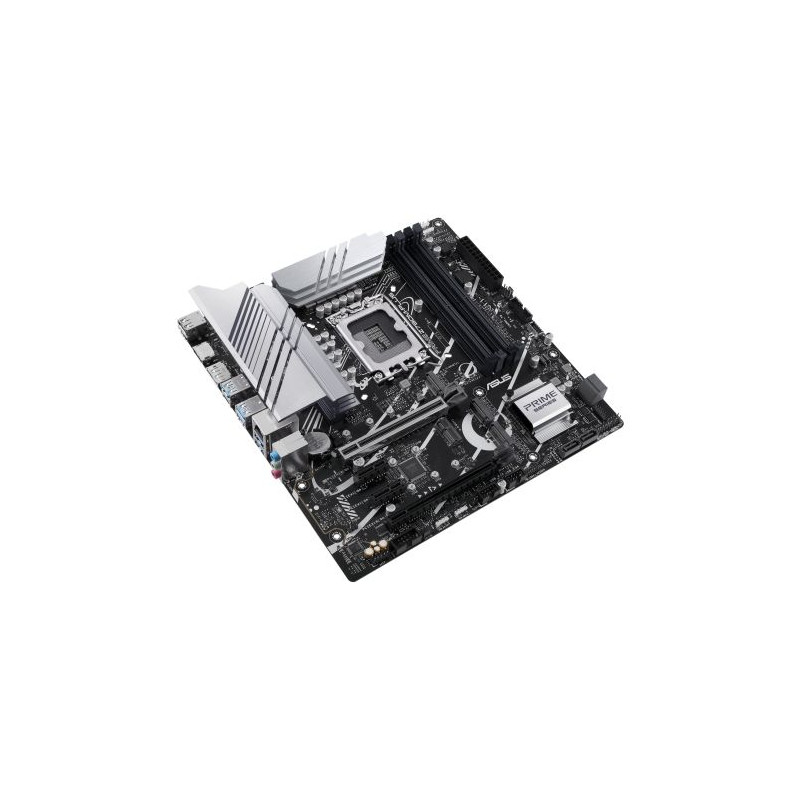

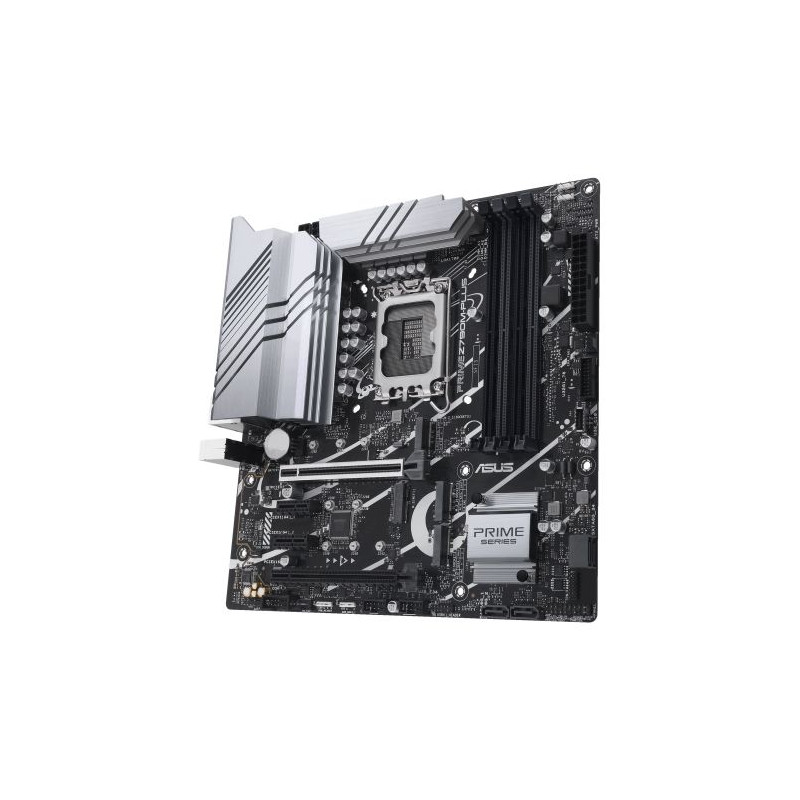

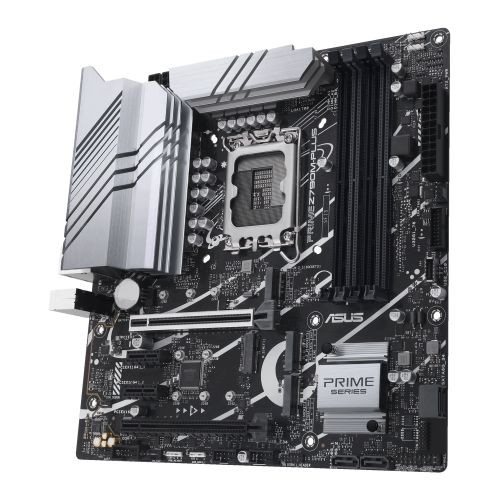

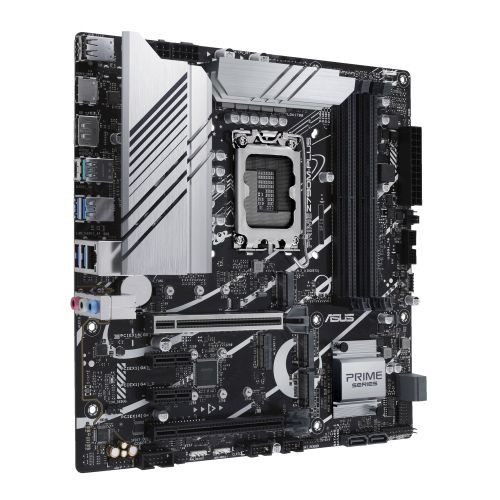

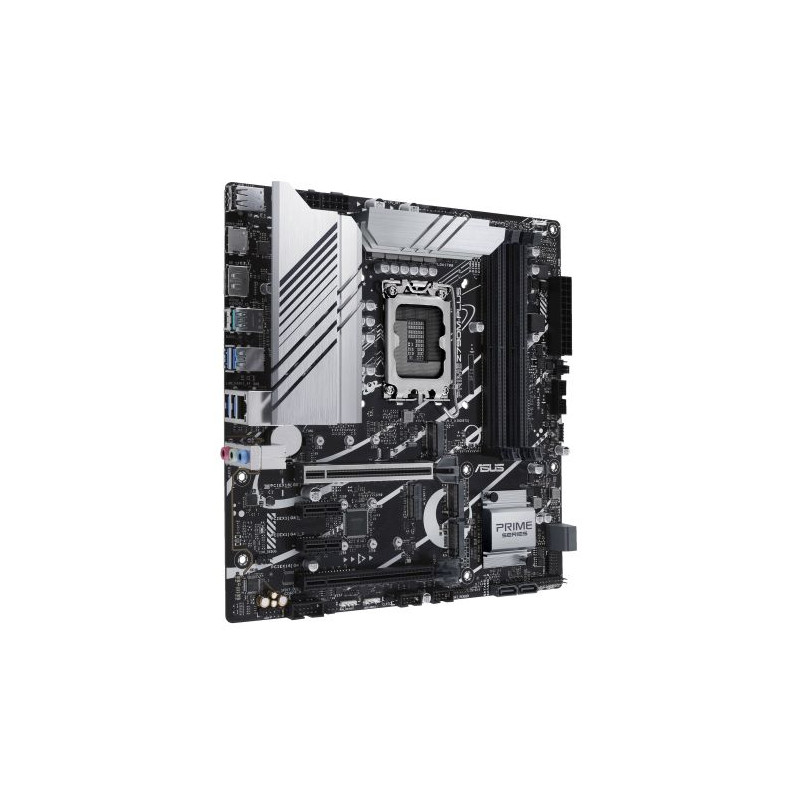

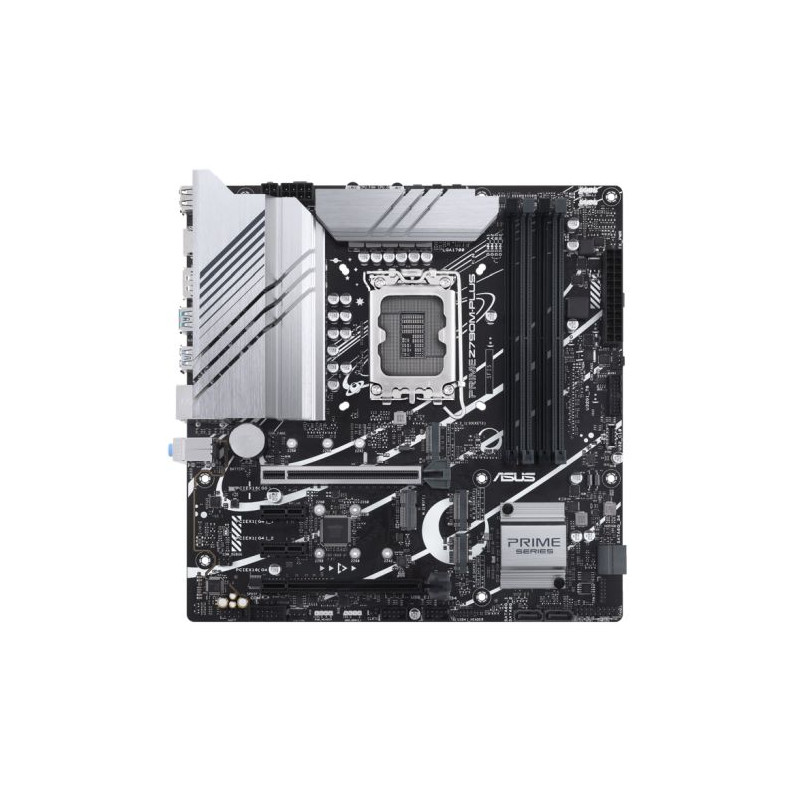

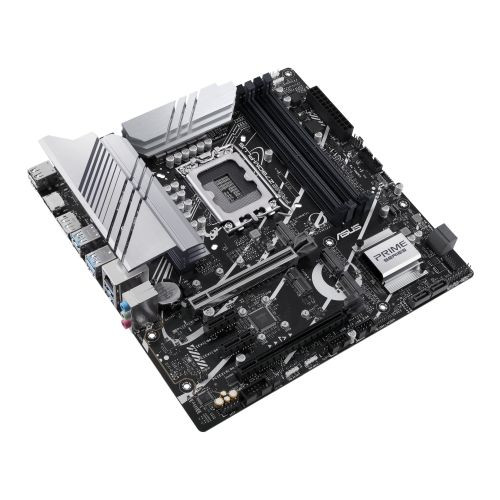

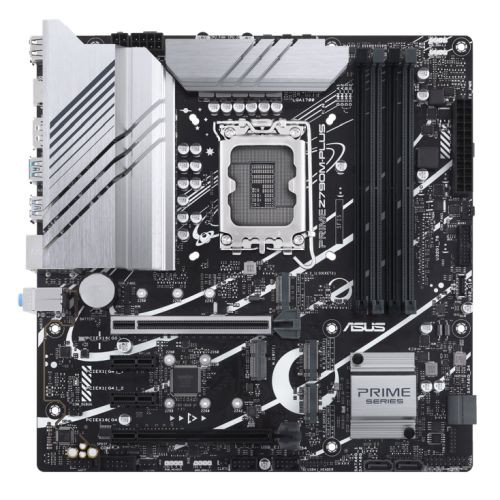

Asus PRIME Z790M-PLUS, Intel Z790, 1700, Micro ATX, 4 DDR5, HDMI, DP, GB LAN, PCIe5, 3x M.2

Condition: New product

ASUS Prime Z790M-PLUS, an Intel Z790 LGA 1700 mATX motherboard with PCIe® 5.0, three M.2 slots, 10+1 DrMOS, DDR5, Intel® 1 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Arua Sync

Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
Enhanced power solution: 10+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) header support
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II

Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Performance

The PRIME Z790M-PLUS motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Customization

The PRIME Z790M-PLUS motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

** Click here for full product details **

10 Item Items Warning: Last items in stock!

£ 258.01

Quantity

Data sheet

Manufacturer Number:	90MB1E70-M1EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel Z790

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II

RAM Slots

4 x DIMM

RAM Speeds

Up to 7200+(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 4.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - SATA and PCIe 4.0 x4

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

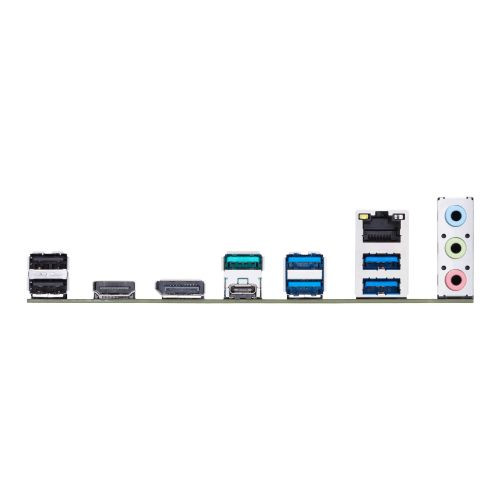

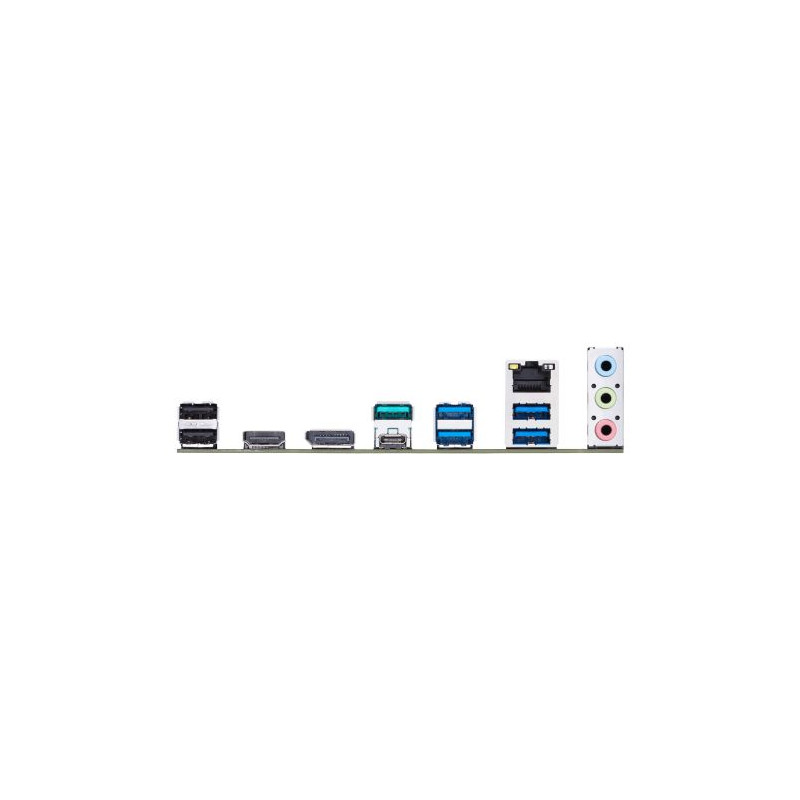

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Intel 1Gb Ethernet
3 x Audio jacks

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin + 12V
1 x 4-pin + 12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0

3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x M.2 (Key E)
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
2 x Screw packages for M.2 SSD
1 x User guide

Additional Features

See Overview

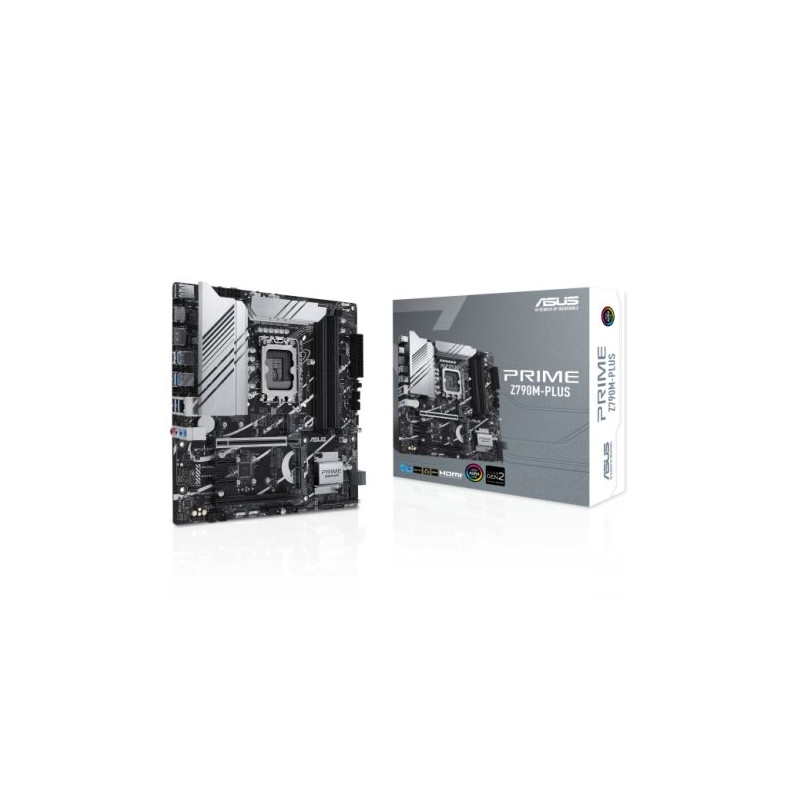

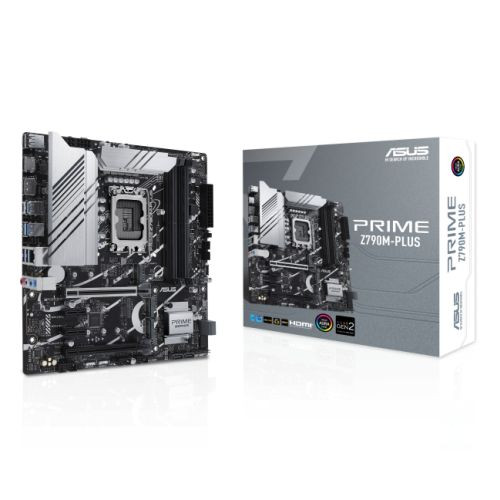

Package Type

Retail

Package Weight

1.5000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link
