Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS, 19v DC in, 1x M

Condition: New product

230 Item Items Warning: Last items in stock!

£ 141.35

Quantity

Data sheet

Manufacturer Number:	90MB1AM0-M0EAYC
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

Thin Mini ITX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR4 SO-DIMM (Dual Channel)

RAM Slots

2 x SODIMM

RAM Speeds

3200/2933/2800/2666/2400/2133 MHz

Maximum Memory

64GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort
1 x LVDS connector

Storage

2 x SATA III
1 x M.2 (2260/2280) - SATA and PCIe

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

2 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 Type-A (at mid-board)
7 x USB 2.0 (2 at back, 5 at mid-board)

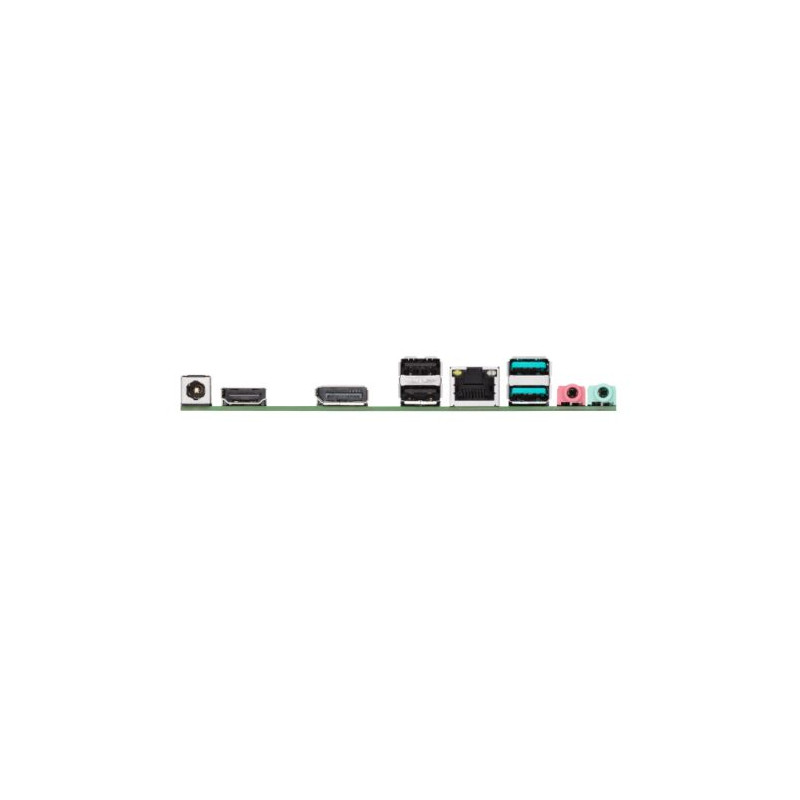

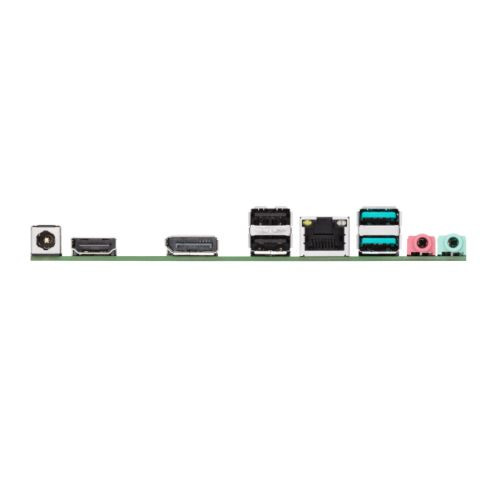

Back Panel I/O Ports

2 x USB 3.2 Gen2
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 1Gb Ethernet
2 x Audio jacks
1 x DC Power (Support 19V)

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 2-pin +19V
1 x SATA power
1 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 2.0
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC

1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x Clear CMOS
1 x Chassis Intrude
1 x COM Port
1 x COM debug
1 x Front Panel Audio
1 x LVDS

1 x M.2 slot (Key E)
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x SATA power cable
2 x I/O Shields
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

0.6800 kg

Warranty

3 Years
