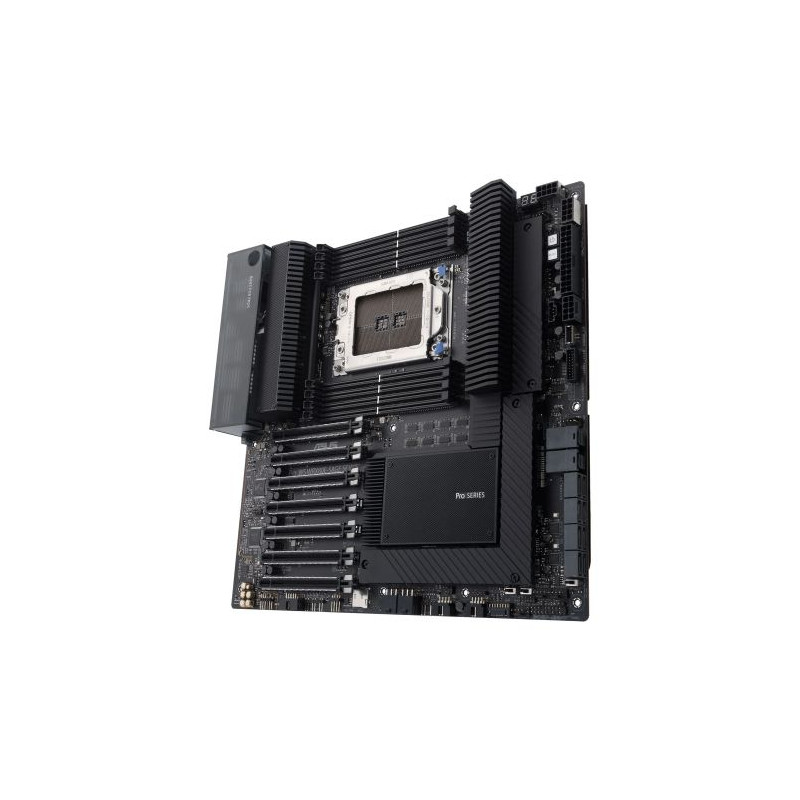

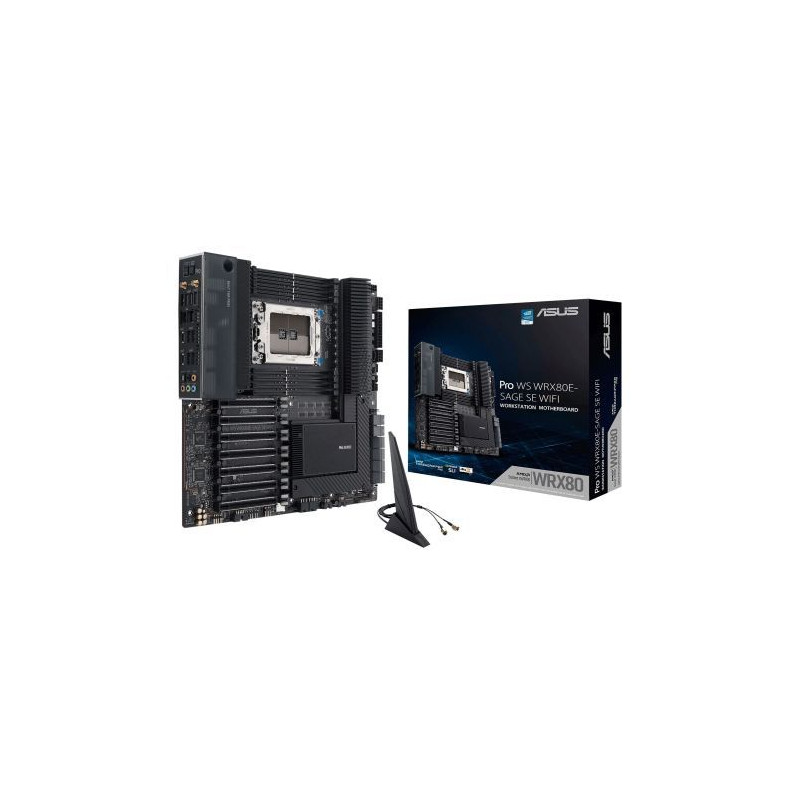

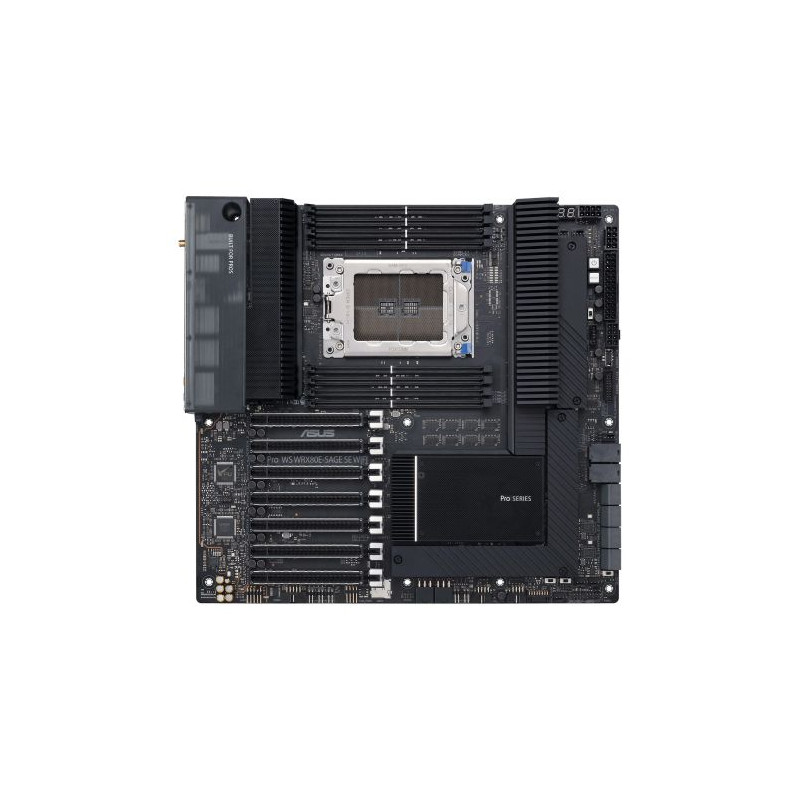

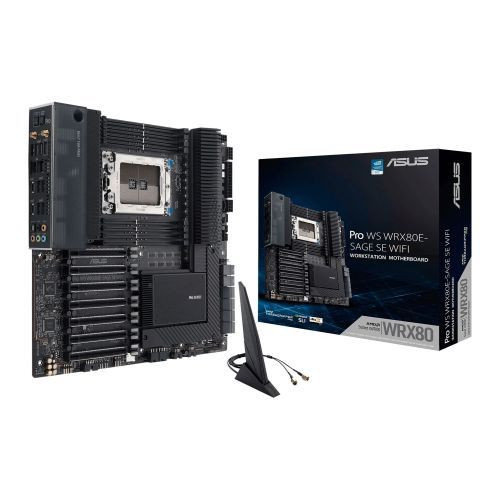

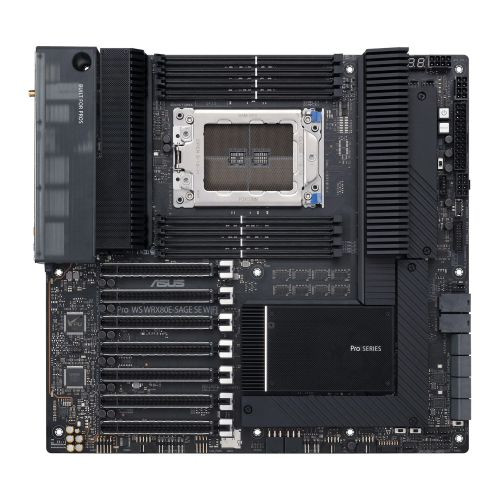

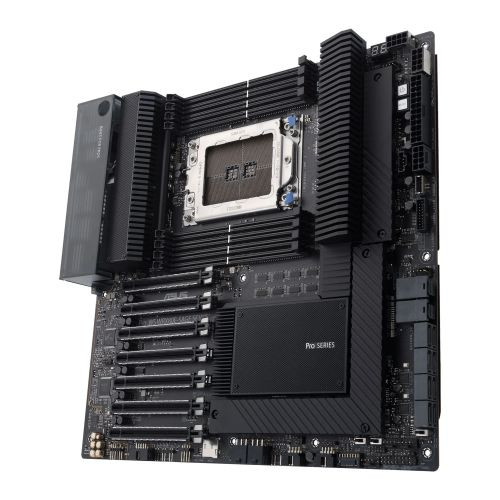

Asus PRO WS WRX80E-SAGE SE WIFI, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, Dual 10G LAN, 3x M.2

Condition: New product

12 Item Items Warning: Last items in stock!

£ 1,143.99

Quantity

Data sheet

Manufacturer Number:	90MB1590-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Server / Workstation

Form Factor

Extended ATX

Socket

AMD WRX8

Chipset

AMD WRX80

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Eight Channel)

RAM Slots

8 x DIMM

RAM Speeds

3200/3000/2933/2800/2666/2400/2133 MHz

ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory

Maximum Memory

2048GB

Graphics

Graphics Ports

Multi-GPU Support

Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology

PCI/PCI Express

7 x PCIe 4.0/3.0 x16*

* Support PCIe bandwidth bifurcation for RAID on CPU function

Storage

8 x SATA III
3 x M.2 (2242/2260/2280/22110) - SATA and PCIe
2 x U.2 - supports U.2 NVMe device and up to 4 SATA devices*

*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately*

RAID

RIAD 0, 1, 10

Wireless

Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1

LAN

Dual 10GB LAN

Audio

Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
8 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 Type-A (at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2 Type-C front panel connector

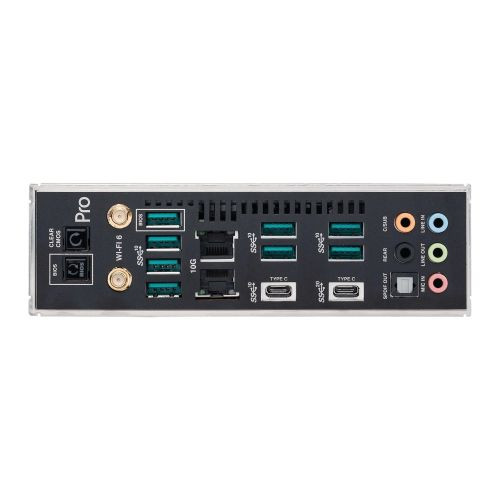

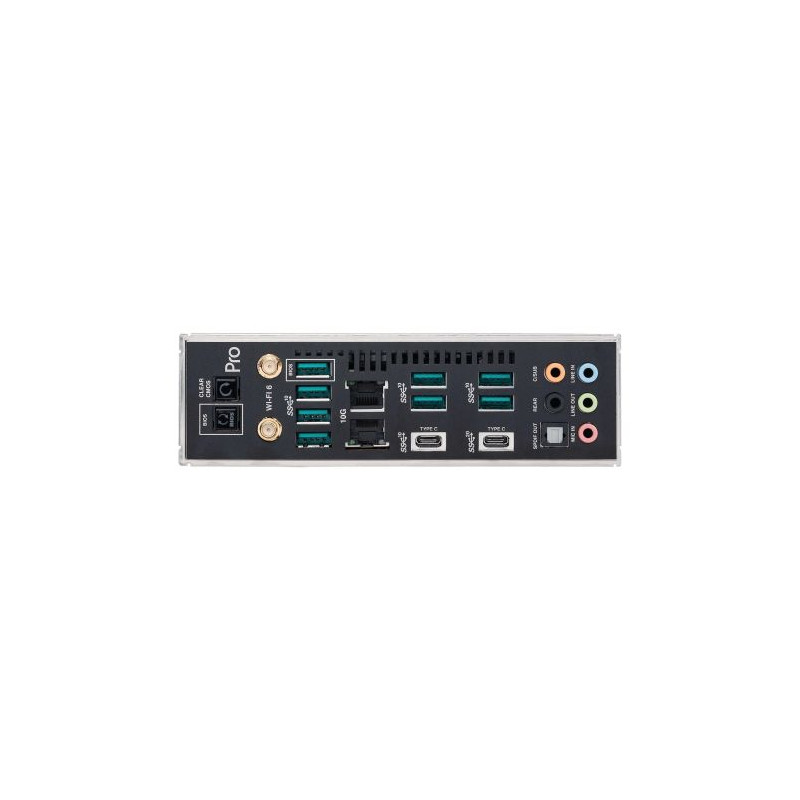

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
9 x USB 3.2 Gen2 (8 x Type-A + 1 x Type-C)
1 x ASUS Wi-Fi Module
2 x Intel X550-AT2 dual 10Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
6 x 4-pin Chassis Fan
1 x VRM heatsink Fan
1 x Chipset Fan
1 x 24-pin Main
2 x 8-pin +12V
2 x 6-pin PCIe Graphics Card
1 x 8-pin PCIe
3 x M.2 (Key M)
8 x SATA 6Gb/s
2 x U.2

1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card
2 x LAN LED
1 x Location LED
1 x Location button

1 x PSU_SMB
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C
1 x COM Port
1 x FlexKey button
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x Start button
1 x 20-3 pin System Panel w/ Chassis intrude function
1 x RTC Battery
1 x Thermal Sensor

Accessories

6 x SATA cables
1 x VGA cable
1 x ASUS 2x2 Dual-Band Wi-Fi antennas
1 x Hyper M.2 X16 Gen 4 Card
3 x M.2 Rubber Packages
3 x M.2 SSD screw packages
1 x Q-connector
1 x Support DVD
1 x User manual

Additional Features

See Overview

Package Type

Retail

Package Weight

4.8000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
