Asus PRO WS X299 SAGE II, Workstation, Intel X299, 2066, CEB, 7 x PCIe, U.2, Dual 2.5G LAN, AI Overclocking, 2x M.2

Condition: New product

14 Items

£ 828.05

Data sheet

Manufacturer Number: 90SW00U0-M0EAY0
Manufacturer: ASUS
Note: Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse: UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type
Server / Workstation
Form Factor
CEB
Socket
Intel 2066
Chipset
Intel X299
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Quad Channel)
RAM Slots
8 x DIMM
RAM Speeds
4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz
Maximum Memory
256GB
Graphics
-
Graphics Ports
-
Multi-GPU Support
Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
PCI/PCI Express
7 x PCIe 3.0/2.0 x16
Storage
8 x SATA III
1 x M.2 Socket (2242/2260/2280/22110) - SATA and PCIe
1 x M.2 Socket 3 (2242/2260/2280) - PCIe
3 x U.2
RAID
RAID 0, 1, 5, 10
Wireless
-
LAN
Dual 2.5GB LAN
Audio
Realtek S1200A 7.1-Channel High Definition Audio CODEC
USB Ports Supported
2 x USB 3.2 Gen2 Type-A and C (at back)
1 x USB 3.2 Gen2 (at mid-board)
8 x USB 3.2 Gen1 Type-A (6 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)

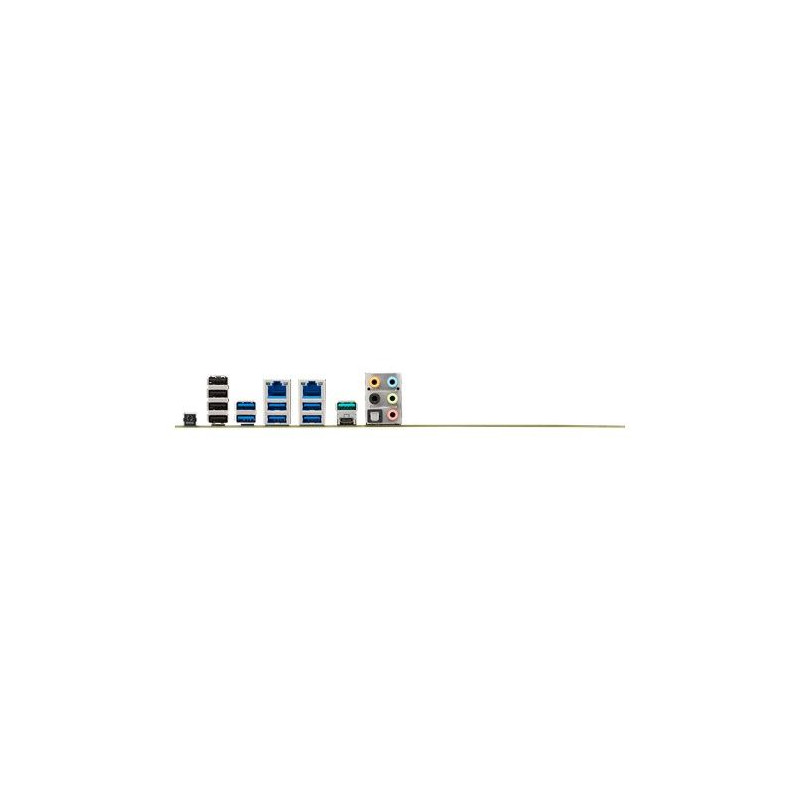

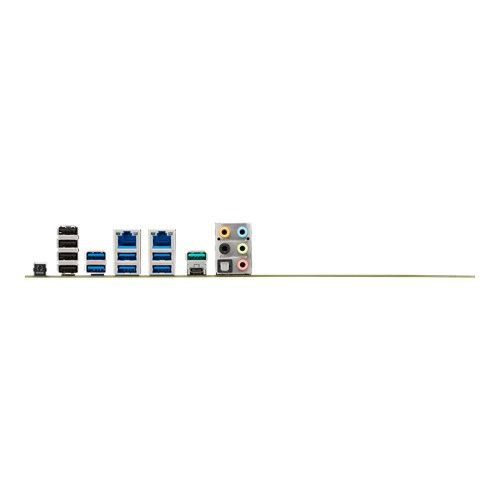

Back Panel I/O Ports
2 x LAN (RJ45)
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
6 x USB 3.2 Gen1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS FlashBack Button(s)
1 x 8-channel Audio I/O
Internal I/O Connectors
2 x CPU Fan
2 x Chassis Fan
2 x Addressable RGB
1 x AAFP
2 x Aura RGB Strip
3 x M.2 Socket 3 with M key,
1 x TPM
8 x SATA 6Gb/s
1 x VROC_HW_Key
1 x AIO_PUMP
1 x Thunderbolt
1 x 24-pin EATX

2 x 8-pin ATX 12V
1 x Power-on button
1 x Reset button
1 x Clear CMOS button
3 x U.2
1 x System panel
1 x COM port
1 x W_Pump+
1 x Thermal sensor
1 x CPU_OV jumper

1 x M.2 Fan
1 x 6-pin ATX 12V
1 x USB 3.2 Gen2
1 x USB 3.2 Gen1
3 x U.2 LED switch
Accessories
Addressable LED ext cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cabl
8 x SATA 6Gb/s cable
1 x M.2 screws
1 x MOS Cooling kit (fan bracket and 40mm fan)
1 x 3-Way SLI bridge
1 x 4-Way SLI bridge
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector (0 in 1)
Additional Features
See Overview
Package Type
Retail
Package Weight
2.3500 kg
Warranty
3 Years
Full Box Quantity
3
