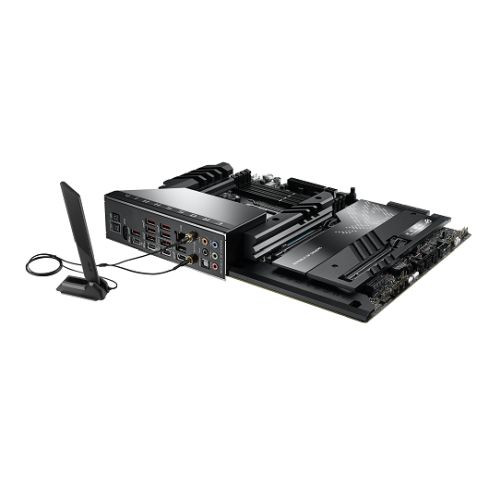

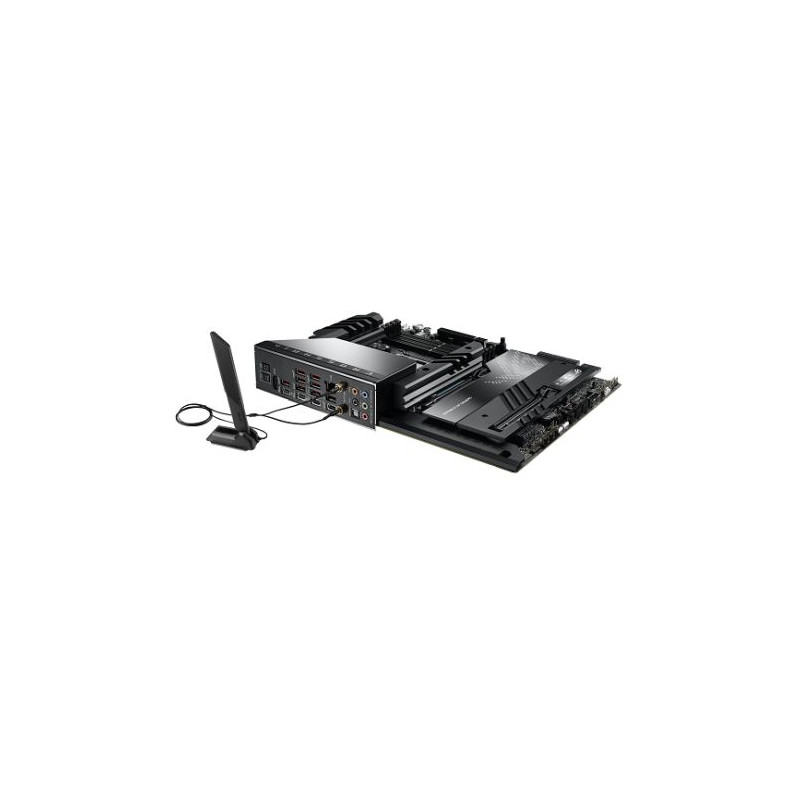

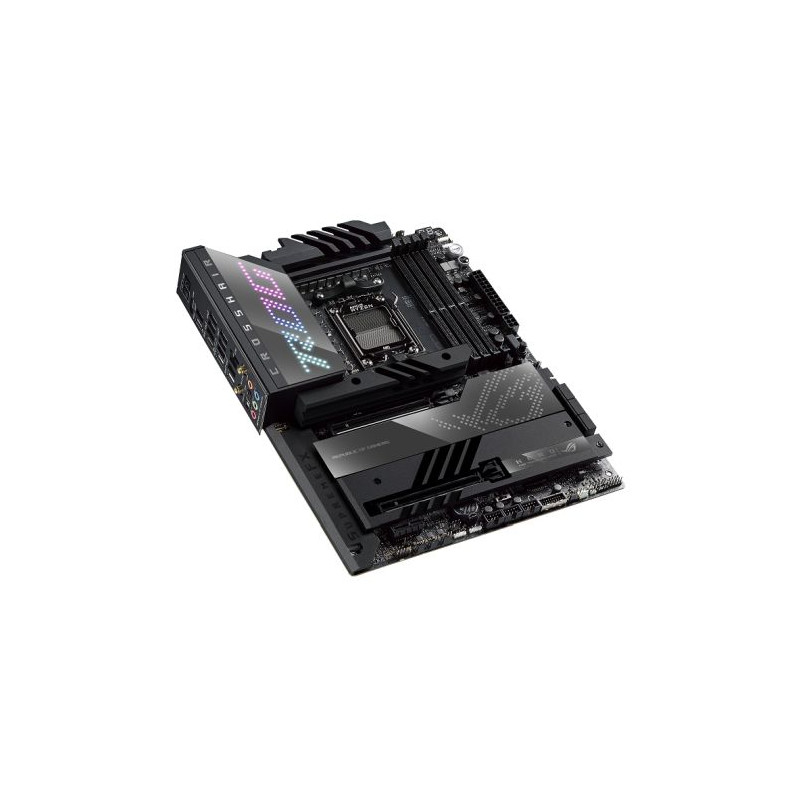

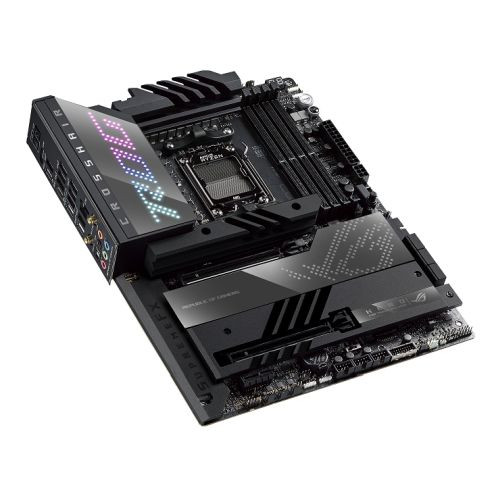

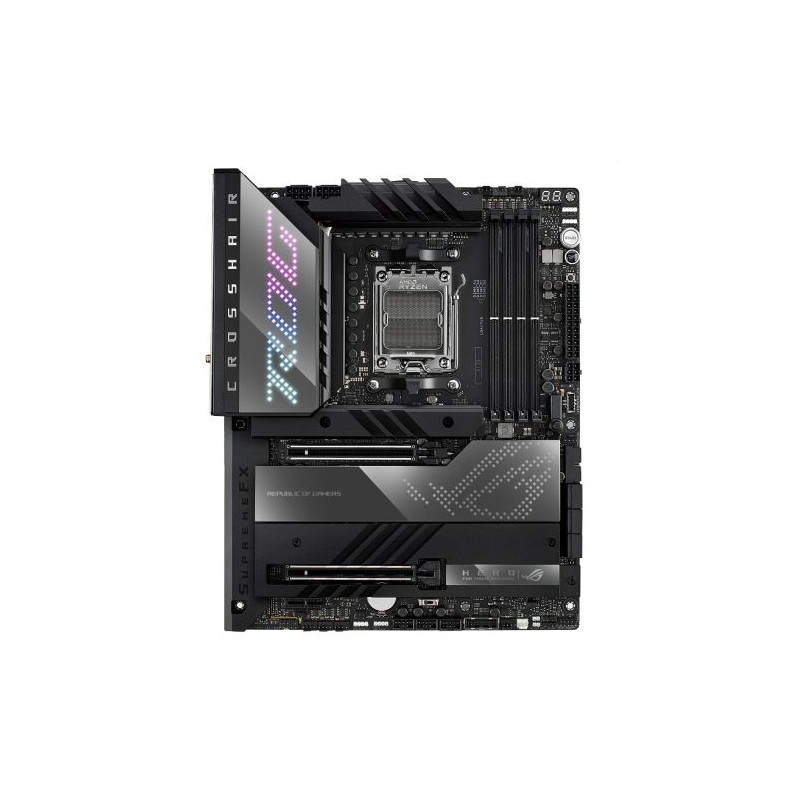

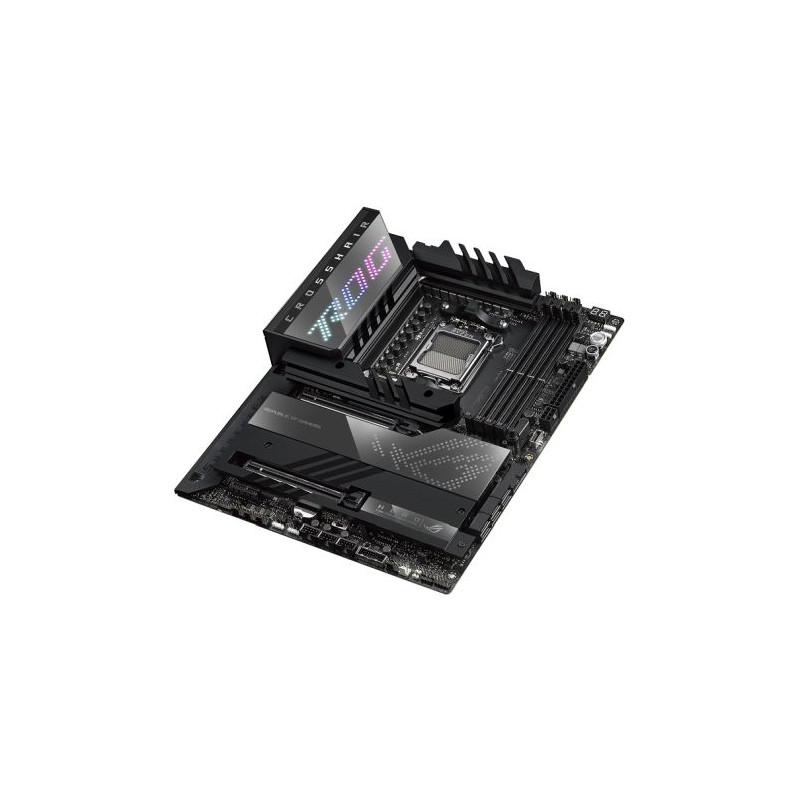

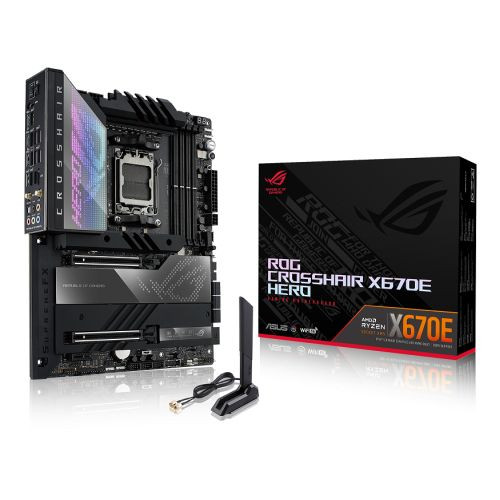

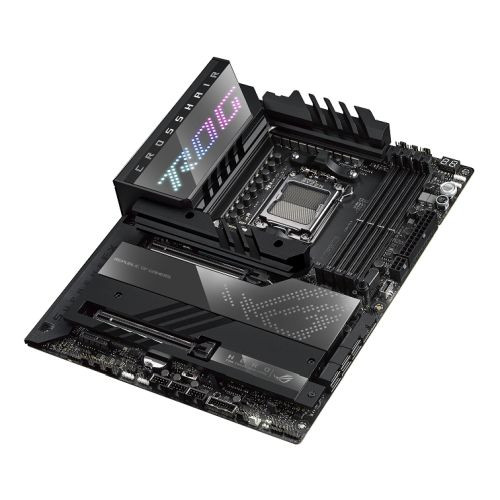

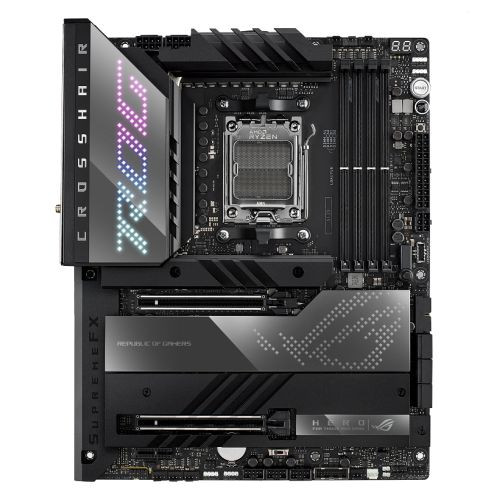

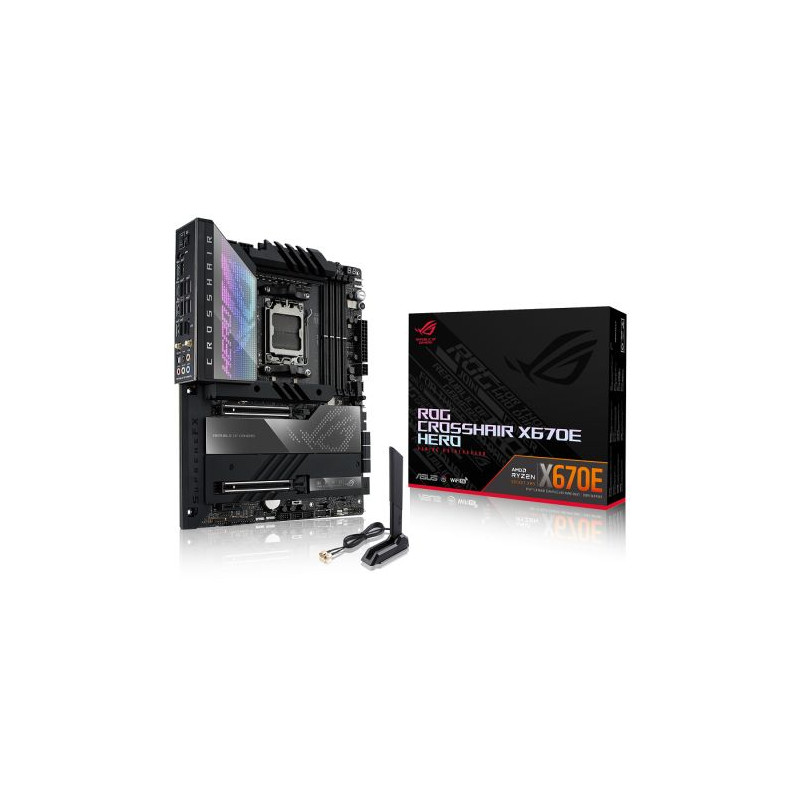

Asus ROG CROSSHAIR X670E HERO, AMD X670, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 6E, 2.5G LAN, PD 3.0 60W, PCIe5, RGB, 5x M.2

Condition: New product

32 Item Items Warning: Last items in stock!

£ 738.10

Quantity

Data sheet

Manufacturer Number:	90MB1BC0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD X670

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x USB4 ports support USB Type-C display outputs

PCI/PCI Express

2 x PCIe 5.0 x16 (supports x16 or x8/x8 modes)
1 x PCIe 4.0 x1

Storage

6 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

Via PCIe 5.0 M.2 Card:
1 x M.2 (2242/2260/2280/22110) - PCIe

RAID

AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2

LAN

2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

USB Ports Supported

2 x USB4 Type-C (at back)
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2x2 Type-C (60W PD/QC4+) (at mid-board)
1 x USB 3.2 Gen2 Type-C (at back)
8 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (at mid-board)
6 x USB 2.0 (at mid-board)

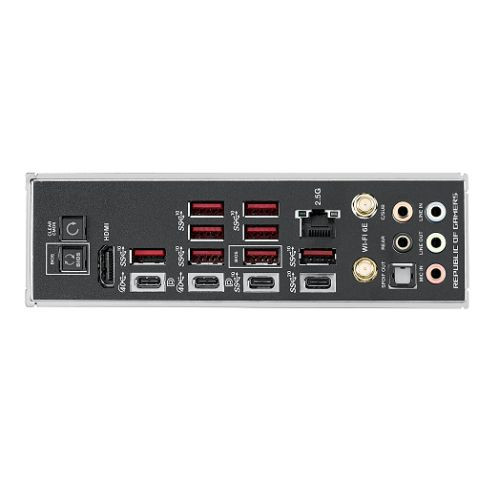

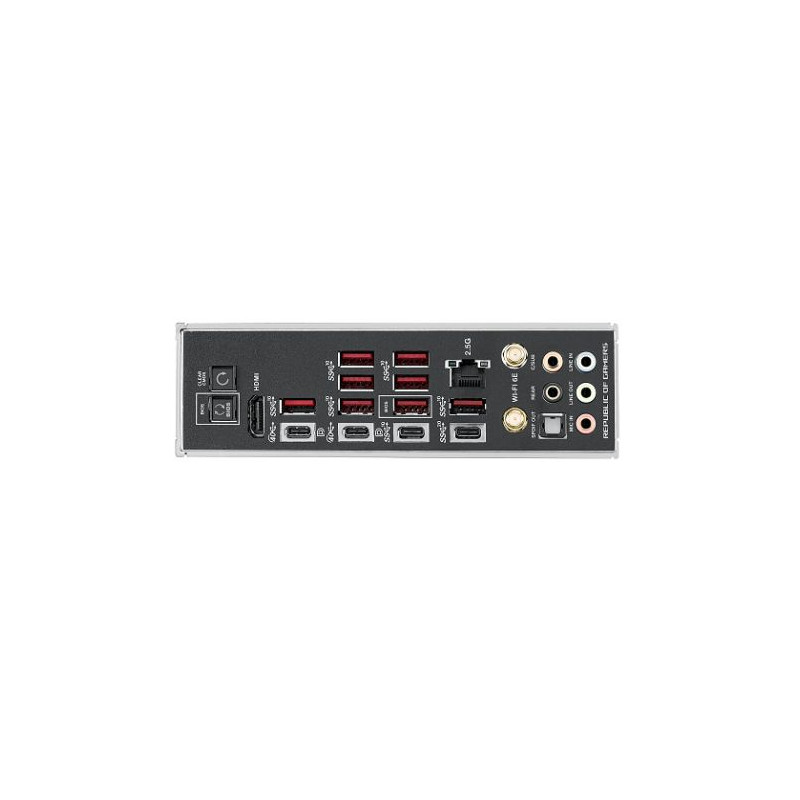

Back Panel I/O Ports

2 x USB4 Type-C w/ Intel JHL8540 USB4 controller
1 x USB 3.2 Gen2x2 (Type-C)
9 x USB 3.2 Gen2 (8 Type-A, 1 Type-C)
1 x HDMI
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 2-pin Water In
1 x 2-pin Water Out
1 x 3-pin Water Flow
1 x 24-pin Main
2 x 8-pin +12V
1 x 6-pin PCIe
4 x M.2 (Key M)

6 x SATA 6Gb/s
1 x USB 3.2 Gen 2x2 connector Type-C
2 x USB 3.2 Gen1
3 x USB 2.0
3 x Addressable Gen2
1 x Alteration Mode Switch
1 x Aura RGB
1 x FlexKey button
1 x Front Panel Audio (AAFP)
1 x ReTry button

1 x Start button
1 x 10-1 pin System Panel
1 x Thermal Sensor

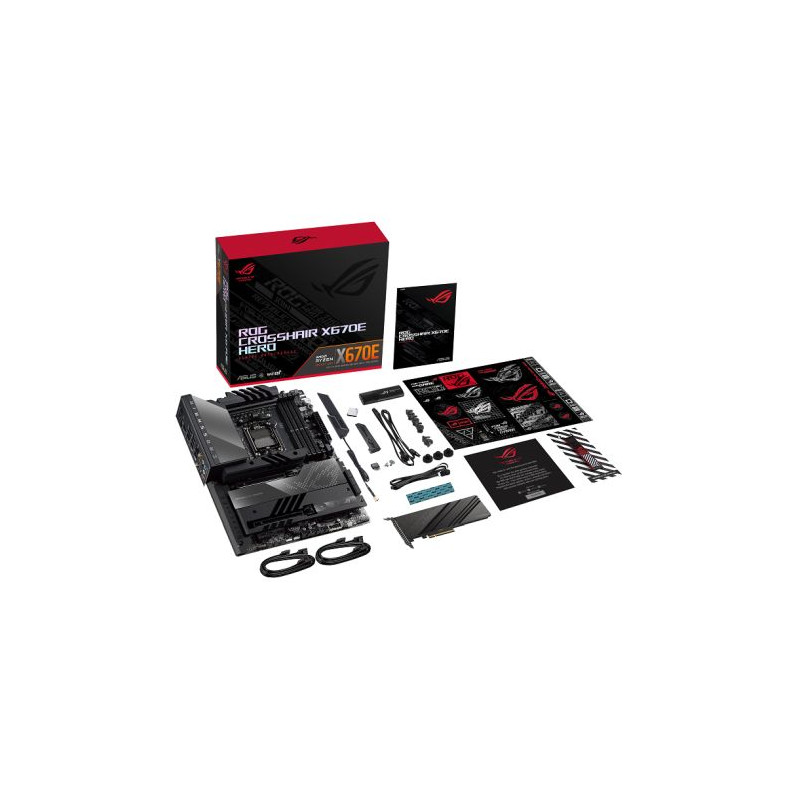

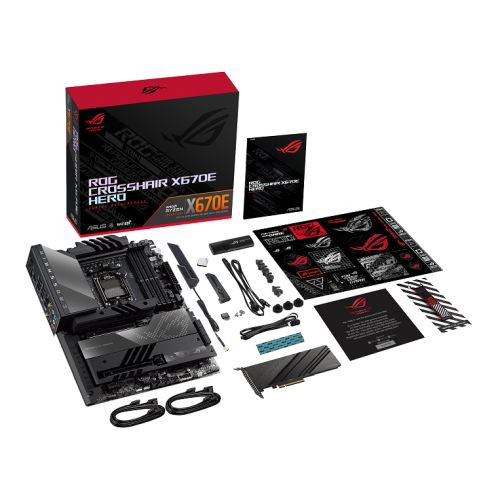

Accessories

1 x ARGB RGB extension cable
1 x RGB extension cable
4 x SATA 6Gb/s cables
PCIe 5.0 M.2 Card with Heatsink
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
3 x Rubber Packages for M.2 backplate
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain

1 x ROG stickers
1 x ROG thank you card
1 x USB drive with utilities and drivers
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

3.2000 kg

Warranty

3 Years
