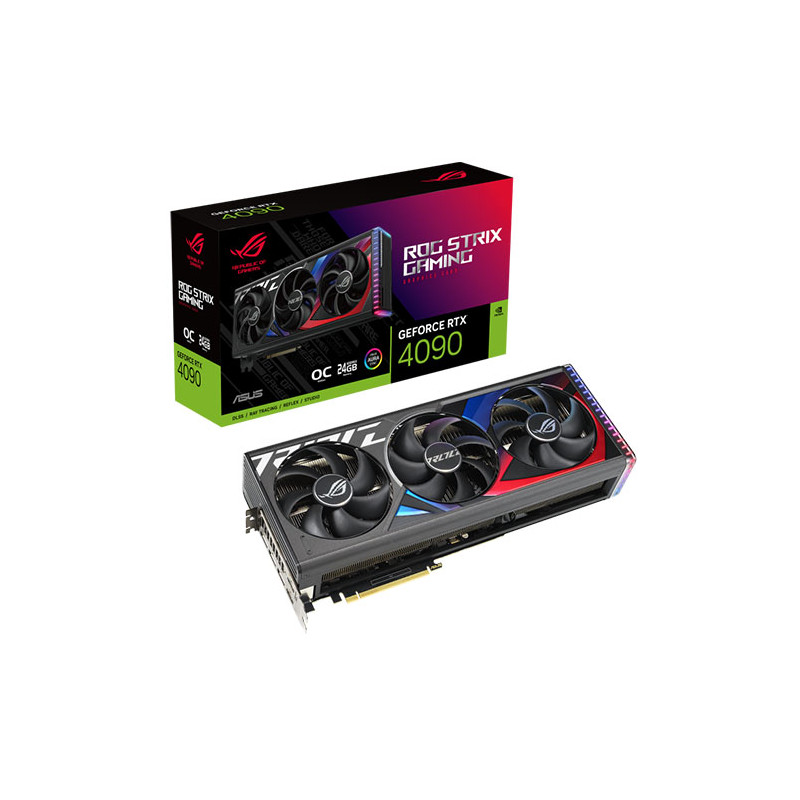

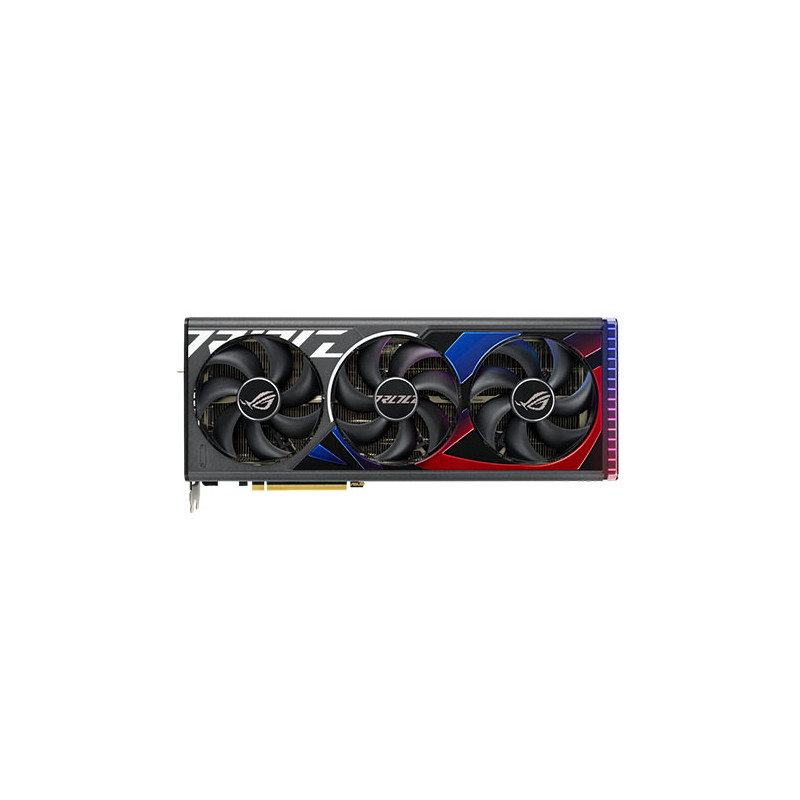

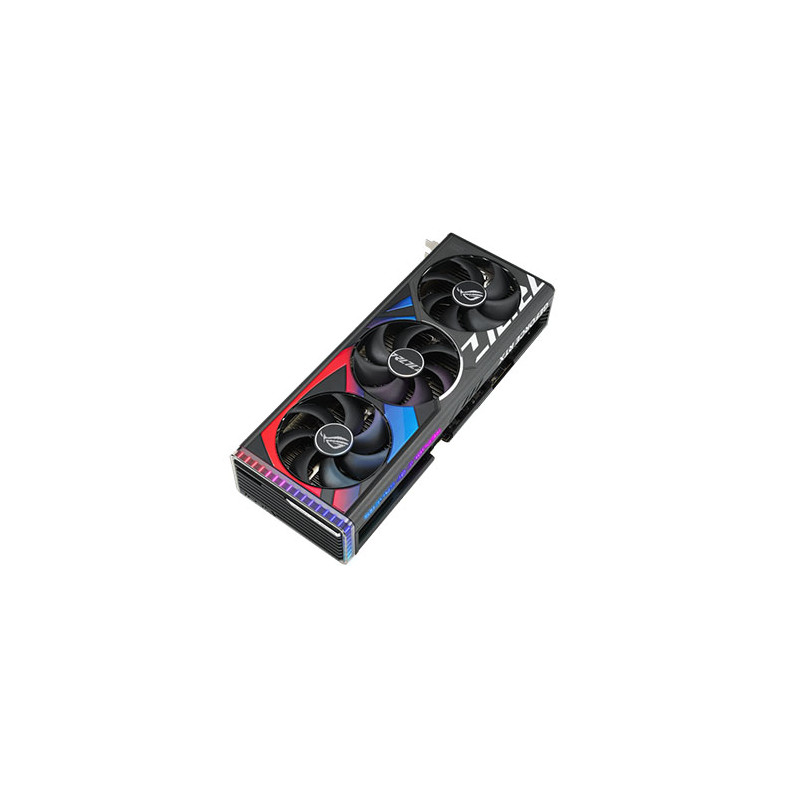

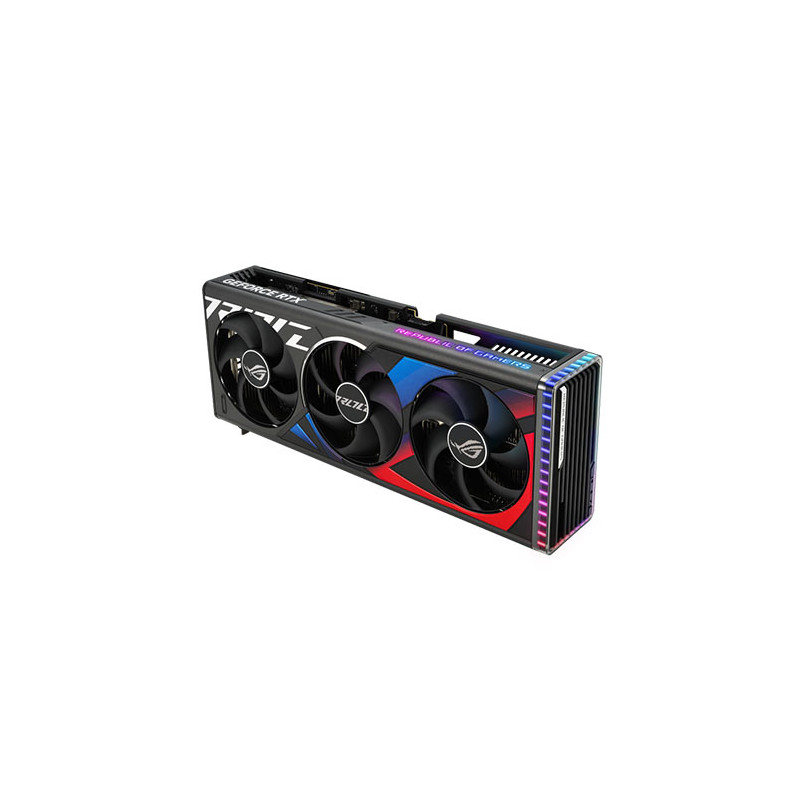

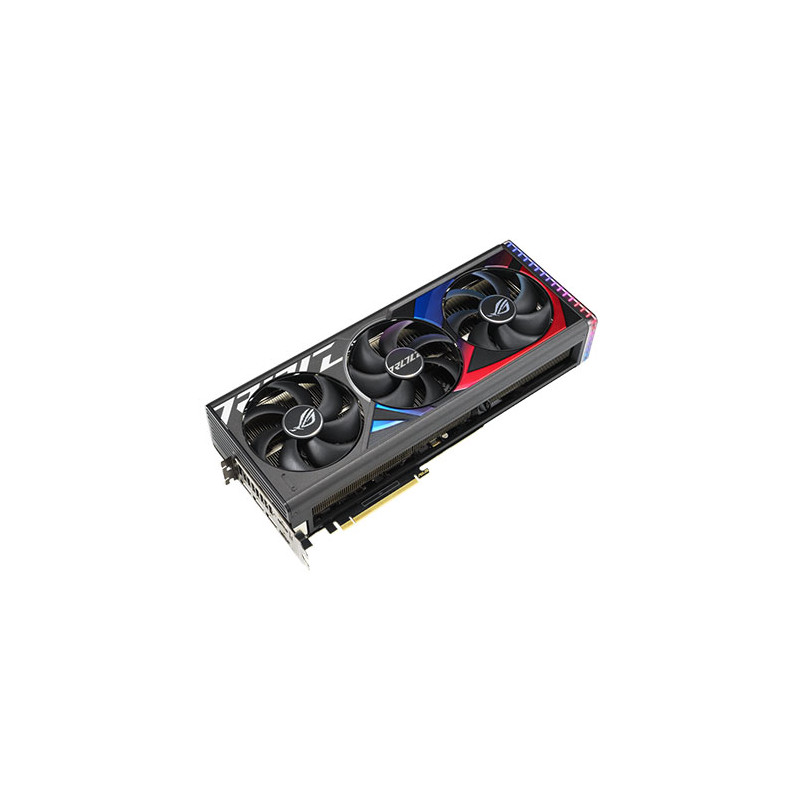

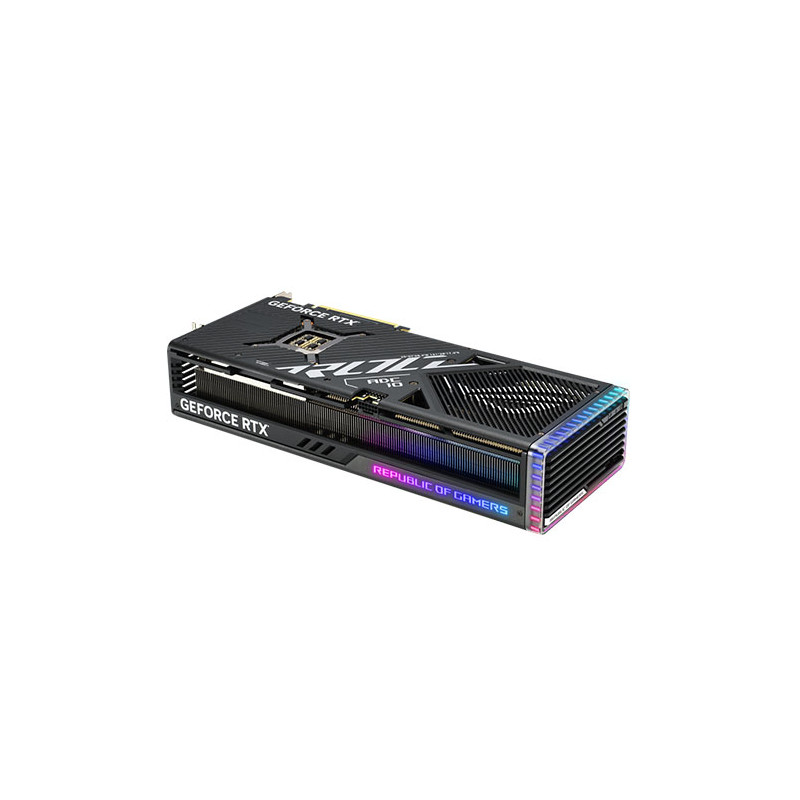

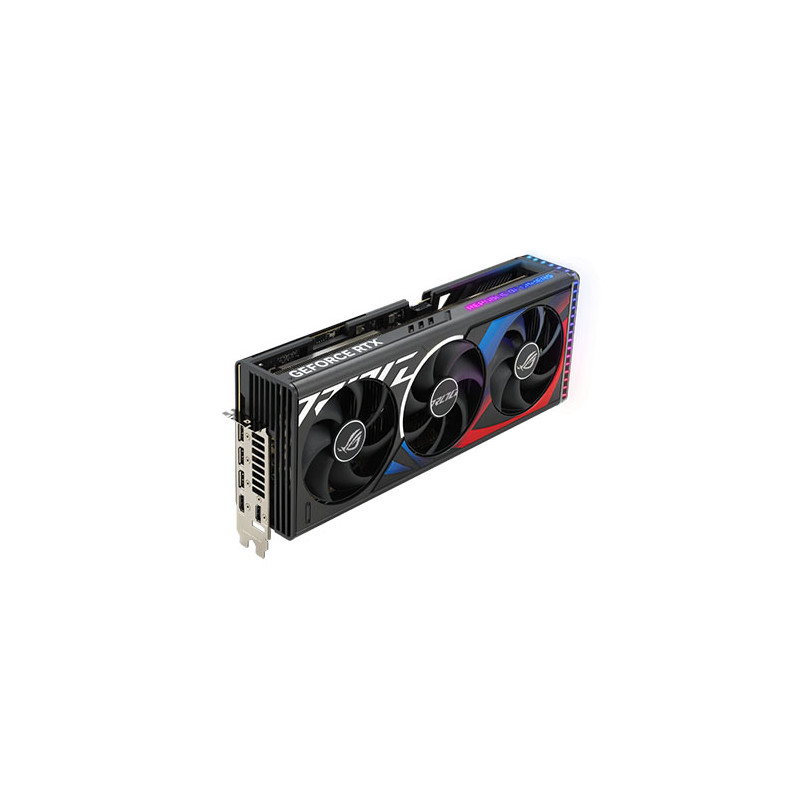

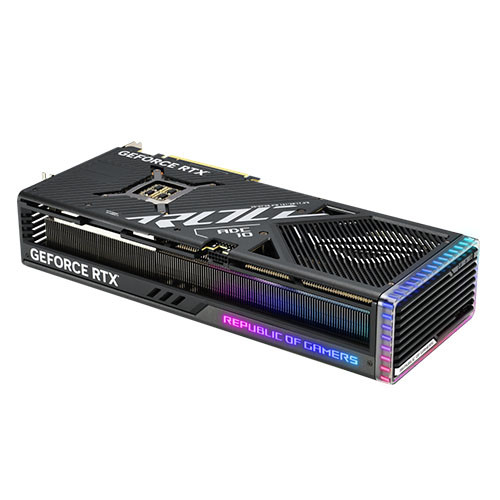

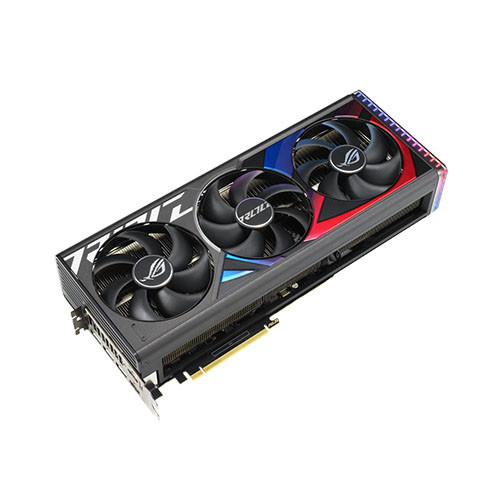

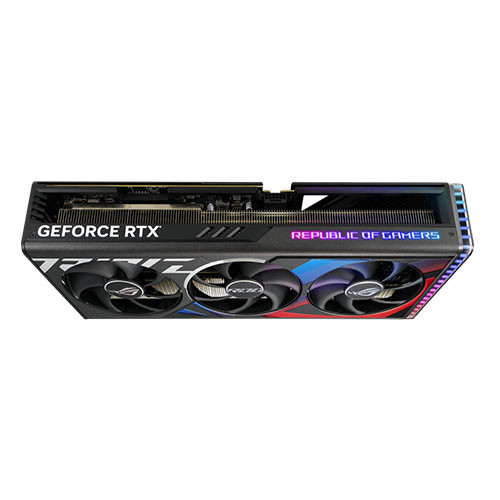

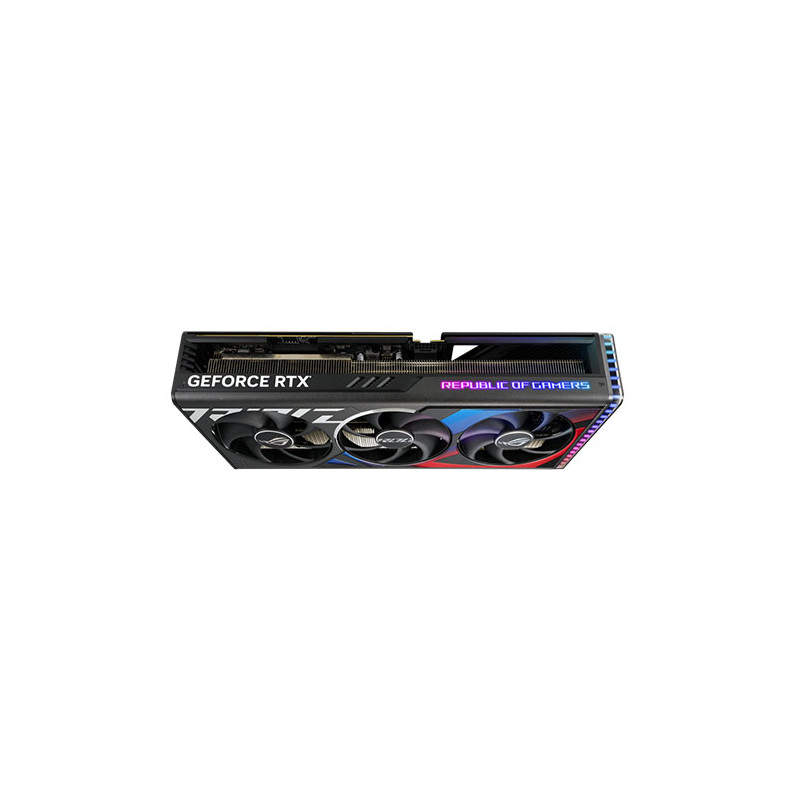

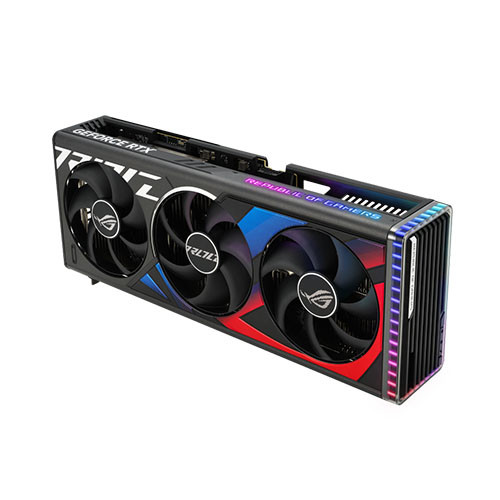

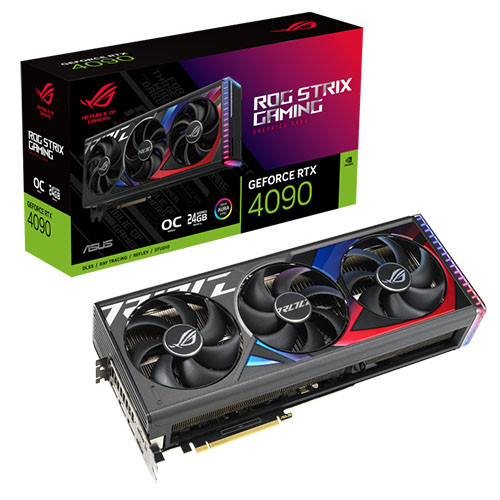

Asus ROG STRIX RTX4090 OC, PCIe4, 24GB DDR6X, 2 HDMI, 3 DP, 2640MHz Clock, Overclocked, RGB Lighting

Condition: New product

The ROG Strix GeForce RTX® 4090 brings a whole new meaning to going with the flow.

Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance. The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

Vented Exoskeleton
Larger Axial-tech Fans
Massive Heatsinks
Vapor Chamber

New Streaming Multiprocessors

Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores

Up to 2x AI performance

Third-Gen RT Cores

Up to 2x ray tracing performance

Axial-tech Upgrades

A Fresh Spin

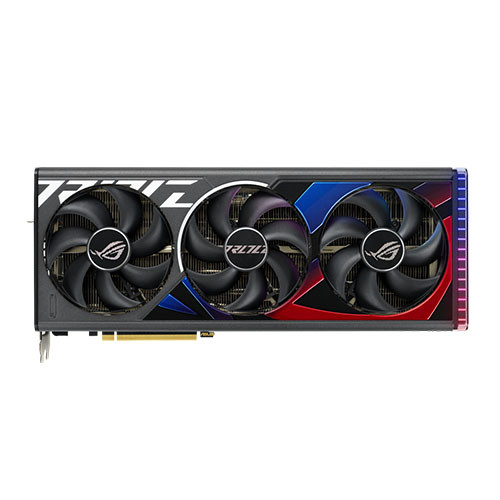

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology

Orchestrated Chill

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.

3.5-slot Design

Through Thick and Fin

The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4090 GPU so that it can be efficiently whisked away by the three Axial-tech fans.

Patented Vapor Chamber

Phase Changer

A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.

Premium Power Delivery

1st Responder

Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.

Compact PCB

Packs a Punch

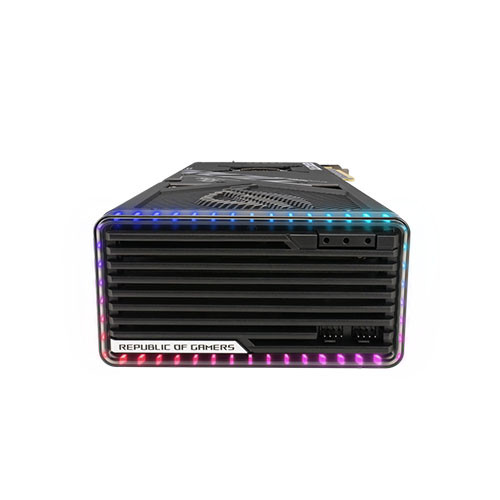

Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

Metal Exoskeleton

Ultra-rigid

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.

FanConnect II

Hook up

Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

Reinforcements

Additional Perks

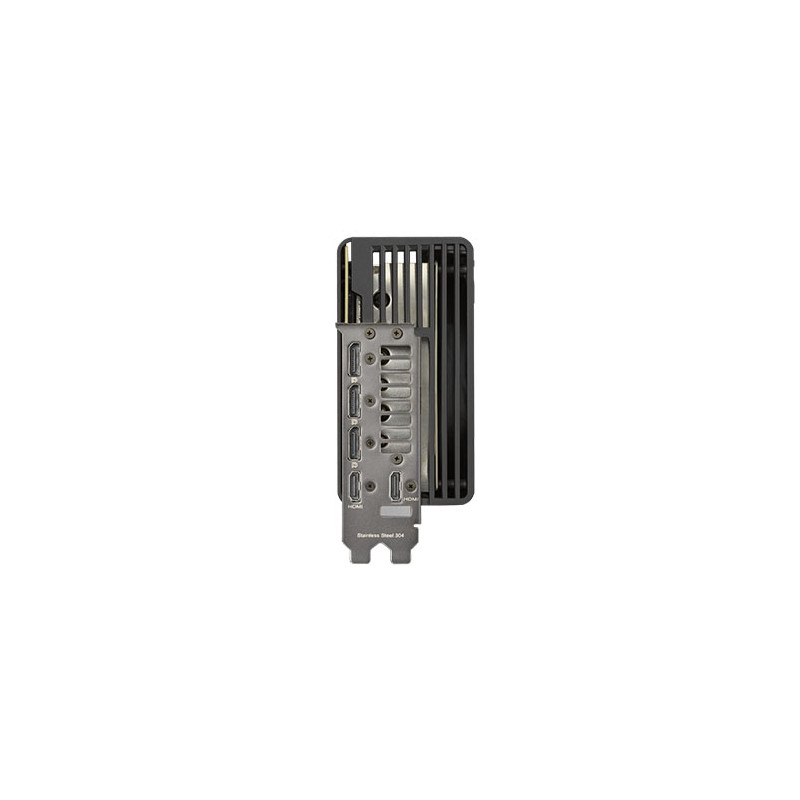

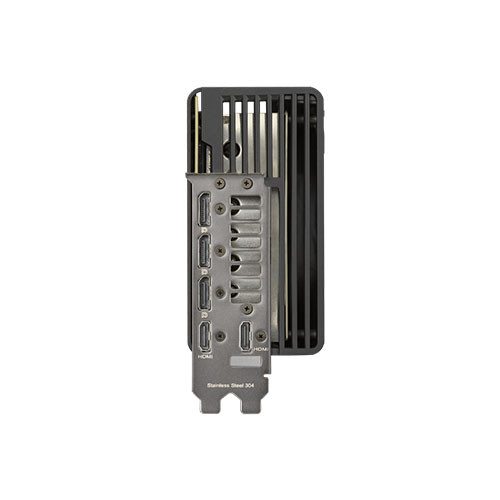

A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.

Power Sensing

Quick Diagnosis

Know if your PSU is worthy. ROG Strix GeForce RTX 4090 graphics cards feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.

Auto-Extreme Technology

Reliability Boost

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Aura Sync

Symphony of Light

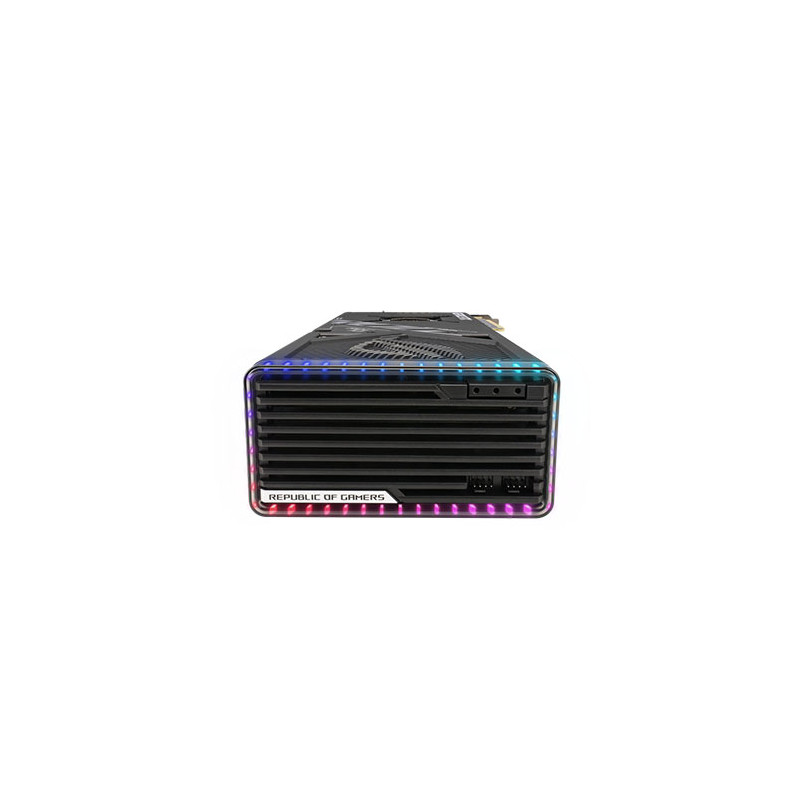

Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.

Graphics Card Holder

Pillar of Support

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

GPU Tweak III

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!

31 Item Items Warning: Last items in stock!

£ 2,416.13

Quantity

Data sheet

Manufacturer Number:	90YV0ID0-M0NA00
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chipset Manufacturer

Nvidia

Interface

PCI Express 4.0

Graphics Chipset

Nvidia RTX 4090

Memory Size

24GB

Memory Type

DDR6X

Memory Interface

384-bit

Core Clock

OC mode: 2640 MHz
Default mode: 2610 MHz (Boost Clock)

Memory Clock

21 Gbps

CUDA Cores / Stream Processors

16384 CUDA Cores

Outputs

2 x HDMI 2.1a
3 x DisplayPort 1.4a

HDCP Support

Yes

Resolution

Digital Max Resolution 7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Triple Fan Design
Axial-tech Fans
Vented Exoskeleton
Massive Heatsinks
Vapor Chamber

PSU Requirements

1000W or greater recommended

Connectors Required

1 x 16-pin

Software

ASUS GPU Tweak III and GeForce Game Ready Driver and Studio Driver

Additional Features

See Overview

Dimensions

357.6 x 149.3 x 70.1mm

Slot Size

3.5 Slot

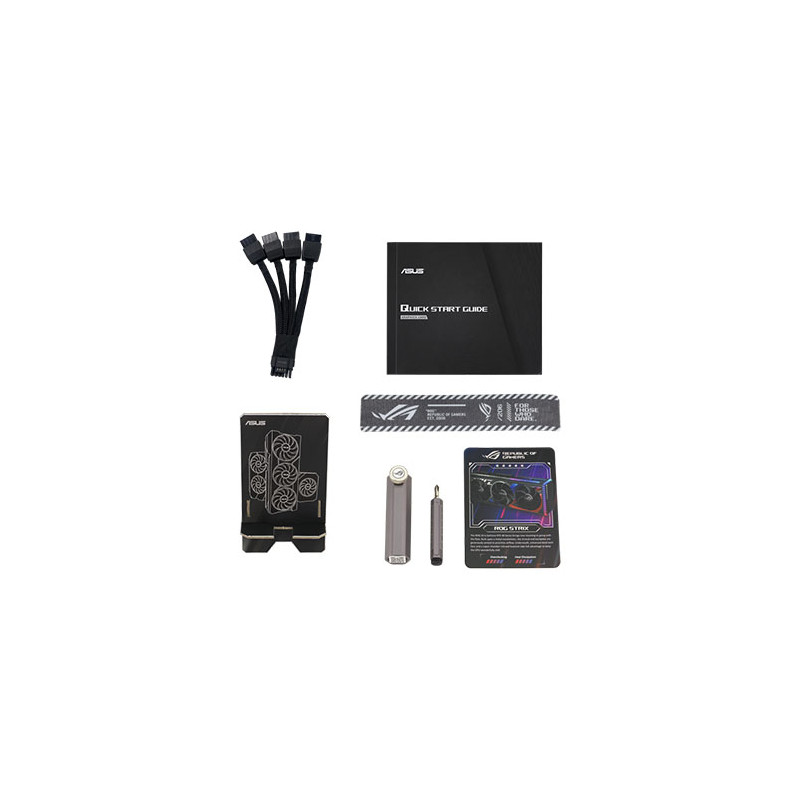

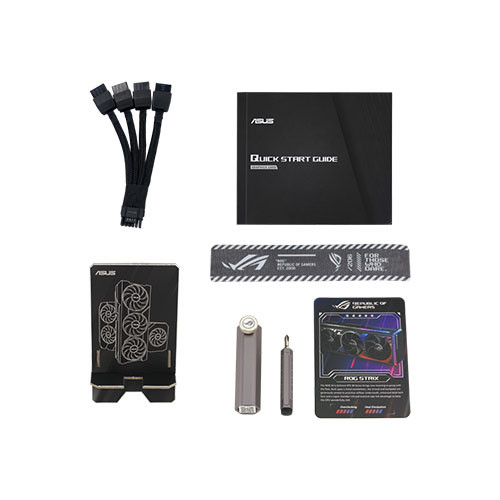

Accessories

1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook and Loop
1 x Thank you Card

Package Type

Retail

Package Weight

4.4000 kg

Warranty

3 Years

Full Box Quantity
