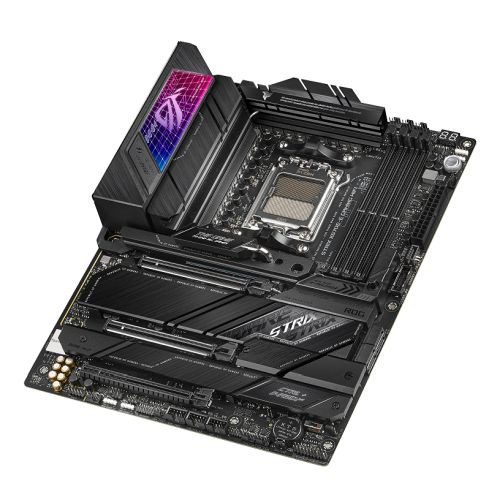

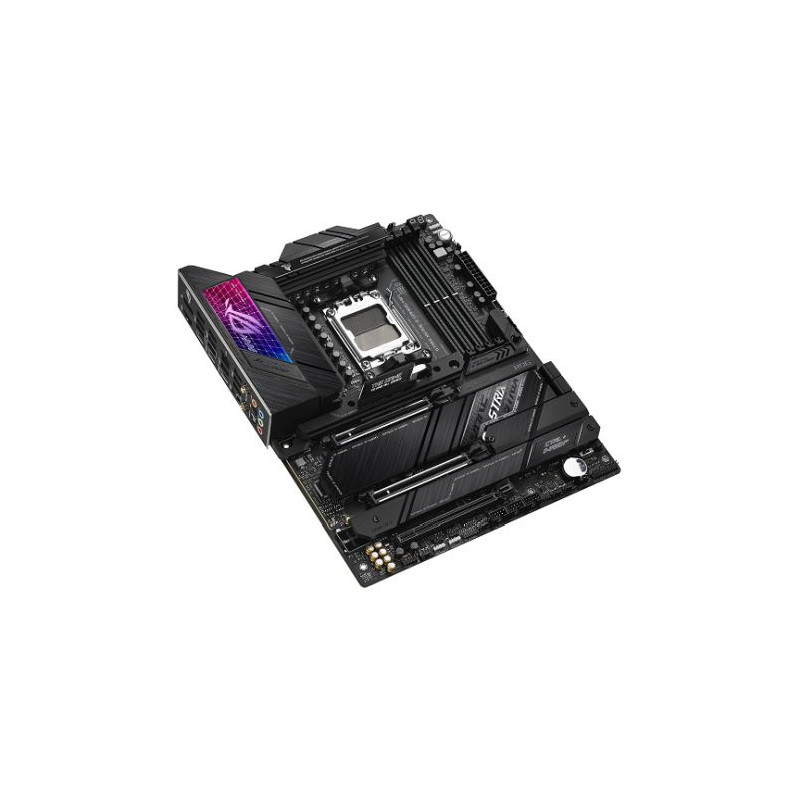

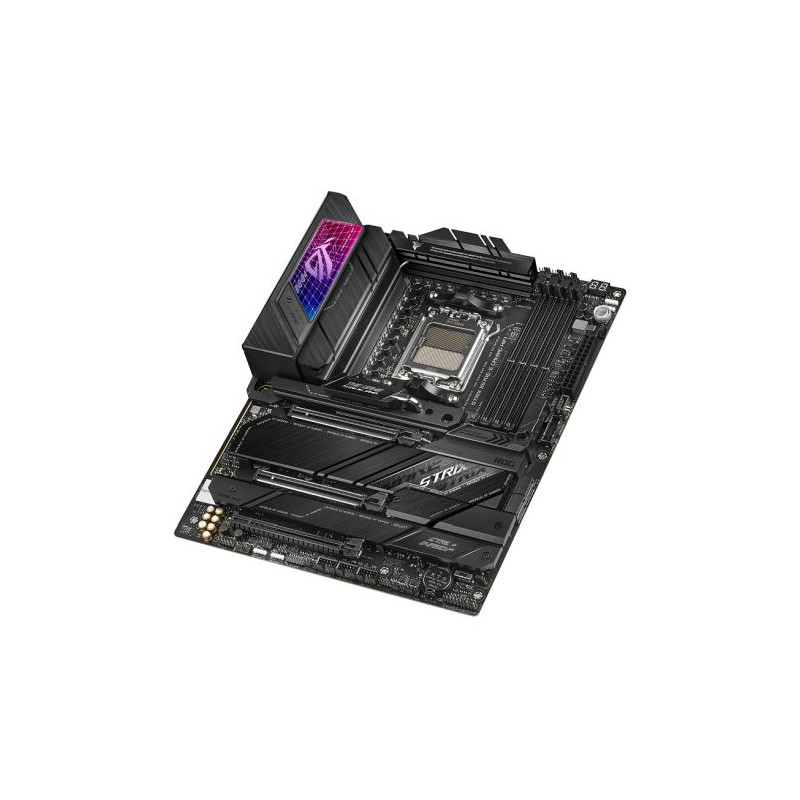

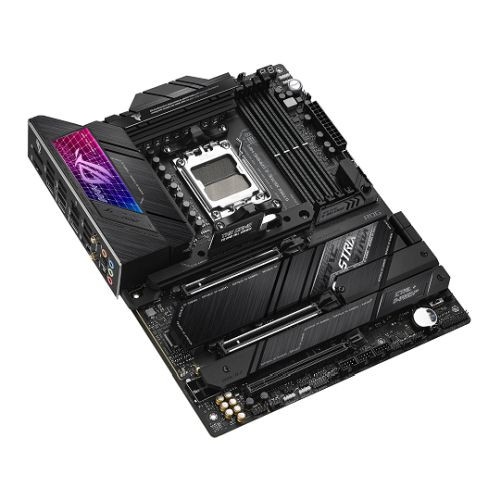

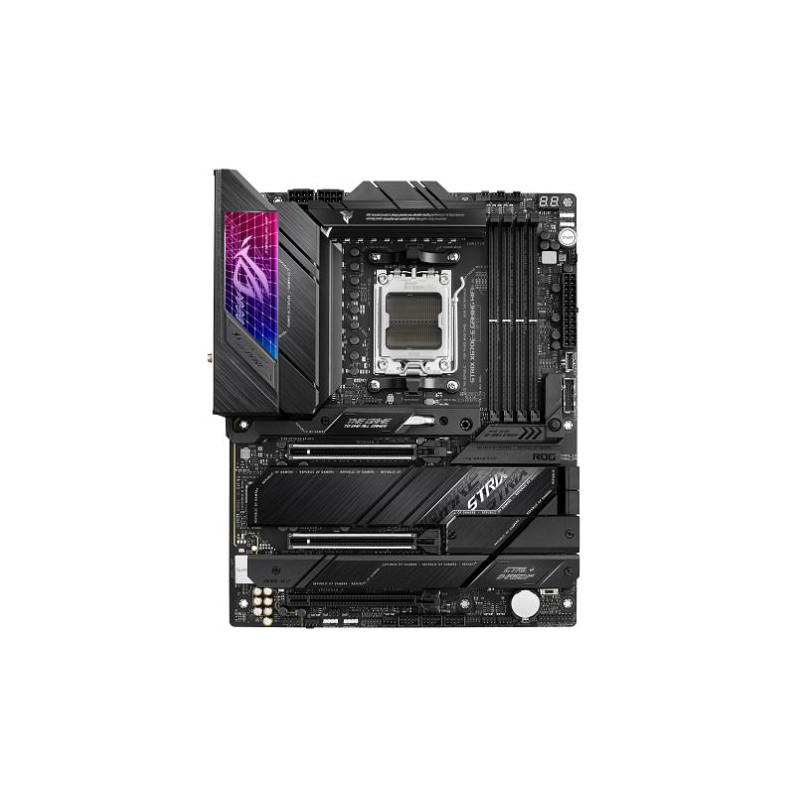

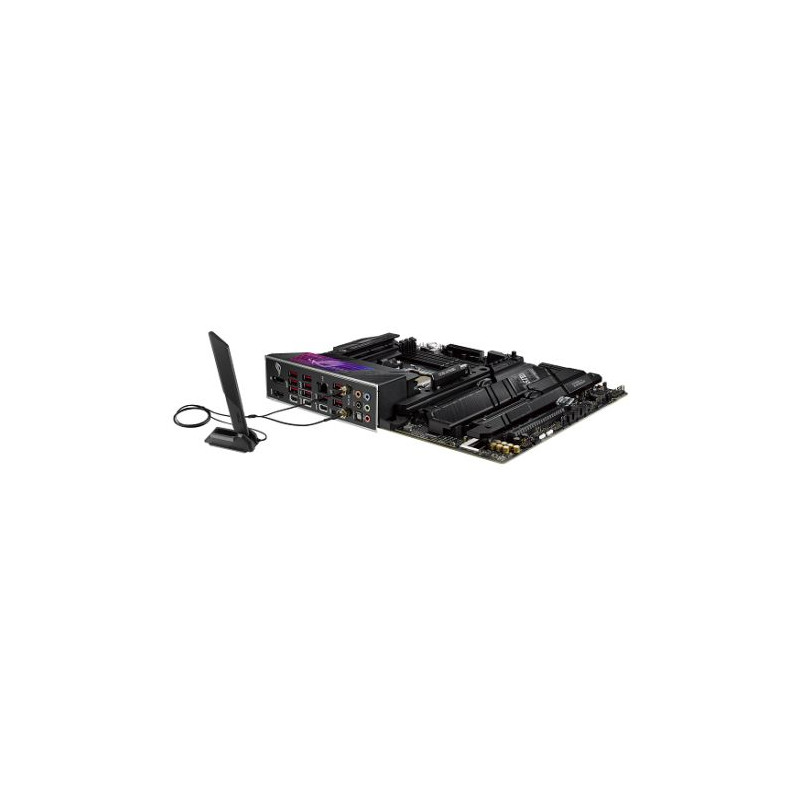

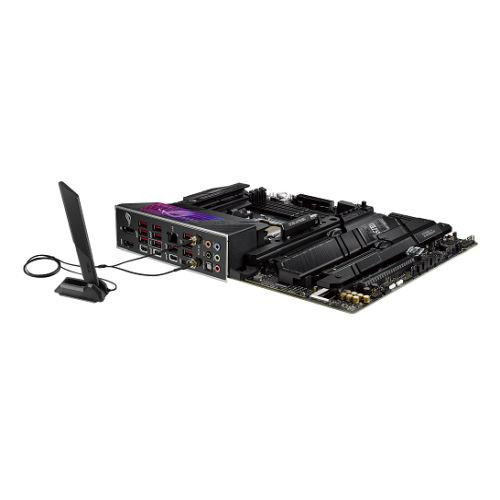

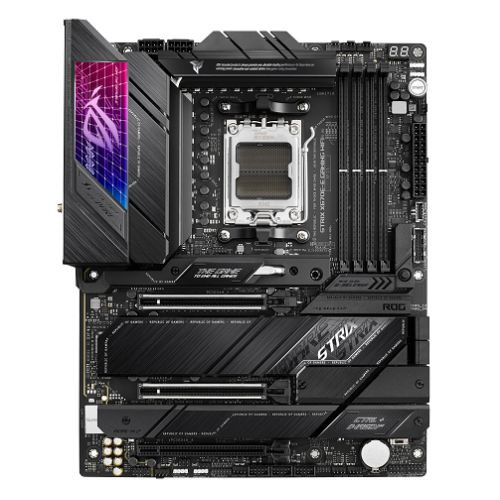

Asus ROG STRIX X670E-E GAMING WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Condition: New product

The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen™ 7000 Series processors.

PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory.

Power Stages - 18 + 2 teamed power solution rated for 110A per stage
Overclocking Technologies - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
AI Cooling II - AI Cooling II uniquely balances noise and thermals for your system with a single click
PCIe 5.0 - Both x16 slots and three on-board M.2 slots are PCIe Gen 5-ready
DDR5 - 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
DIY Friendly - Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
WiFi 6E - Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
Massive M.2 Heatsink - Bonus accessory takes M.2 cooling to the next level

All-Round Performance

From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the Strix X670E-E fully flexes AM5 and infuses AMD Ryzen™ 7000 Series processors with additional agility to plough through every task.

Leading Connectivity

The ROG Strix X670E-E Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Play In Style

A bold and balanced aesthetic ties together elements from the ROG Strix lineup and then subtly increases contrast with bright accents, visible silver components, and a splash of RGB. Pair the ROG Strix X670E-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

Software Utilities

ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

** Click here for full product details **

43 Item Items Warning: Last items in stock!

£ 578.62

Quantity

Data sheet

Manufacturer Number:	90MB1BR0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD X670

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

2 x PCIe 5.0 x16 (supports x16 or x8/x4 modes)
1 x PCIe 4.0 x16 (supports x4 mode)

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2

LAN

2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)
2 x USB 3.2 Gen2 Type-C (at back)
10 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
6 x USB 2.0 (at mid-board)
1 x Front USB 3.2 Gen2x2 Type-C connector

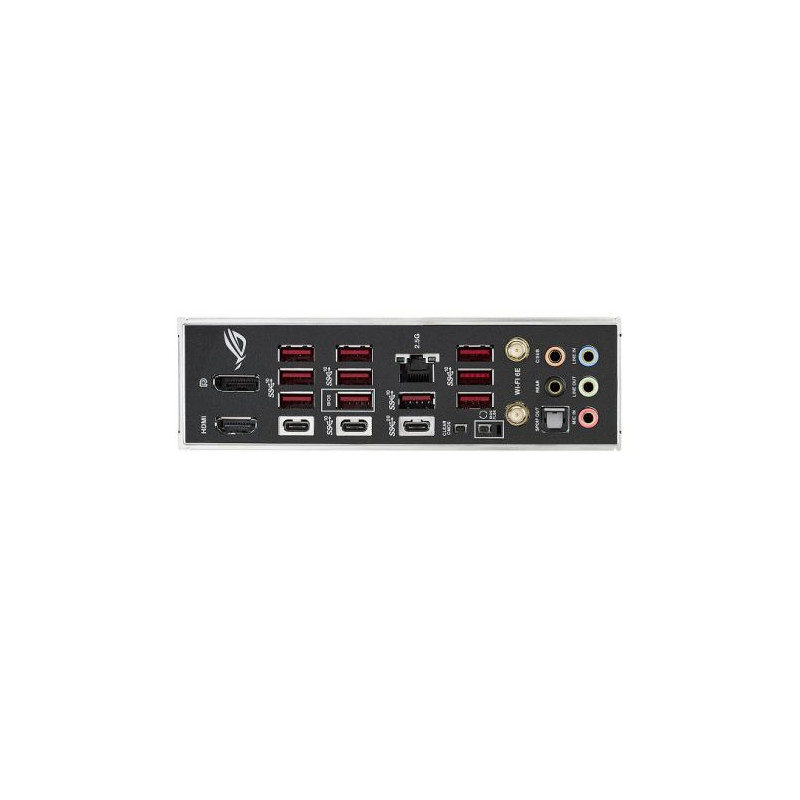

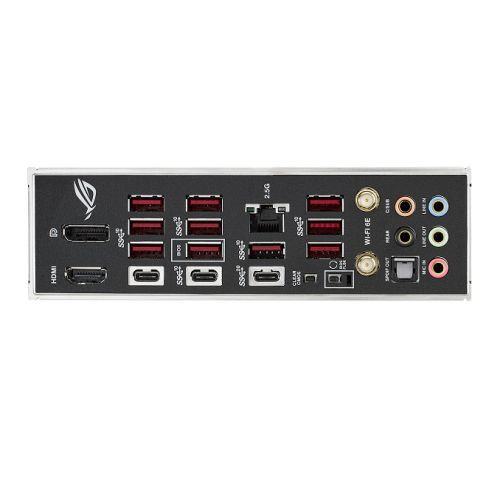

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 (Type-C)
12 x USB 3.2 Gen2 (10 Type-A, 2 Type-C)
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
5 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2x2 (USB Type-C)
1 x USB 3.2 Gen1
3 x USB 2.0
3 x Addressable Gen2

1 x AURA RGB
1 x Alteration Mode Switch
1 x CPU Over Voltage jumper
1 x Front Panel Audio (AAFP)
1 x Start button
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt

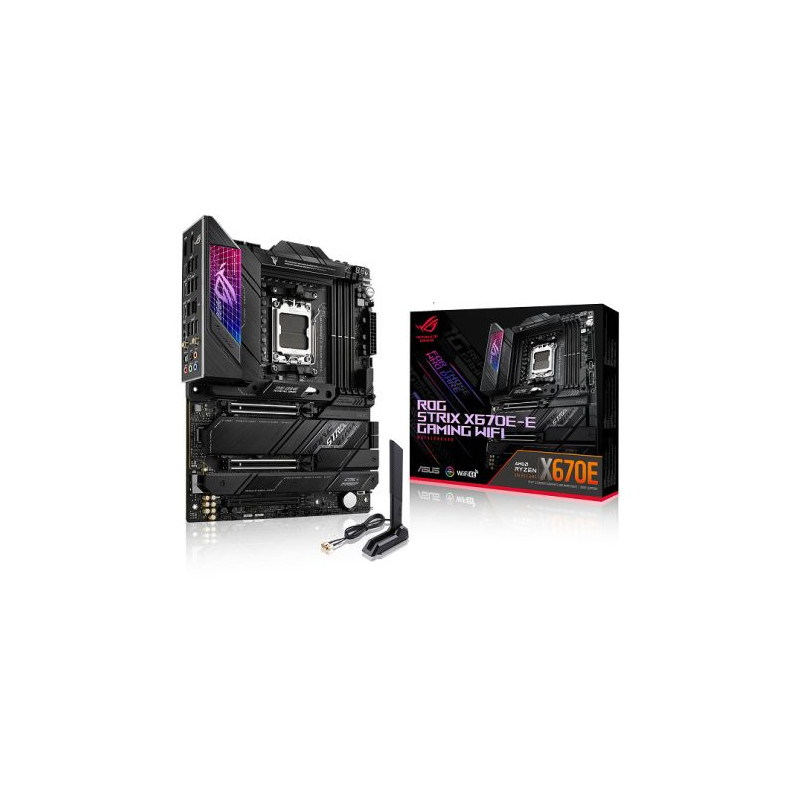

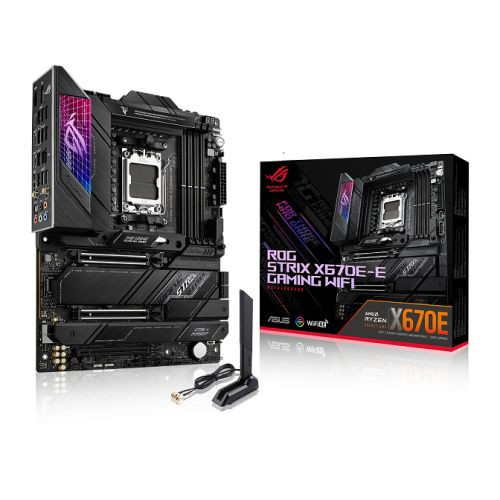

Accessories

2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Massive PCIe 5.0 M.2 Bundled Heatsink
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x ROG key chain
1 x ROG Strix sticker

1 x ROG Strix thank you card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

3.0000 kg

Warranty

3 Years
