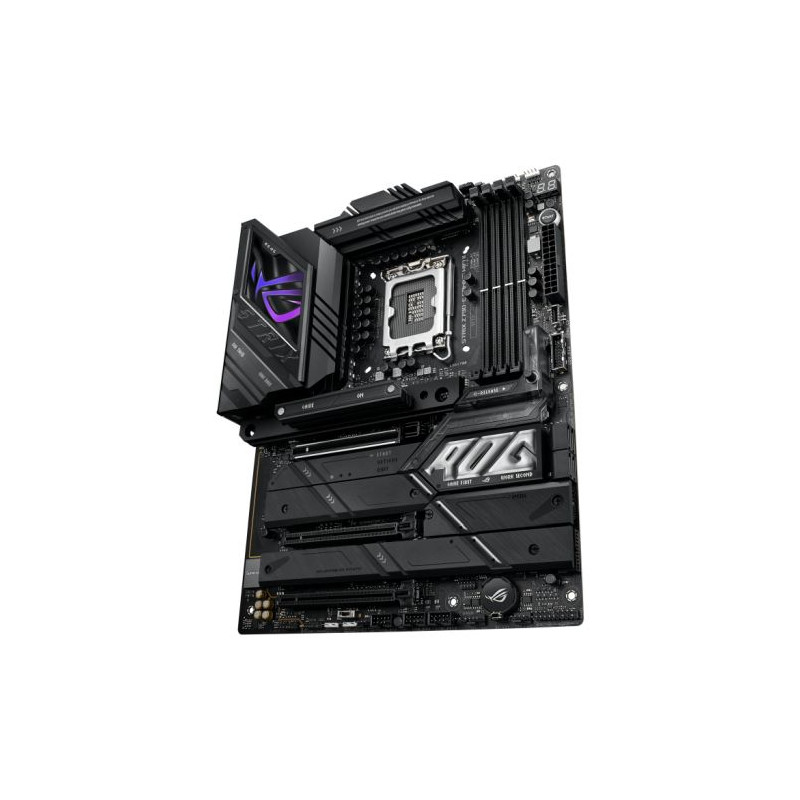

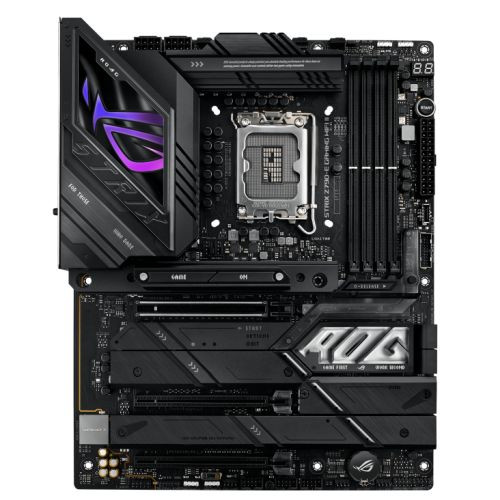

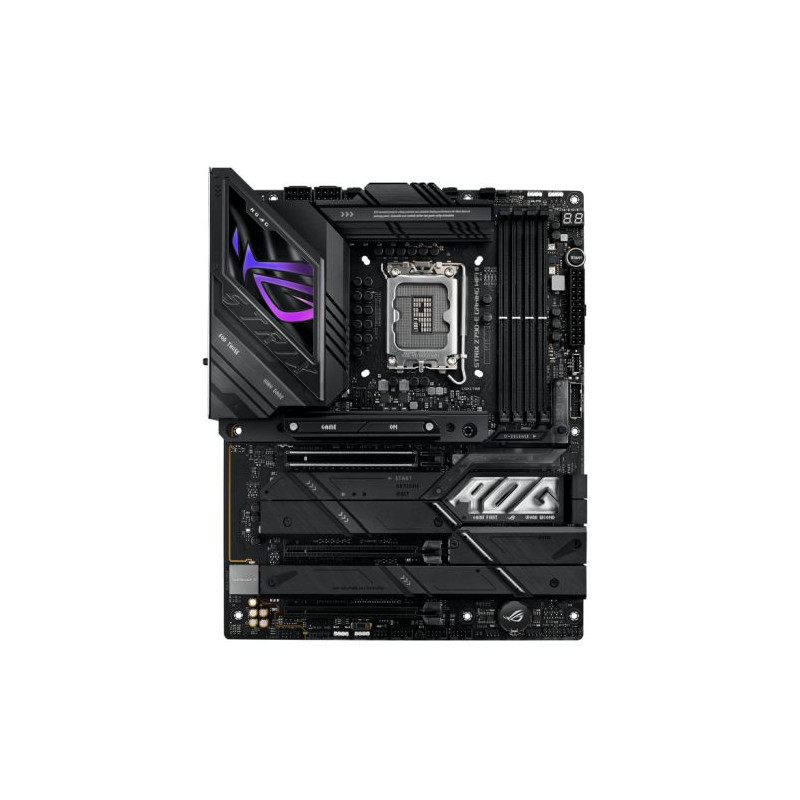

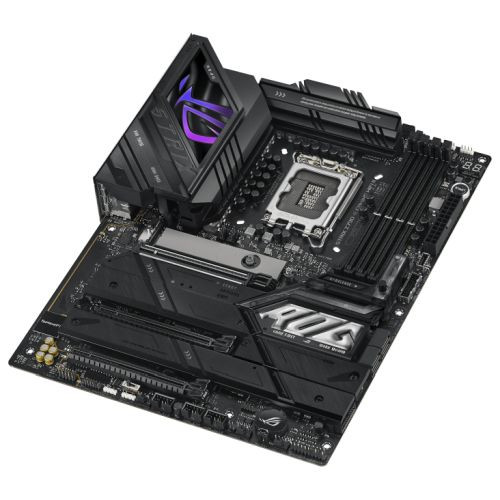

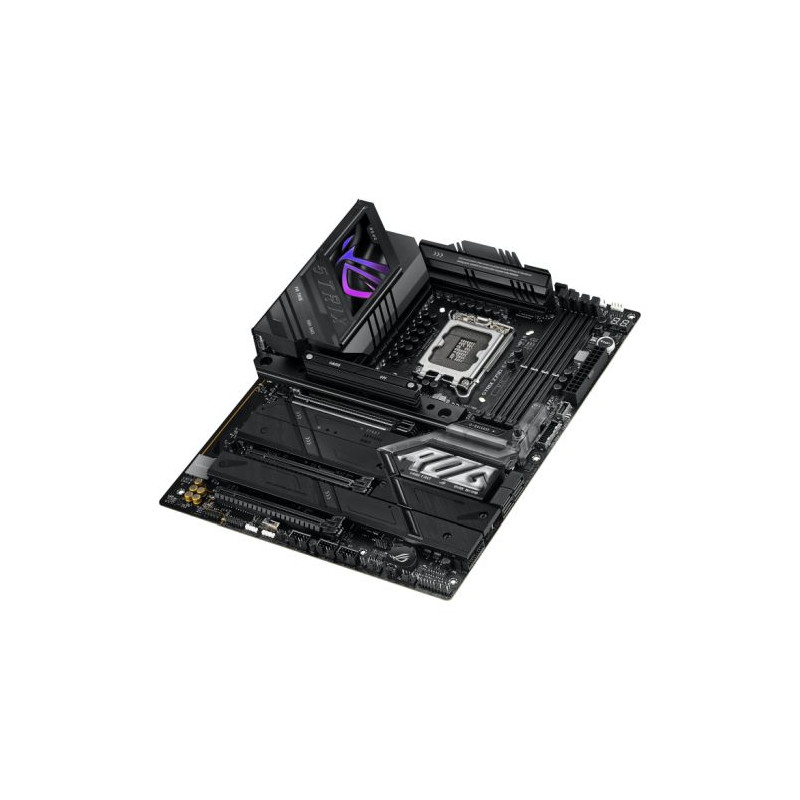

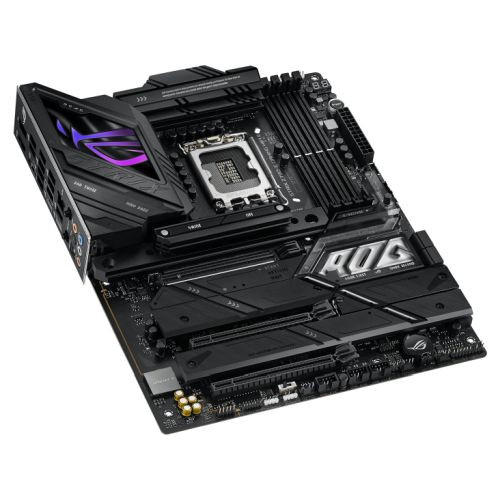

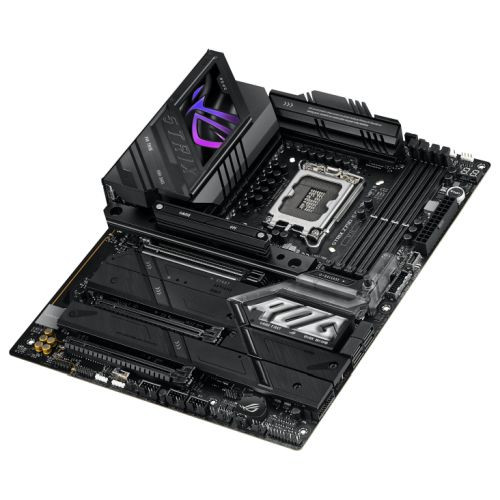

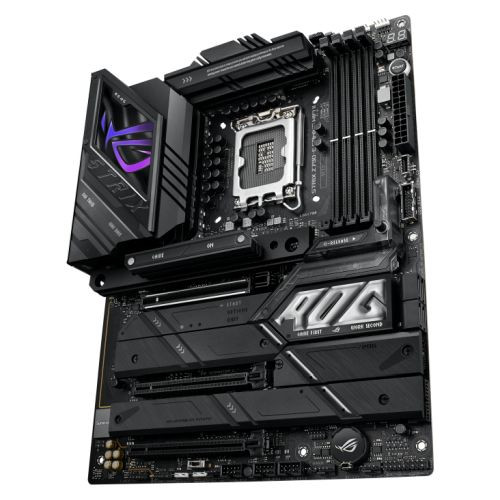

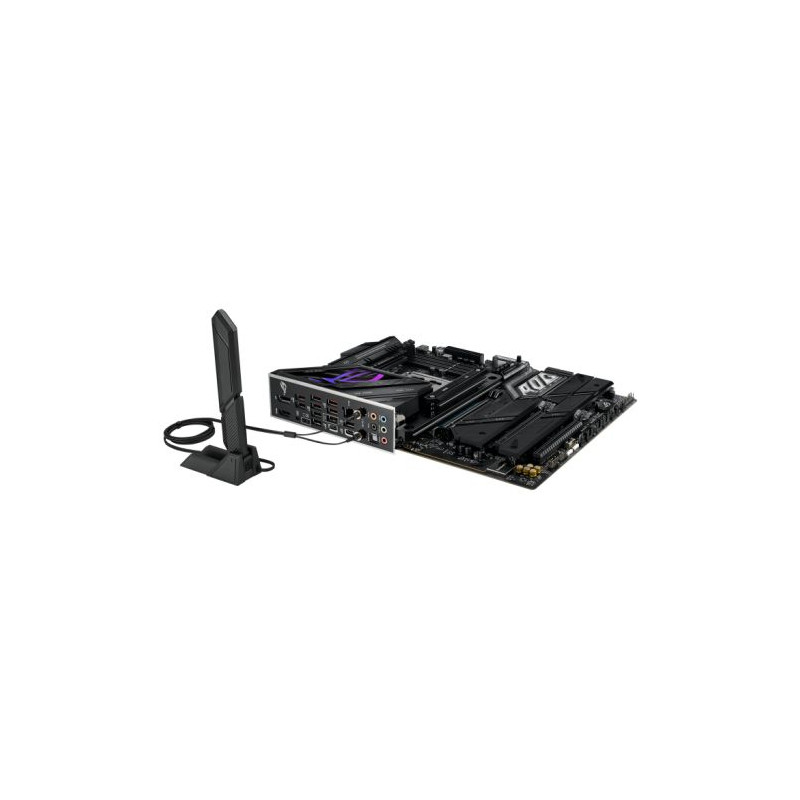

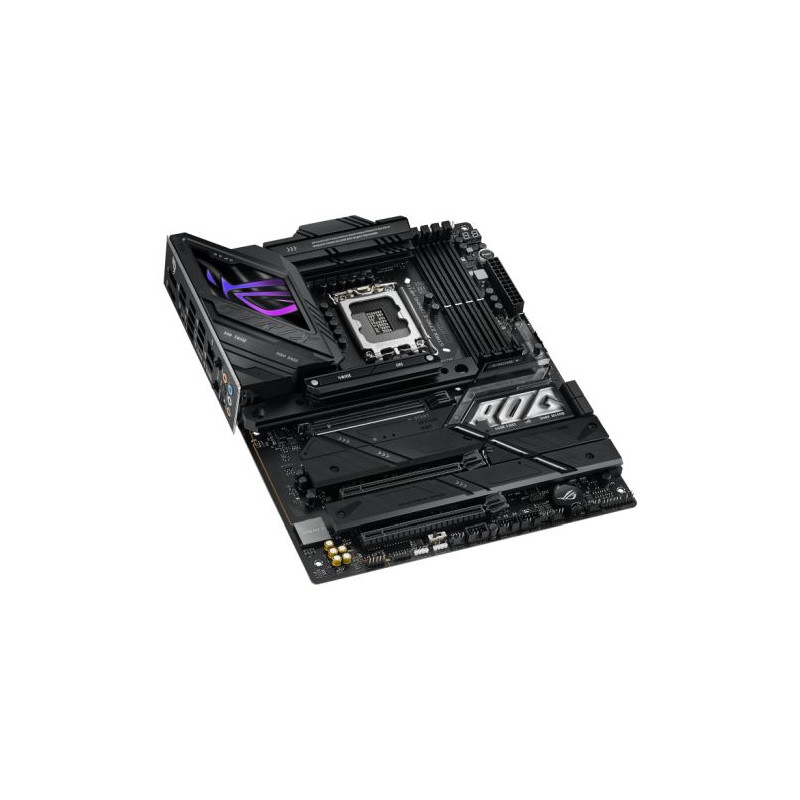

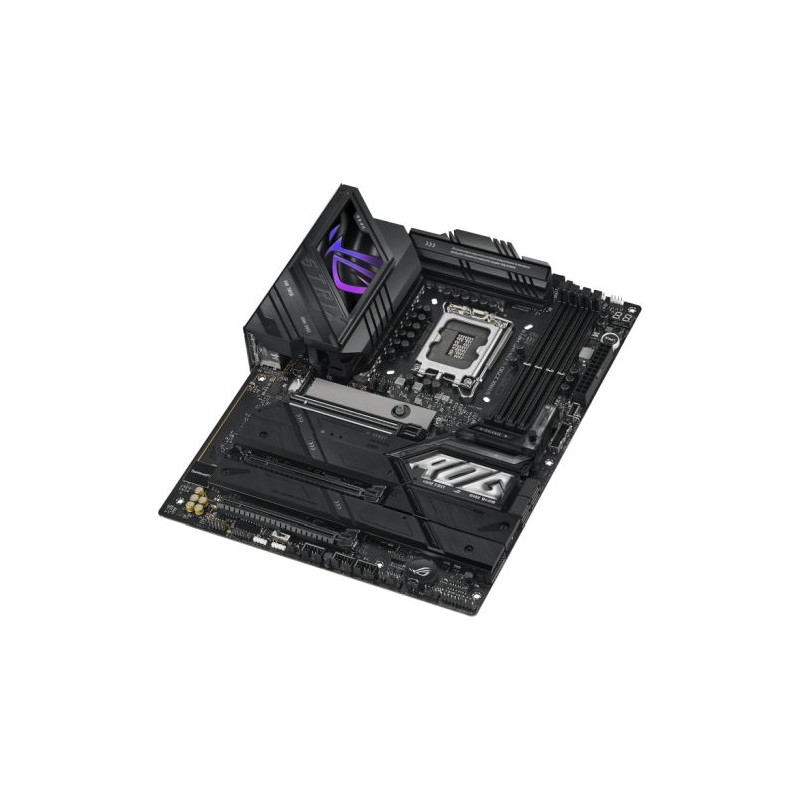

Asus ROG STRIX Z790-E GAMING WIFI II, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, PCIe5, RGB, 5x M.2

Condition: New product

21 Item Items Warning: Last items in stock!

£ 620.99

Quantity

Data sheet

Manufacturer Number:	90MB1FC0-M0EAY0
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel Z790

CPU Support

Click here for CPU support

RAM Technology

DDR5, Dual Channel
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
OptiMem II

RAM Slots

4 x DIMM

RAM Speeds

Up to 8000+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16 (support x16 mode)
2 x PCIe 4.0 x16 (support x4 mode)

Storage

4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - SATA and PCIe 4.0 x4

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

Wireless

Intel Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth v5.4

LAN

2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

USB Ports Supported

Rear:
1 x USB 20Gbps Type-C
11 x USB 10Gbps (10 Type-A, 1 Type-C)

Front:
1 x USB 20Gbps Type-C with up to 30W PD Fast-charge
4 x USB 5Gbps
6 x USB 2.0

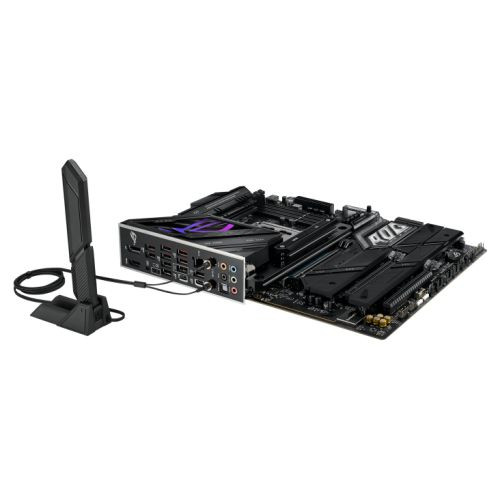

Back Panel I/O Ports

1 x USB 20Gbps Type-C
11 x USB 10Gbps (10 Type-A, 1 Type-C)
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
5 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
5 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 20Gbps Type-C (30W PD Fast-charge)
2 x USB 5Gbps
3 x USB 2.0
3 x Addressable Gen2

1 x Alternation PCIe Mode Switch
1 x AURA RGB
1 x CPU over voltage jumper
1 x Front panel audio
1 x Start button
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt (USB4)

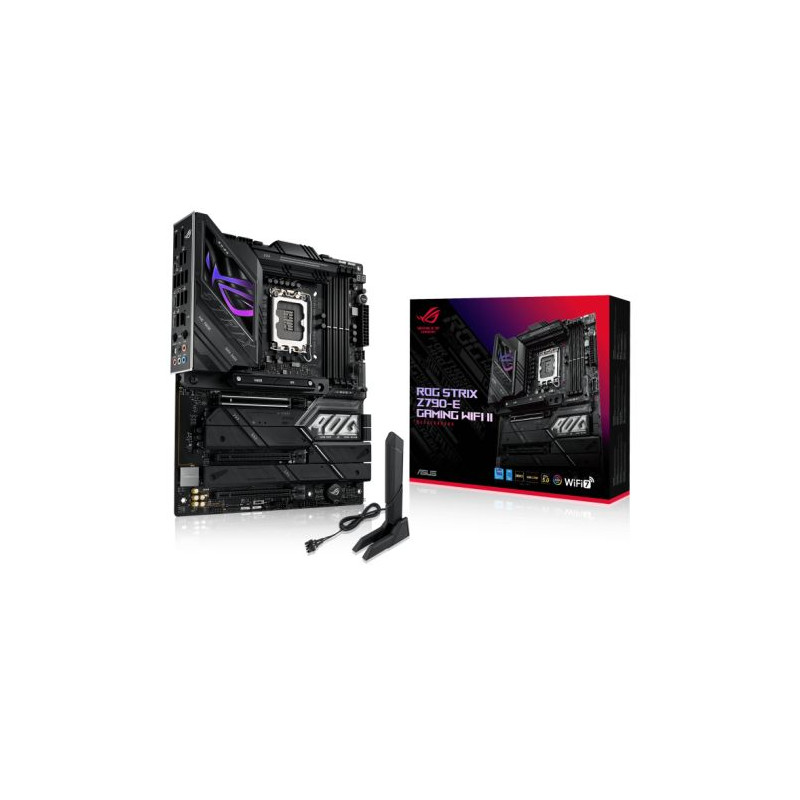

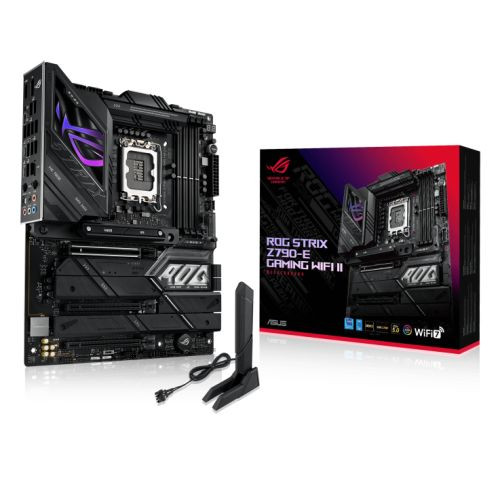

Accessories

2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber Package

Additional Features

See Overview

Package Type

Retail

Package Weight

2.8000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
