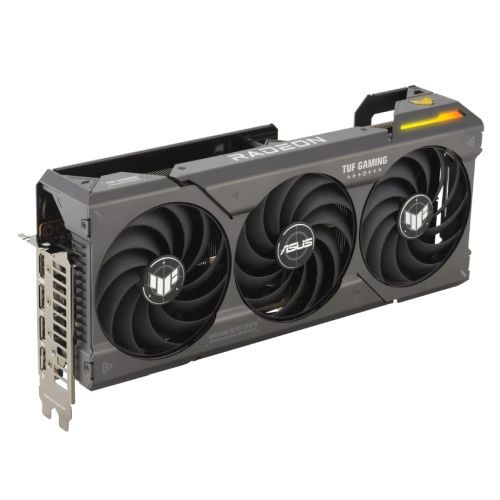

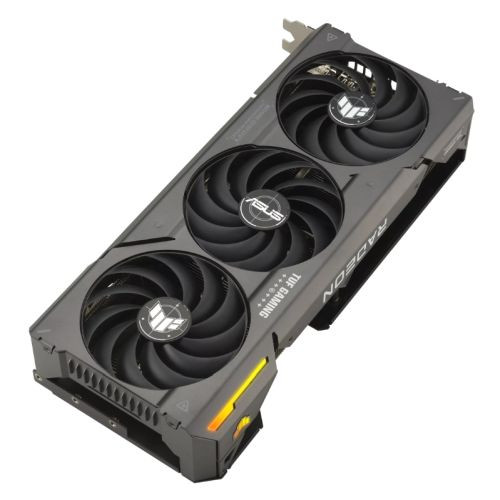

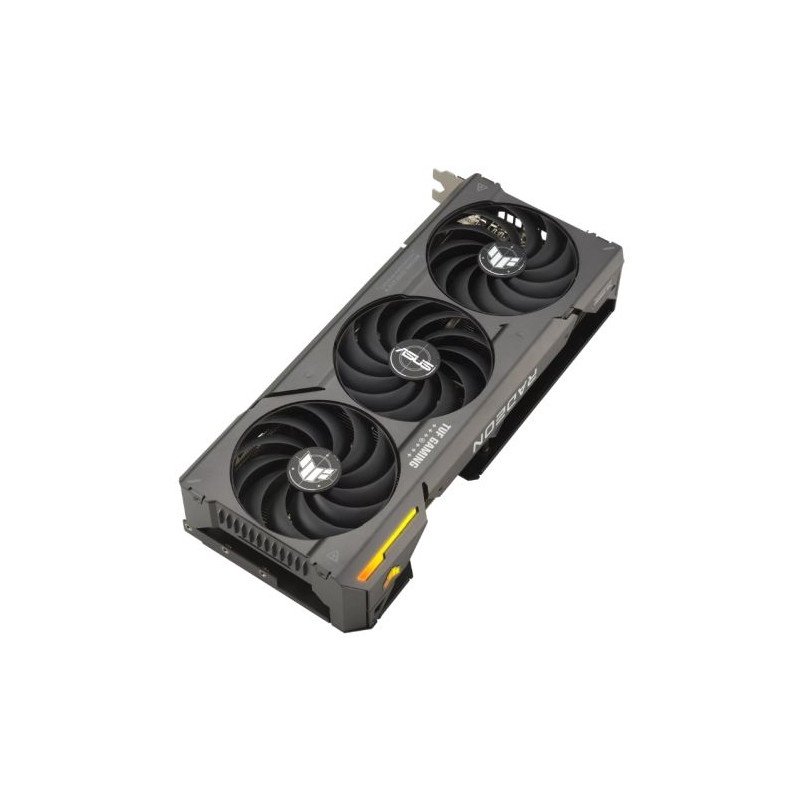

Asus TUF GAMING RX7800 XT OC, PCIe4, 16GB DDR6, HDMI, 3 DP, RGB, Overclocked

Condition: New product

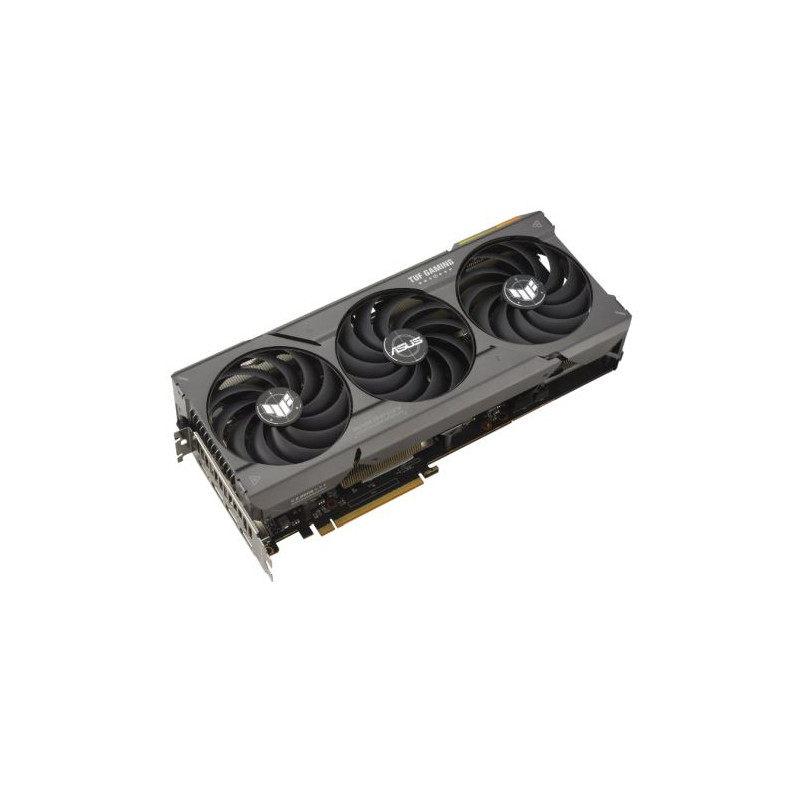

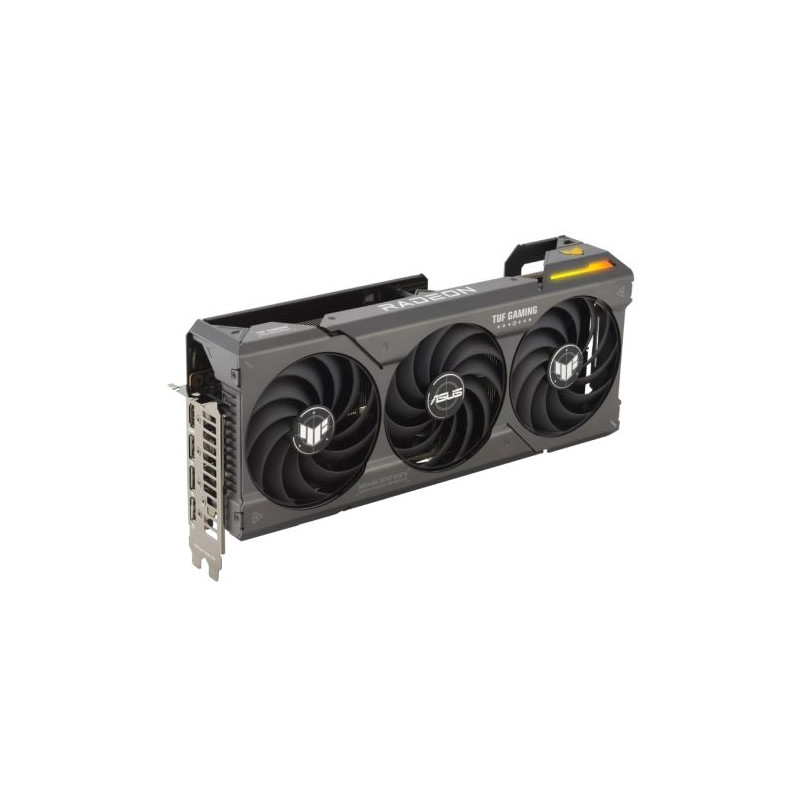

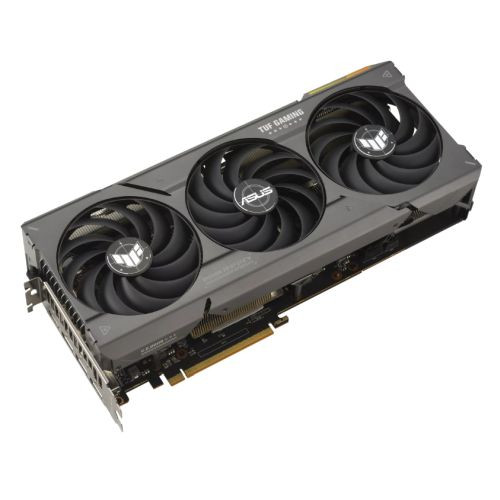

ASUS TUF Gaming Radeon™ RX 7800 XT OC Edition 16GB GDDR6 optimized inside and out for lower temps and durability.

Axial-tech fans scaled up to deliver 24% more airflow
Dual ball fan bearings last up to twice as long as conventional designs
Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Flyin’ TUF

The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond,

and backed with an arsenal of rugged reinforcements to cover your six.

Lock, load, and dominate with the TUF Gaming Radeon™ RX 7800 XT.

Axial-Tech Upgrades

Air Superiority

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 24% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

New Direction

Well-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

2.96-Slot Design

Phase That Blaze

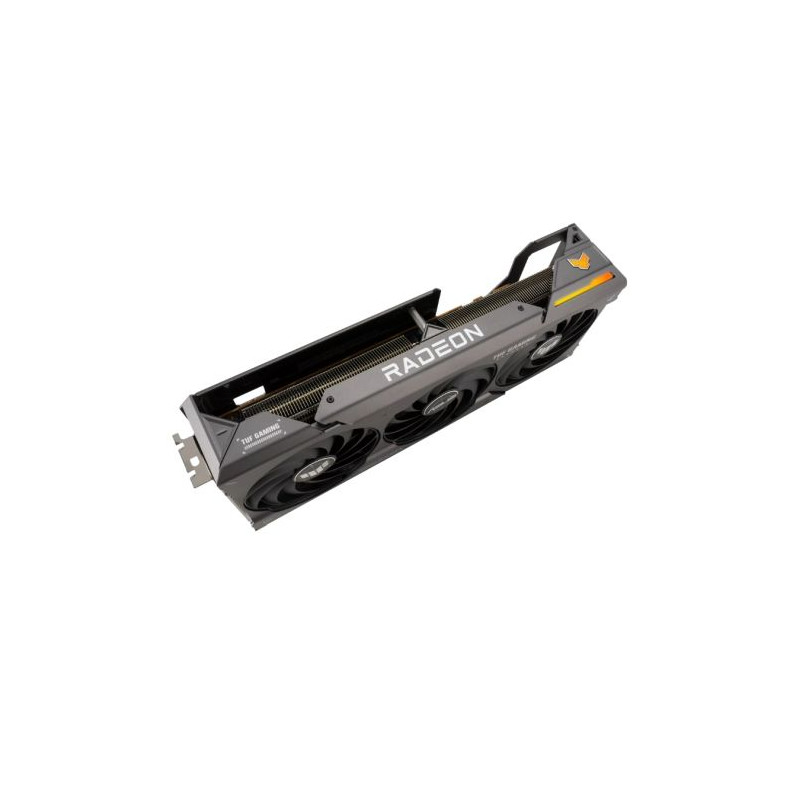

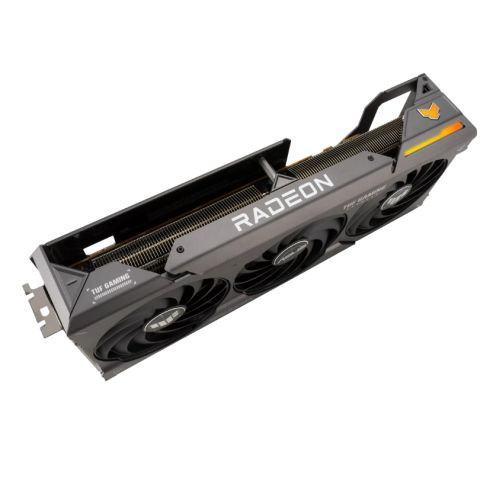

A generously sized heatsink efficiently soaks up heat from the AMD Radeon™ RX 7800 XT GPU, allowing it to be whisked away by the three Axial-tech fans.

Military-Grade 20K Capacitors

Resilient Squadron

A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

Metal Exoskeleton

Suit Up

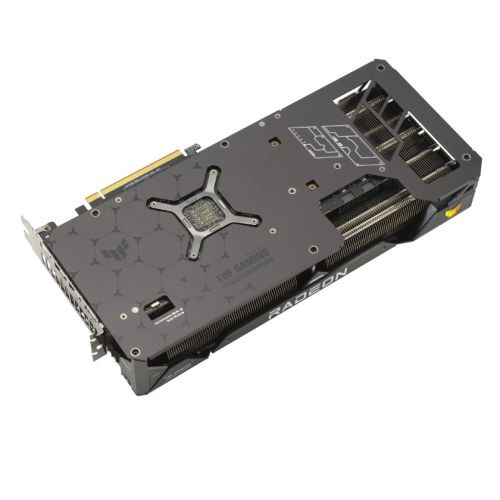

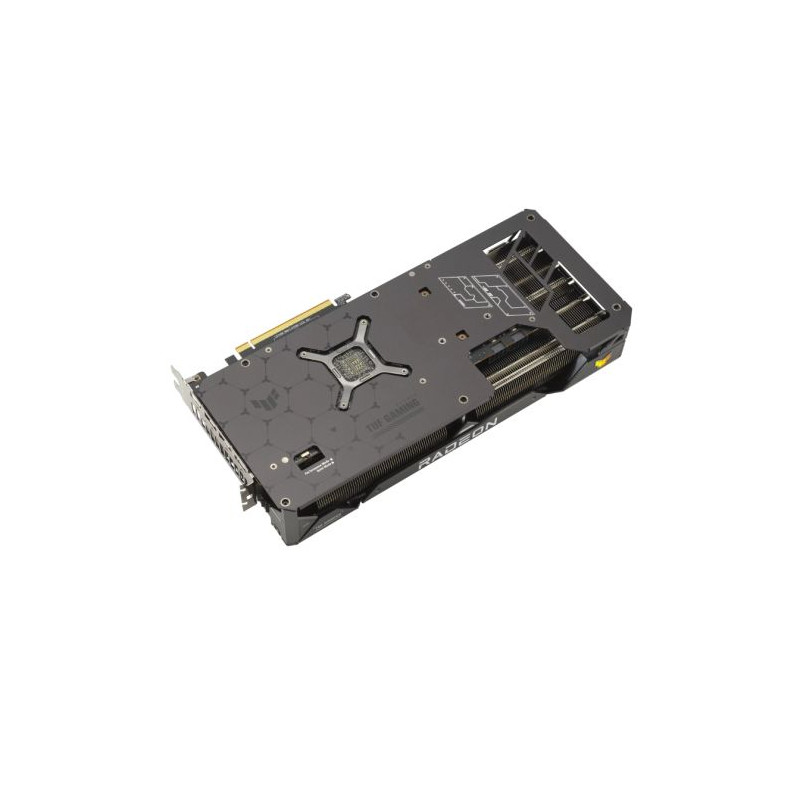

An aluminum shroud and backplate prevent PCB flex and feature large vents to further increase heat dissipation.

Auto-Extreme Technology

Reliability Boost

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Aura Sync

Light ‘em Up!

Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

Graphics Card Holder

Pillar of Support

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

GPU Tweak III

Monitor, tweak, and tune

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud

Profit from GPU power

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!

AMD Software

Change the way you game

The latest AMD Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.

155 Item Items Warning: Last items in stock!

£ 683.67

Quantity

Data sheet

Manufacturer Number:	90YV0JJ0-M0NA00
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Chipset Manufacturer

AMD

Interface

PCI Express 4.0

Graphics Chipset

AMD RX 7800 XT

Memory Size

16GB

Memory Type

DDR6

Memory Interface

256-bit

Core Clock

OC mode:
Up to 2565 MHz (Boost Clock)
Up to 2254 MHz (Game Clock)

Default mode:
Up to 2520 MHz (Boost Clock)
Up to 2213 MHz (Game Clock)

Memory Clock

19.5 Gbps

CUDA Cores / Stream Processors

3840 Stream Processors

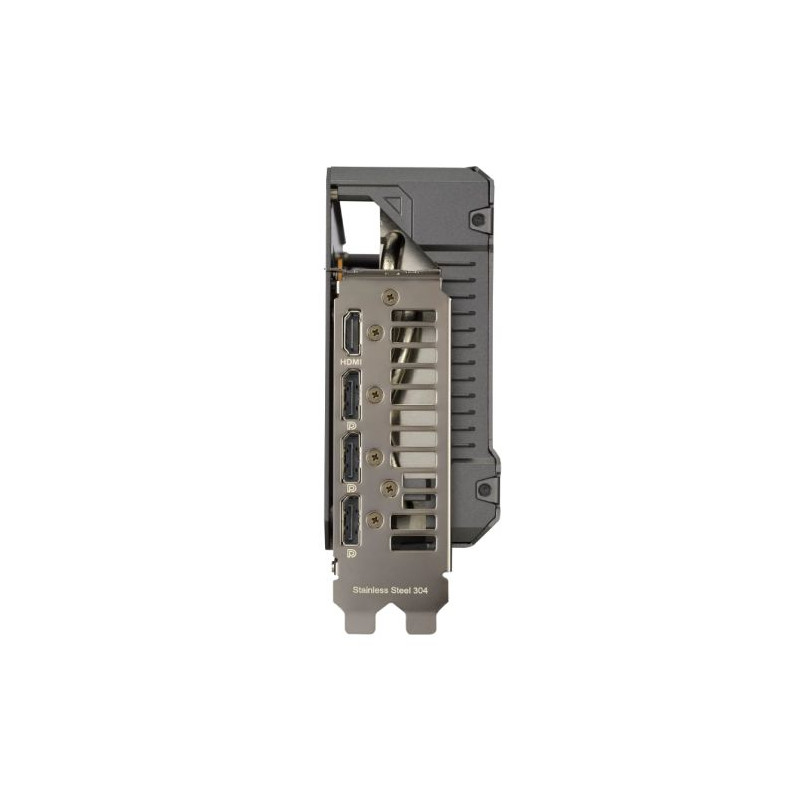

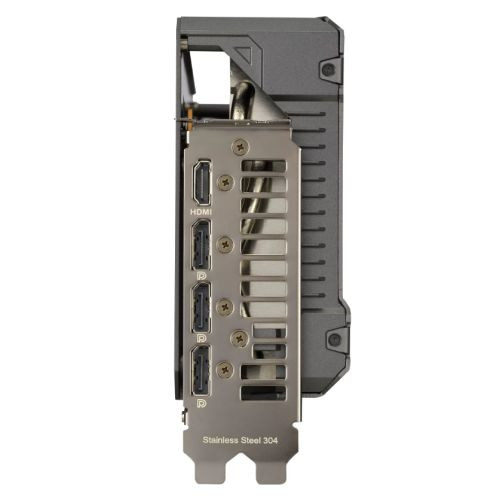

Outputs

1 x HDMI
3 x DisplayPort

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Axial-tech fans
Dual ball fan bearings
Vented Exoskeleton
Massive Heatsinks

PSU Requirements

750W or greater recommended

Connectors Required

2 x 8-pin PCIe Power

Software

ASUS GPU Tweak III and Drivers

Additional Features

See Overview

Dimensions

319.8 x 150.9 x 59.2 mm

Slot Size

2.96 Slot

Accessories

1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook and Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual

Package Type

Retail

Package Weight

2.3000 kg

Warranty

3 Years
