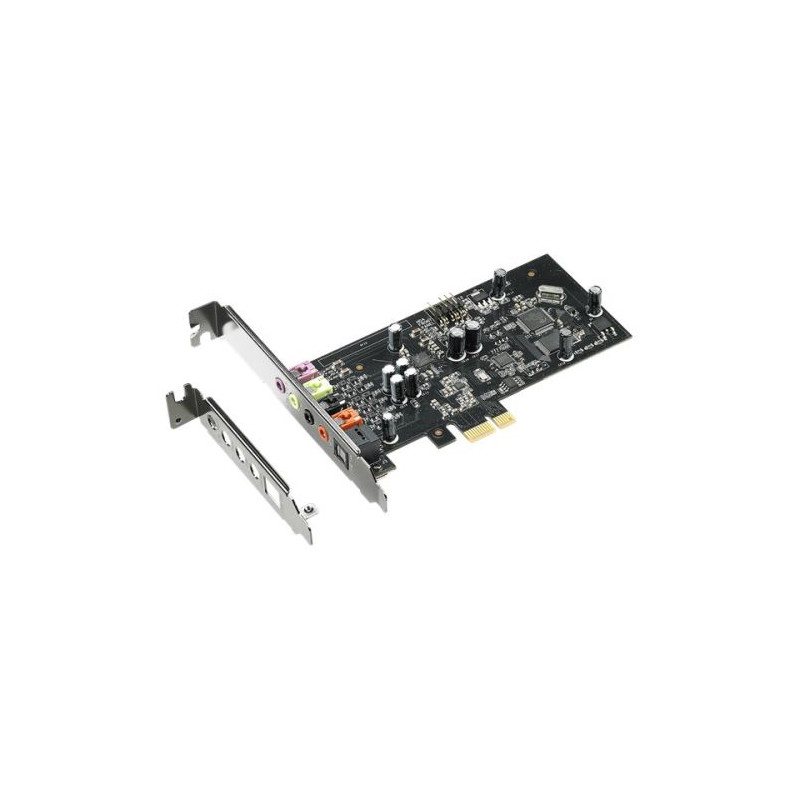

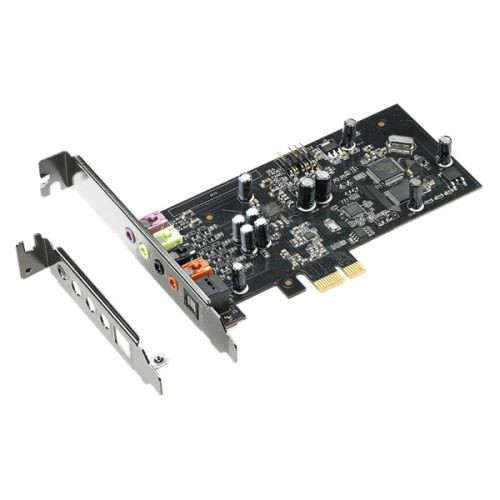

Asus XONAR SE 5.1 Gaming Soundcard, PCIe, Hi-Res Audio, 300ohm, 116dB SNR, Headphone Amp

Condition: New product

45 Item Items Warning: Last items in stock!

£ 47.83

Quantity

Data sheet

Manufacturer Number:	90YA00T0-M0UA00
Manufacturer:	ASUS
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Internal/External

Internal

Interface

PCI Express

Channels

5.1

Inputs/Outputs

Analog Output
3 x 3.5 mm jack (1/8") (Front out/Side out/Rear out)

Analog Input
1 x 3.5 mm jack (1/8") (Line-in/Mic-in)

Digital
1 x S/PDIF out (1 x Optical (Toslink))
1 x Front-Panel Header

Chipset

C-Media USB2.0 6620A High-Definition Sound Processor (Max. 192KHz/24bit)

Signal-to-Noise Ratio

Output (A-Weighted) (Front-out): 116 dB

Input (A-Weighted): 110 dB

Frequency Response

10 Hz to 87 KHz (-3dB, 24bit/192KHz input)

Sample Rate and Resolution

Analog Playback:
44.1K/48K/96K/192KHz @ 16bit/24bit

Analog Recording:
44.1K/48K/96K/192KHz @ 16bit/24bit

S/PDIF Digital Output:
44.1K/48K/96K/192KHz @ 16bit/24bit

ASIO 2.2 Driver Support:
44.1K/48K/96K/192KHz @ 16bit/24bit

Additional Features

See Overview

Software
