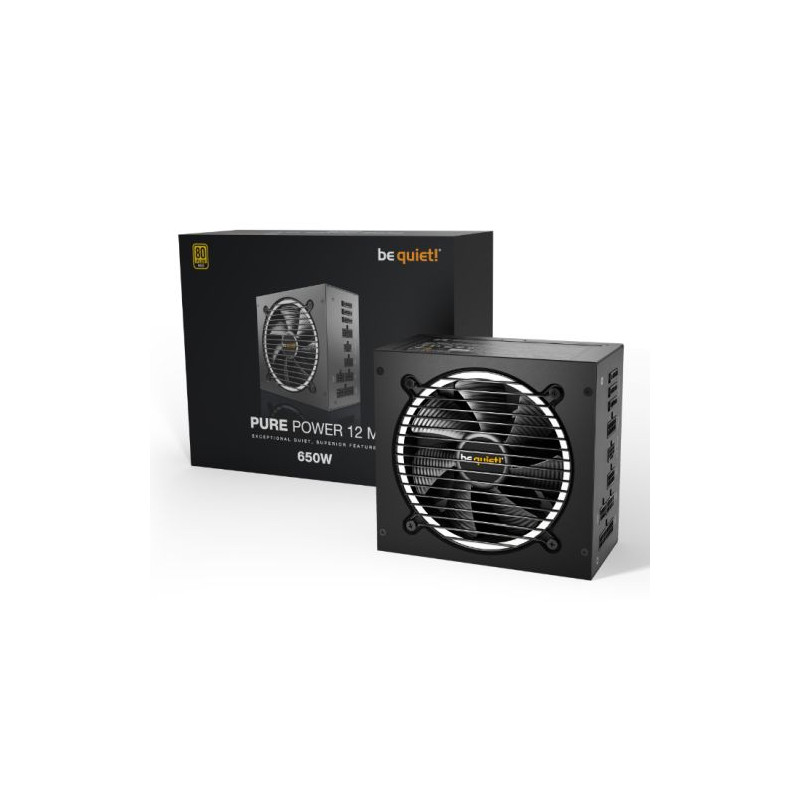

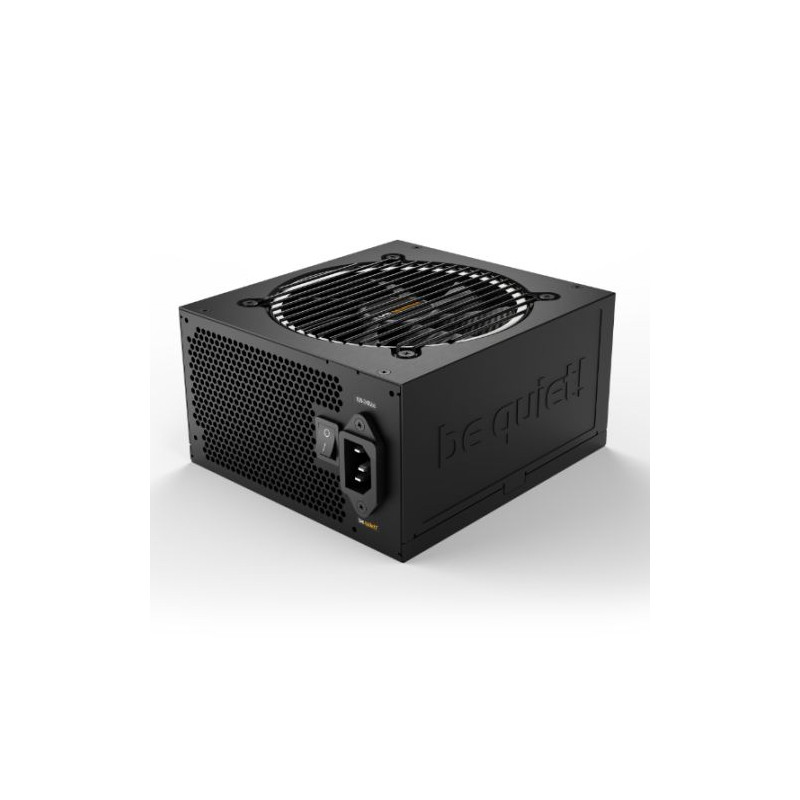

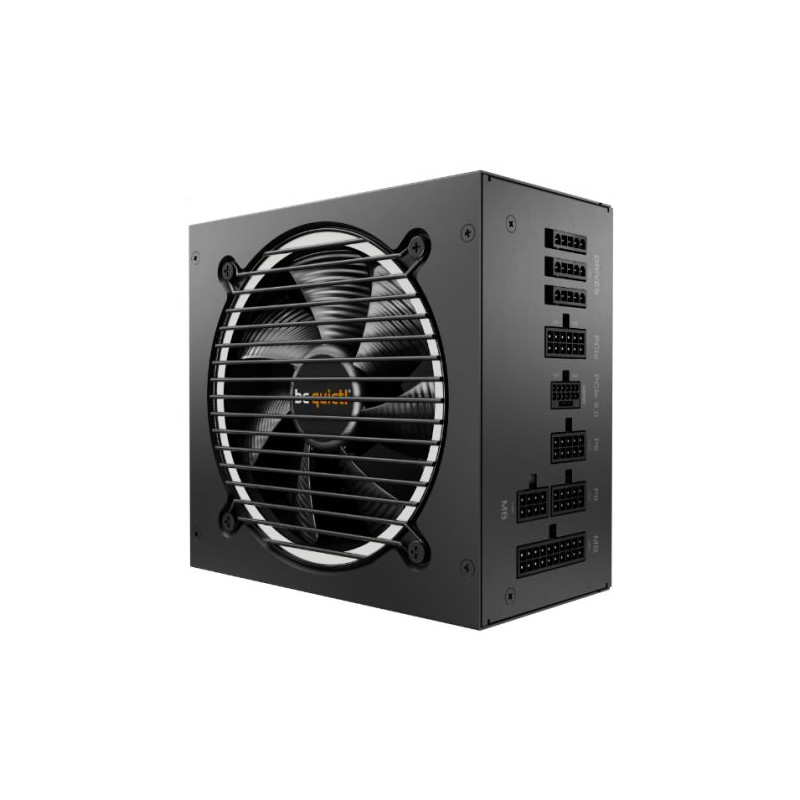

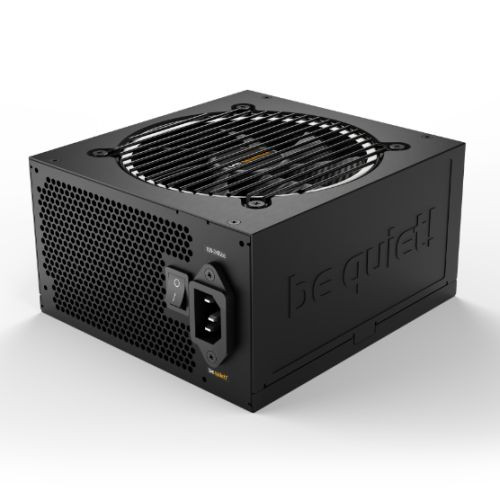

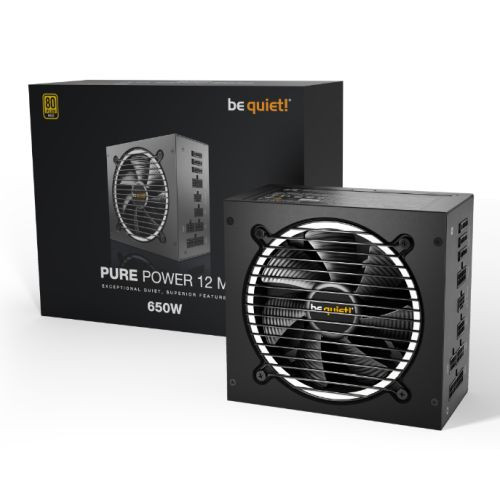

Be Quiet! 650W Pure Power 12 M PSU, Fully Modular, Rifle Bearing Fan, 80+ Gold, ATX 3.0, PCIe 5.0, Dual Rail

Condition: New product

Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.

80 PLUS® Gold efficiency (up to 92.7%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Exceptionally silent 120mm be quiet! fan
Advanced stability and voltage regulation thanks to LLC technology
2 strong 12V-rails
Modular cables for maximum build flexibility
One PCIe 5.0 12VHPWR 450W and 2 PCIe 6+2 connectors for high-end GPUs
10-year manufacturer’s warranty

80 PLUS® Gold Certified

Very high operating efficiency

Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!

Future-Proof Your System

Fulfills all ATX 3.0 specifications

Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.

The New Standard of Power

For massive transient loads

Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

Unprecedented Silent Operation

Achieved with a silence-optimized be quiet! fan

The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class

quiet functionality.

High-Class Technologies

Rock-solid stability

With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

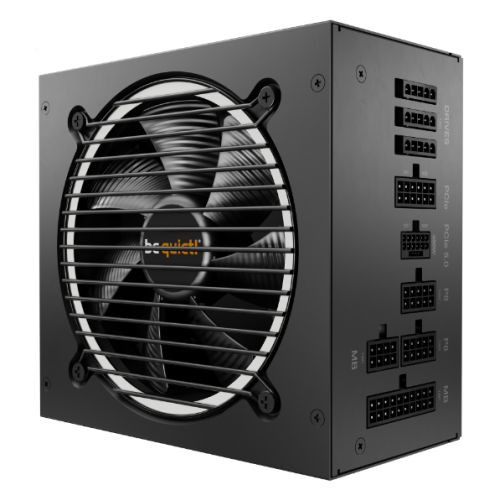

Modular Cables

Utmost convenience and compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

10 Item Items Warning: Last items in stock!

£ 111.49

Quantity

Data sheet

Manufacturer:	BEQUIET
Manufacturer Number:	BN342
Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

ATX

Series

Be Quiet! Pure Power 12 M

Wattage

650 W

Modular

Fully Modular

Compatibility

ATX 3.0
EPS 12Vv2.92

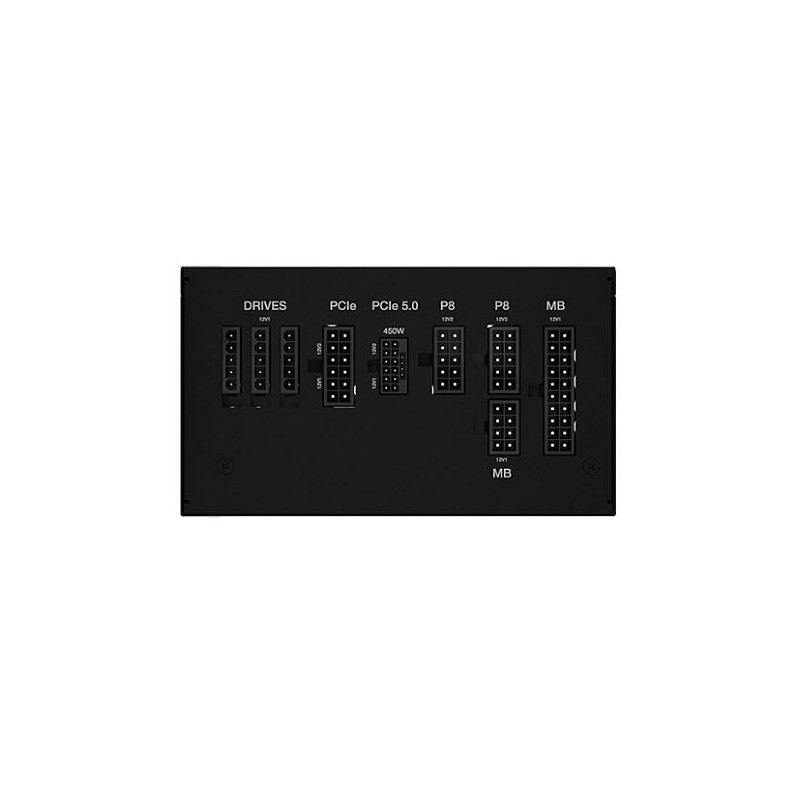

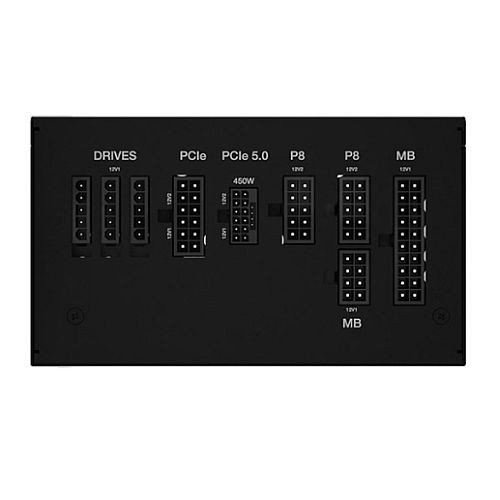

Connectors

1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P8 (CPU)
1 / 450 x 12VHPWR cable / W
2 x PCI-e 6+2-pin (GPU)
5 x SATA
2 x PATA

Rail Design

2 strong 12V-rails

AC Input

AC 100-240 V

Fan Type

120mm silence-optimized be quiet! fan

Fan Bearing

Rifle Bearing

Noise

dB(A) at 10% load: 8.1
dB(A) at 20% load: 8.2
dB(A) at 50% load: 9.1
dB(A) at 100% load: 19.9

80+ Certification

80+ Gold

Efficiency

230V, 2% load: 73.3%
230V, 10% load: 86.4%
230V, 20% load: 90.0%
230V, 50% load: 92.7%
230V, 100% load: 90.5%

MTBF

100,000 hours

Protection

Over temperature protection
Over current protection
Over power protection
Short circuit protection
Over Voltage protection
Under Voltage protection
Surge and Inrush Protection

Additional Features

See Overview / Videos

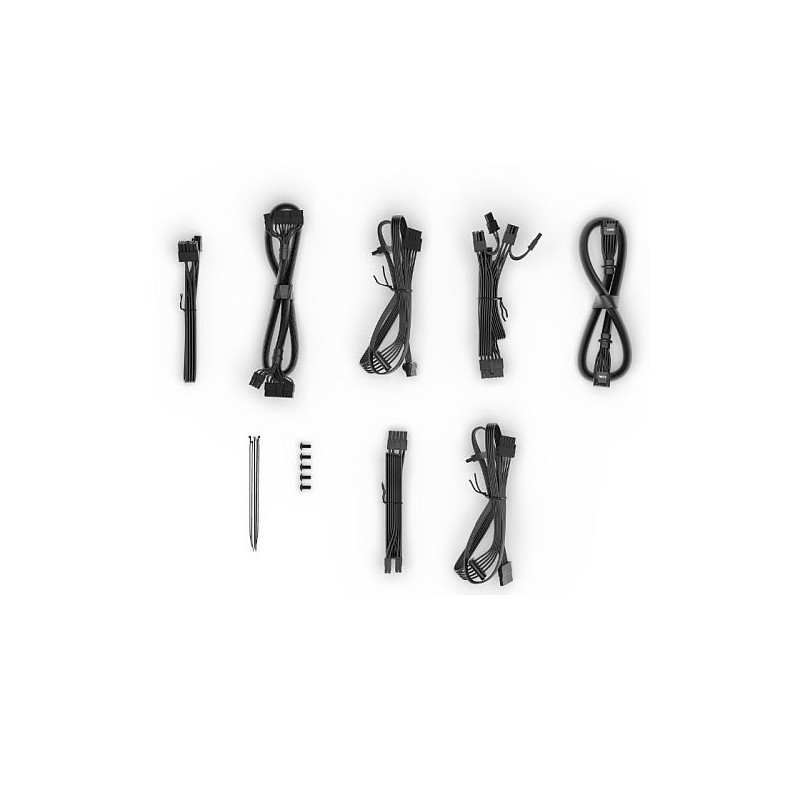

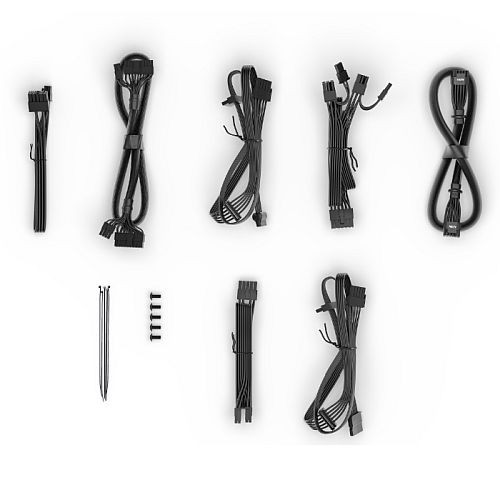

Package Contents

Power Supply
Cables
Screws
Cable ties
User manual

Weight/Dimensions

1.55 kg
(LxWxD) 160 x 150 x 86 mm

Package Weight

2.9500 kg

Warranty

10 Years

Full Box Quantity

Manufacturer Link
