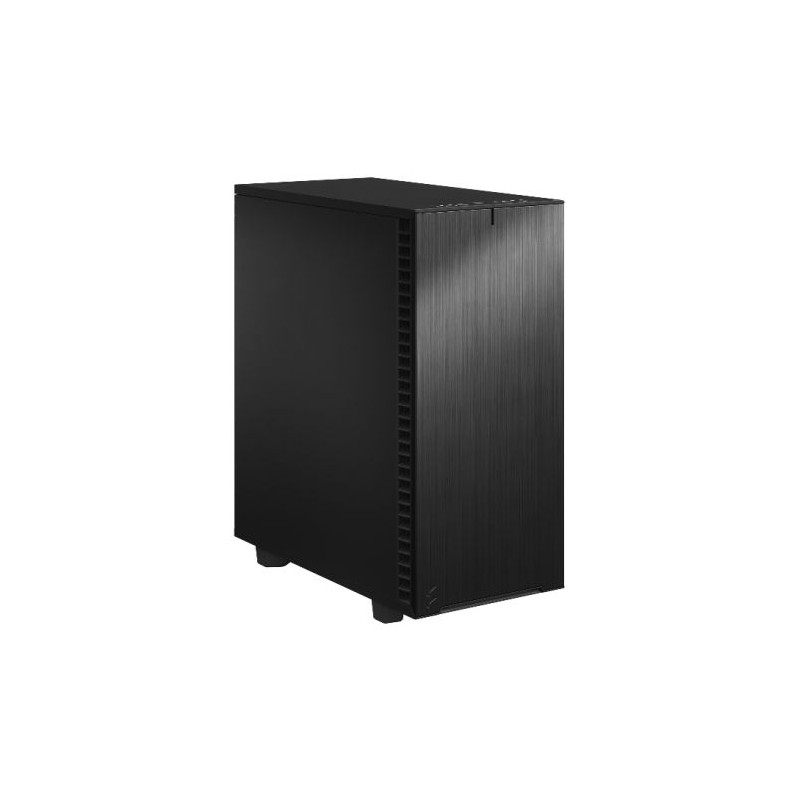

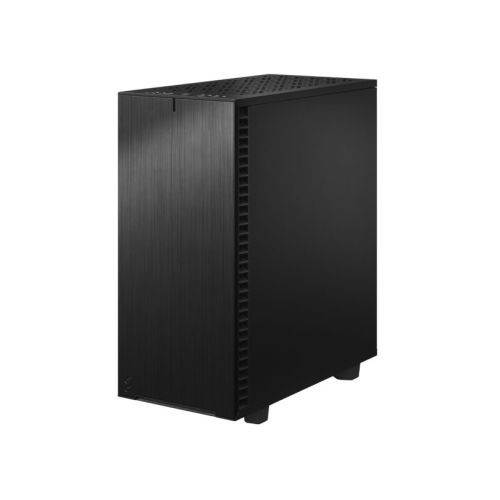

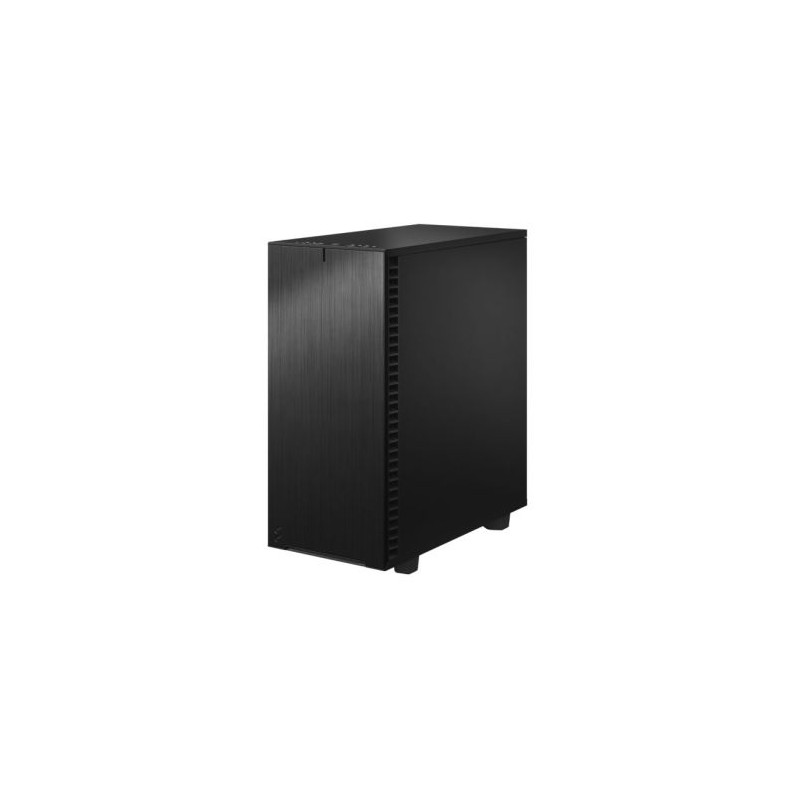

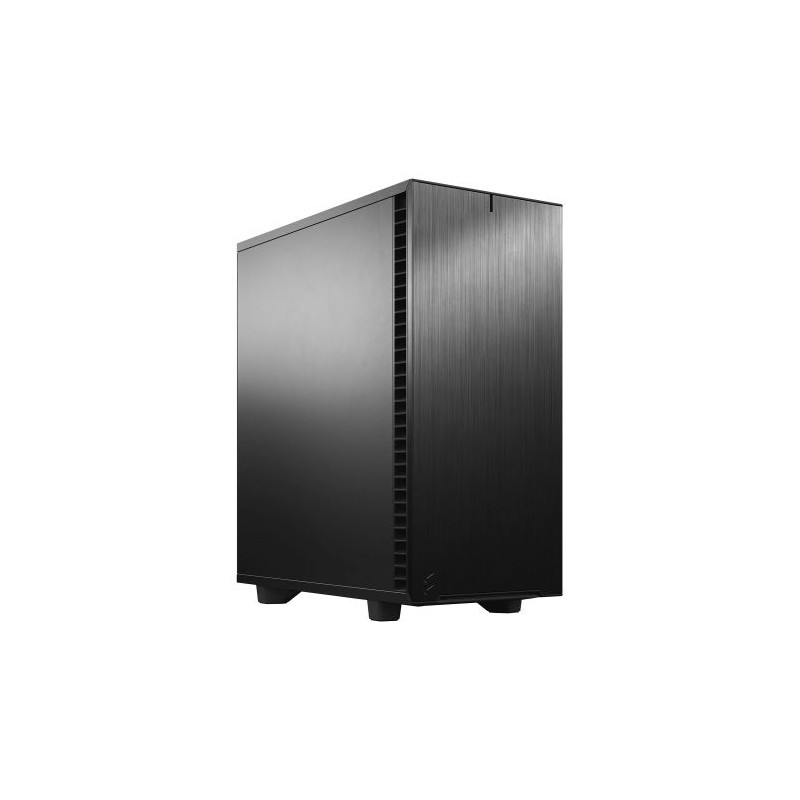

Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C

Condition: New product

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

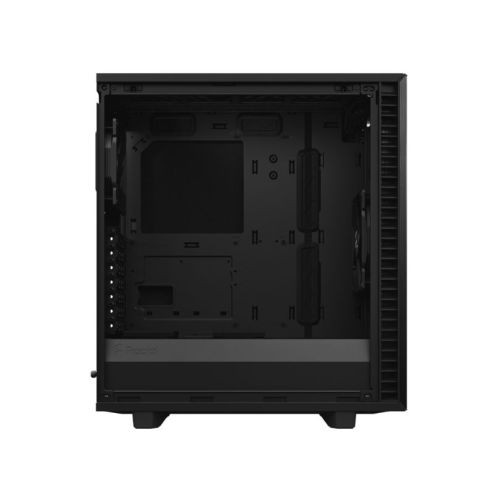

Compact yet spacious interior accommodates ATX, mATX and mITX motherboards
Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
Support for two 2.5”/3.5” drives plus up to four SSDs (two SSD brackets included)

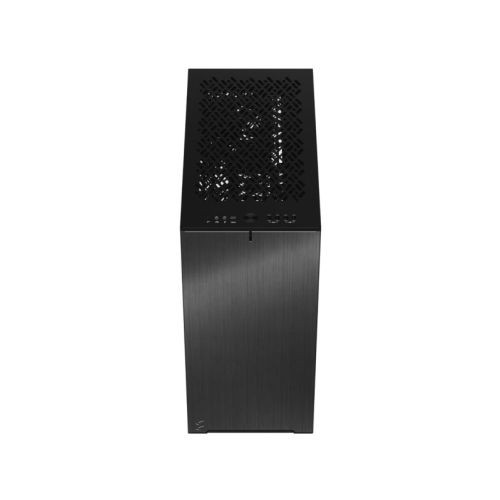

Top panel effortlessly swaps from solid steel to filtered ventilation

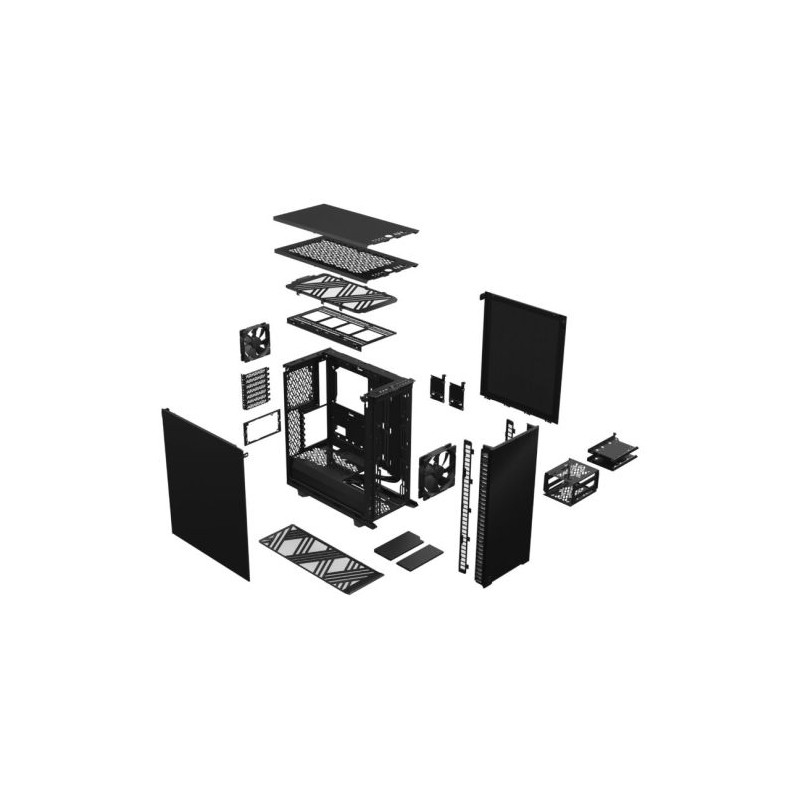

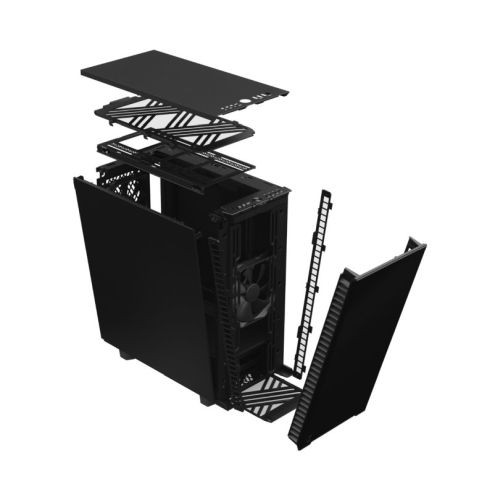

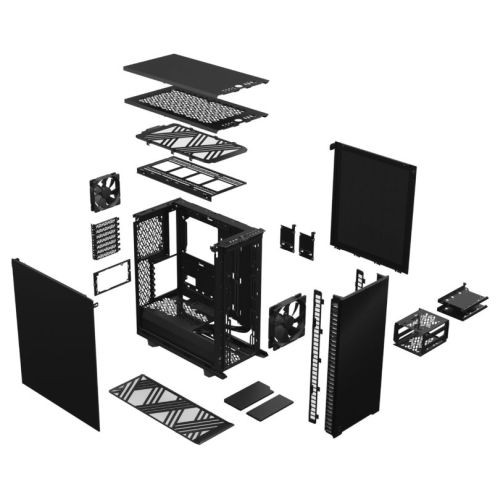

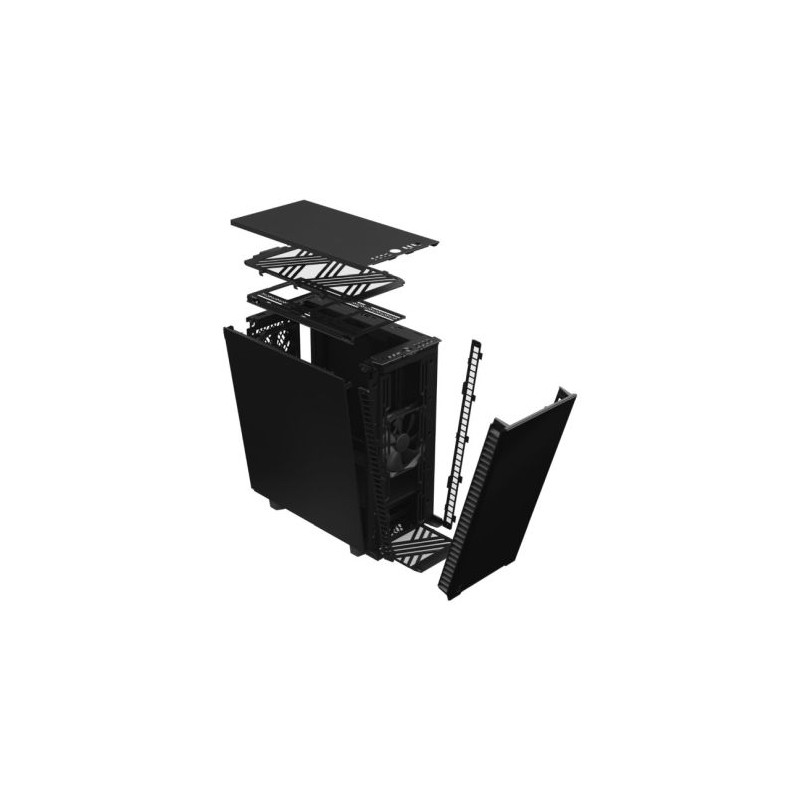

New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
Silence-optimized construction with industrial sound-damped front, top, and side panels

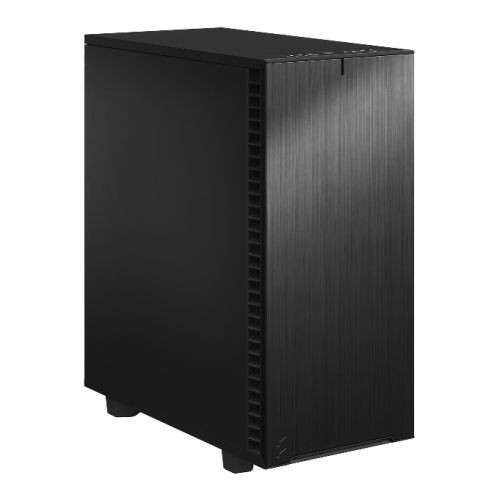

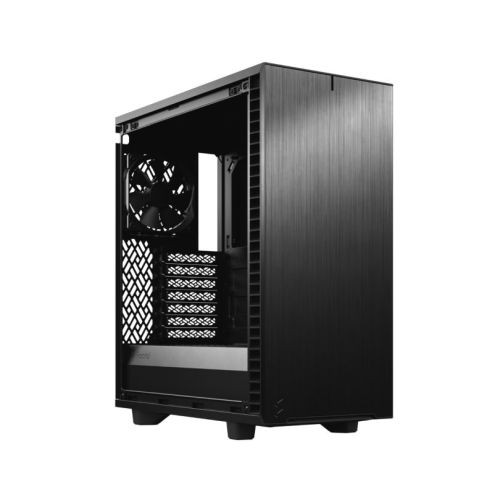

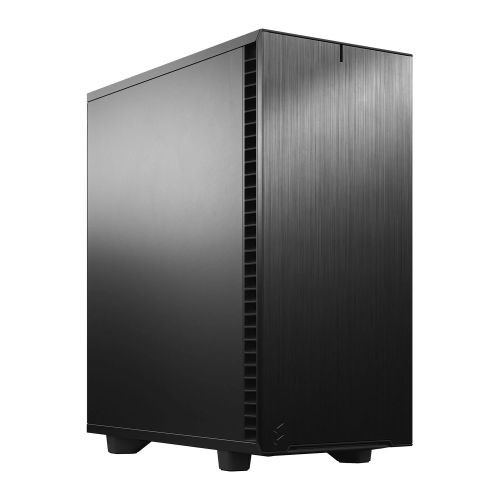

Brushed aluminum front and top-latching side panels offer a clean sophisticated look
Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included)

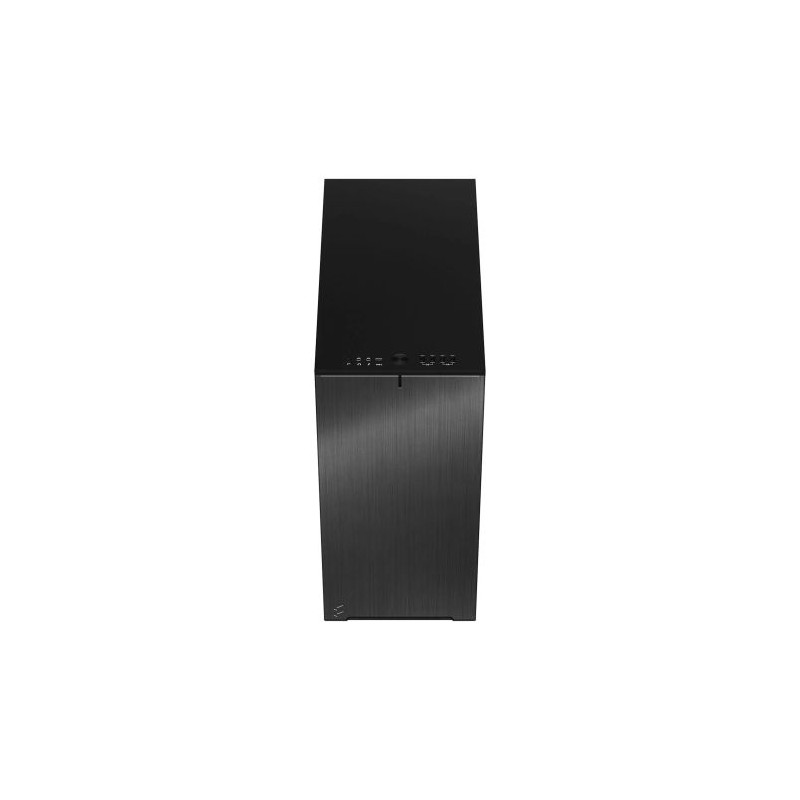

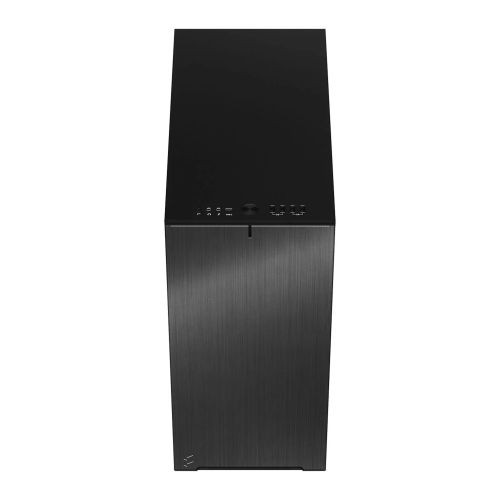

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps

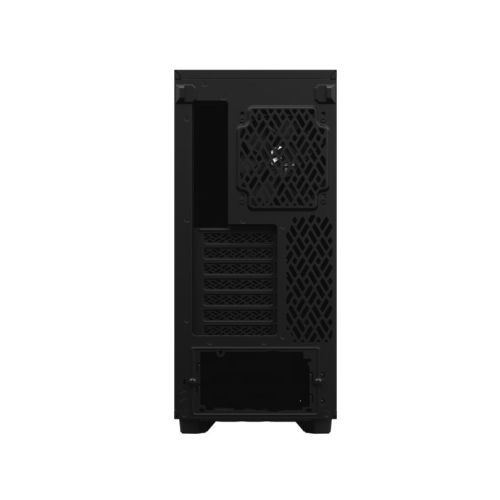

Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup

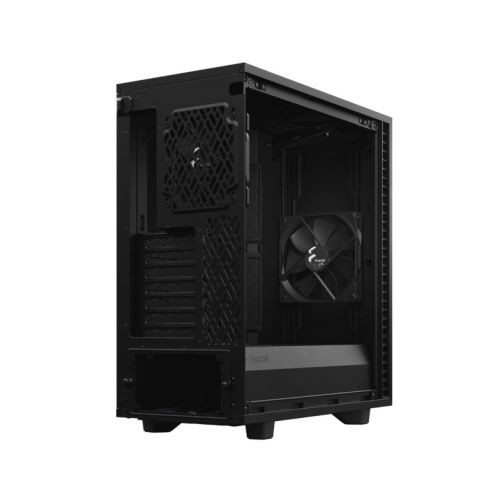

Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

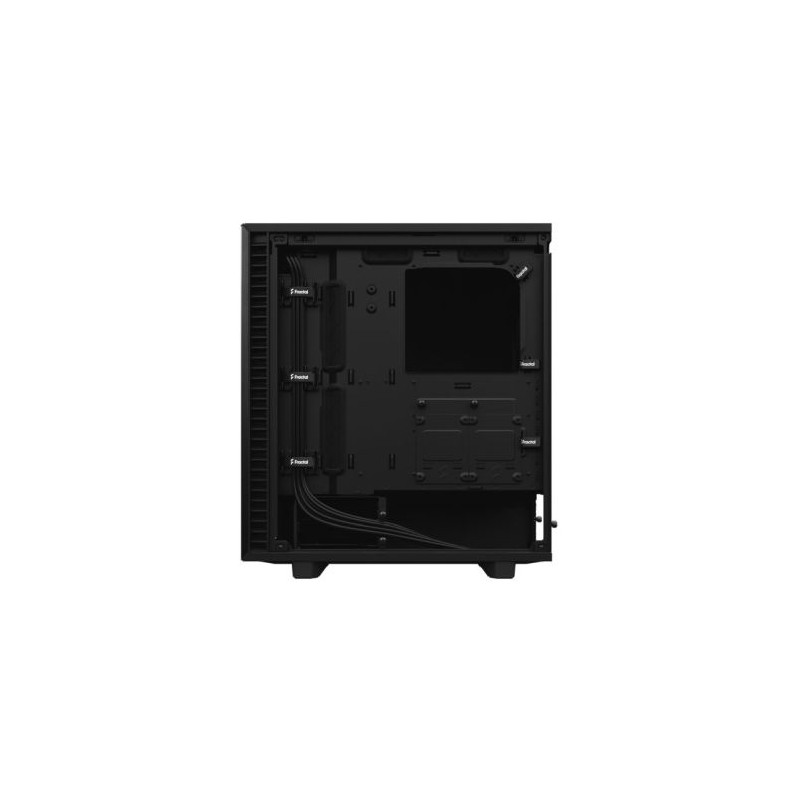

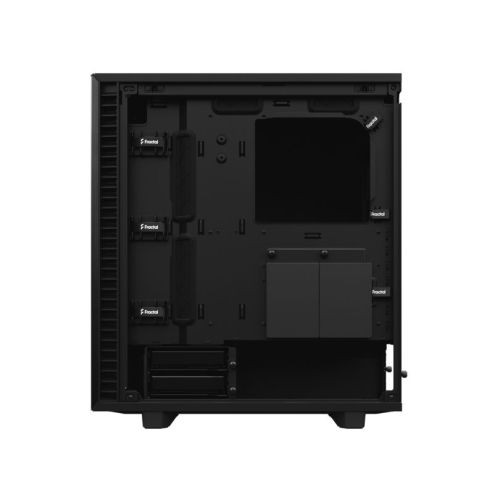

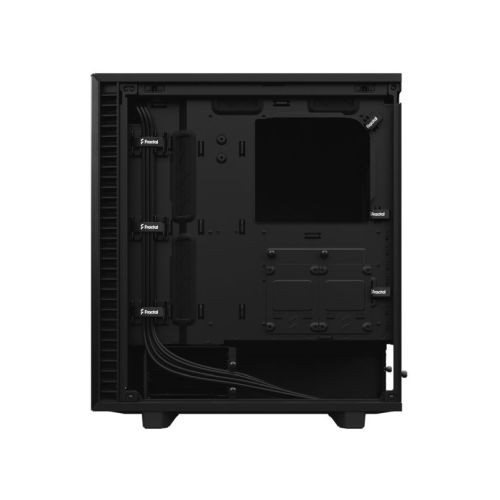

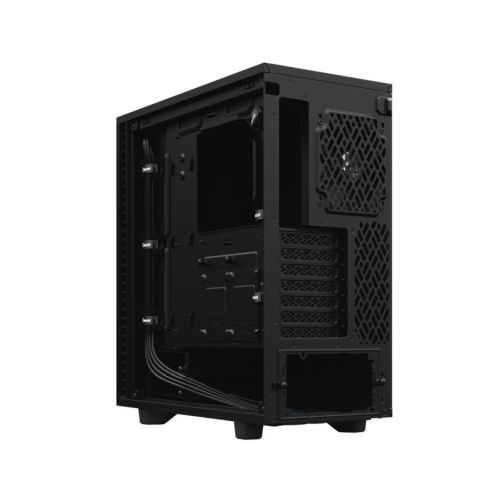

Integrated cable guides with Velcro straps further simplify cable management behind the board

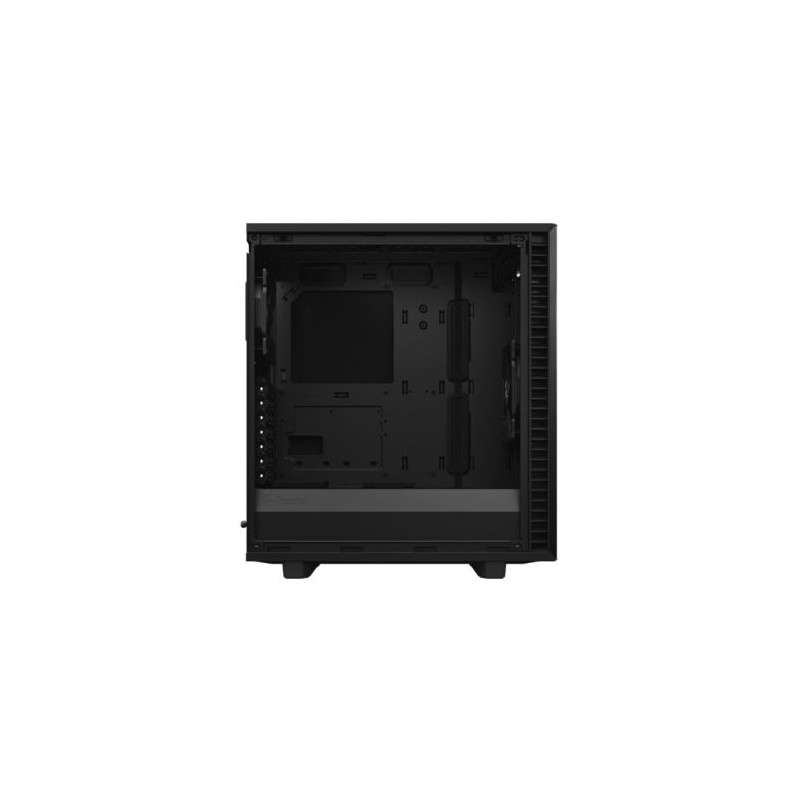

Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
Brushed aluminum front and top-latching side panels offer a clean sophisticated look
Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
1x 120 mm and 1x 140 mm Dynamic X2 fans included
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

28 Item Items Warning: Last items in stock!

£ 124.97

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	FD-C-DEF7C-01
Manufacturer:	FRACTAL
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

ATX

Power Supply Wattage

No PSU

Motherboard Support

ATX, Micro ATX, Mini ITX

Connectors / Controls

1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
2 x USB 2.0
Audio I/O
Power button
Reset button

Drive Bays

2 x 3.5"/2.5" drive mounts
Dedicated 2.5" drive mounts: 2 trays, 4 positions total

Expansion Slots

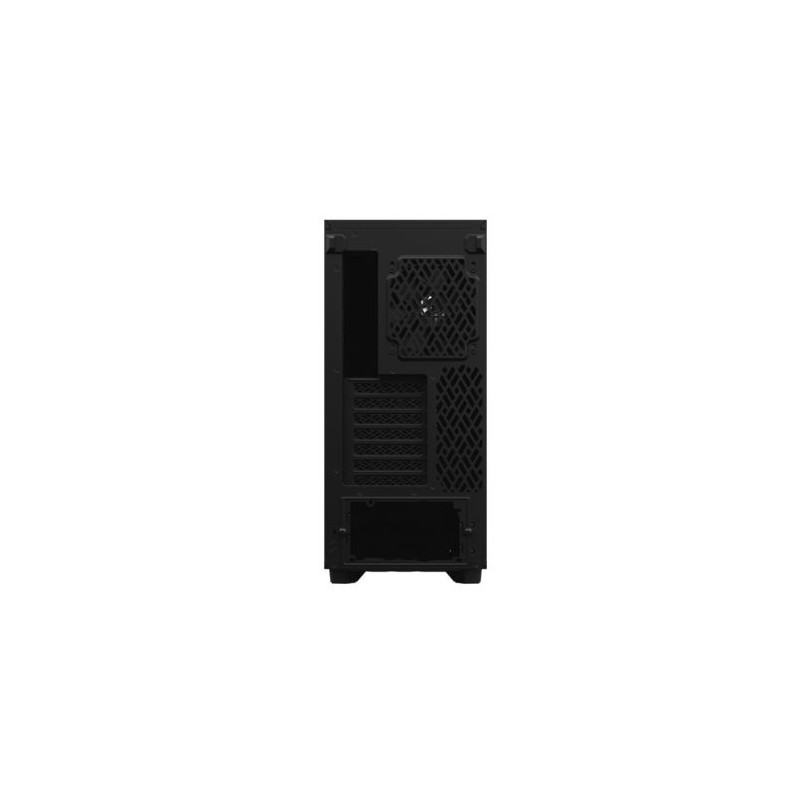

7 Expansion slots

Cooling System

Included
Front: 1 x Dynamic X2 GP-14 140mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan

Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 2 x 140 mm
Rear: 1 x 120 mm
Bottom: 1 x 120 mm (requires removal of HDD cage)

Water Cooling options:
Front: Up to 360 / 280 mm radiator (max 145 mm width)
Top: Up to 240 mm radiator
Rear: 120 mm radiator
Bottom: 120 mm radiator (requires removal of HDD cage)

Colour

Black

Material

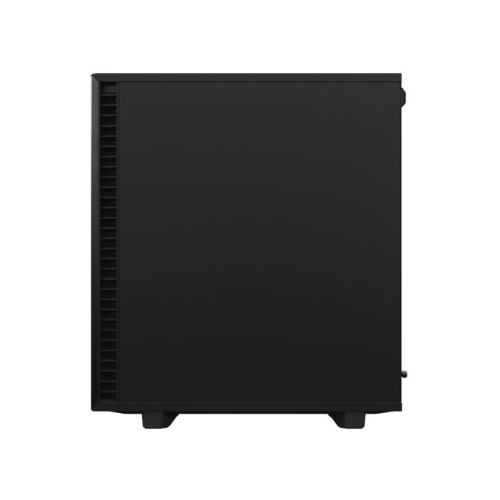

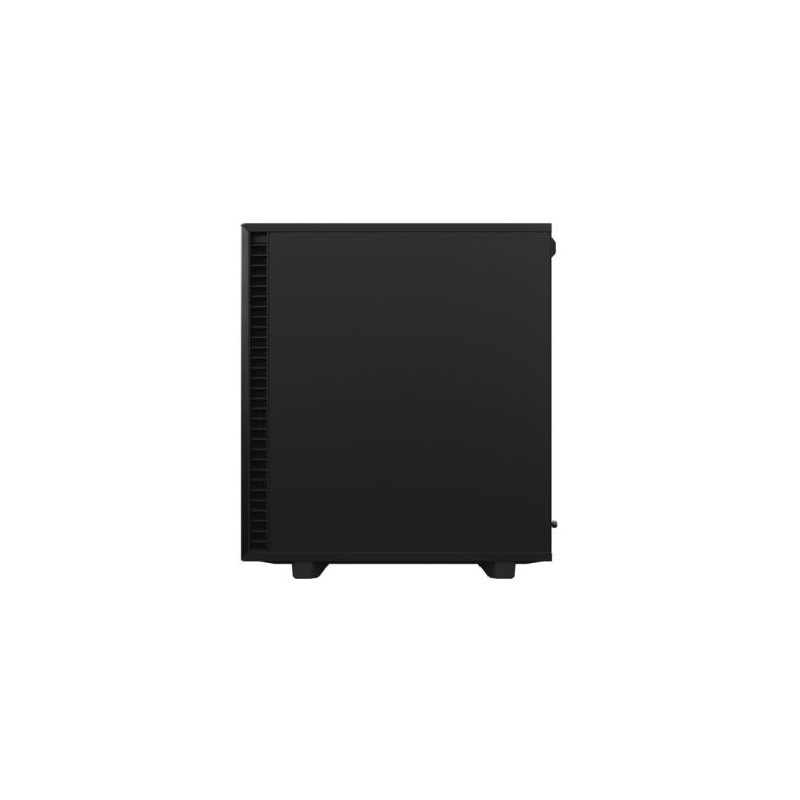

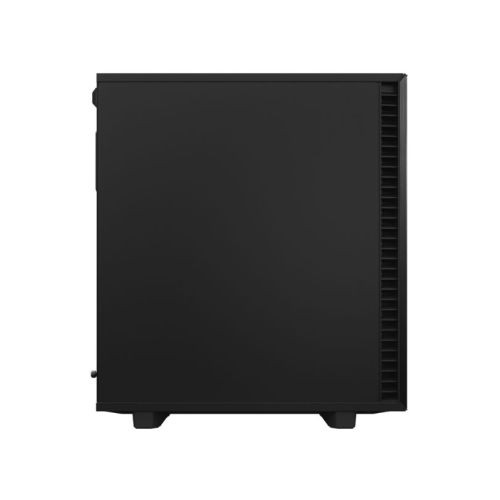

Left side panel: Industrial sound-damped steel
Right side panel: Industrial sound-damped steel

Compatibility

GFX Card:
341 mm (360 mm without front fan)

Max CPU Cooler:
169 mm

PSU:
200 mm total (165 mm w/ HDD cage and front fan)

Weight/Dimensions

8.61 kg
(LxWxH) 427 x 210 x 474 mm
w/o feet/protrusions/screws: 415 x 210 x 451 mm

Additional Features

See Overview / Video

Accessories

Accessory box
User manual
Ventilated top panel
