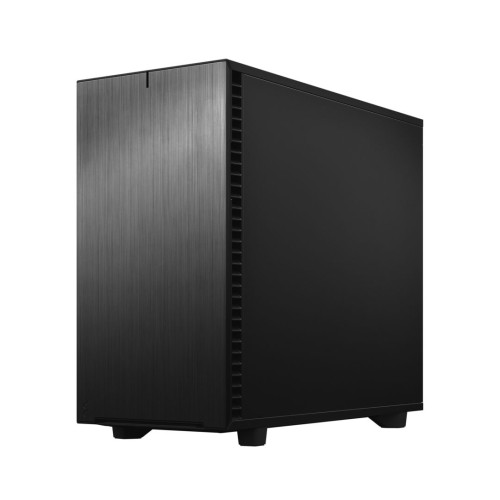

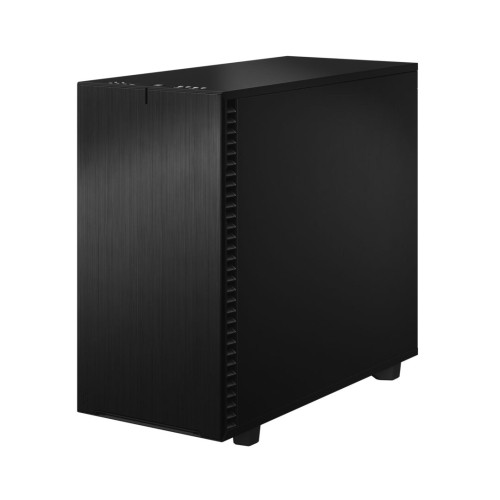

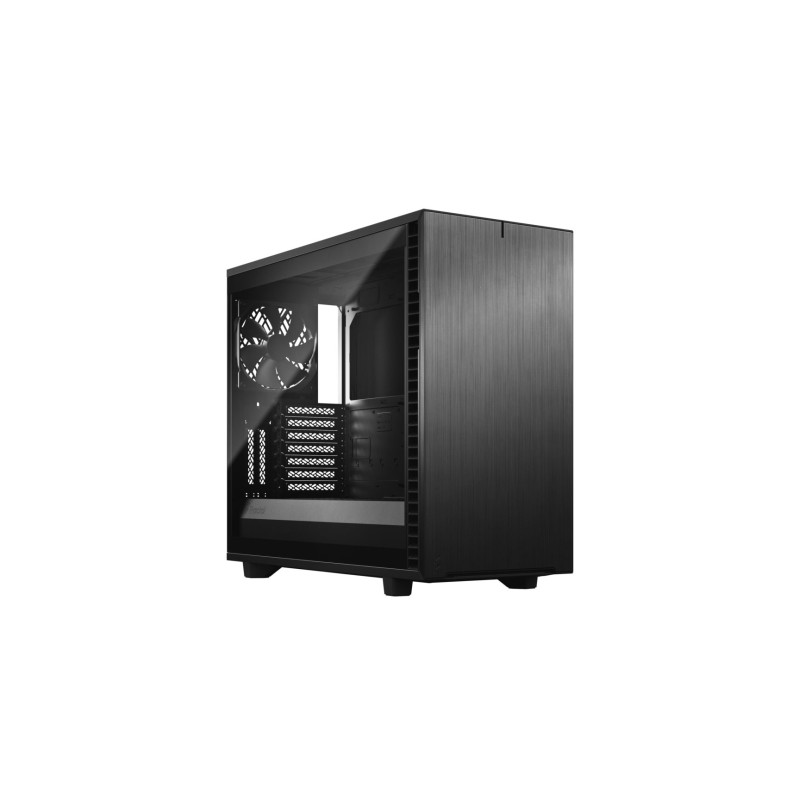

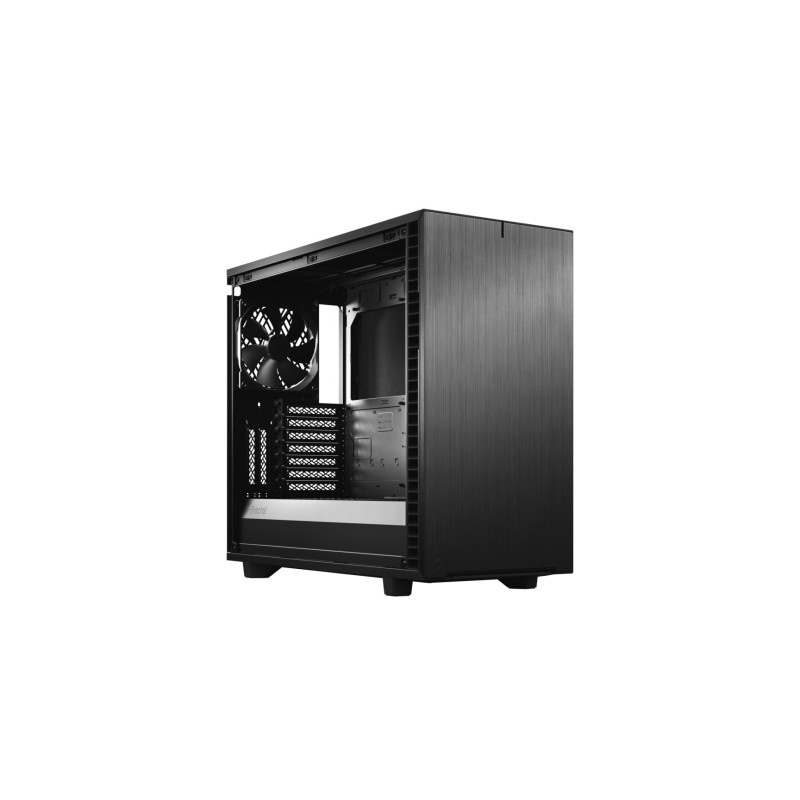

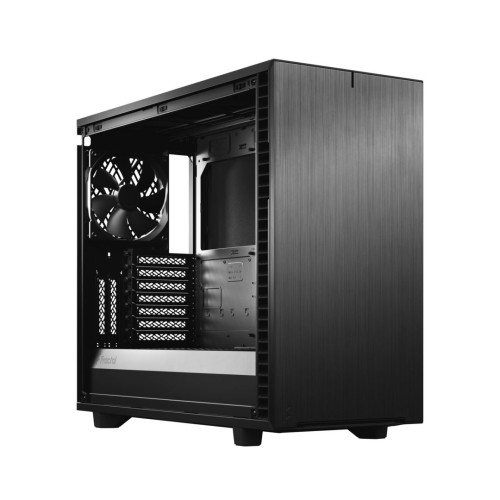

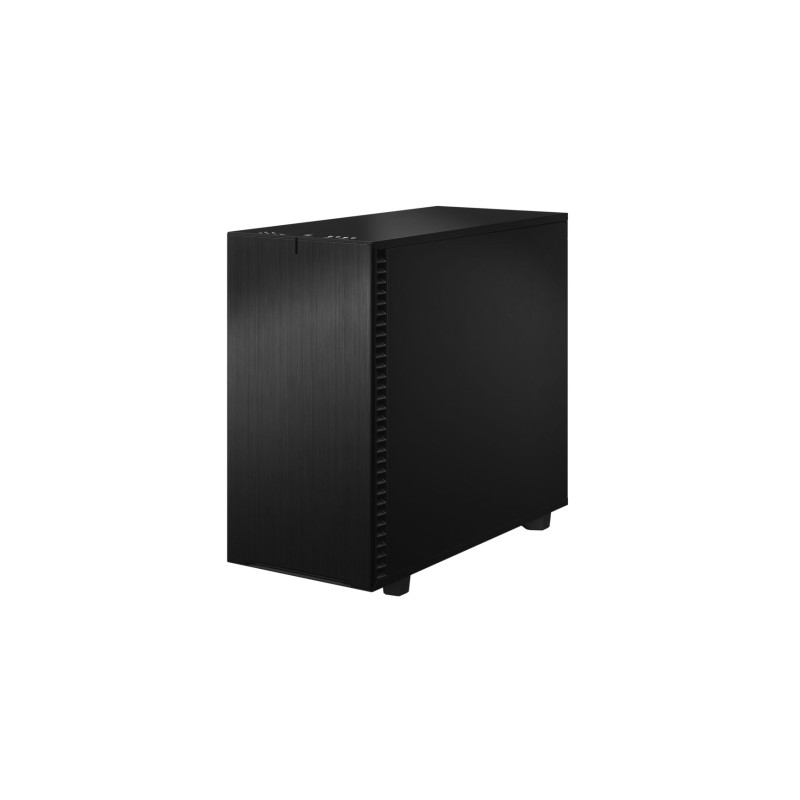

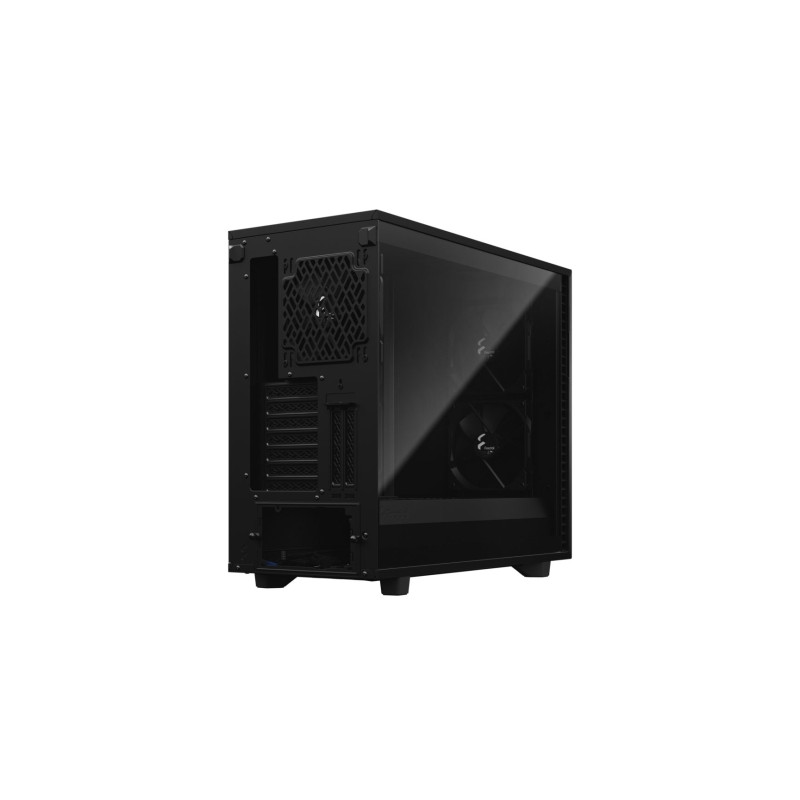

Fractal Design Define 7 (Light TG) Gaming Case w/ Light Tint Glass Window, E-ATX, Multibracket, 3 Fans, Fan Hub, Silence-optimiz

Condition: New product

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

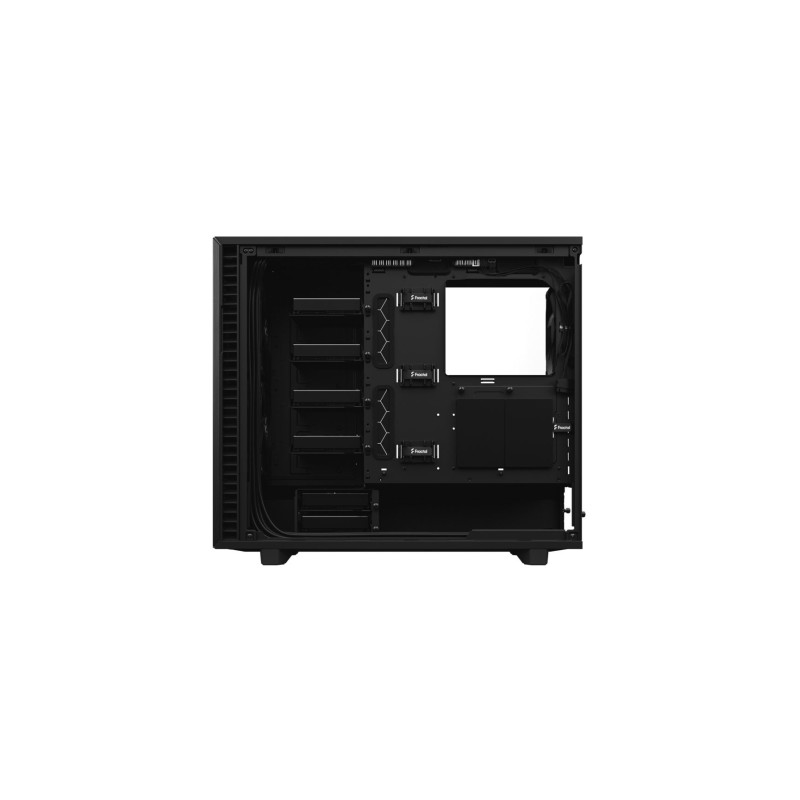

Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)
The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
Silence-optimized construction with industrial sound-damped front, top, and side panels
Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation

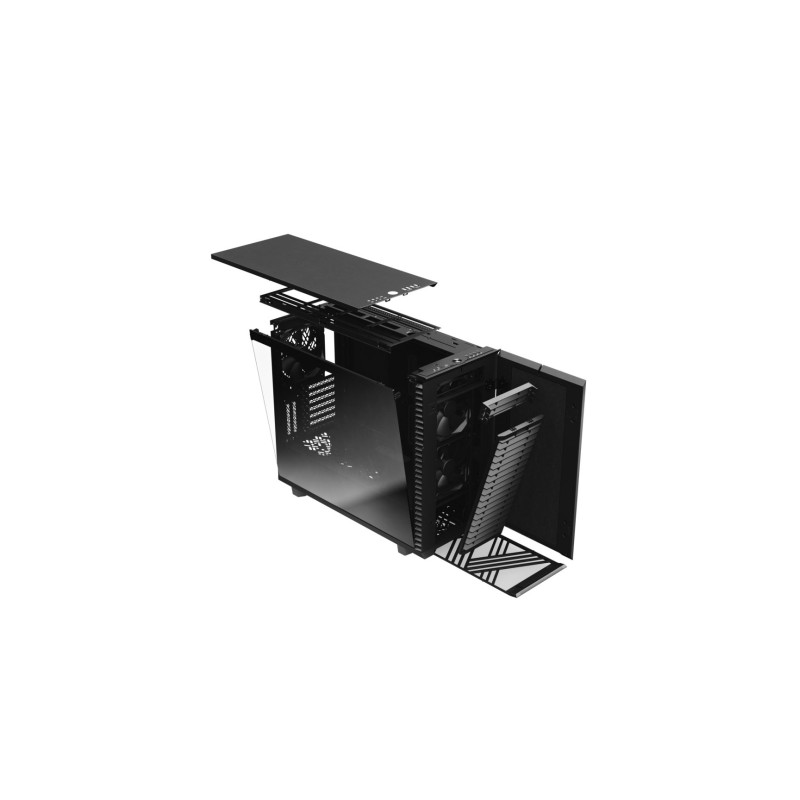

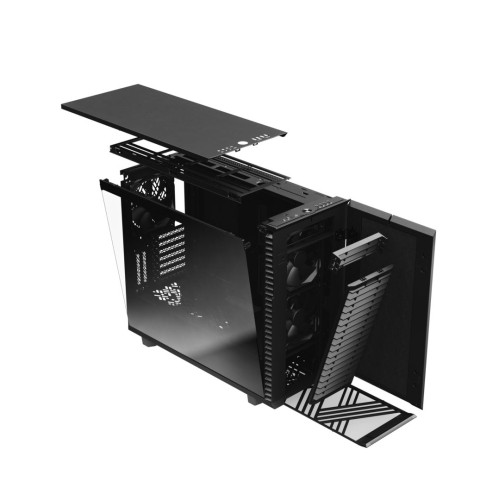

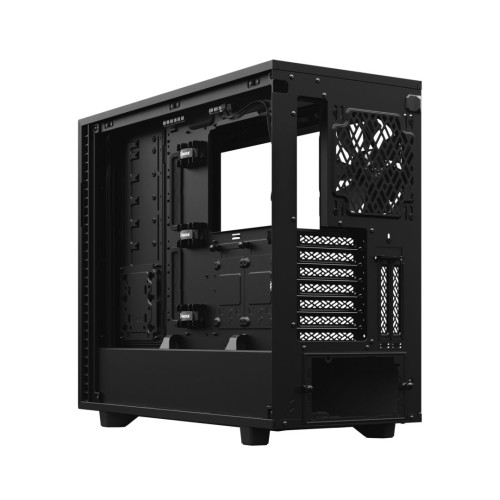

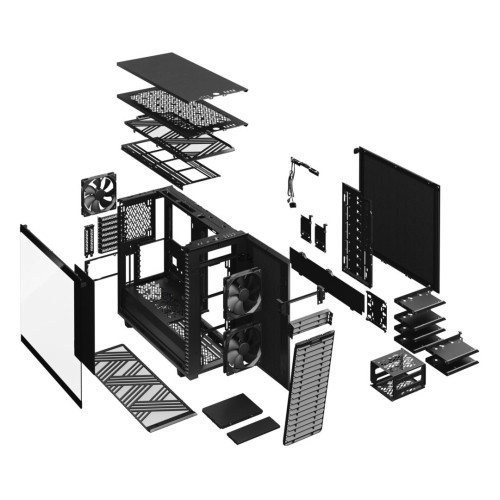

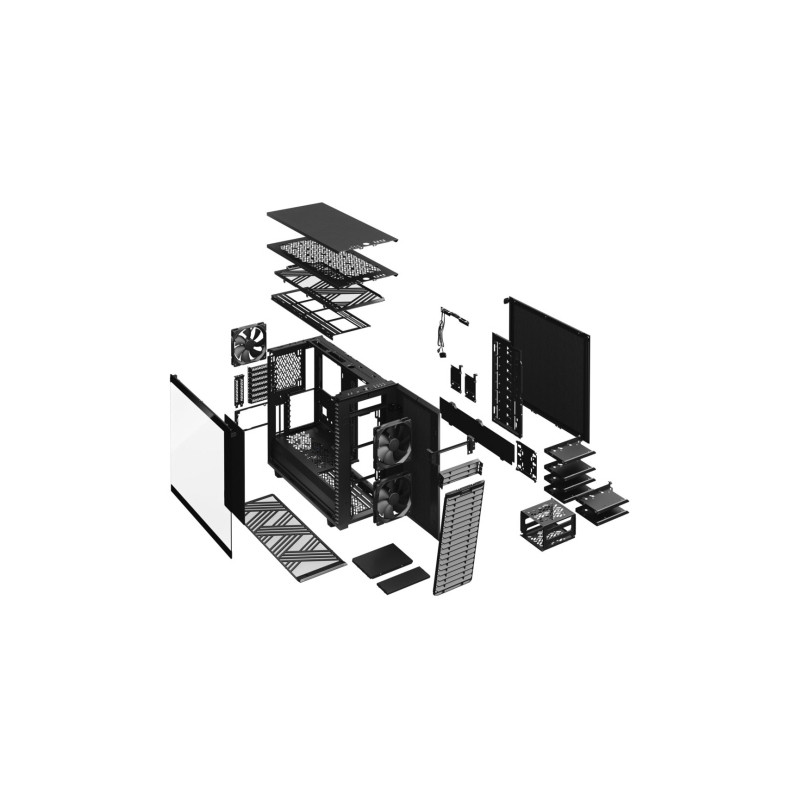

New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing

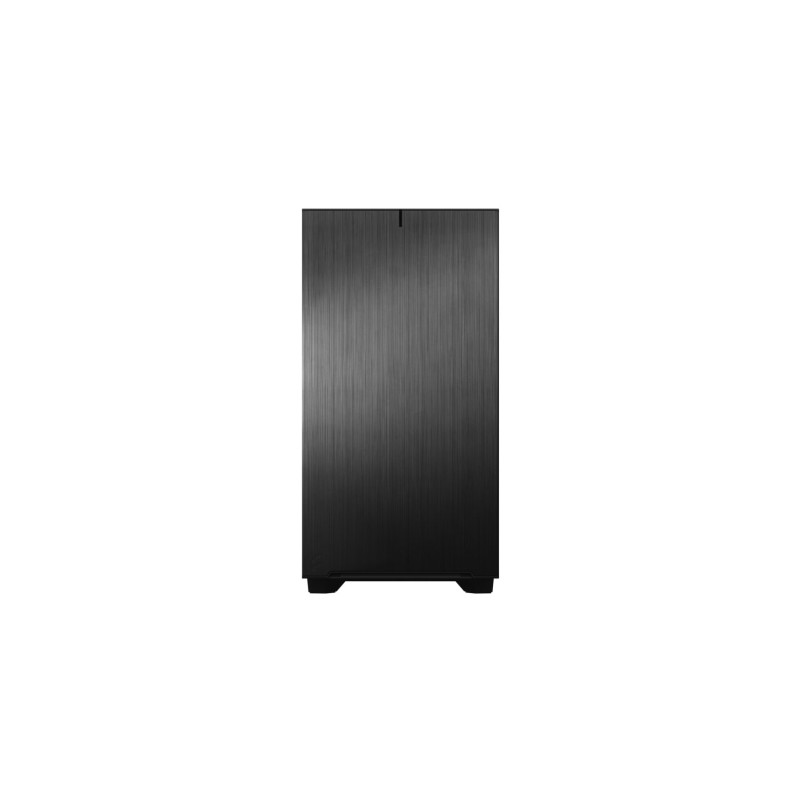

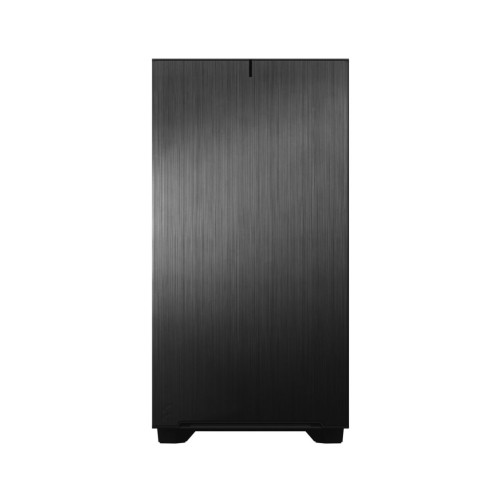

Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately

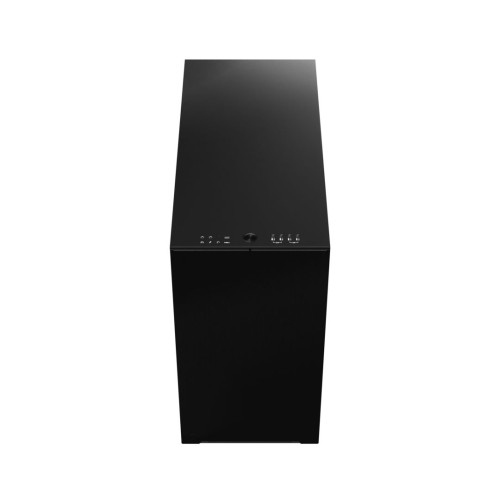

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
Redesigned HDD cage for easier installation and improved transportation security
Tool-less, top-latching panels allow quick access while preventing accidental drops
Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

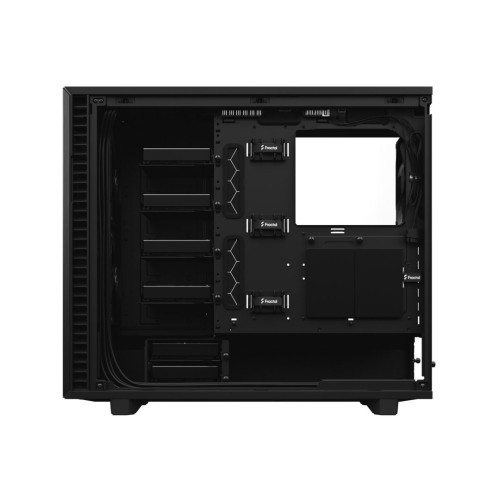

Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board

Open and interchangeable

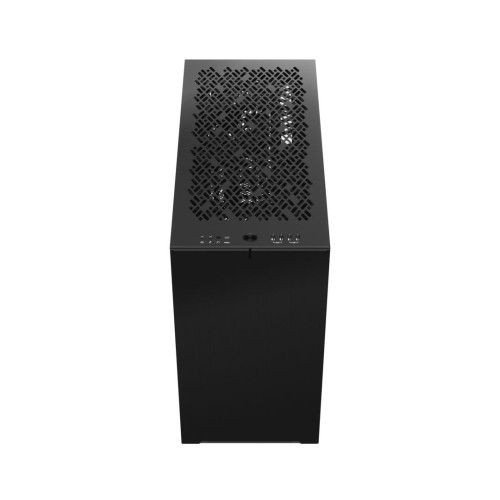

Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance

Superior airflow by design

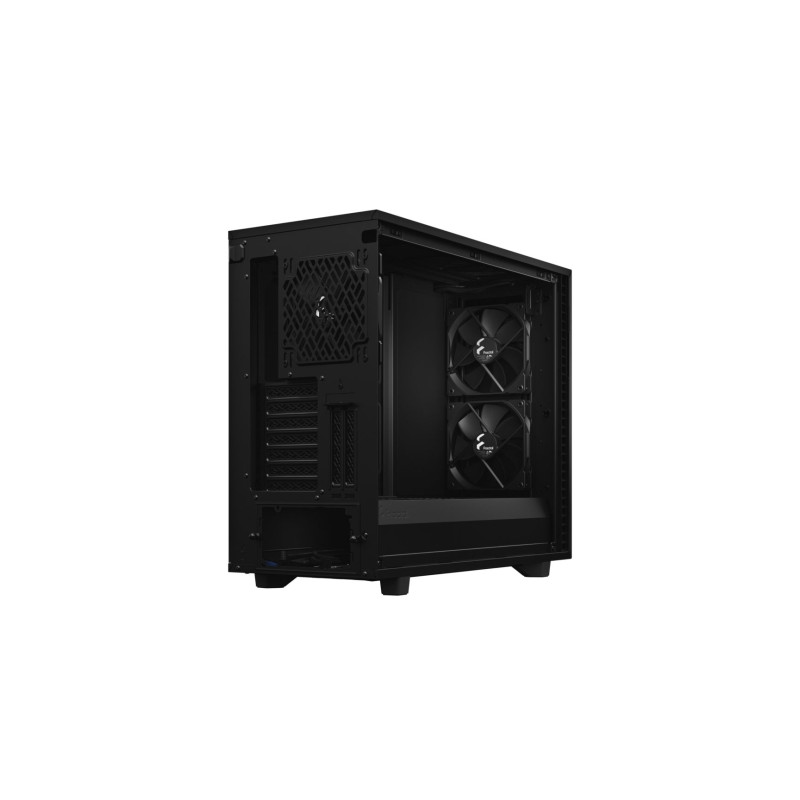

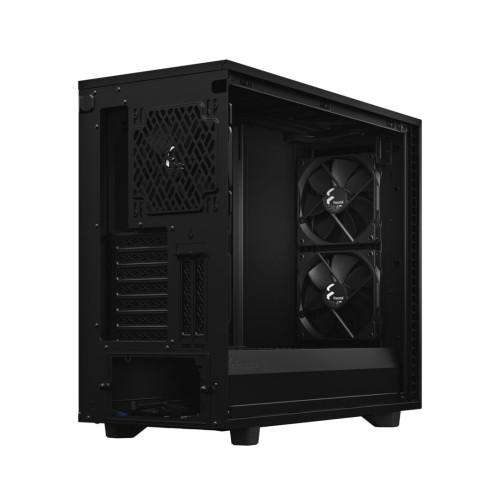

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

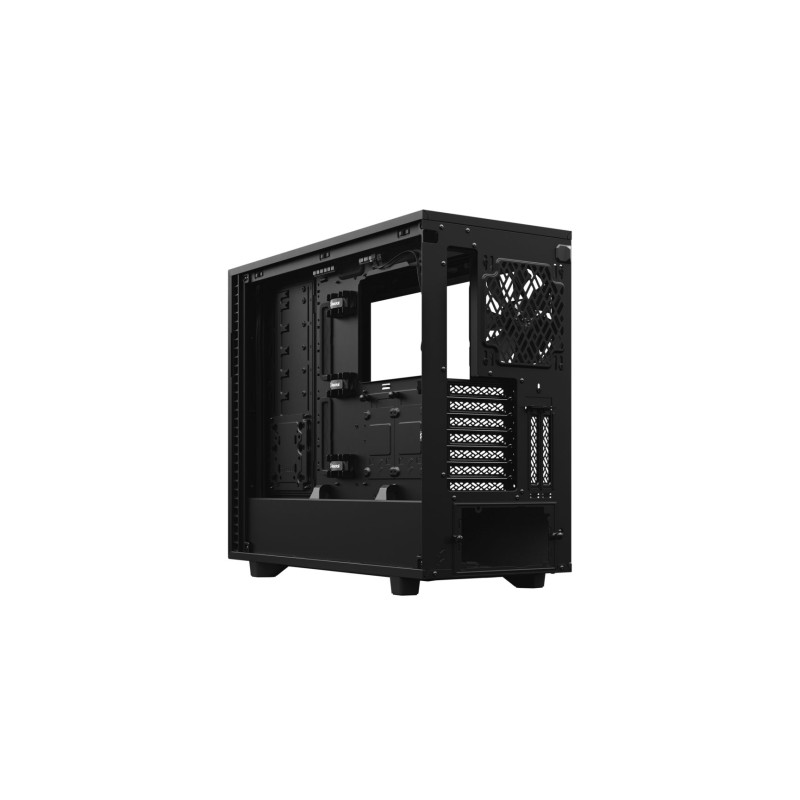

Open layout for massive headroom

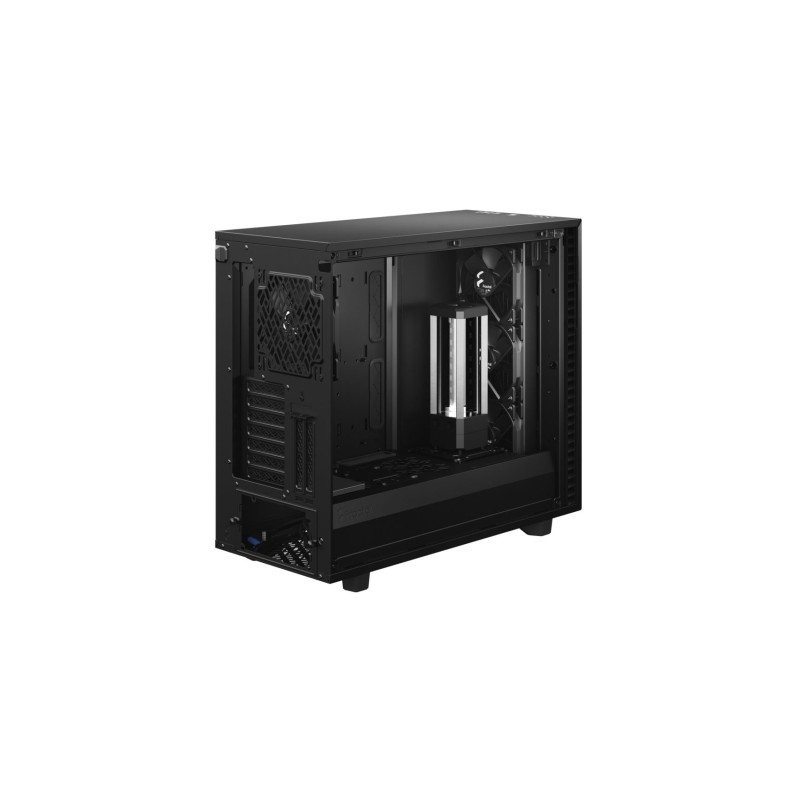

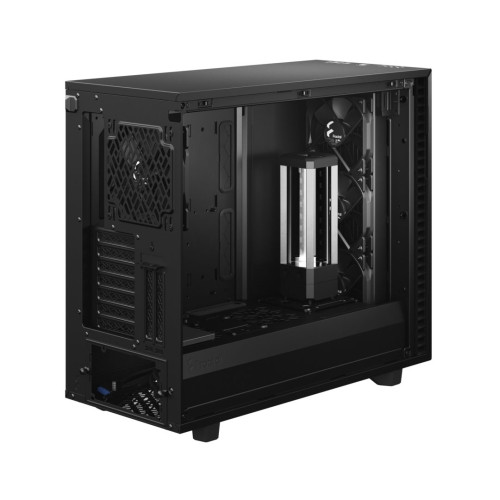

You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

Superlative storage

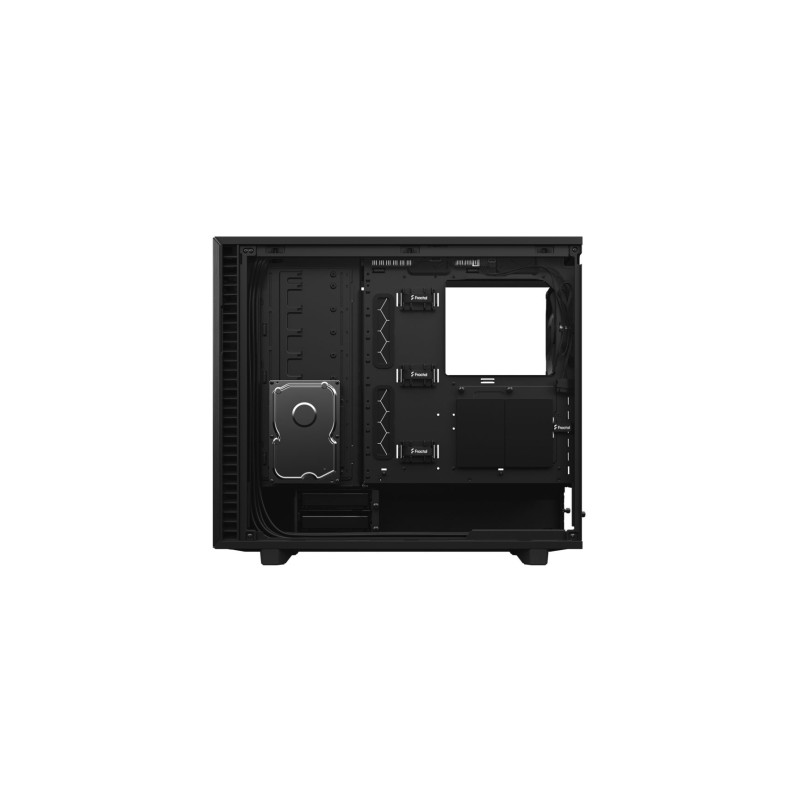

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
2 dedicated SSD brackets included with 4 positions total

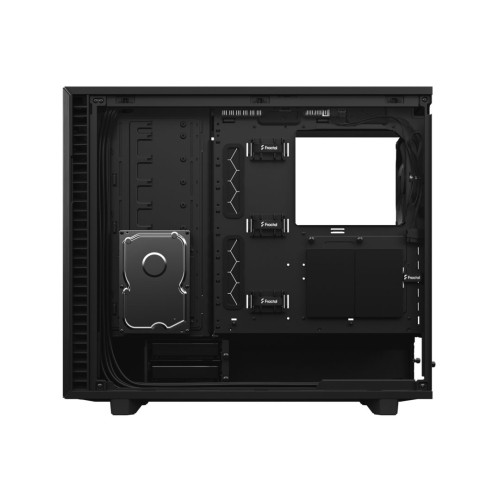

Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
Sturdy new HDD cage design with vibration damped trays

17 Item Items Warning: Last items in stock!

£ 147.54

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	FD-C-DEF7A-02
Manufacturer:	FRACTAL
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

E-ATX

Power Supply Wattage

No PSU

Motherboard Support

E-ATX (max 285 mm), ATX, Micro ATX, Mini ITX

Connectors / Controls

1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
2 x USB 2.0
Audio I/O
Power button
Reset button

Drive Bays

3.5"/2.5" Universal brackets: 6 included, 14 positions total
Dedicated 2.5" brackets: 2 trays included, 4 positions total
5.25” mounts: 1

Expansion Slots

7 + 2 Expansion slots

Cooling System

Included
Front: 2 x Dynamic X2 GP-14 140mm fans
Rear: 1 x Dynamic X2 GP-14 140mm fan

Fan Mounts
Front: 3 x 120 / 140 mm
Top: 3 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm

Water Cooling options:
Front: Up to 360 / 280 mm radiator
Top: Up to 360 / 420 mm radiator
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator

Colour

Black

Material

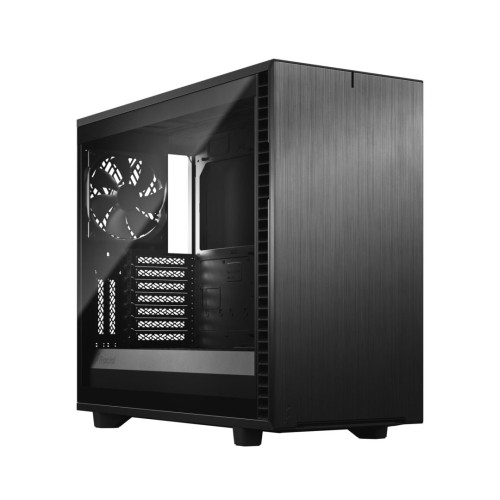

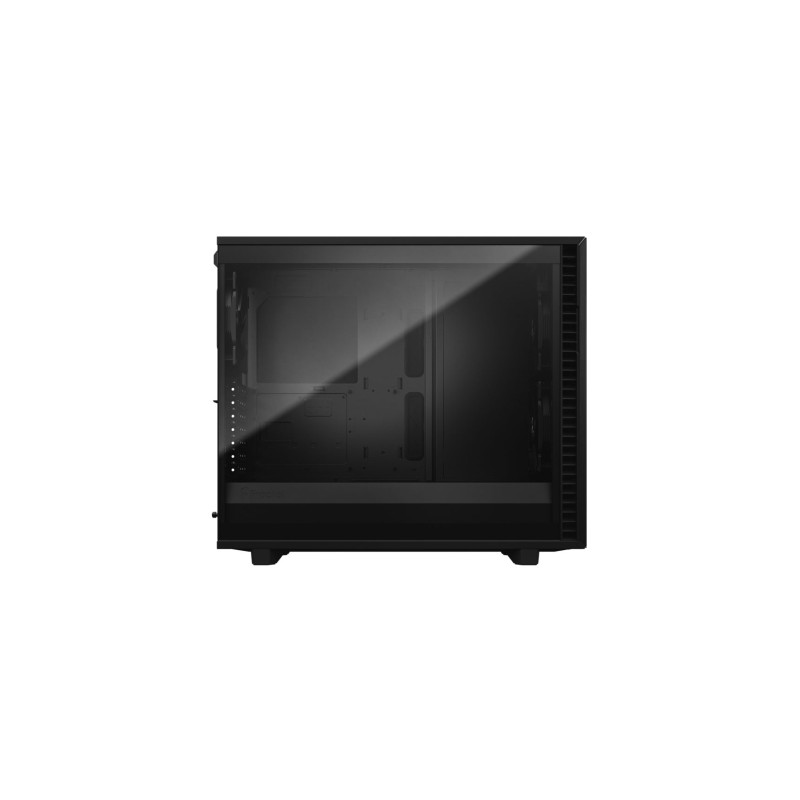

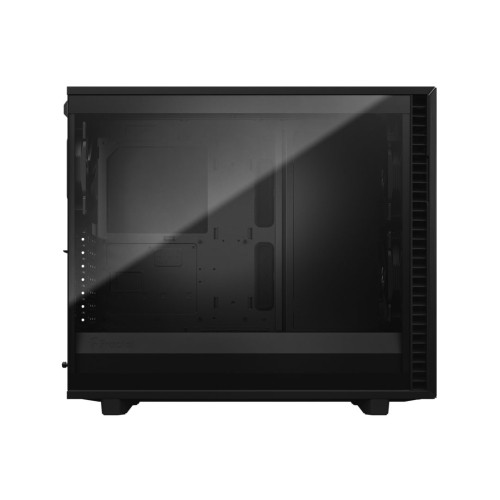

Left side panel: Tempered glass

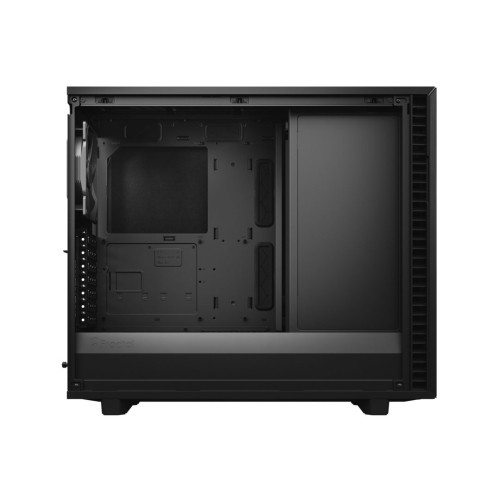

Right side panel: Industrial sound-damped steel

Compatibility

GFX Card:
Storage layout: 315 mm
Open layout: 491 mm (467 mm w/ front fan)

Weight/Dimensions

13.45 kg
(LxWxH) 547 x 240 x 475 mm
w/o feet/protrusions/screws: 533 x 240 x 451 mm

Additional Features

See Overview / Video

Accessories

Accessory box
User manual
Ventilated top
4 x HDD/SSD trays (for a total of 6)
