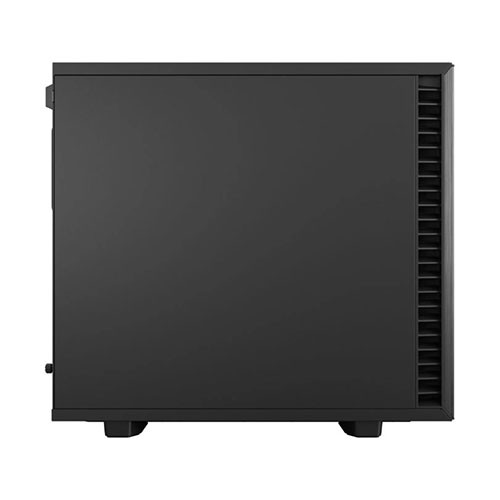

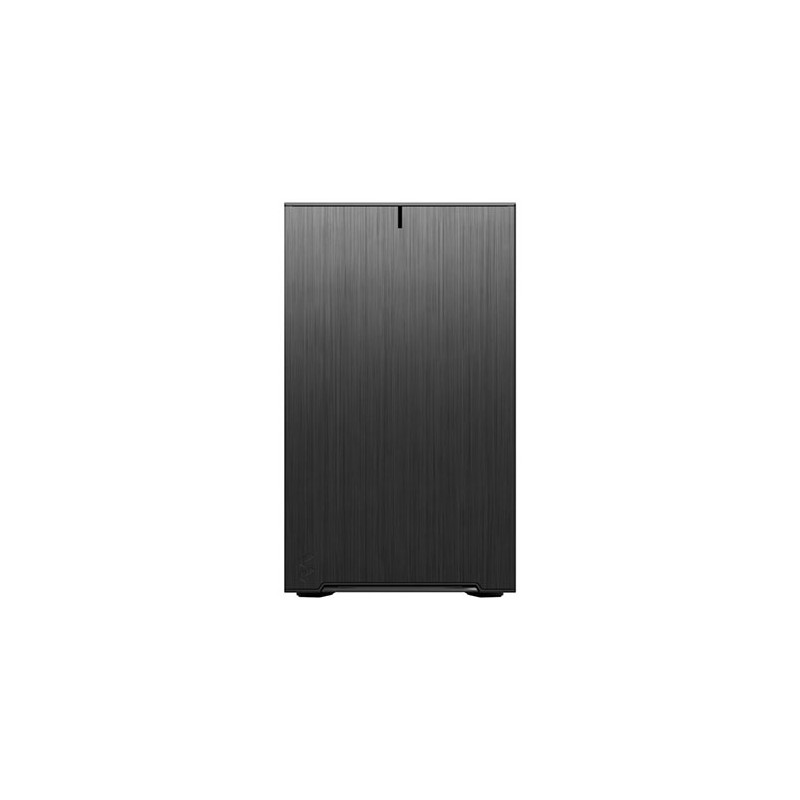

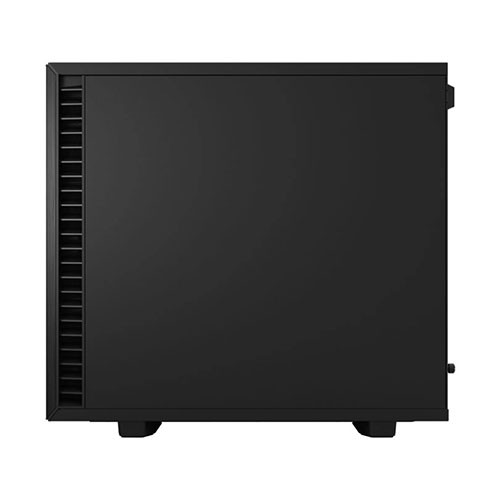

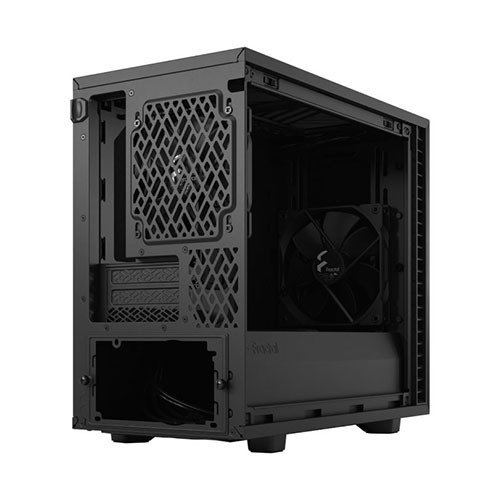

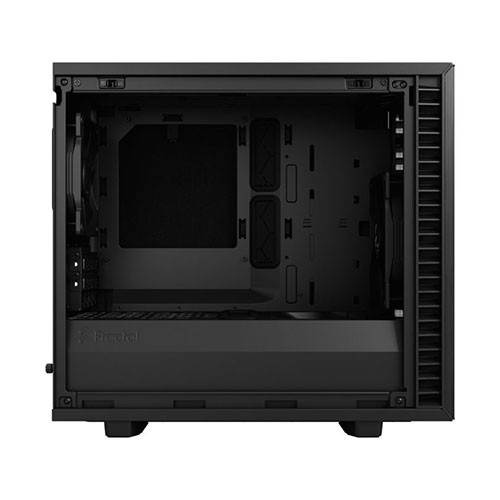

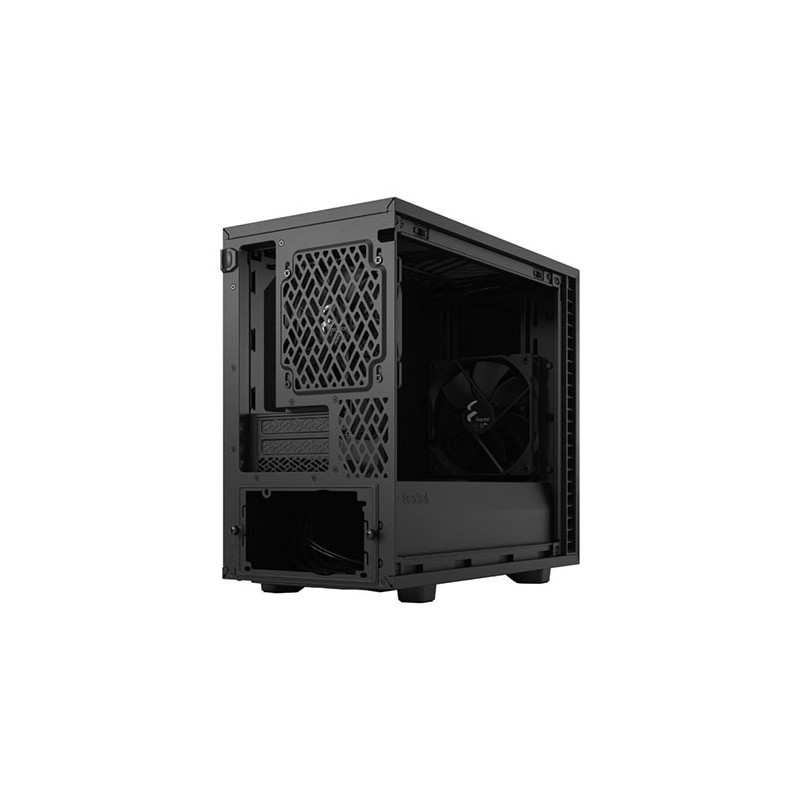

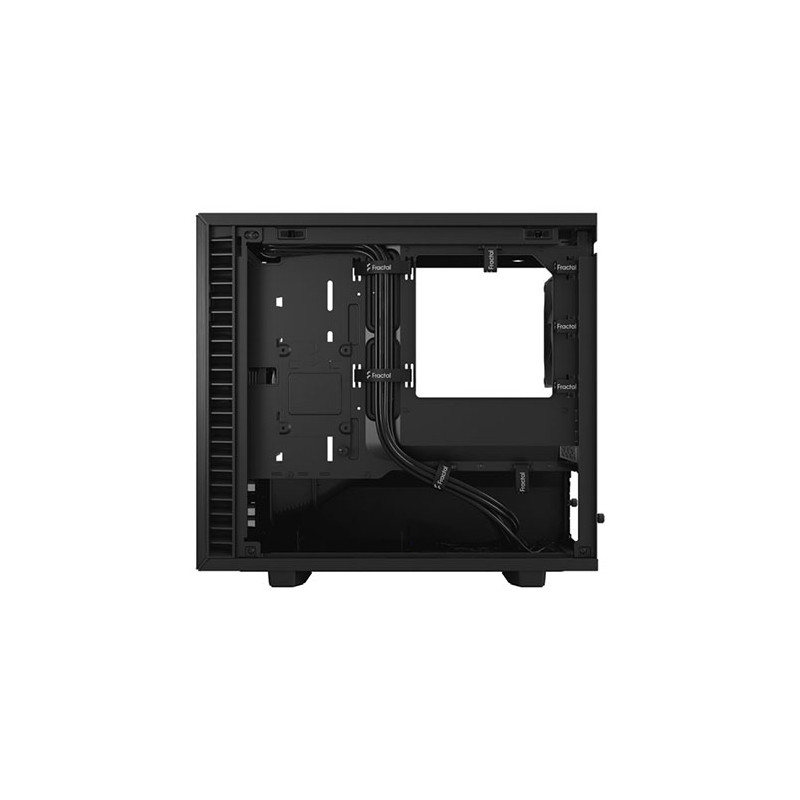

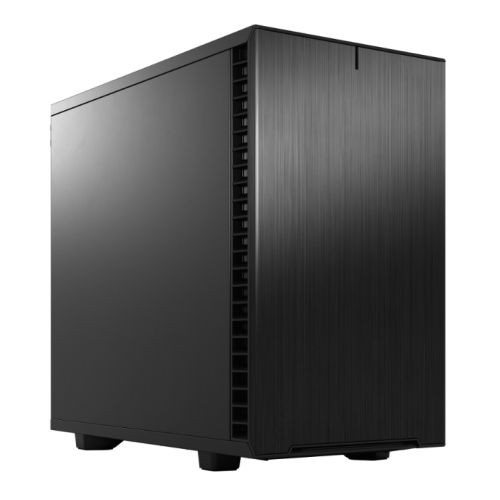

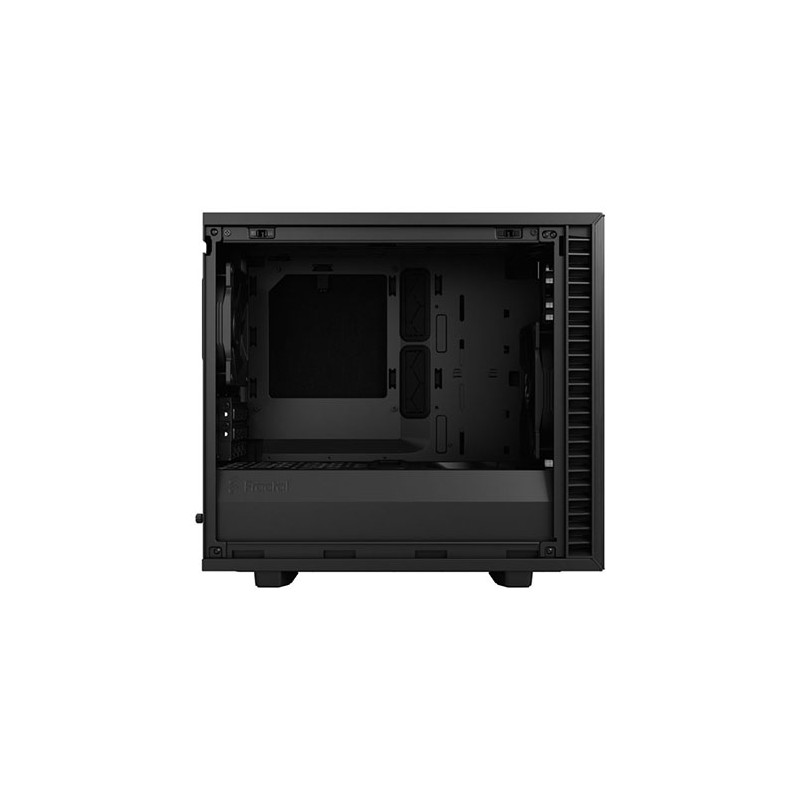

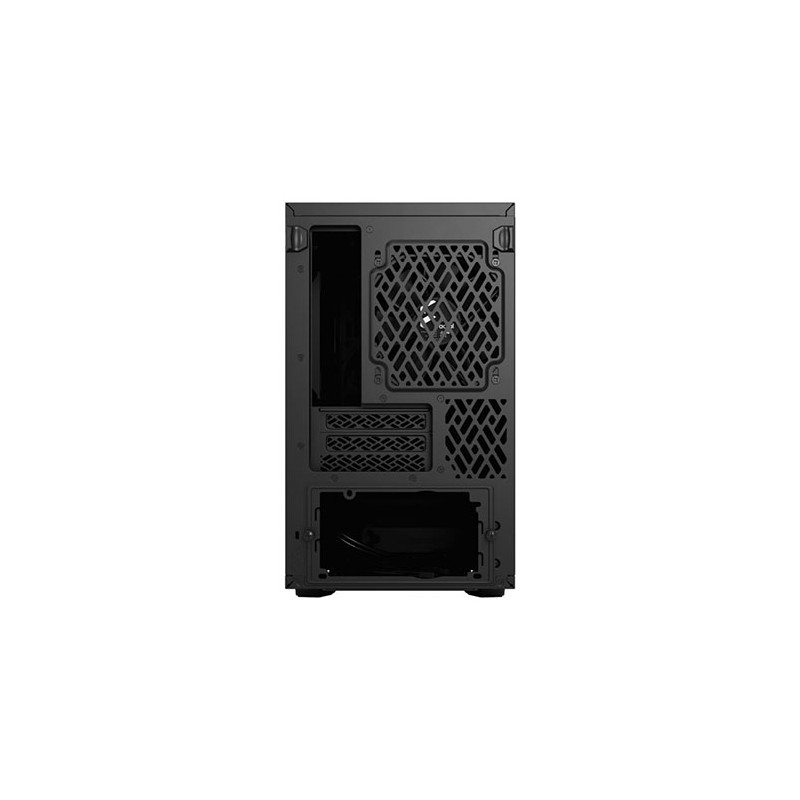

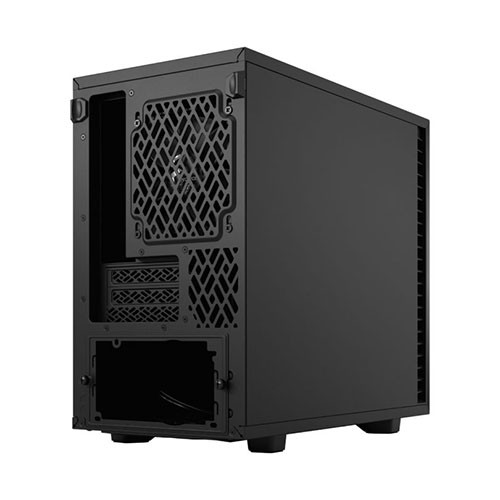

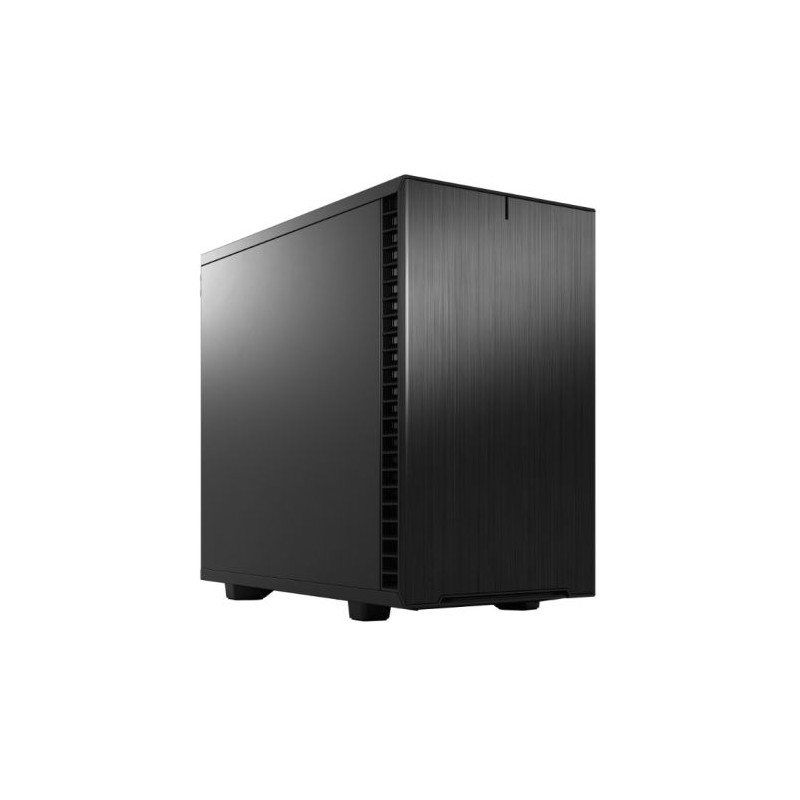

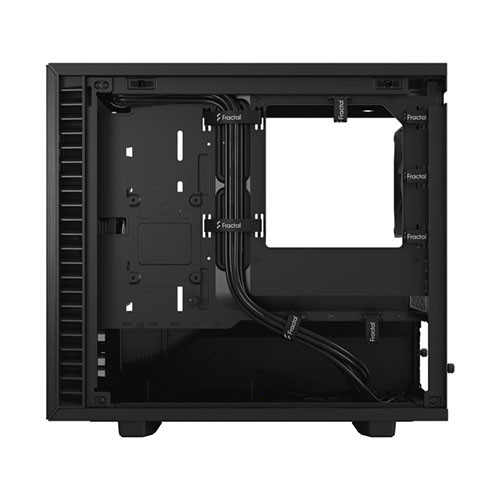

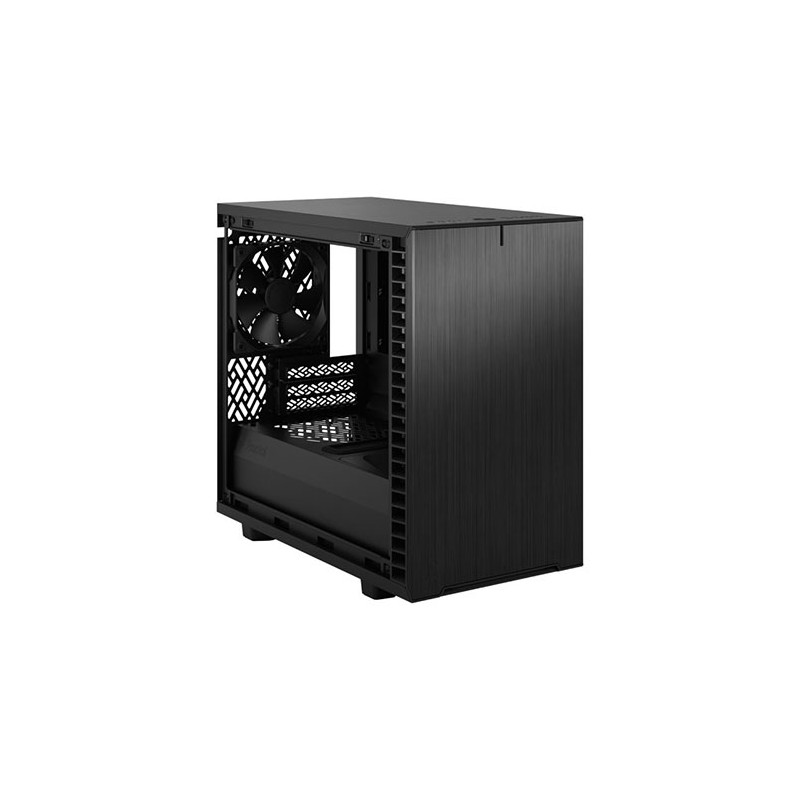

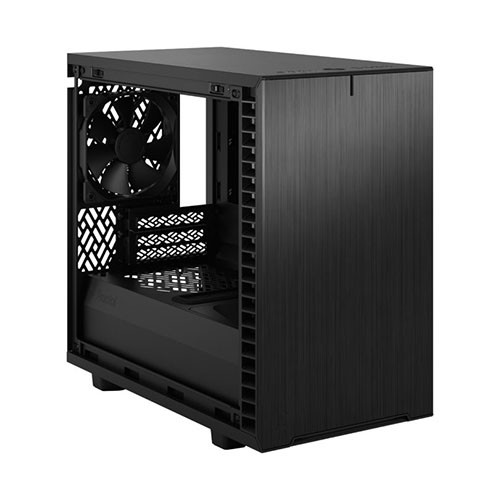

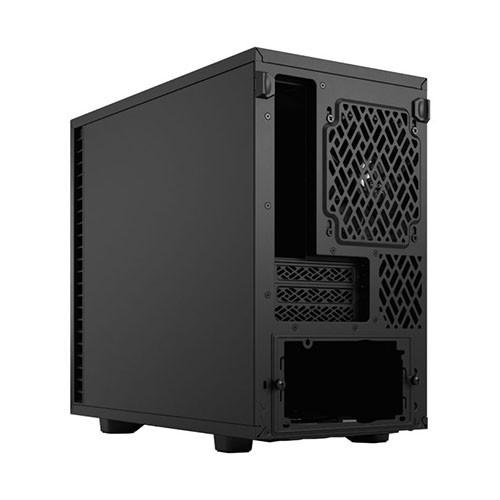

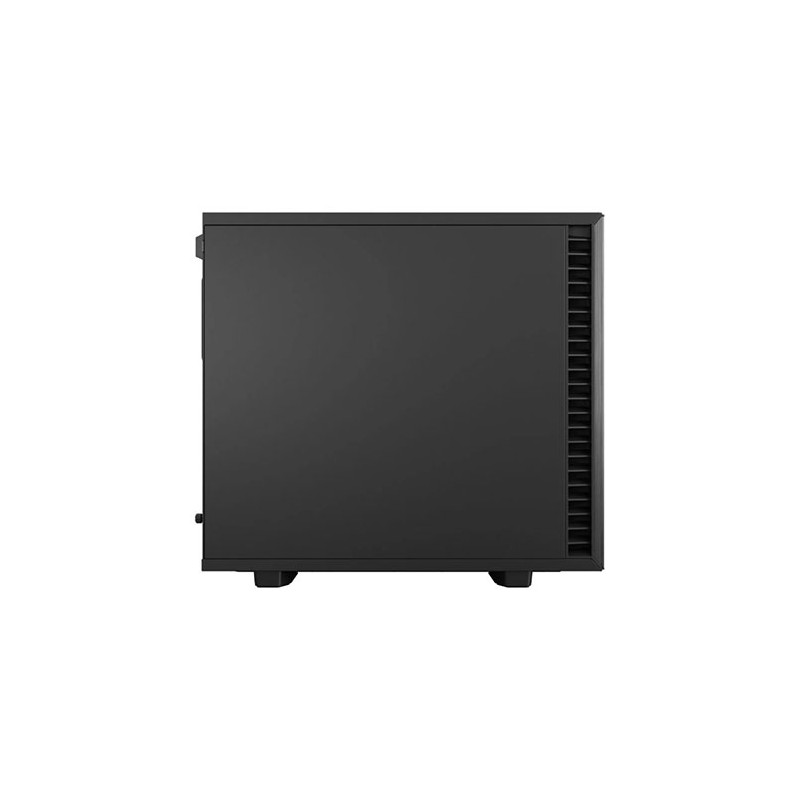

Fractal Design Define 7 Nano (Black Solid) Gaming Case, Mini ITX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C, 306 mm

Condition: New product

12 Item Items Warning: Last items in stock!

£ 87.89

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	FD-C-DEF7N-01
Manufacturer:	FRACTAL
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

Mini ITX

Power Supply Wattage

No PSU

Motherboard Support

Mini ITX

Connectors / Controls

1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
2 x USB 2.0, Audio

Drive Bays

3.5" drive mounts: 1 (included)
2.5" drive mounts: 3 (2 included)

Expansion Slots

2 Expansion slots

Cooling System

Included
Front: 1 x Dynamic X2 GP-14 140mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan

Fan Mounts
Front: 2 x 120 / 2 x 140 mm
Top: 2 x 120 / 1 x 140 mm slim (max 15 mm)
Rear: 1 x 120 mm
Bottom: 1 x 120 mm (requires removal of HDD tray)

Radiaitor options:
Front: 120/240, 140/280 mm*
Top: N/A
Rear: 120 mm
Bottom: N/A

*316 mm max height, 146 mm max width, 280 mm recommended in "push" configuration for easier fit

Colour

Black

Material

Left side panel: Industrial sound-damped steel
Right side panel: Industrial sound-damped steel

Compatibility

GFX Card length:
331 mm
306 mm with front fan

Max CPU Cooler:
167 mm

Max PSU length:
165 mm recommended
200 mm without HDD-tray and modular air duct

Weight/Dimensions

7.2 kg
(LxWxH) 399 x 205 x 361 mm
w/o feet/protrusions/screws: 390 x 205 x 345 mm

Additional Features

See Overview

Accessories

Accessory box
User manual
Ventilated top panel

Package Weight

8.4000 kg

Warranty

2 Years
