Fractal Design Meshify 2 XL (Black TG Dark) Gaming Case w/ Dark Tint Glass Window, E-ATX, Angular Mesh Front, 3 Fans, Fan Hub, D

Condition: New product

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

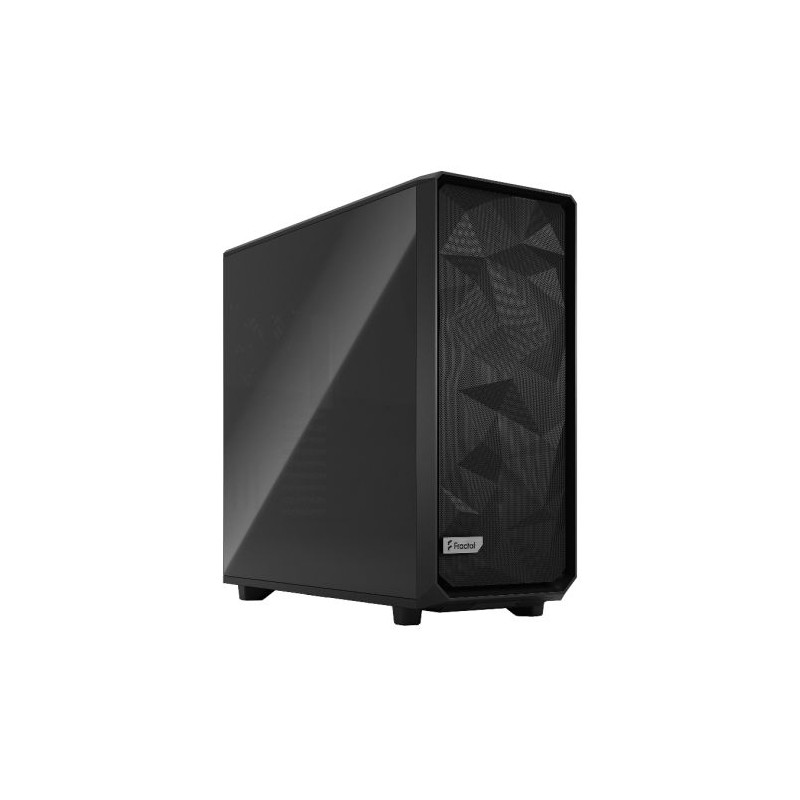

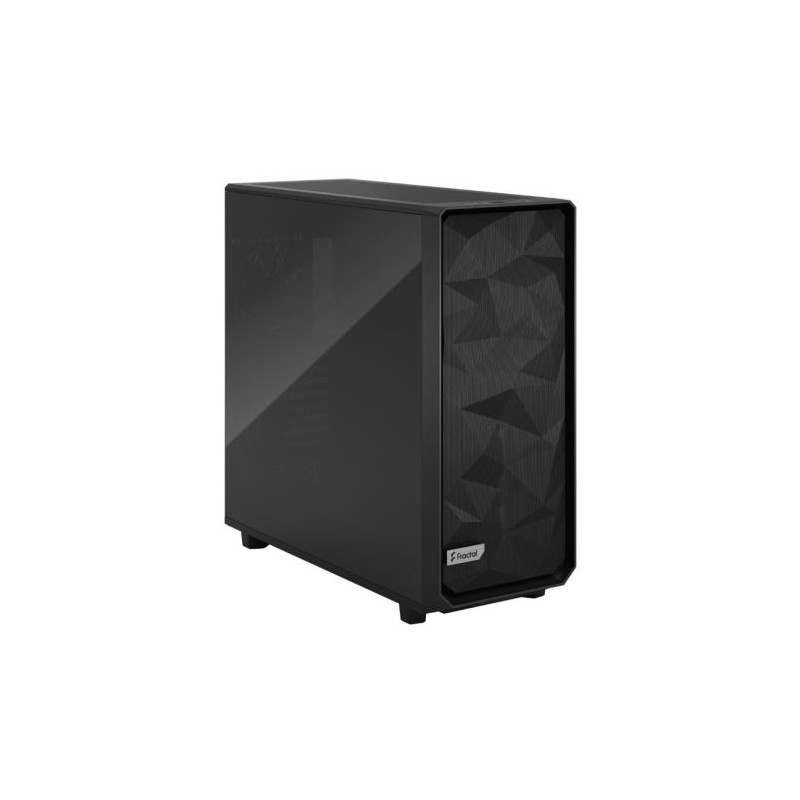

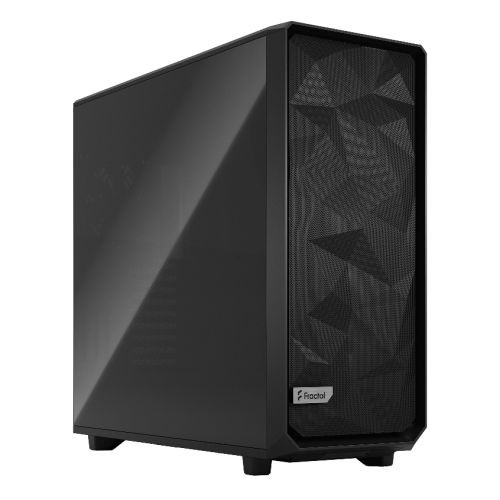

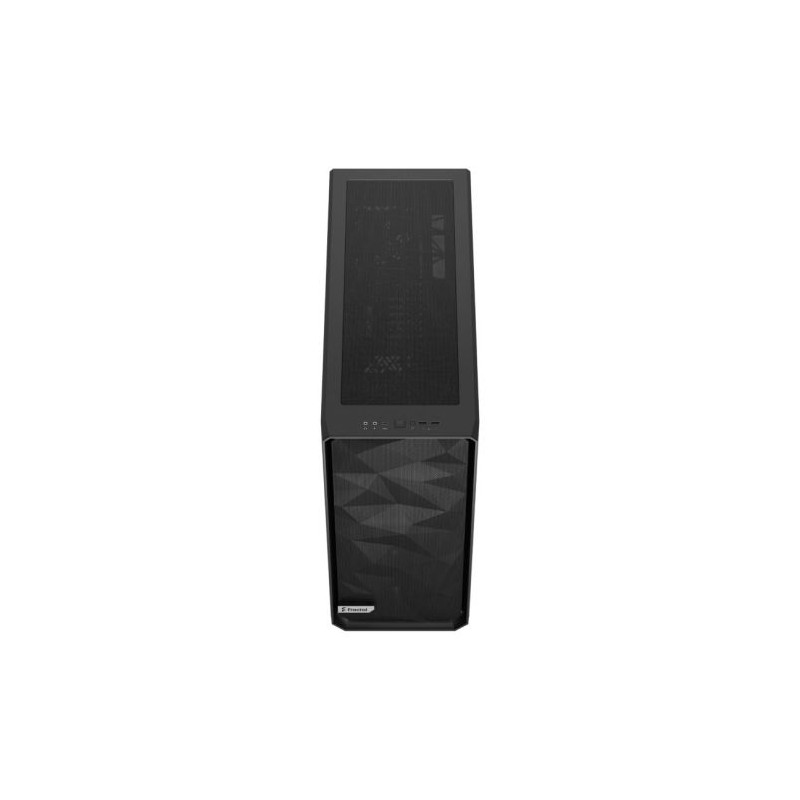

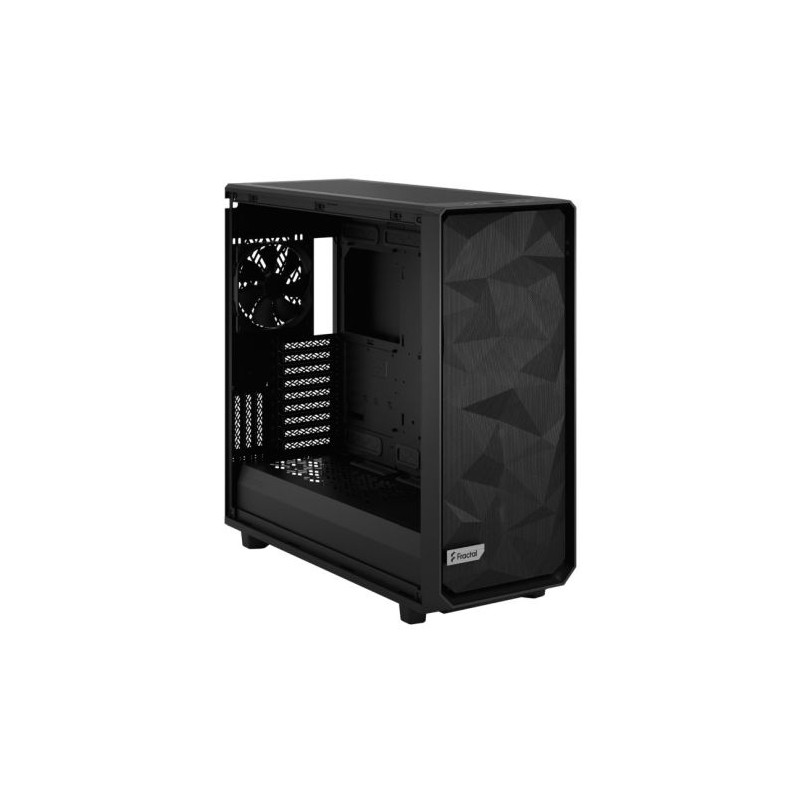

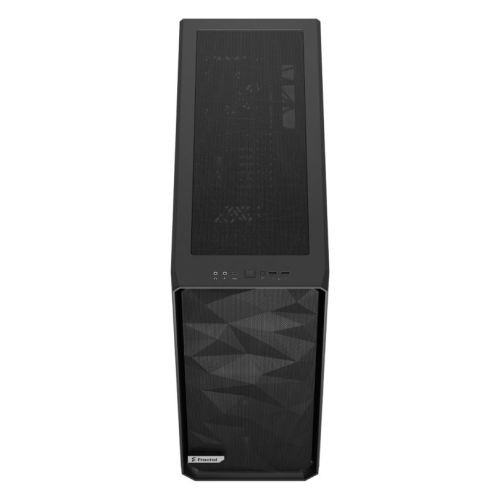

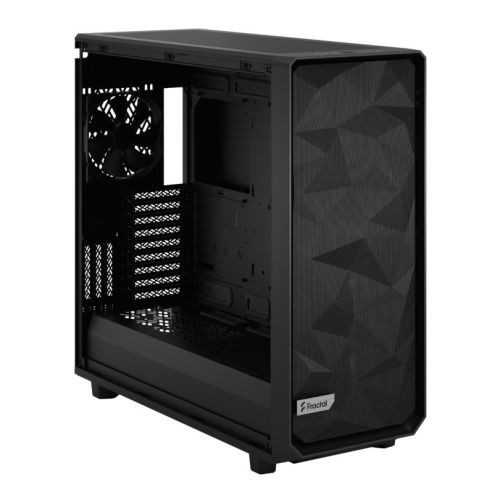

Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic

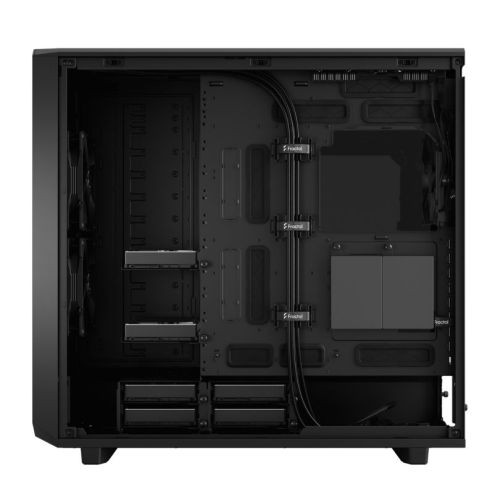

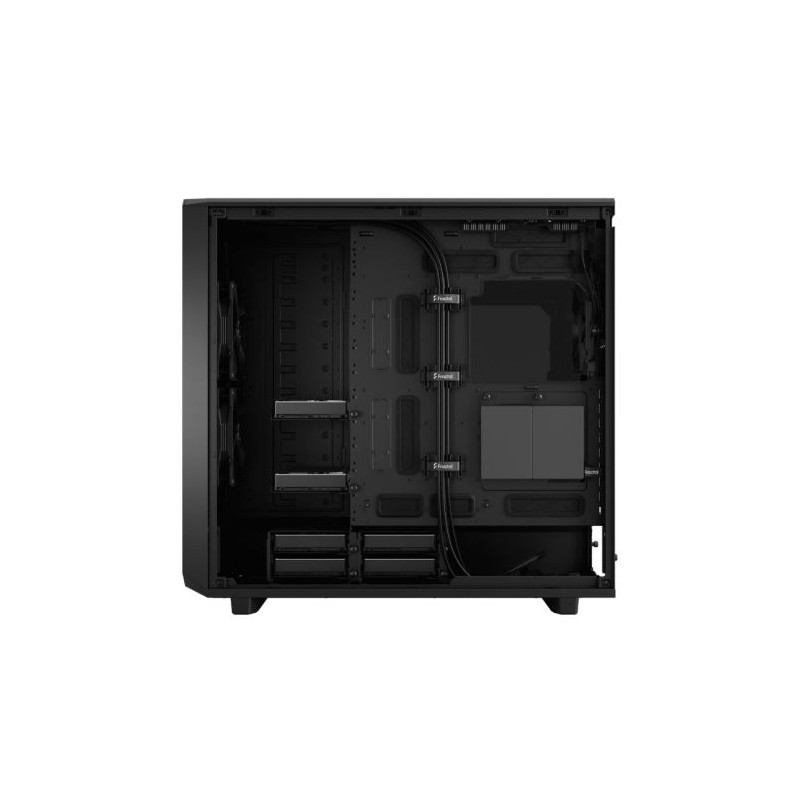

Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout

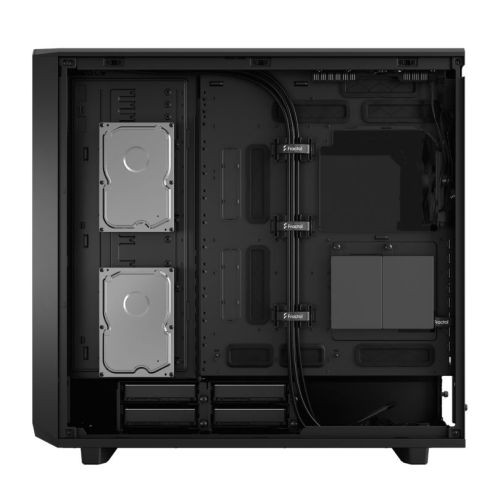

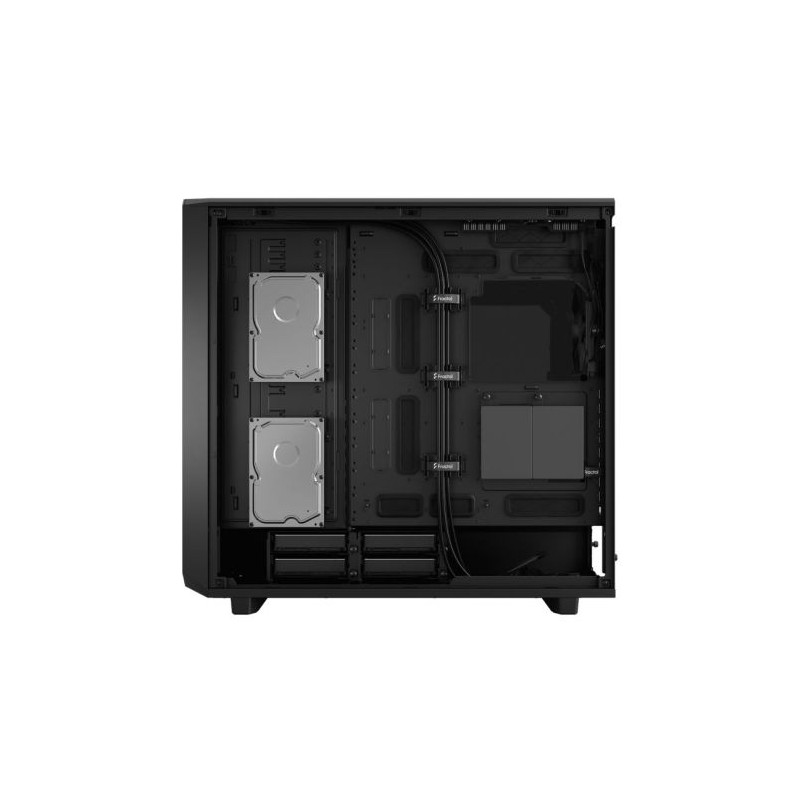

Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout

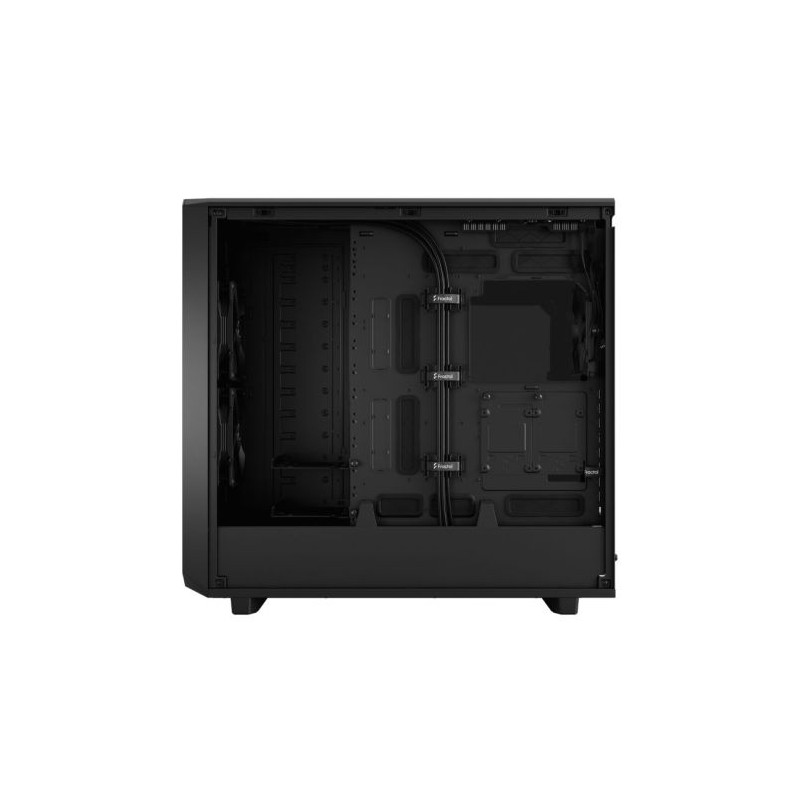

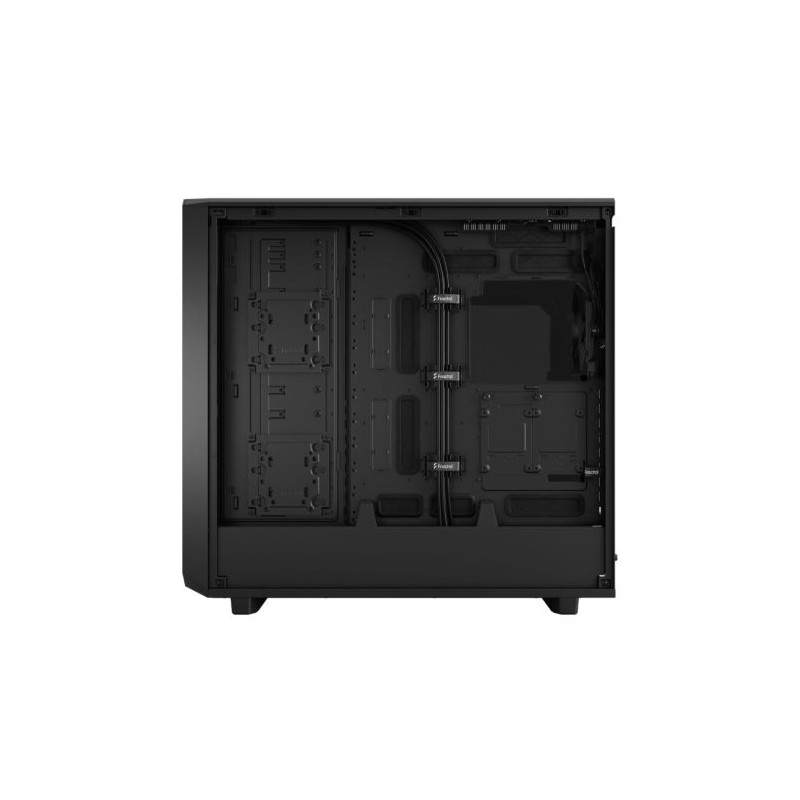

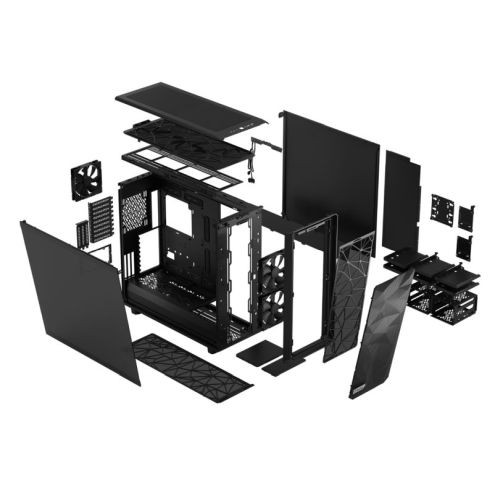

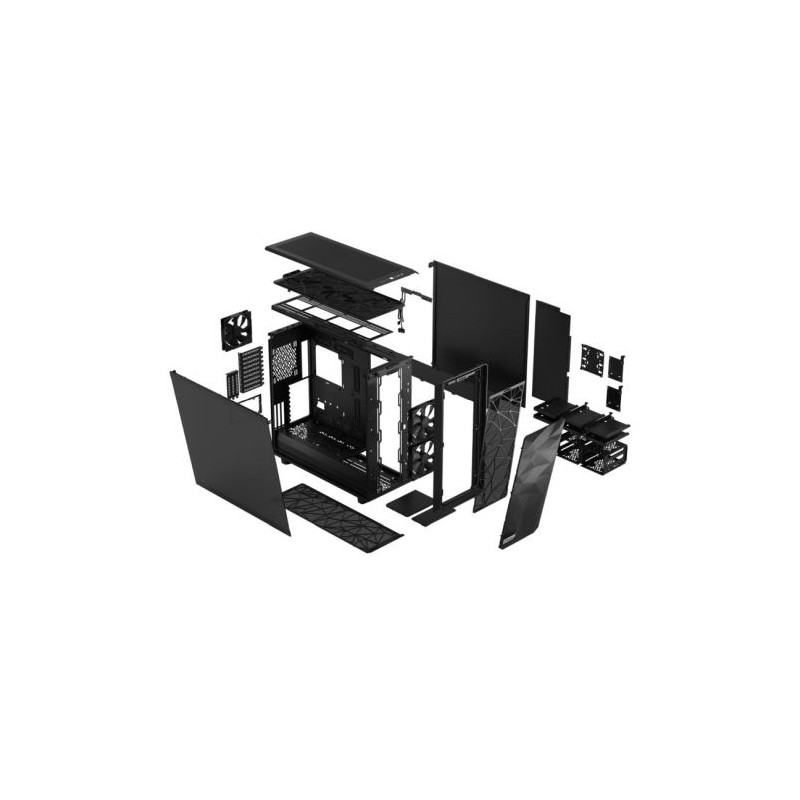

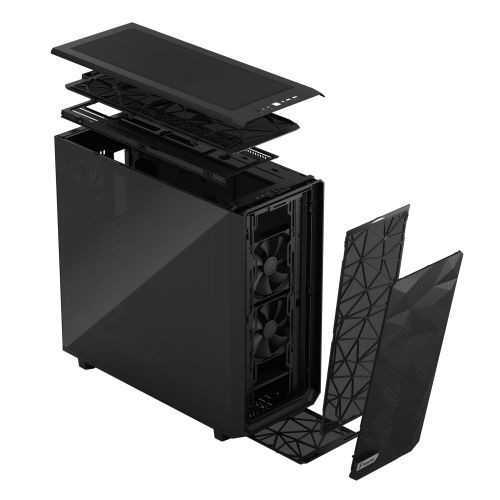

New chassis design that opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
New front nylon filter that can be removed for increased airflow

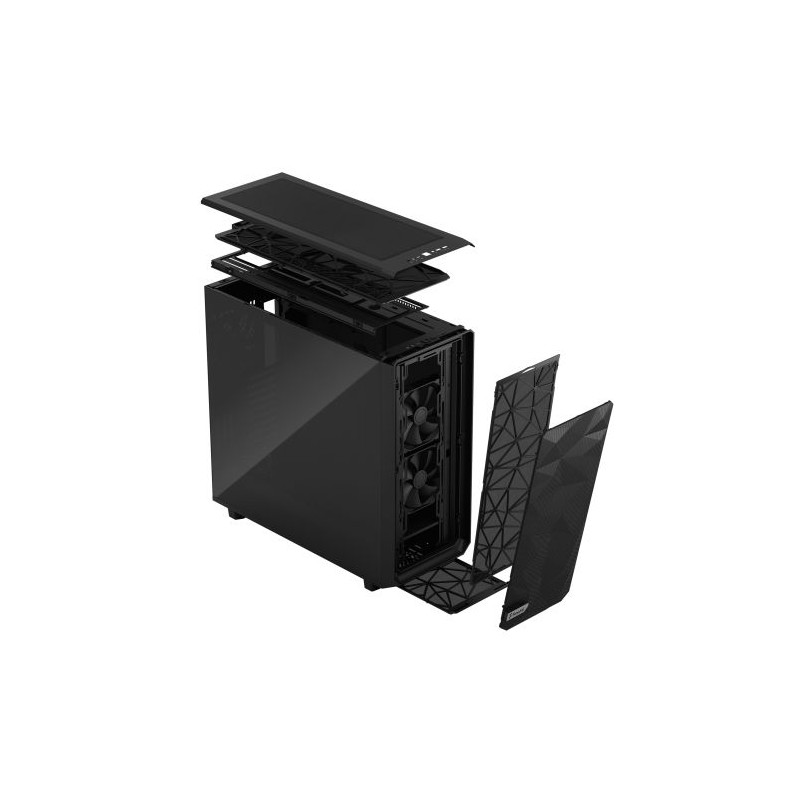

New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case

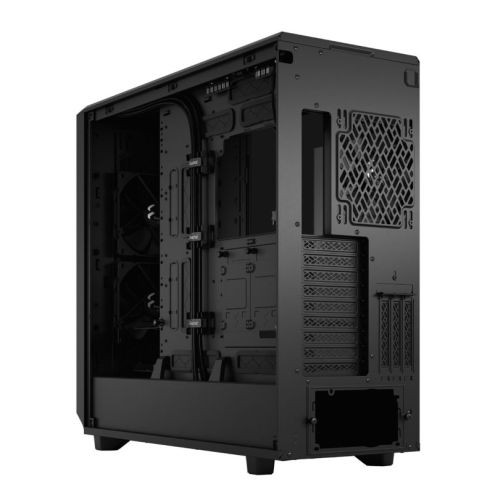

Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
Easy-to-clean high airflow nylon filters on the top and base with full PSU coverage and convenient front access

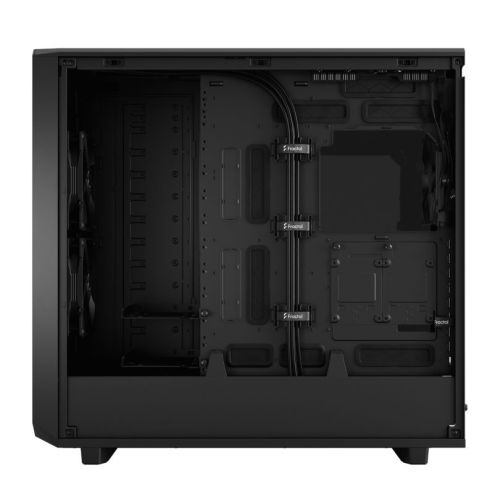

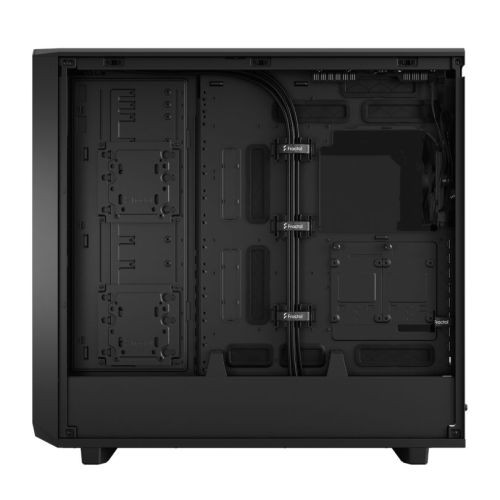

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount

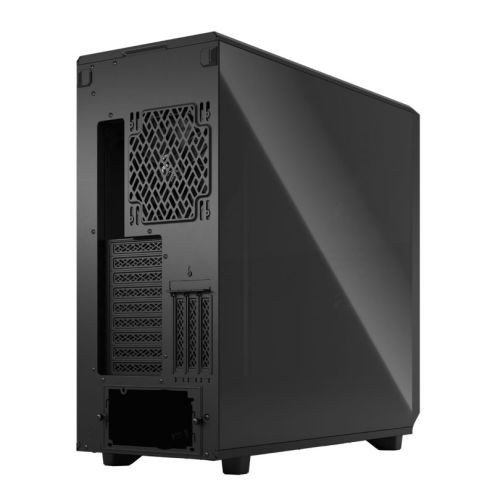

Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Tool-less, top-latching panels allow quick access while preventing accidental drops

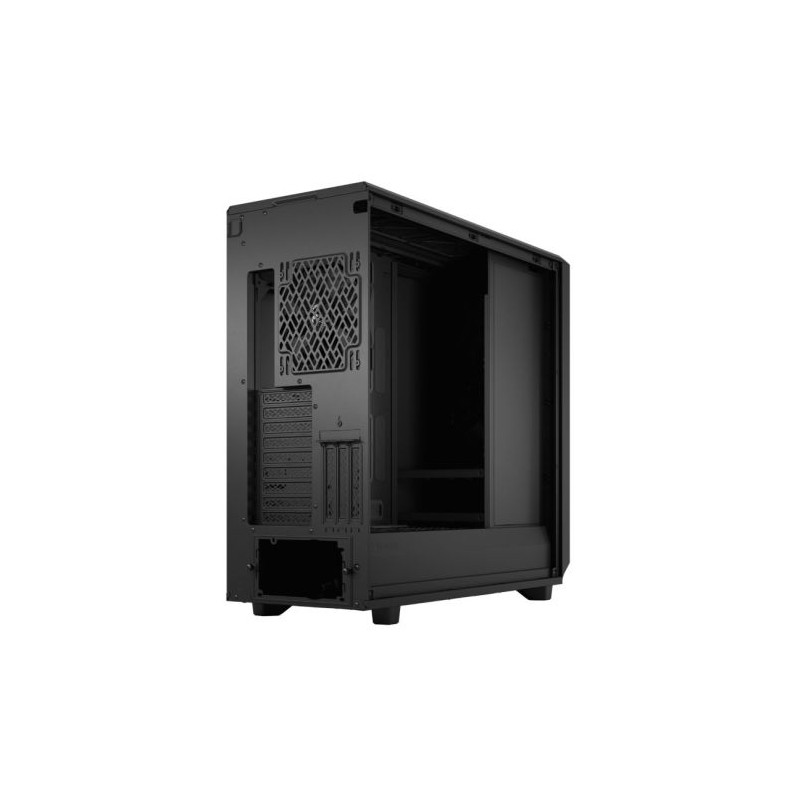

Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup

Detachable front filter

The nylon filter is easily removed from the hinged mesh panel for increased airflow
Tether-free bezel for easier access to front fan mounts
Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)

Superlative storage

Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
Tool-less, top-latching panels allow quick access while preventing accidental drops

Flexible dual-layout design

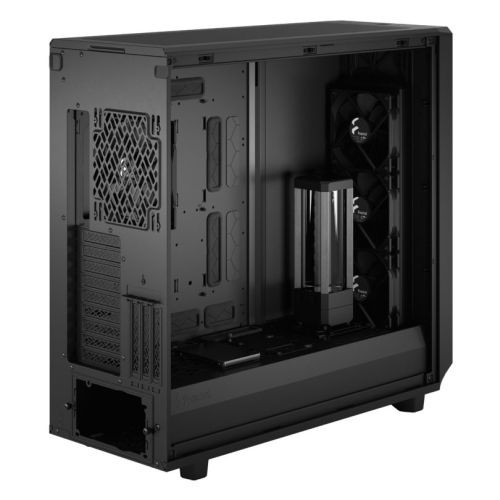

Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)

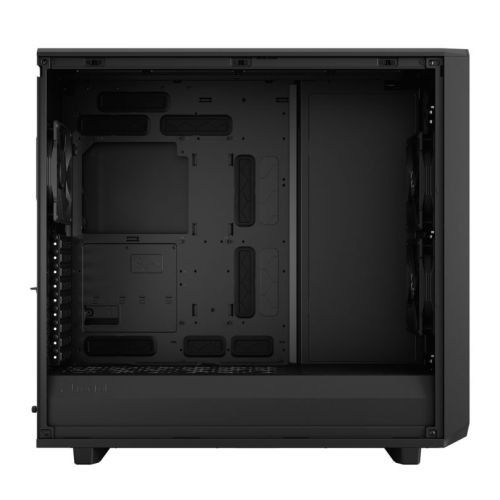

An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB

17 Item Items Warning: Last items in stock!

£ 215.17

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	FD-C-MES2X-01
Manufacturer:	FRACTAL
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

E-ATX

Power Supply Wattage

No PSU

Motherboard Support

EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB

Connectors / Controls

1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
Audio I/O
Power button
Reset button

Drive Bays

6 x 3.5"/2.5" - 18 positions total + 2 Multibrackets
2 x 2.5" - 5 positions total

Expansion Slots

9 + 3 Expansion slots

Cooling System

Included
Front: 2 x Dynamic X2 GP-14 140mm fans
Rear: 1 x Dynamic X2 GP-14 140mm fan

Fan Mounts
Front: 4 x 120 / 3 x 140 mm
Top: 4 x 120 / 3 x 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm

Water Cooling options:
Front: Up to 480 / 420 mm radiator
Top: Up to 480 / 420 mm radiator
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator

Colour

Black

Material

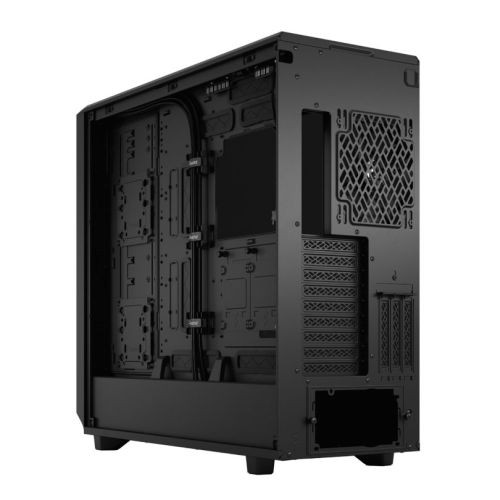

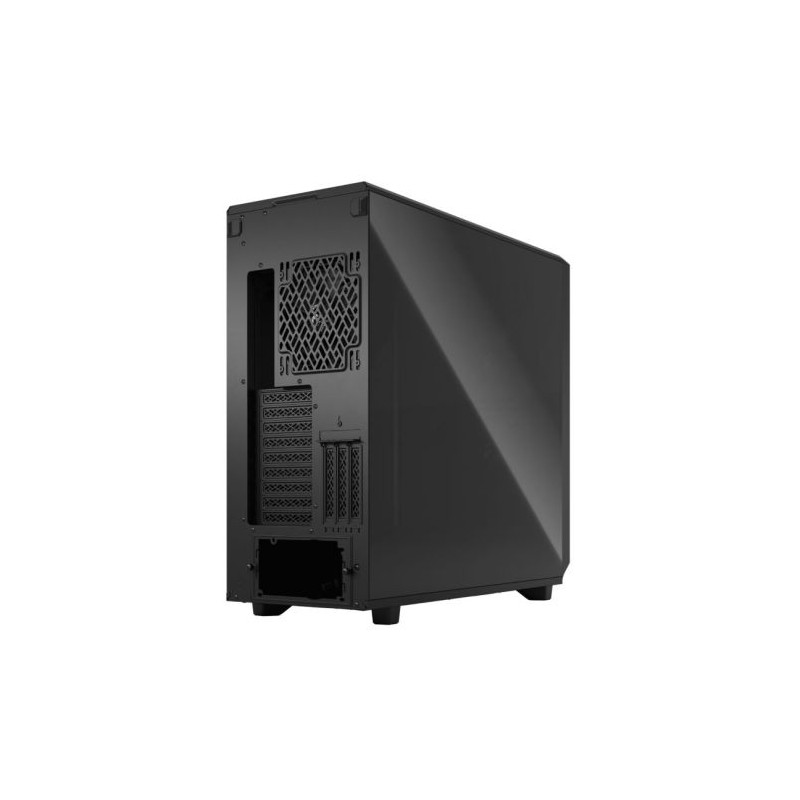

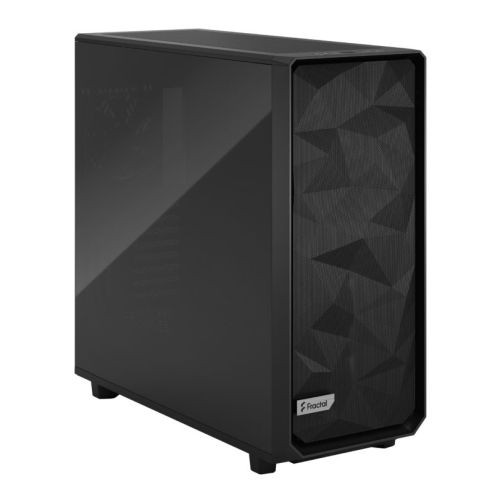

Left side panel: Tempered glass dark tint

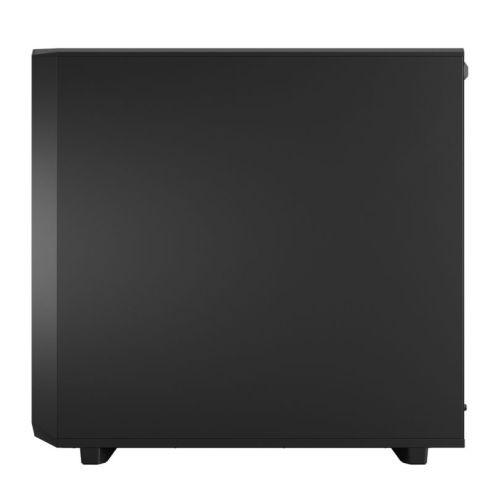

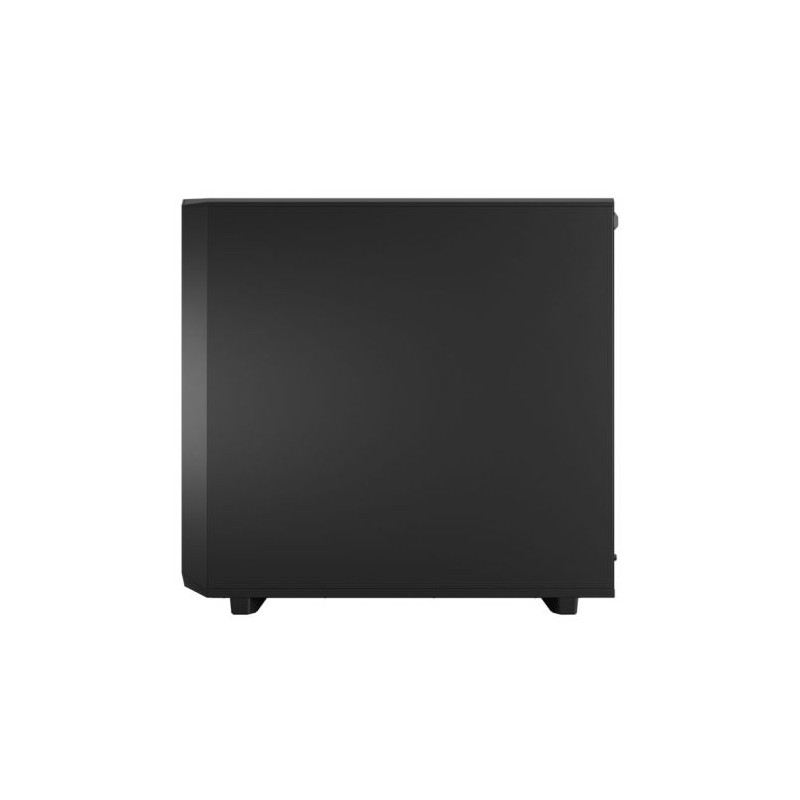

Right side panel: Steel

Compatibility

GFX Card:
Storage layout: 359 mm
Open layout: 549 mm (524 mm w/ front fan)

Max CPU Cooler:
185 mm

PSU:
250 mm (both HDD cages installed)

Weight/Dimensions

14.1 kg
(LxWxH) 600 x 240 x 566 mm
w/o feet/protrusions/screws: 588 x 240 x 547 mm

Additional Features

See Overview / Video

Accessories

Accessory box
User Manual
Screw Box

Package Weight

15.7500 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link
