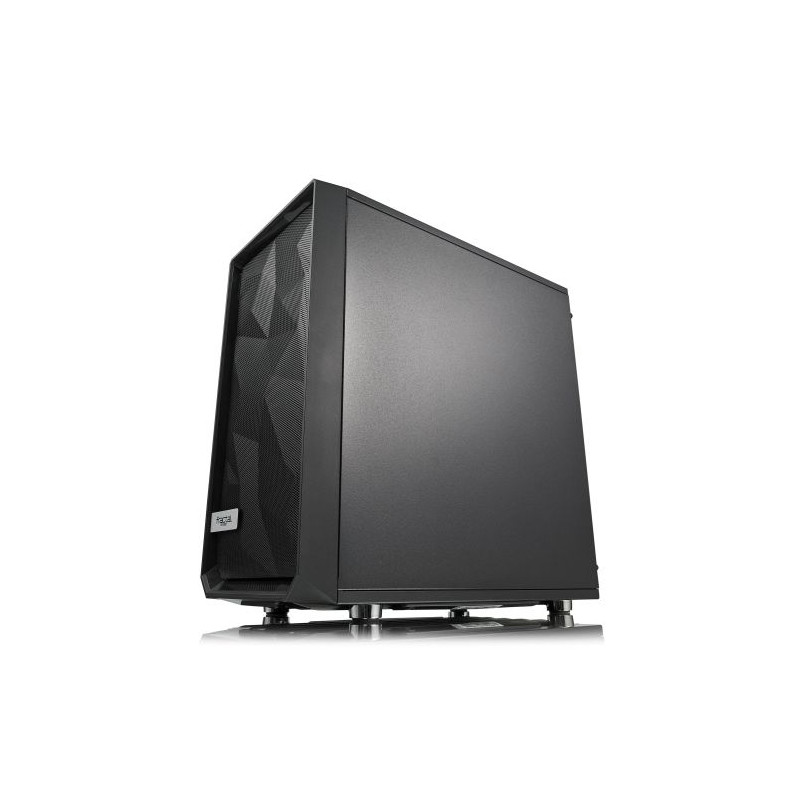

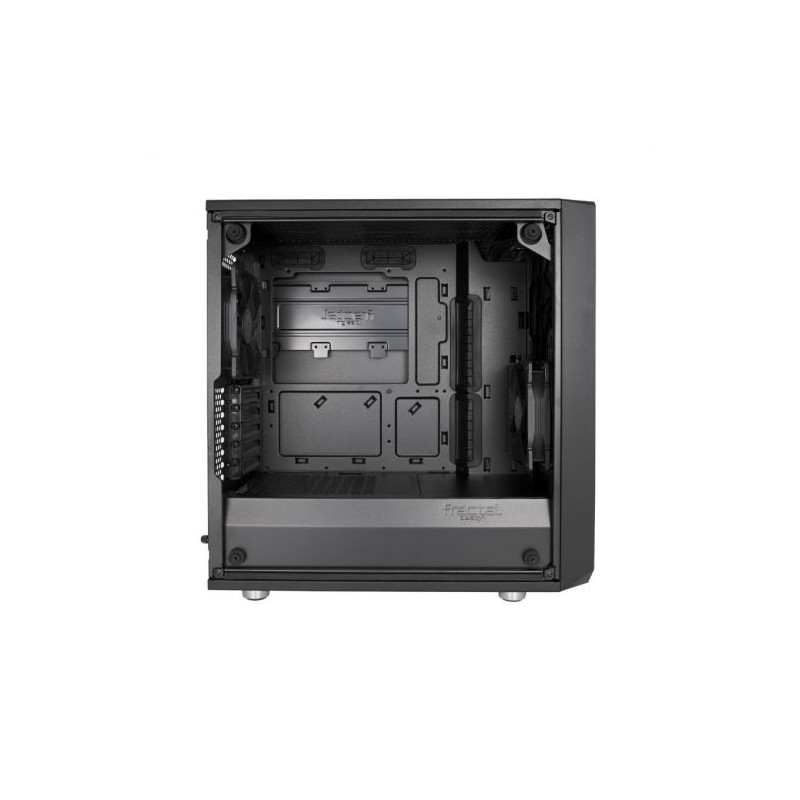

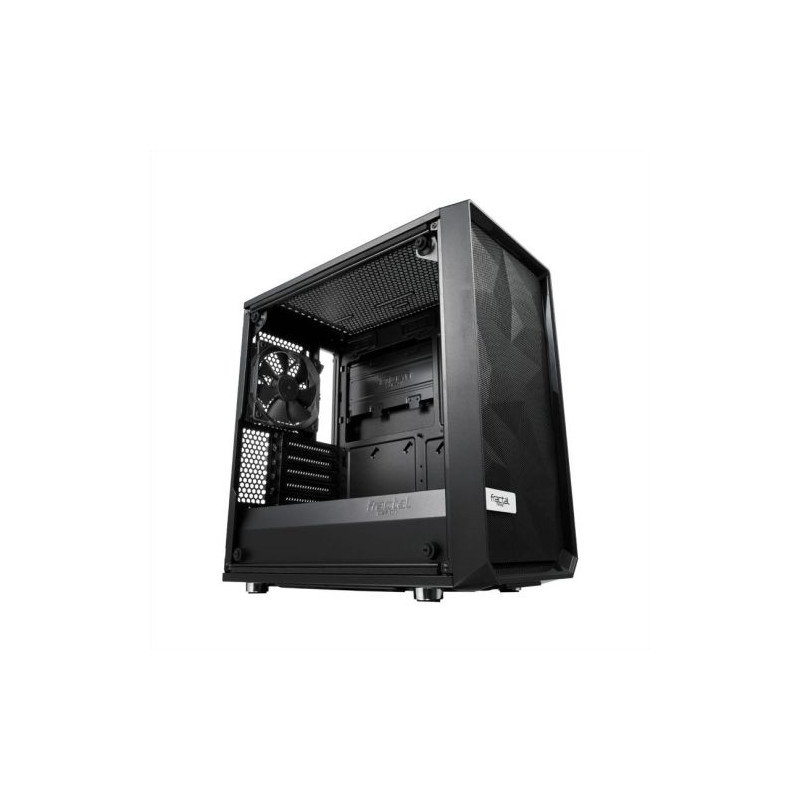

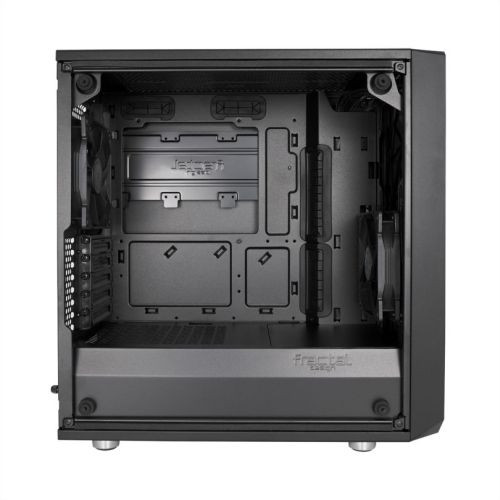

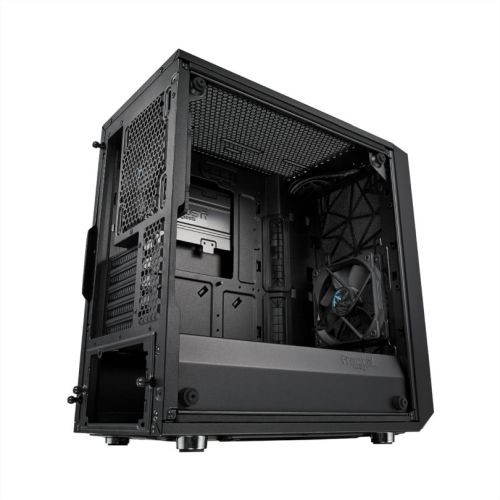

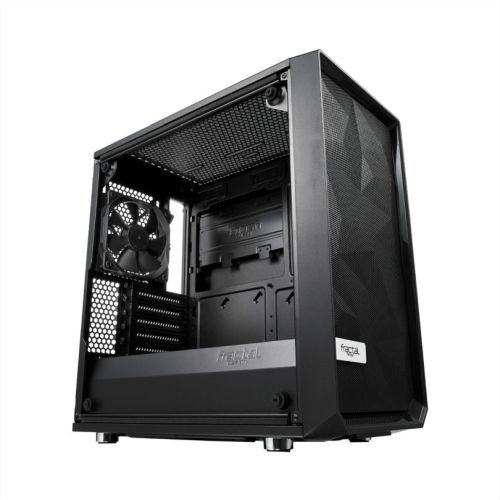

Fractal Design Meshify C Mini (Dark TG) Gaming Case w/ Dark Glass Window, Micro ATX, Angular Mesh Front, 2 Fans, Full Length PSU

Condition: New product

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C Mini – Dark TG carves a space uniquely its own as a new force in high-airflow design.

Streamlined high-airflow design
The performance and capacity of a larger tower in a remarkably compact mATX designed tower

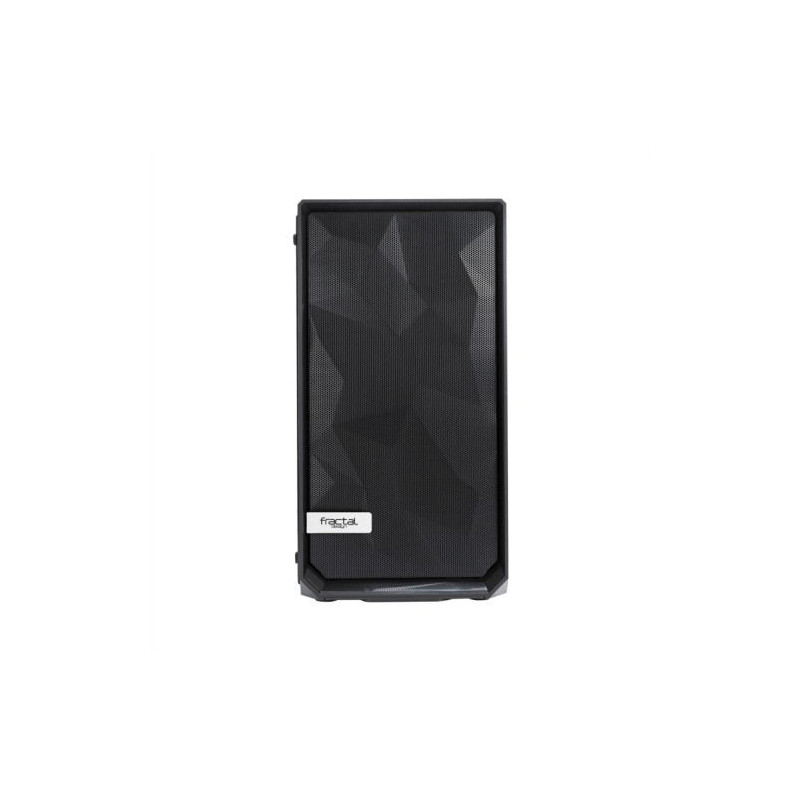

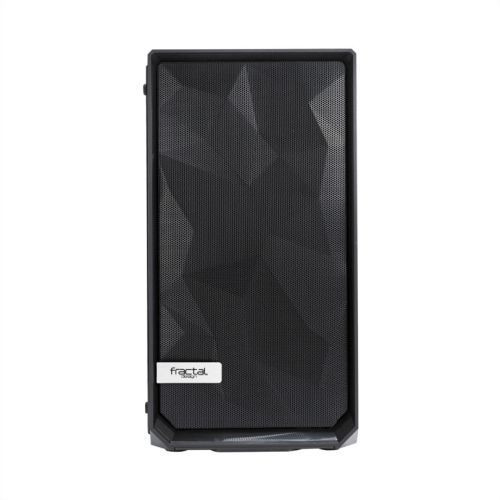

Angular mesh front panel maximizes air intake

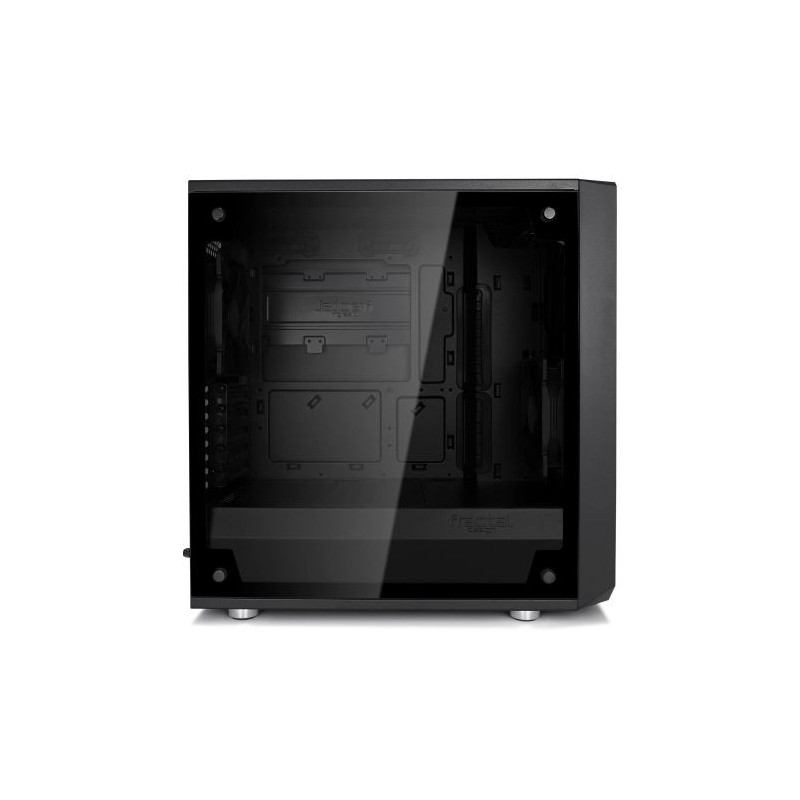

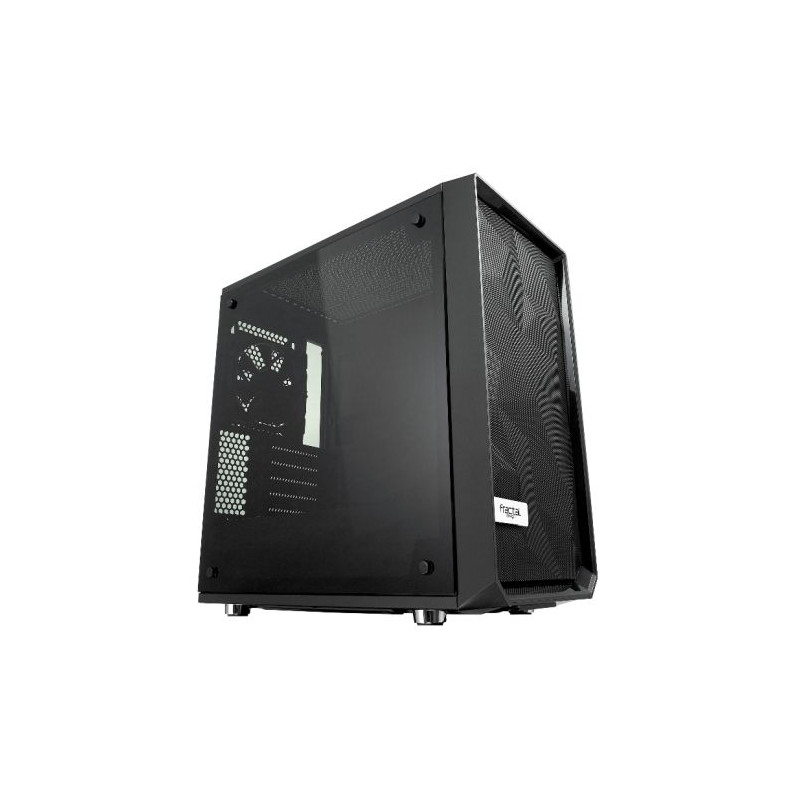

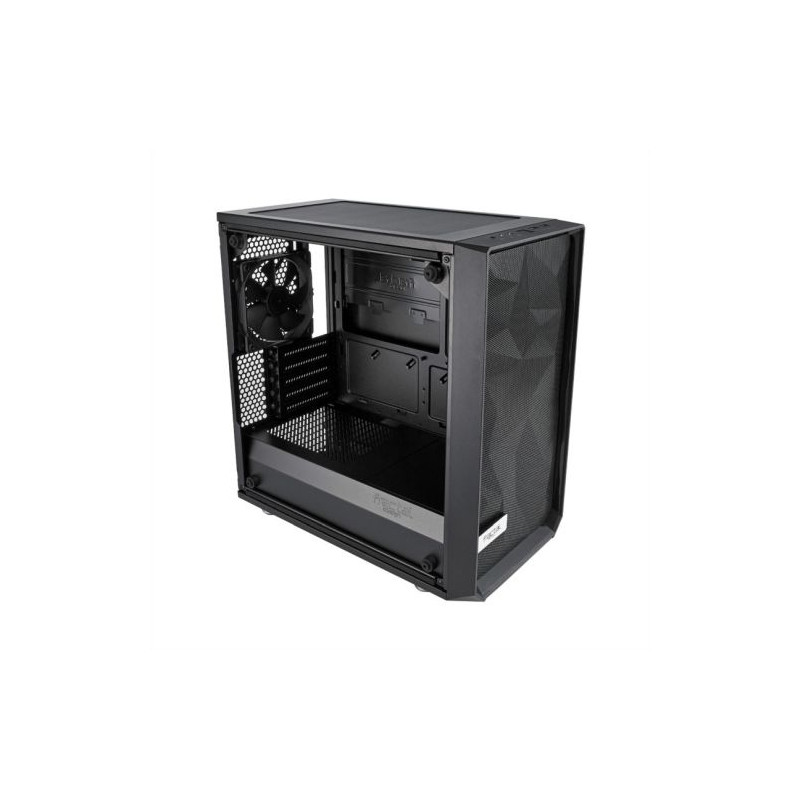

Tinted tempered glass side panel for a clean looking exterior with full interior visibility
Distinctive styling with stealthy black-on-black aesthetic
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise

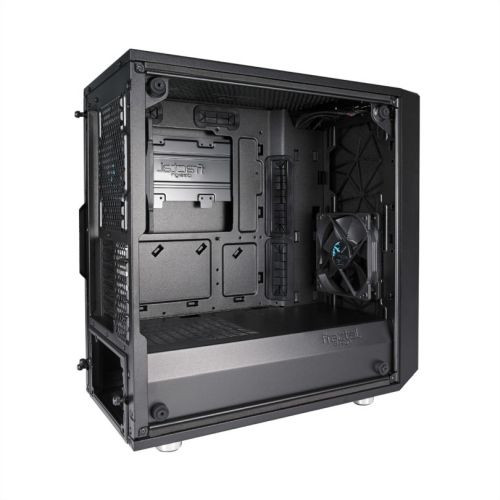

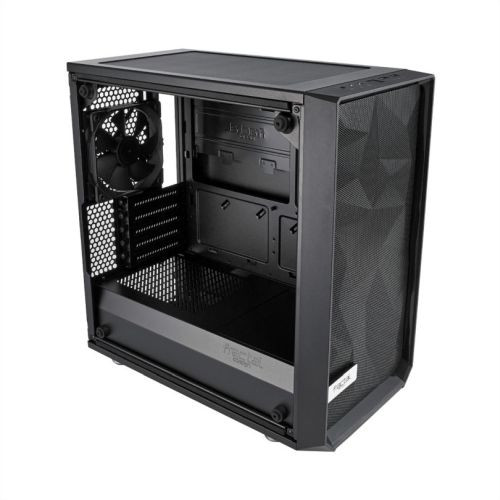

Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

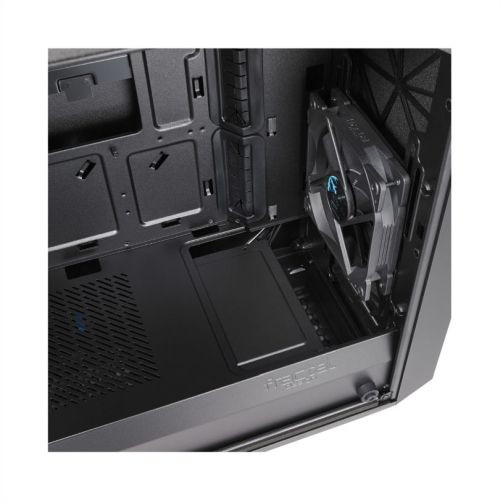

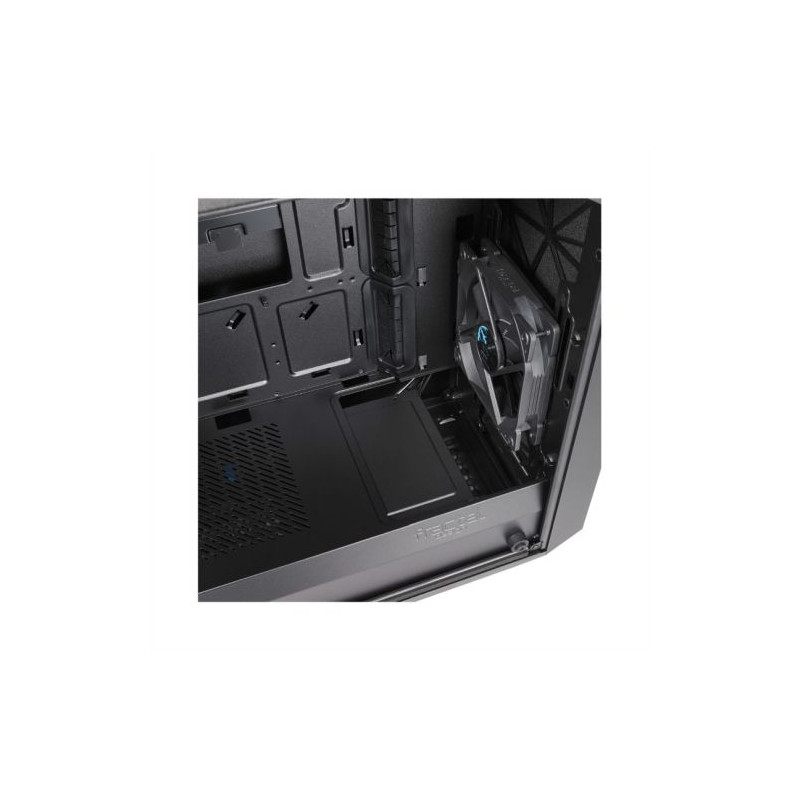

Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior

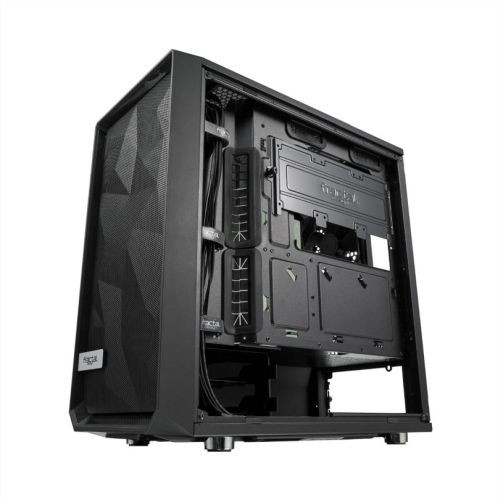

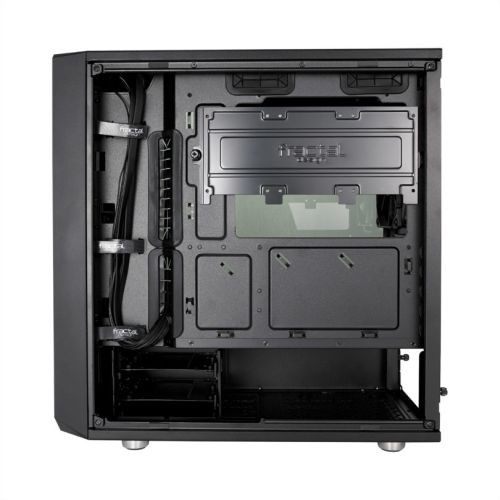

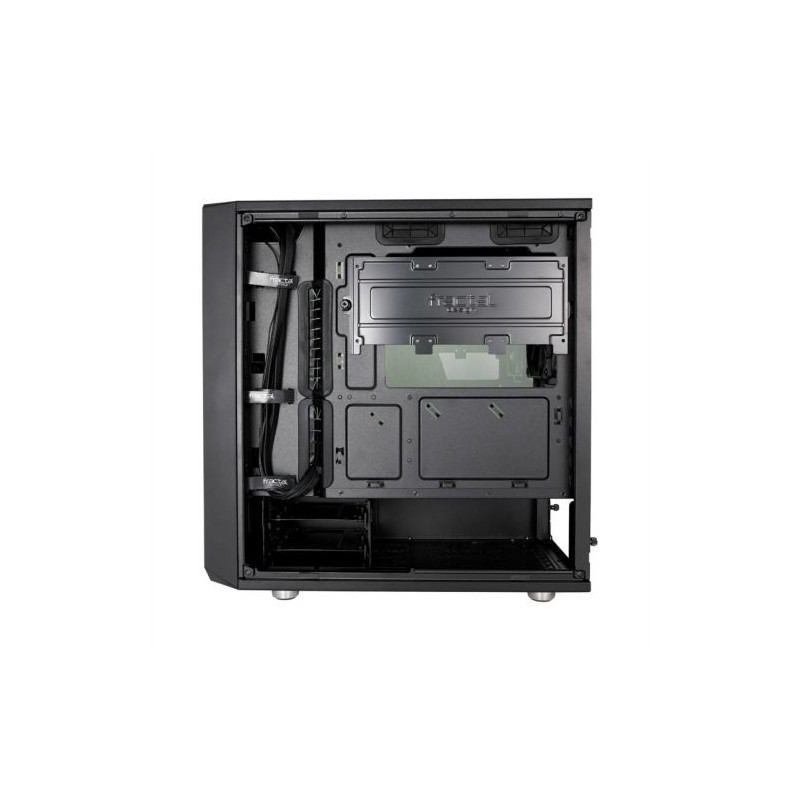

Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing

Significantly smaller, but just as cool

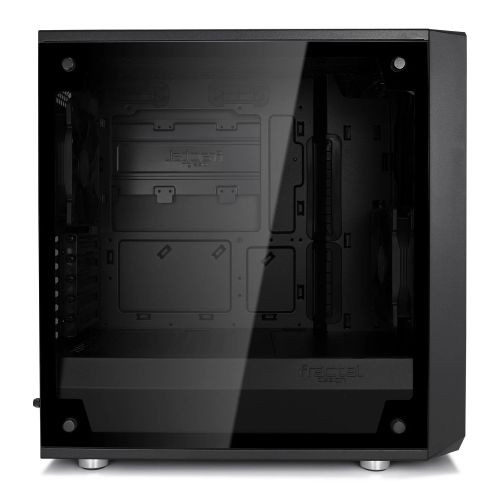

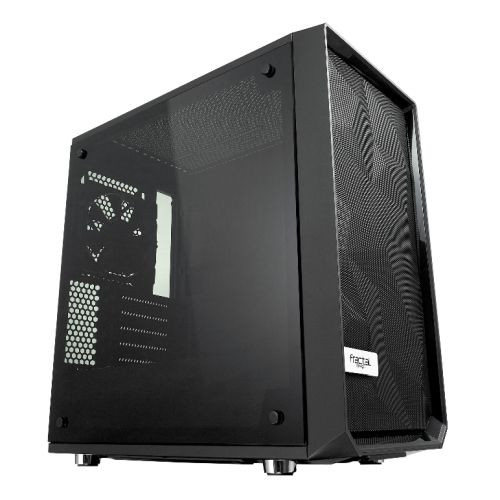

Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.

The Meshify C Mini – Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match. When performance is top priority and compromise is not an option, Meshify has you covered in style.

Streamlined high-airflow design

Angular mesh front panel maximizes air intake
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Flexible storage options with room for up to five drives

Open to suggestions

Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing

Room for flexibility

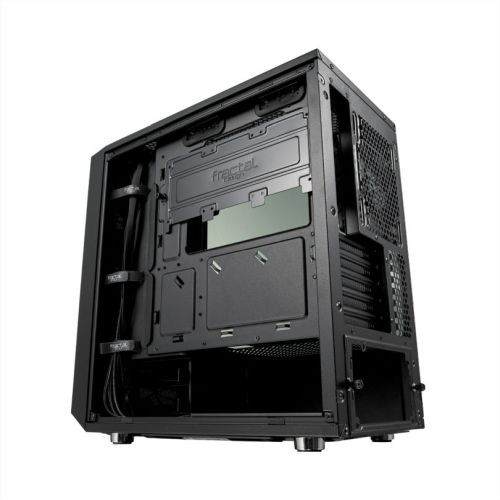

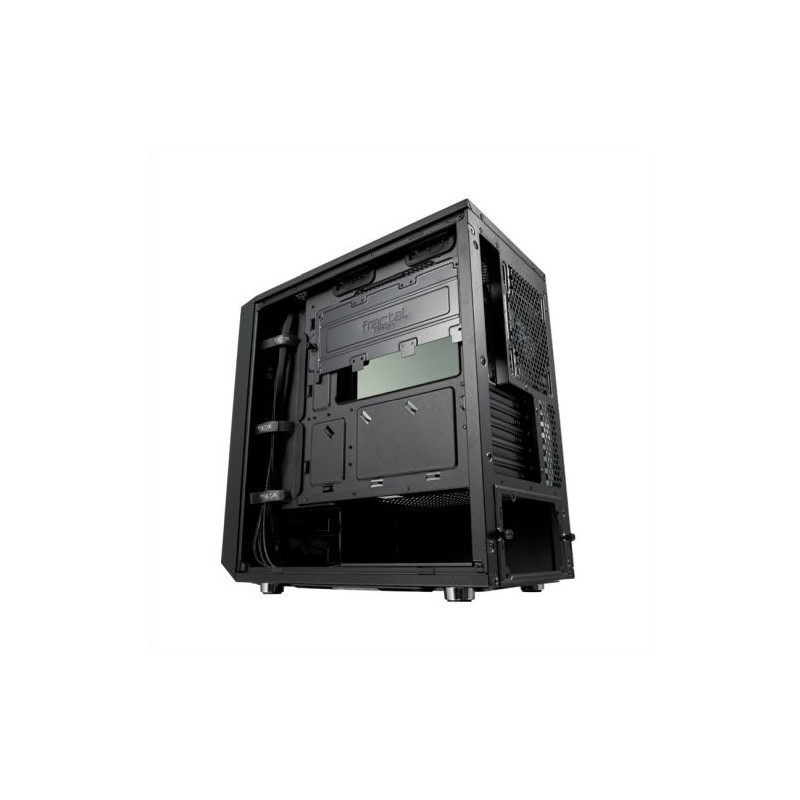

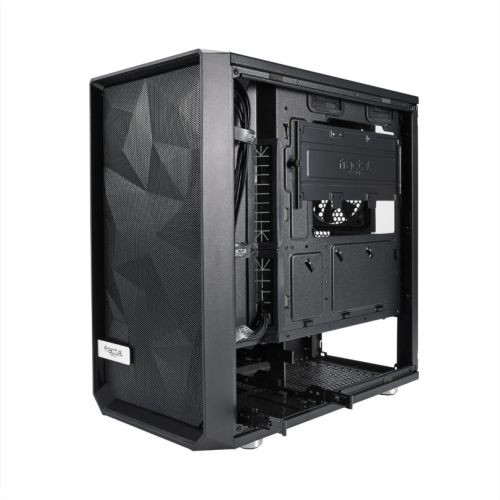

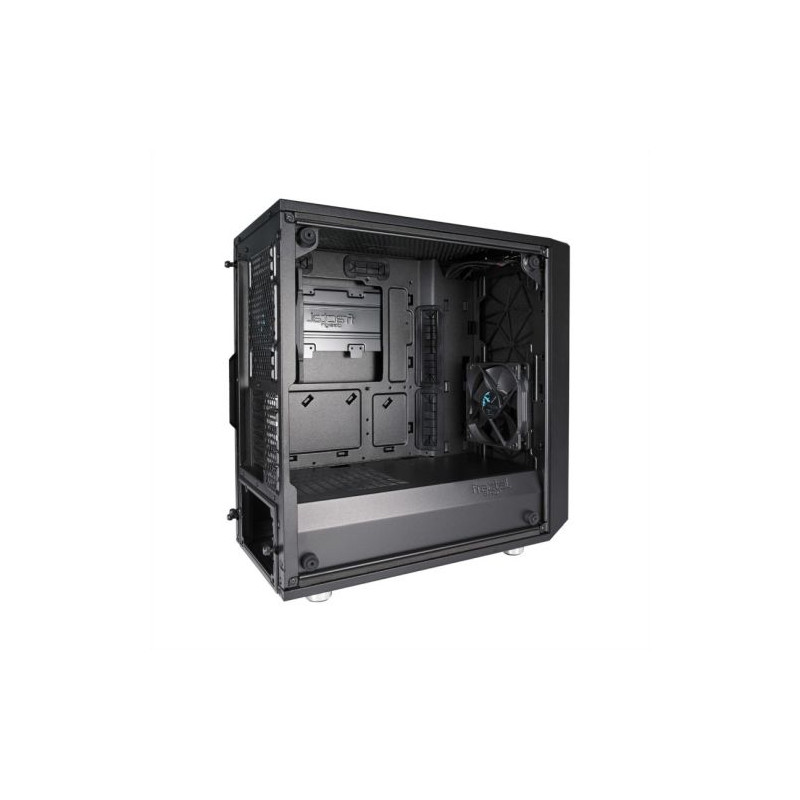

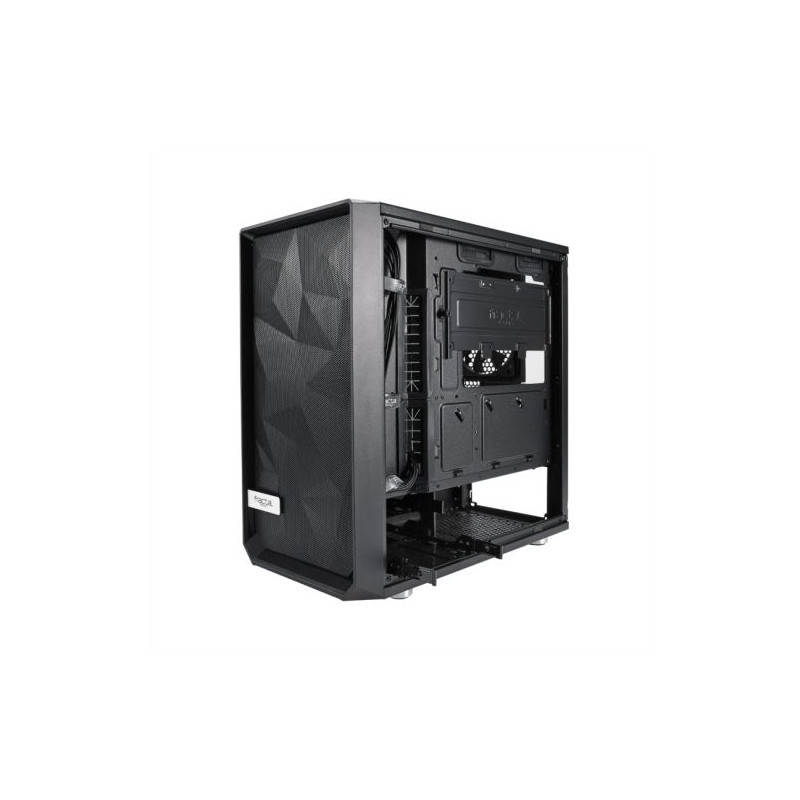

Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.

Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Flexible storage options with room for up to five drives
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing

Improved air cooling

Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise and 100,000 hour life expectancy.

Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 280 mm in the front and 240 mm up top.
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust.
Even the largest enthusiast-class GPUs leave plenty of room for thick dual-fan rads in the front. The adjustable drive cage can be moved or removed to fit even the lengthiest heavy-duty PSUs.

18 Item Items Warning: Last items in stock!

£ 81.12

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	FD-CA-MESH-C-MINI-BKO-TGD
Manufacturer:	FRACTAL
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

Micro ATX

Power Supply Wattage

No PSU

Motherboard Support

Micro ATX, Mini ITX

Connectors / Controls

2 x USB 3.0
Audio I/O
Power button
Reset button

Drive Bays

2 x 3.5"/2.5"
3 x 2.5"

Expansion Slots

5 Expansion slots

Cooling System

Included
Front: 1 x Dynamic X2 GP-12 120mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan

Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 140 mm

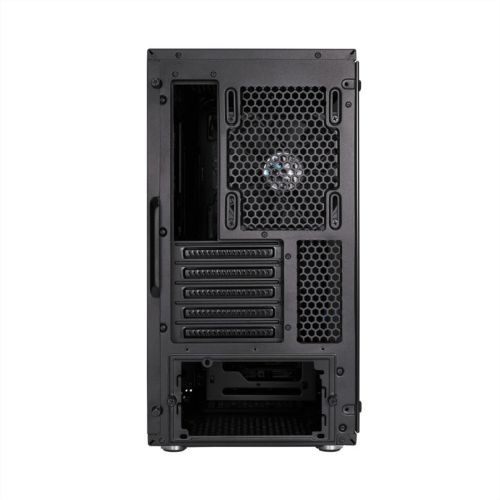

Rear: 1 x 120 mm
Bottom: 1 x 120 mm

Water Cooling options:
Front: Up to 240 / 280 mm radiator (max width 144 mm)
Top: Up to 240 mm (max component height on board 40 mm)
Rear: 120 mm radiator (max width 125 mm)

Colour

Black

Material

Left side panel: Tempered glass panel
Right side panel: Steel

Compatibility

GFX Card:
315 mm with front fan mounted

Max CPU Cooler:
172 mm

PSU:
175 mm

Weight/Dimensions

6.28 kg
(LxWxH) 395 x 212 x 399 mm
w feet/protrusions/screws: 409 x 217 x 412 mm

Additional Features

See Overview / Video

Accessories

User manual
Accessory box
Top filter
