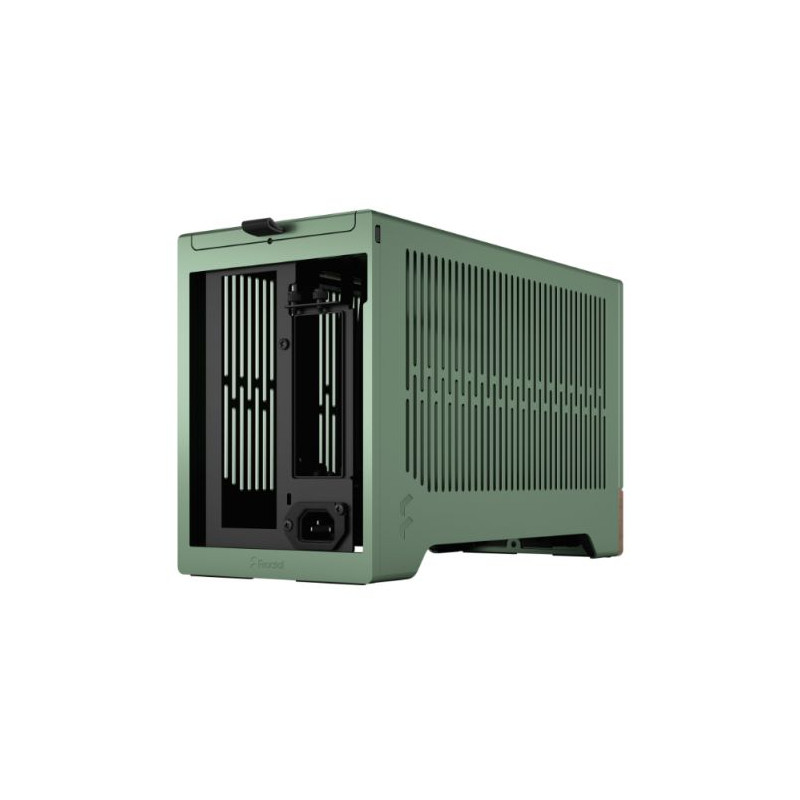

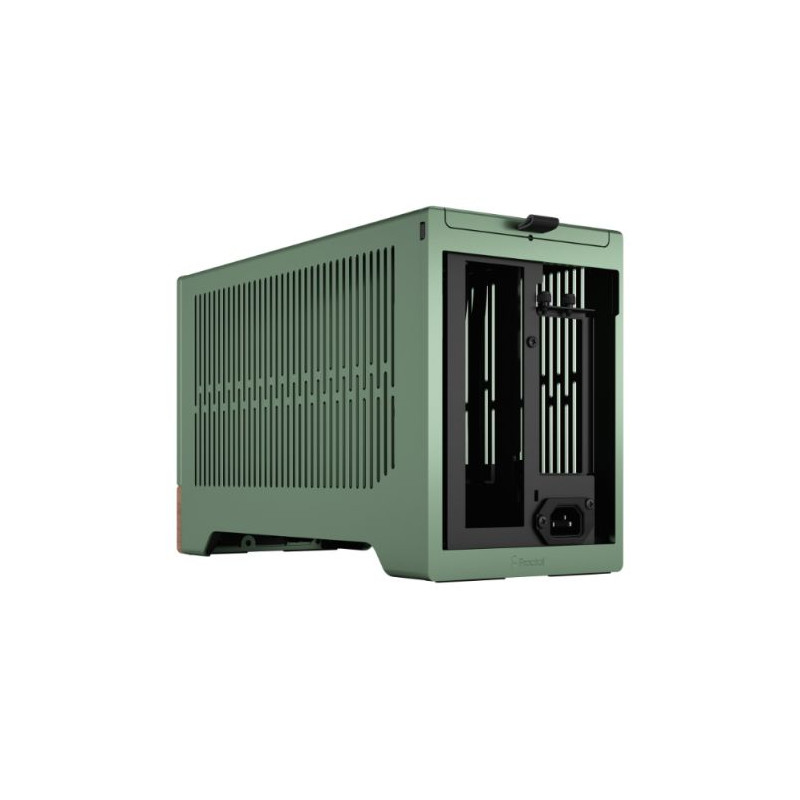

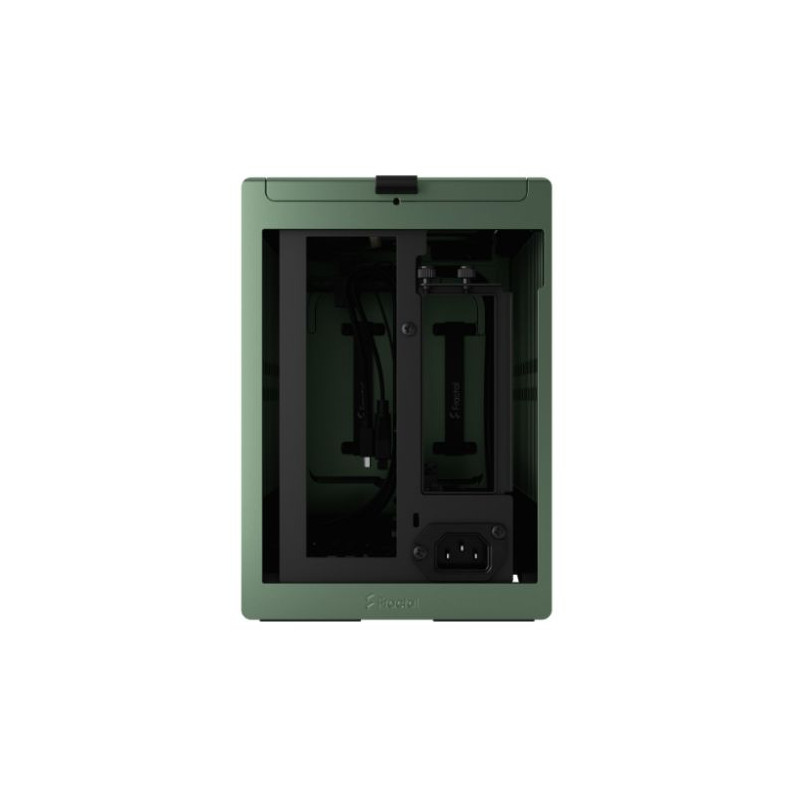

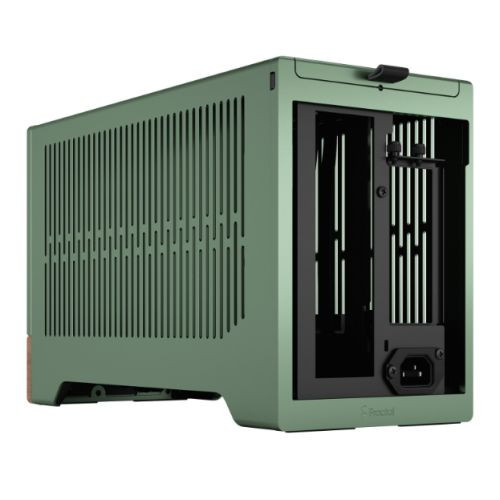

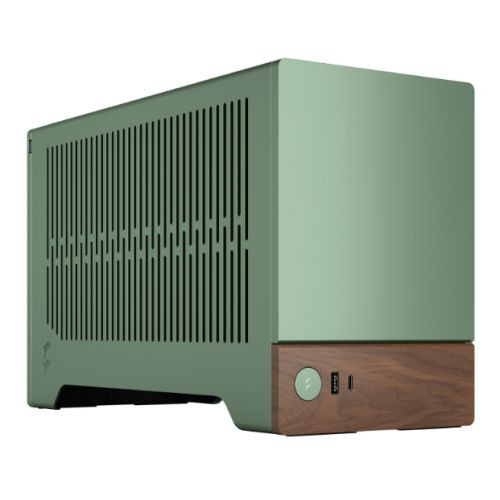

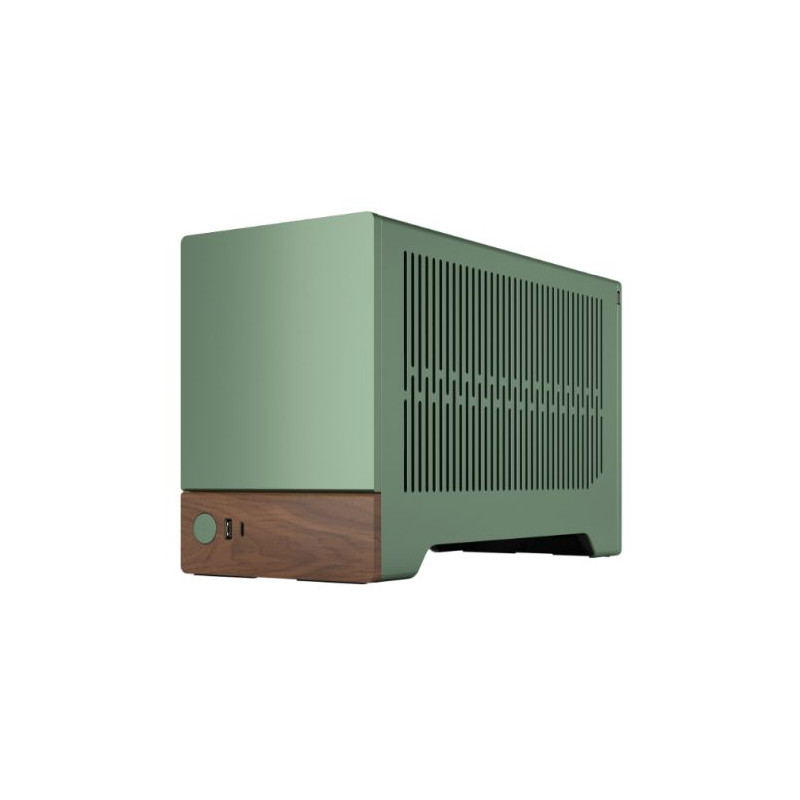

Fractal Design Terra Jade SFF PC Case, Mini ITX, Walnut Front, Anodized Aluminium Exterior, 322mm GPU Support, Requires SFX/SFX-

Condition: New product

Despite its modest 10.4L, the Terra can easily accommodate a fullsize current GPU and SFX-L PSU thanks to a sliding wall design that adapts to your motherboard and GPU needs

This is a case that fuses Scandinavian design elements and a remarkably flexible interior to form a uniquely versatile SFF case and lend an air of luxury to any build.

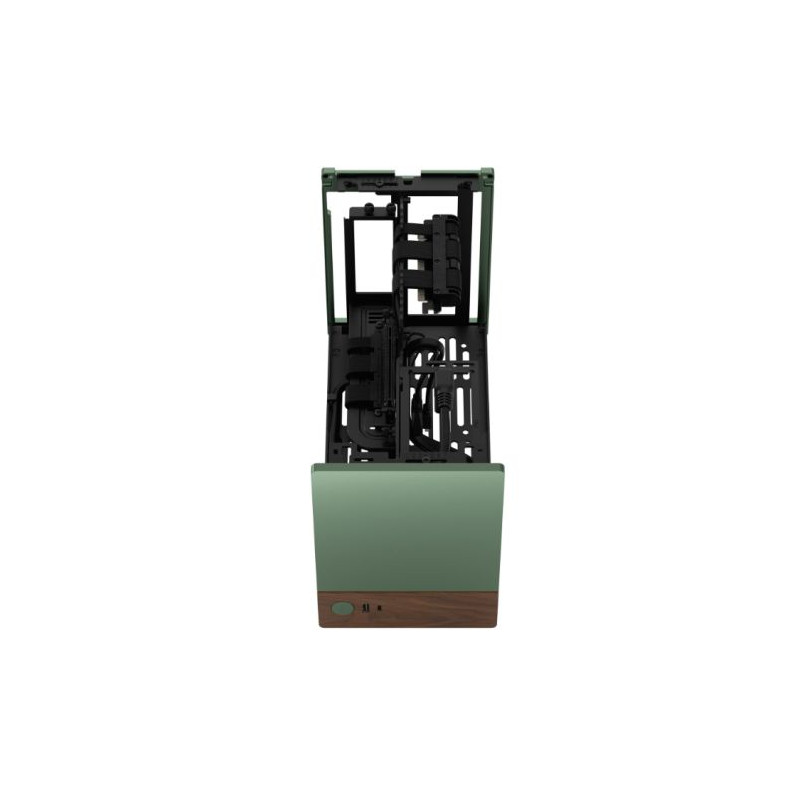

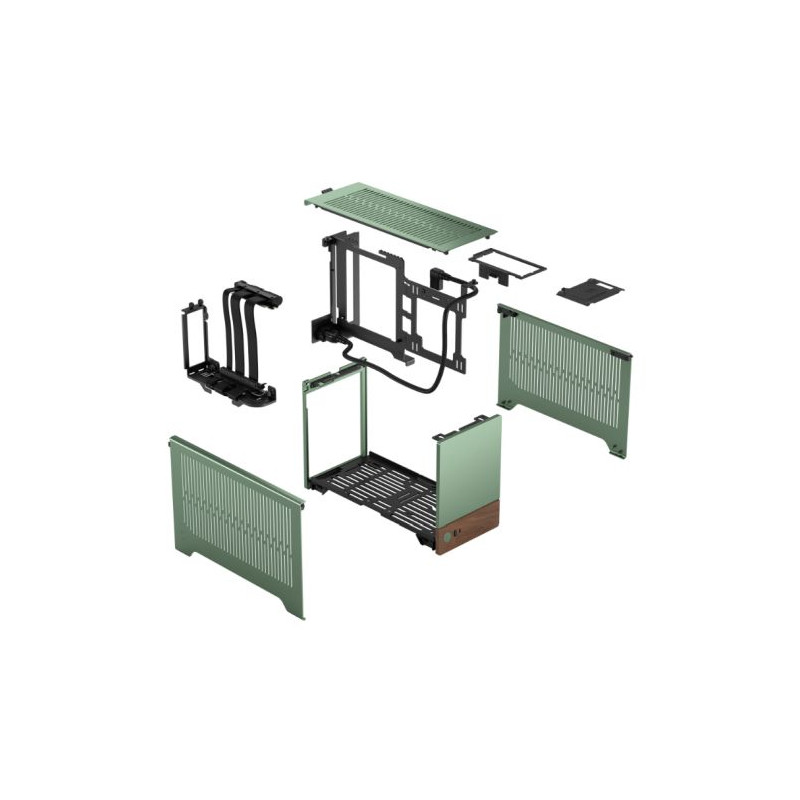

Sandwich type SFF-case

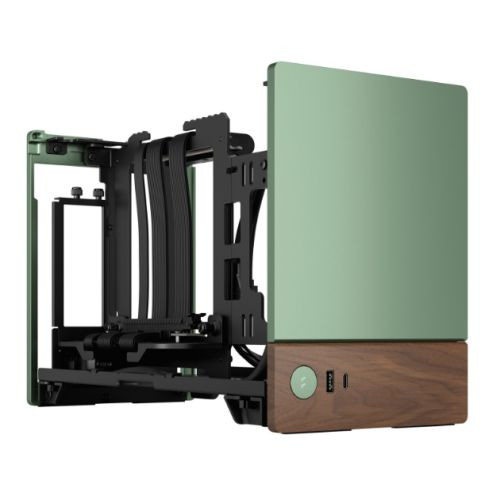

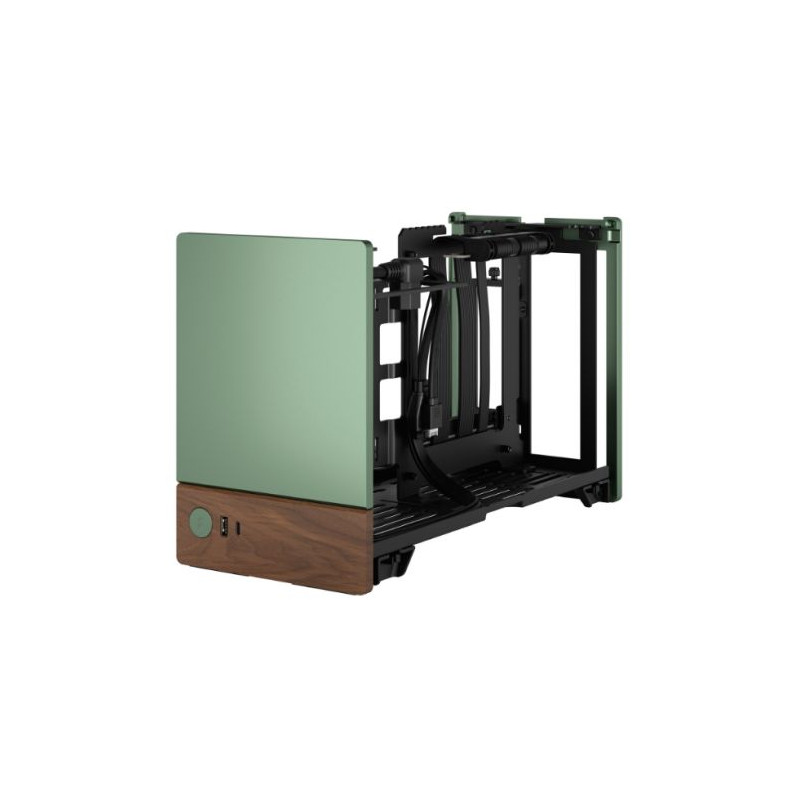

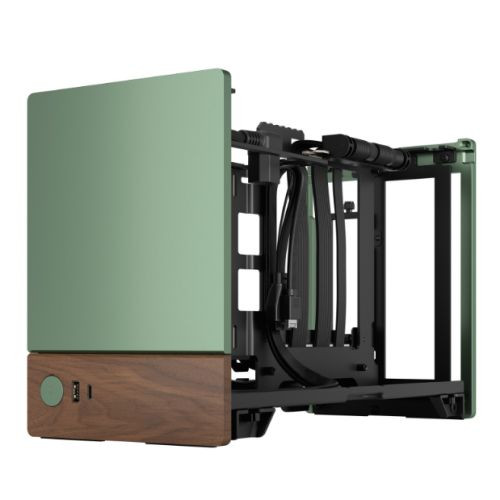

Motherboard bracket can be slid sideways to make room where it is needed the most
Anodized aluminum exterior

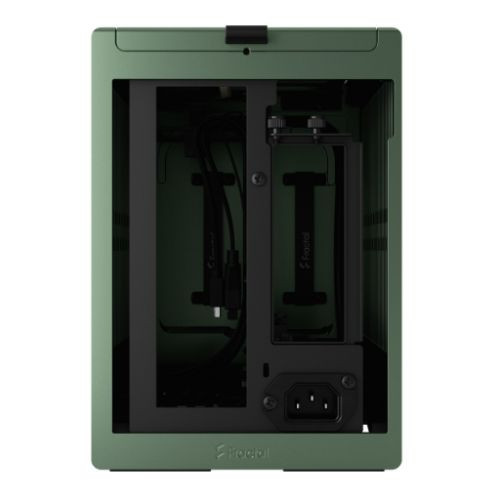

Front and back panel made by 8 mm CNCd anodized aluminum
Front panel made of walnut
PCIe 4.0 Riser cable included

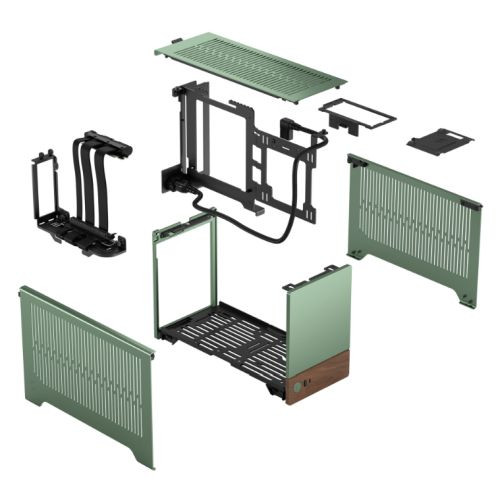

Removable top panel and removable falcon hinged side panels for easy access
Only 10,4L (non-protruding parts) yet accommodates up to a 322 mm long GPU

Elegantly crafted

Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

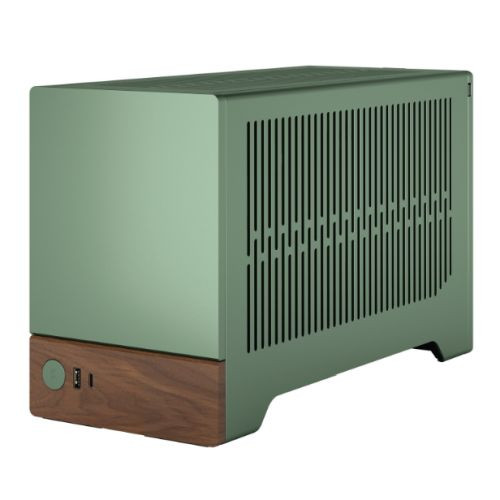

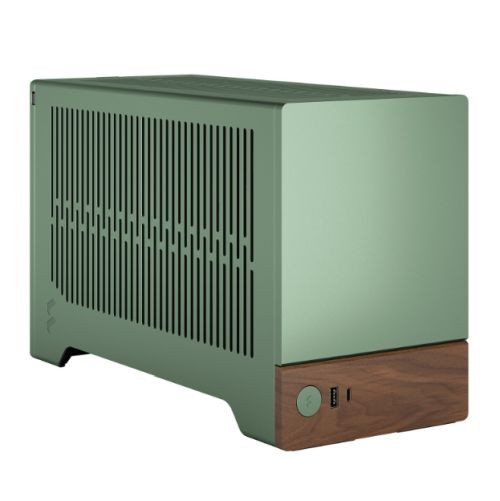

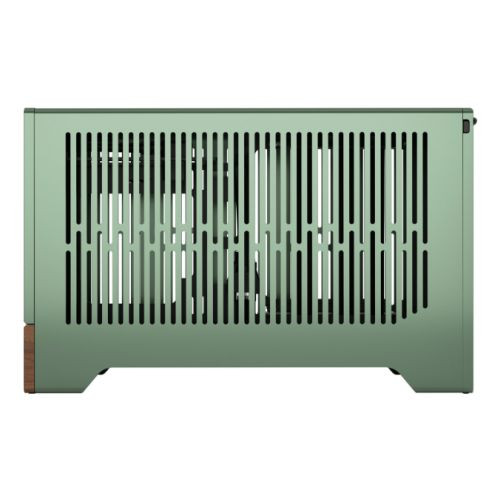

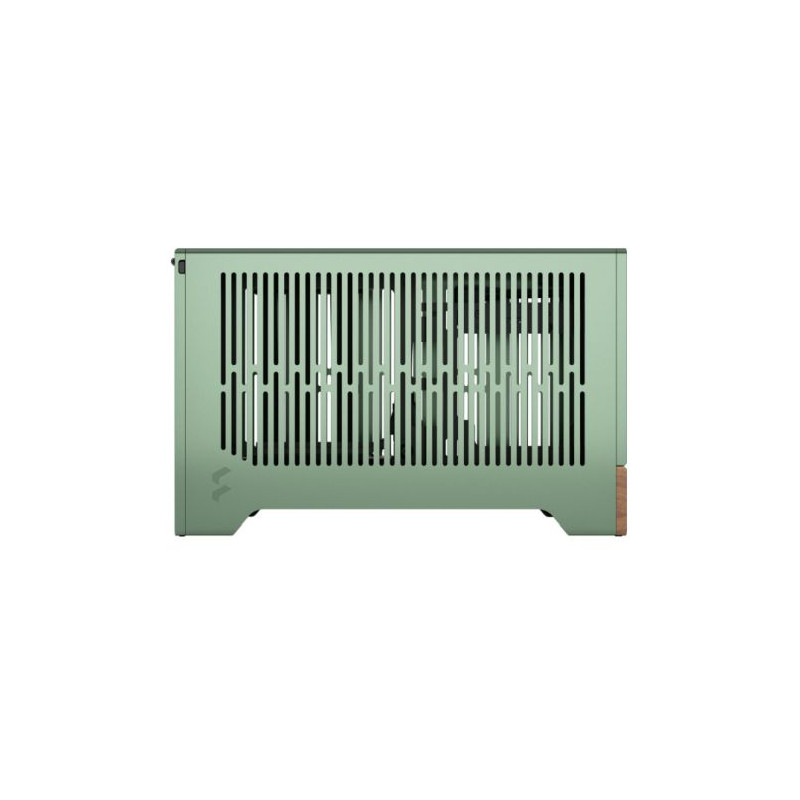

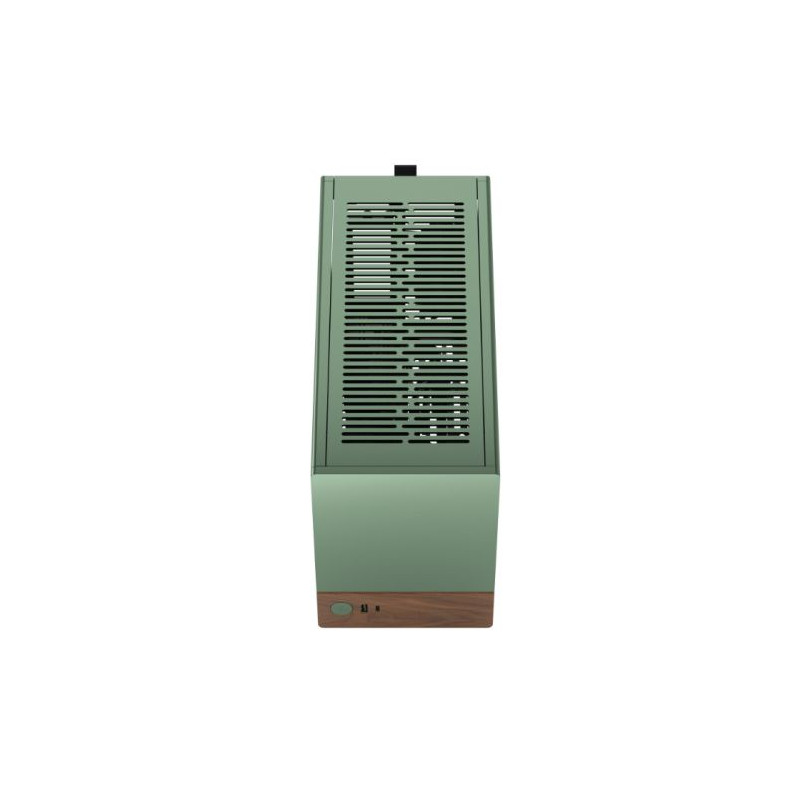

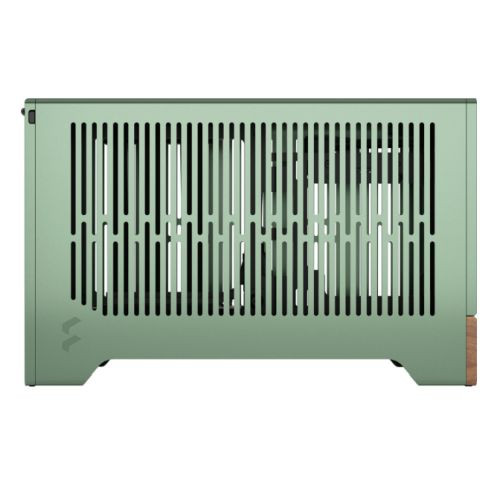

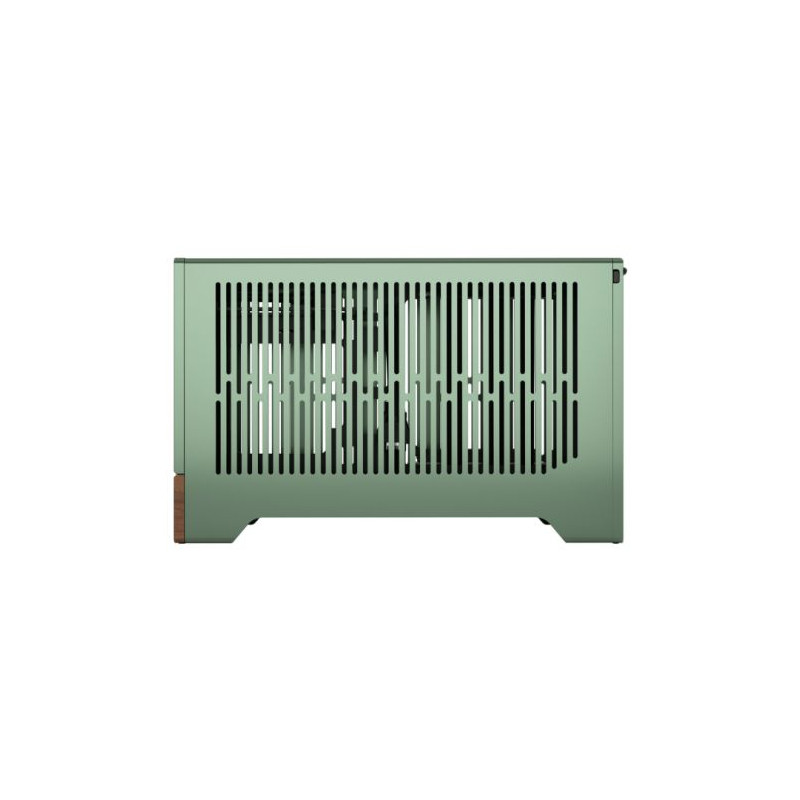

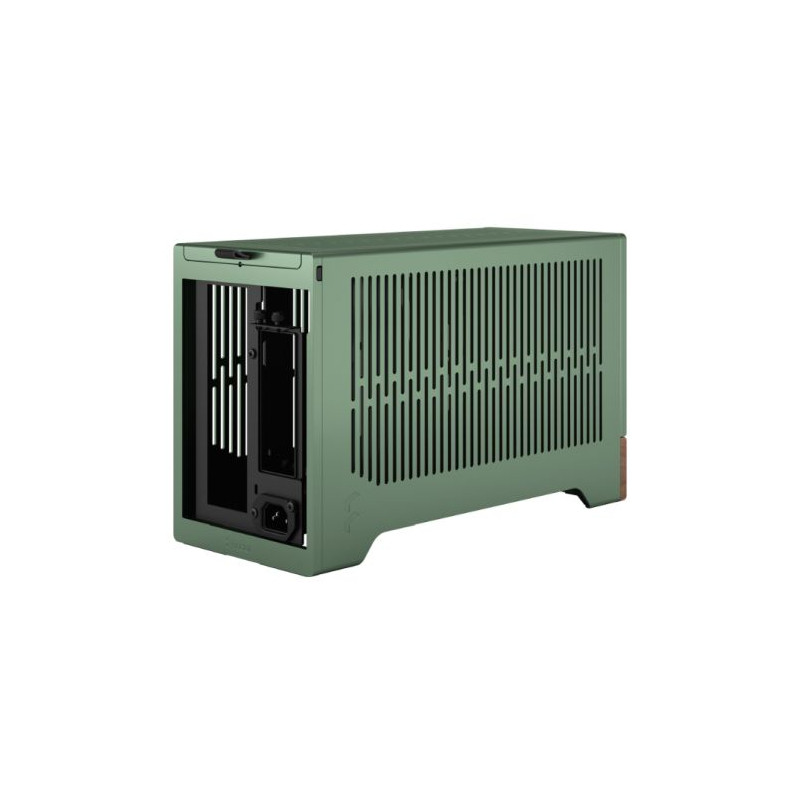

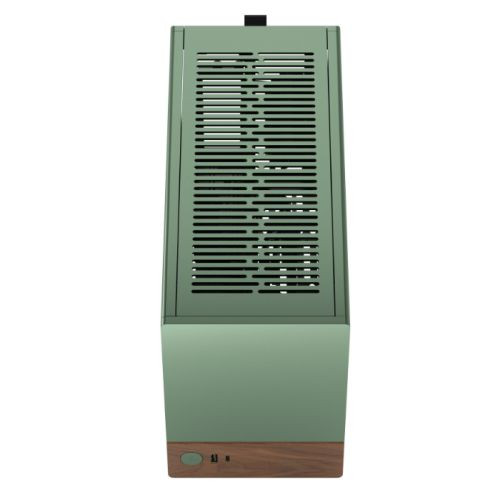

Make the most of natural airflow through the ventilated top, side and bottom panels

Engineered for SFF gaming

Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case

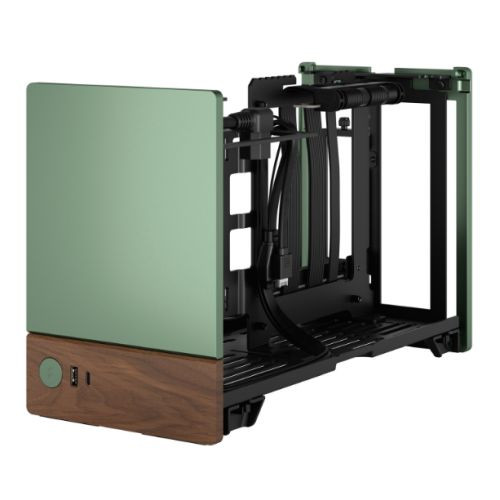

Get a head start on your build with the included PCIe 4.0 riser cable
Store up to two SSDs in the dedicated 2.5” drive mounts

Easily accessible

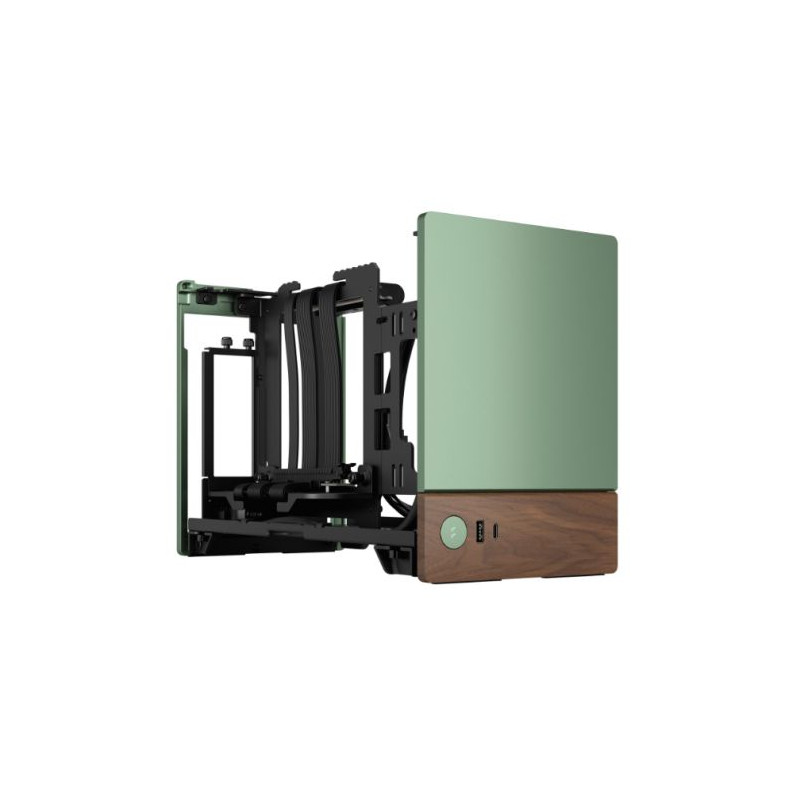

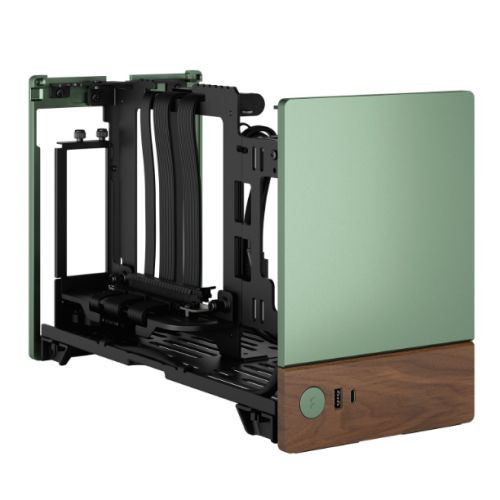

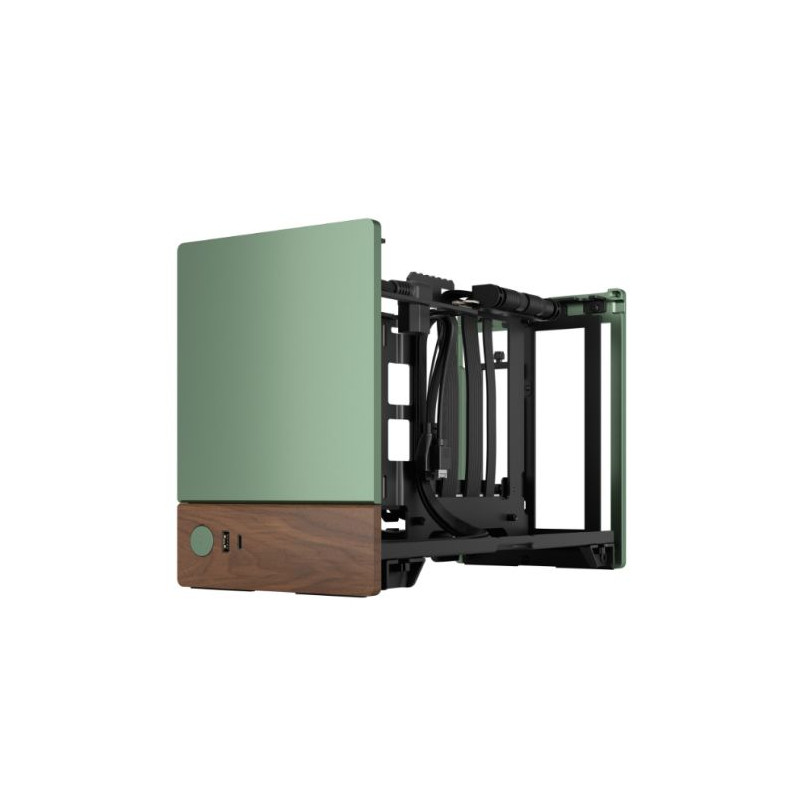

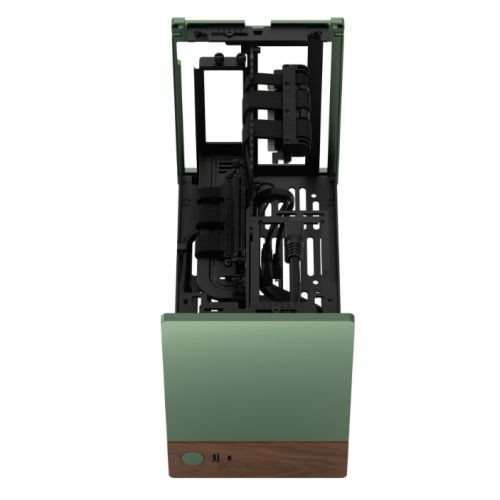

Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components

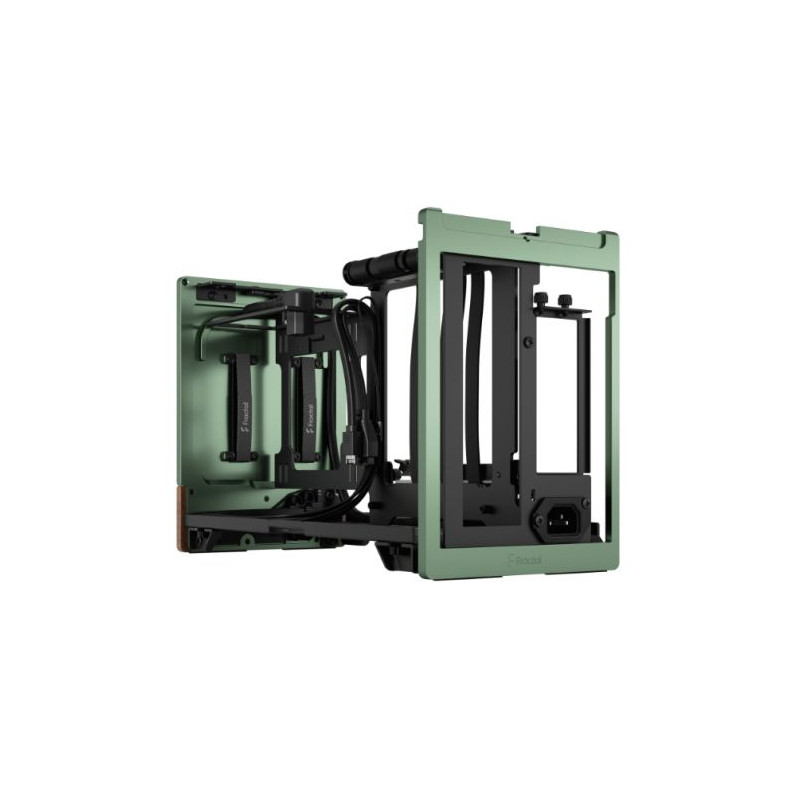

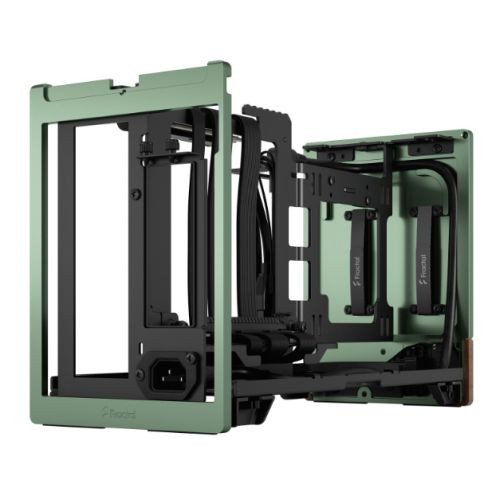

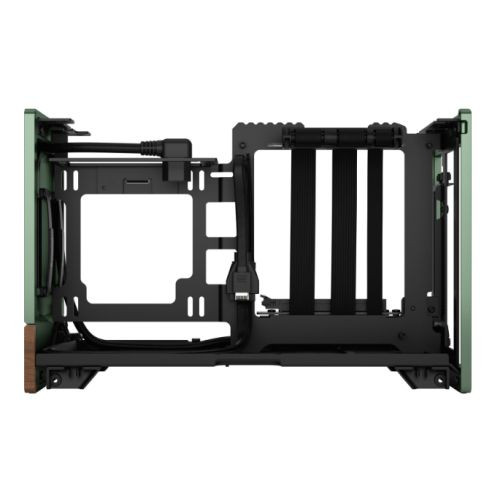

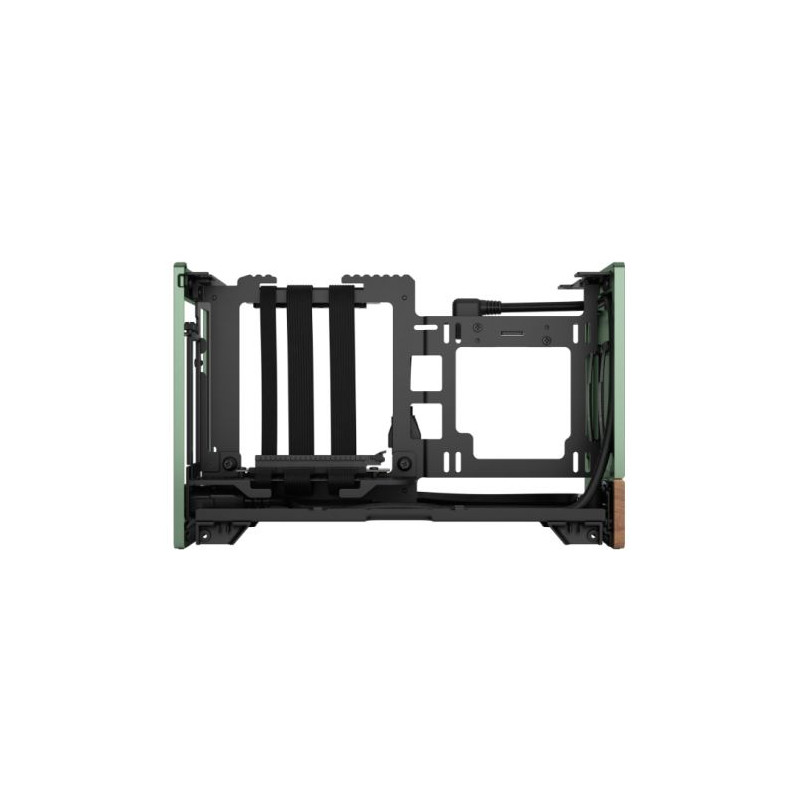

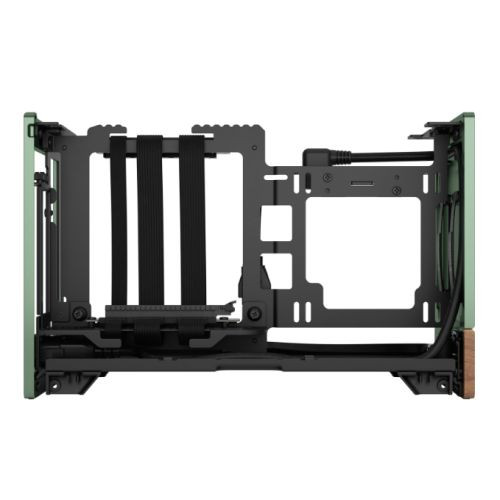

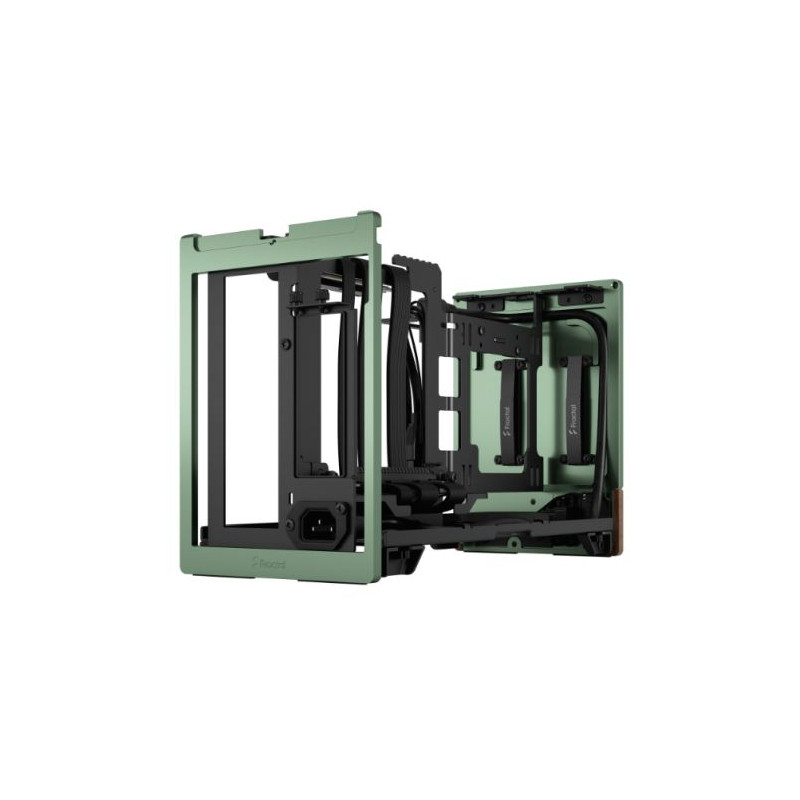

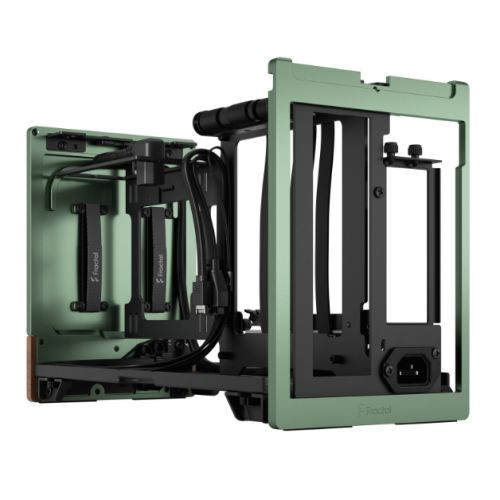

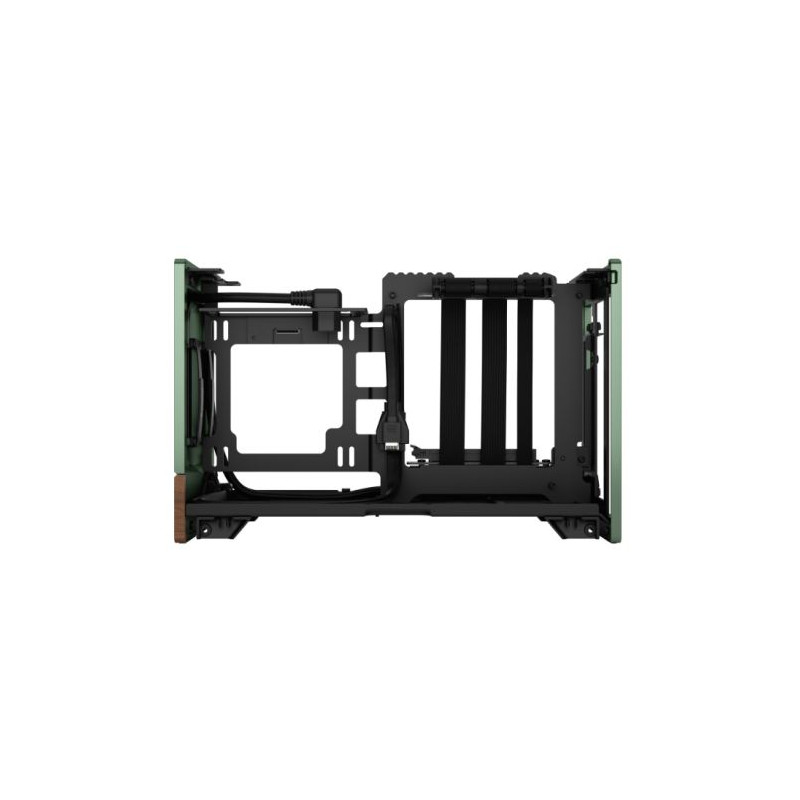

Adjustable motherboard plate

Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall

Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other

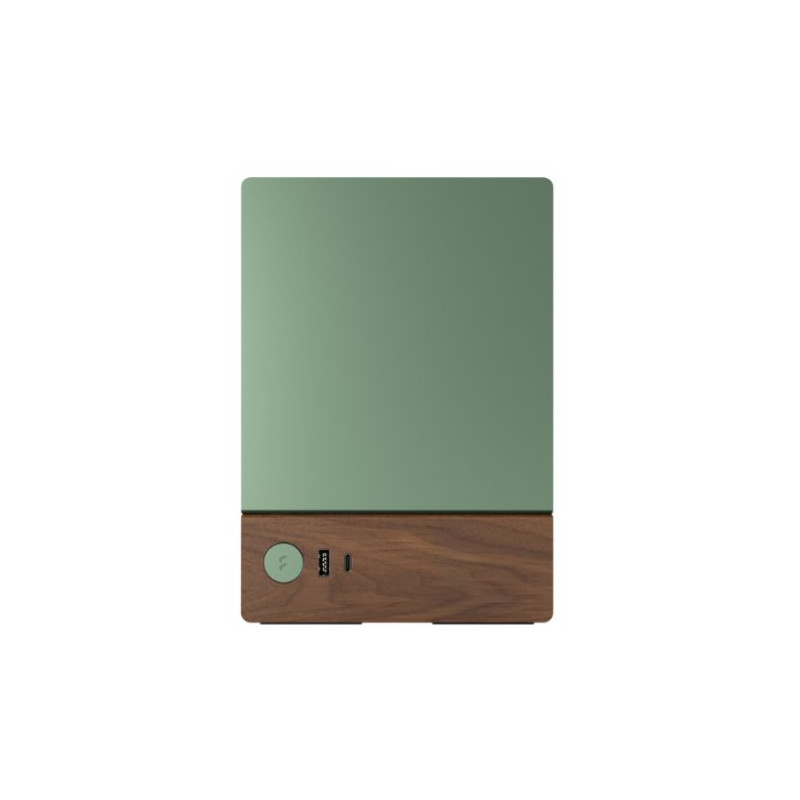

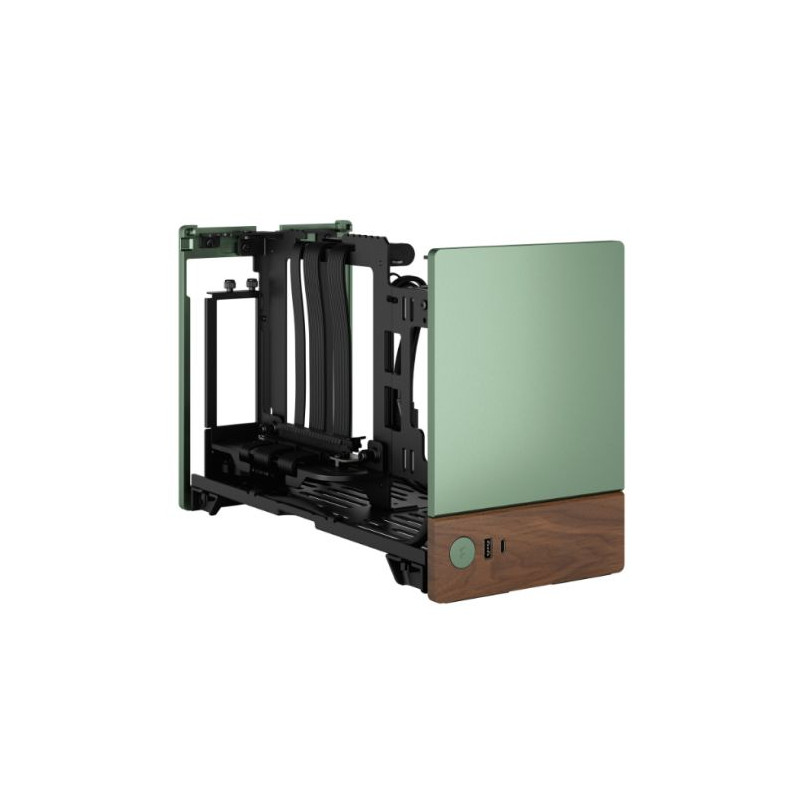

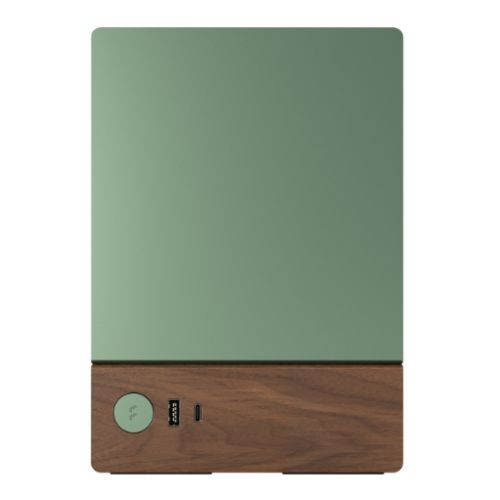

Front-facing I/O

The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps

Natural material

Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.

Highly transportable

Features the ability to lock the top and side panels for safer transportation of your build

23 Item Items Warning: Last items in stock!

£ 205.50

Quantity

Data sheet

Note:	Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. As for the dimensions, due to the measuring, please allow measuring deviations. Thank you!
Manufacturer Number:	FD-C-TER1N-03
Manufacturer:	FRACTAL
Warehouse:	UK warehouse. Due to operating from different serviced warehouses, we cannot guarantee multiple items from the same order will be delivered together, although we try our best to do this.

More info

Form Factor

Mini ITX

Power Supply Wattage

No PSU

Motherboard Support

Mini ITX

Connectors / Controls

1 x USB 3.1 Gen2 Type-C
1 x USB 3.0
Power Button

Drive Bays

2 x Dedicated 2.5" Drive Mounts

Expansion Slots

3 Expansion Slots

Cooling System

Included
None

Fan Mounts
Bottom: 1 x 120 mm

Radiator Support:
Side: 1 x 120 mm (121mm wide if 200mm GPU and no SSDs)

Material

Anodized aluminium exterior
Front and back: 8mm CNCd anodized aluminium
Front panel: walnut

Compatibility

GPU max length: 322 mm

Configured for Max GPU:
GPU max width 1: 72 mm (GPU height lower than 131mm)
GPU max width 2: 62 mm (GPU height 131-145mm)
GPU max height: 145 mm
CPU cooler max height: 48 mm

Configured for Max CPU-Cooler:
GPU max width 1: 43 mm (GPU height lower than 131mm)
GPU max width 2: 33 mm (GPU height 131-145mm)
GPU max height: 131 mm
CPU cooler max height: 77 mm

PSU:
SFX and SFX-L only

Weight/Dimensions

3.1 kg
(LxWxH) 343 x 153 x 218 mm
w/o feet/protrusions/screws: 343 x 153 x 198 mm
10.4 litres (non-protruding parts)

Additional Features

See Overview

Click here for Installation Manual

Accessories

Accessory box
Manual

Package Weight

4.2000 kg

Warranty

2 Years
